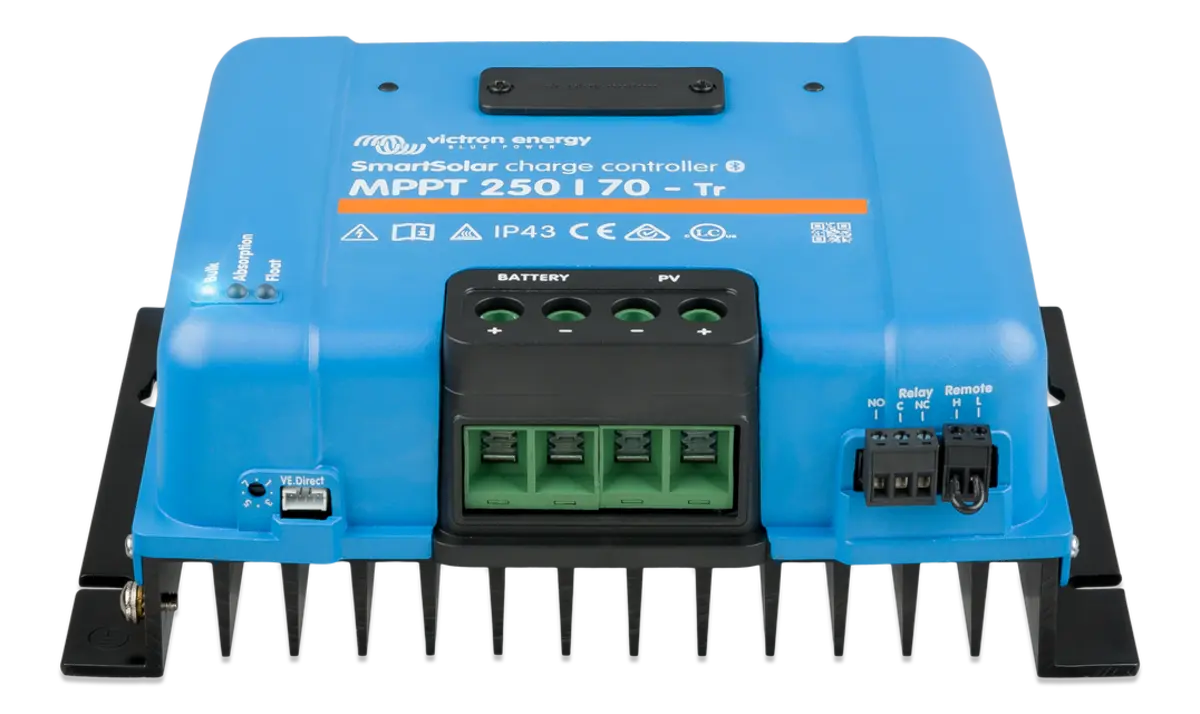

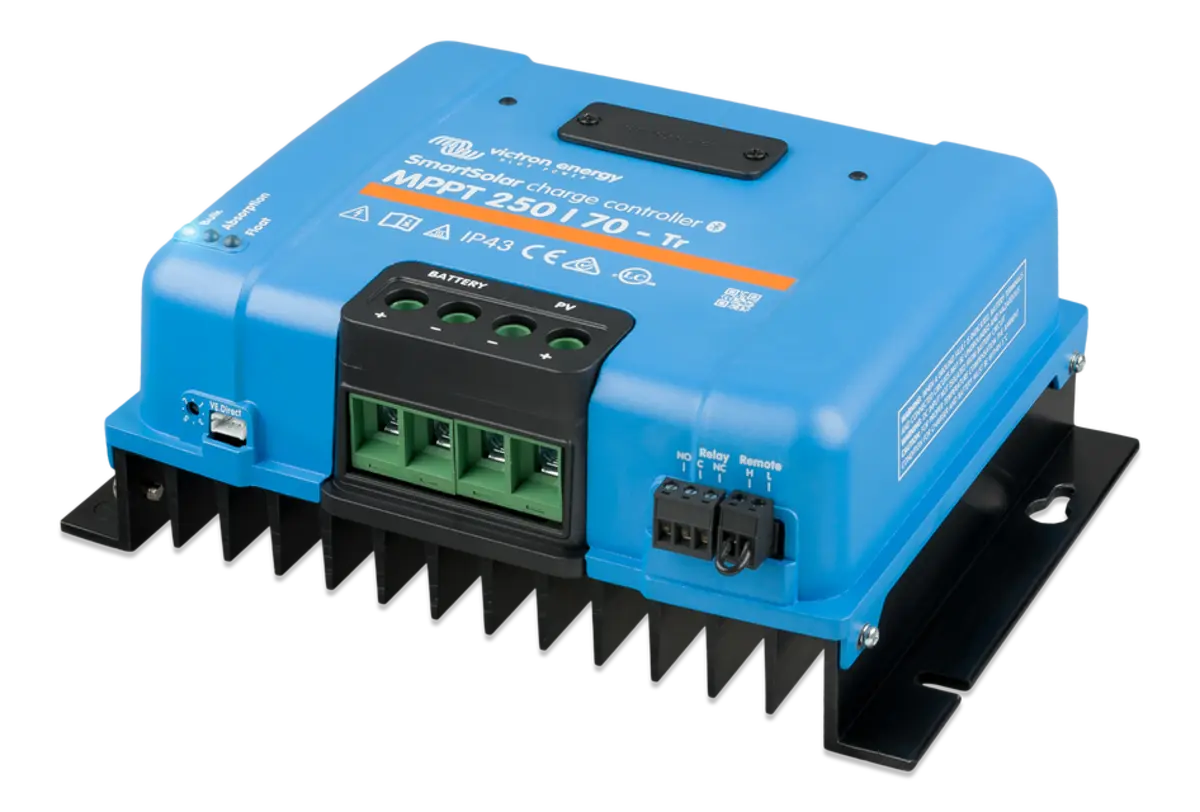

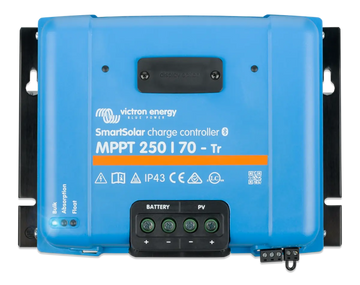

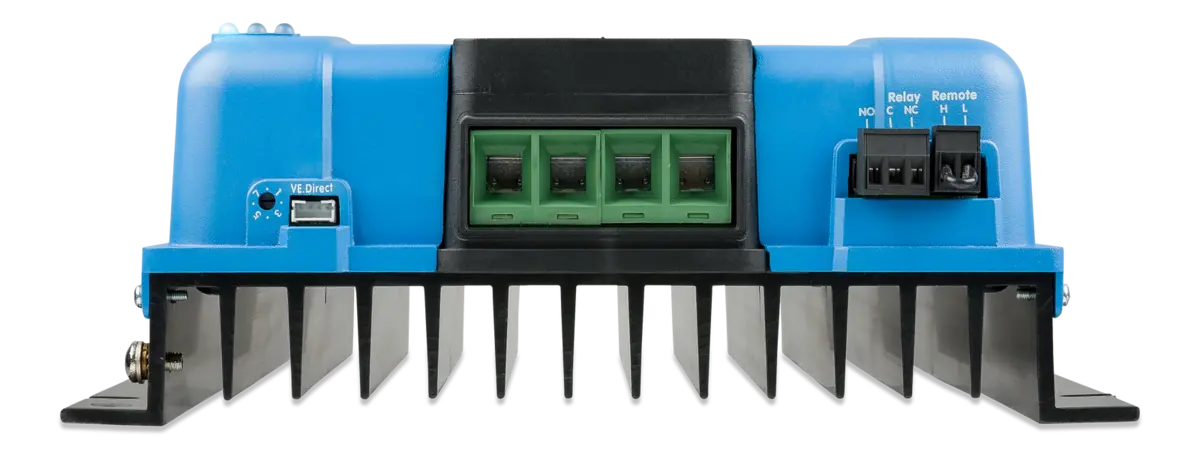

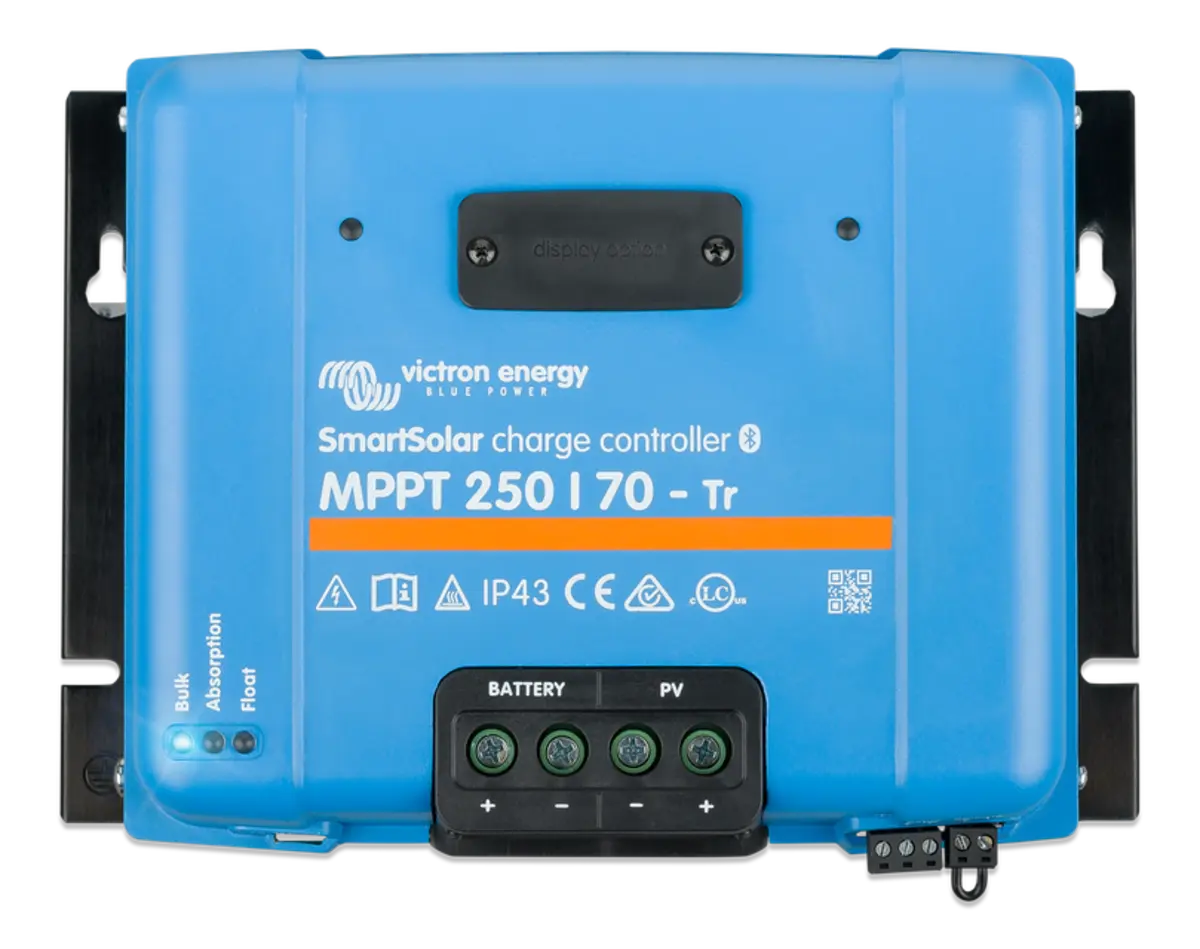

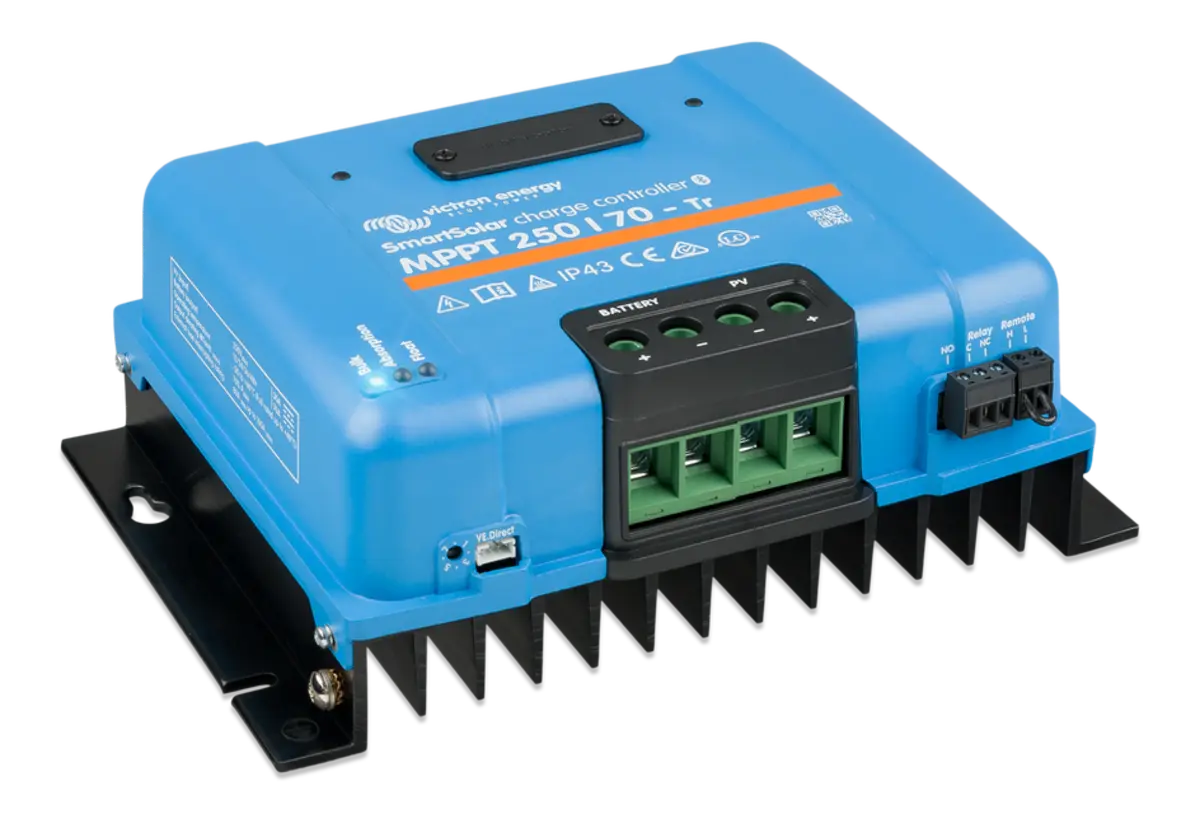

Victron Energy SmartSolar MPPT 250/70-Tr

Overview of Victron Energy SmartSolar MPPT 250/70-Tr

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximizes this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life. The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

Features

• MPPT: Ultra fast maximum power point tracking by constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels and harvested for storage
• The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing
• Remote monitoring and control - remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a bluetooth dongle and pairing it with your smartphone or other device via VictronConnect
• If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use
• For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520
• Optional SmartSolar control display - By adding the SmartSolar Control Display you will be able to check the status of your Charger and battery-storage at a glance
• Simply plug it into the face of your MPPT charger to provide you with real-time monitoring and set-up capabilities


Specifications

• Type: MPPT
• Series/Model: 250/70-Tr
• Battery Voltage: 12/24/48 V Auto Select (Software Tool Needed to Select 36 V)
• Enclosure Rating: IP43 (Electronic Components), IP22 (Connection Area)
• Maximum PV Open Circuit Voltage: 250 V Absolute Maximum Coldest Conditions, 245 V Start-Up and Operating Maximum
• Operating Temperature: -30 to 60°C (Full Rated Output up to 40°C)
• Self-Consumption: <35 mA at 12 V, <20 mA at 48 V
• Humidity: 95%, Non-Condensing
• Power Terminal: 35 mm²/2 AWG
• Temperature Compensation: -16 mV/-32 mV/-64 mV/°C
• Maximum PV Short Circuit Current: 35 A
• Nominal PV Power at 12 V: 1000 W
• Nominal PV Power at 24 V: 2000 W
• Charge Current Rating: 70 A
• Protection: PV Reverse Polarity, Output Short Circuit, Over Temperature
• Absorption Charge: 14.4/28.8/43.2/57.6 V (Adjustable with Rotary Switch, Display, VE.Direct, or Bluetooth)
• Float Charge: 13.8/27.6/41.4/55.2 V (Adjustable with Rotary Switch, Display, VE.Direct, or Bluetooth)
• Peak Efficiency: 98%
• Charging Algorithm: Multi-Stage Adaptive (Eight Pre-Programmed Algorithms) or User-Defined Algorithm
• Data Communication: VE.Direct or Bluetooth
• Color: Blue (RAL 5012)
• Nominal PV Power at 48 V: 4000 W
• Battery Terminals: 35 mm²/2 AWG
• Nominal PV Power at 36 V: 3000 W
• Data Stored: Battery Voltage, Current, and Temperature, Load Output Current, PV Voltage, and PV Current
• Number of Days Trends Data is Stored: 46
• Charge Voltage Equalization: 16.2/32.4/48.6/64.8 V (Adjustable)
• Maximum Altitude: 5000 m (Full Rated Output up to 2000 m)
• Environmental Condition: Indoor, Unconditioned
• Pollution Degree: PD3
• Remote On/Off: Yes (2 Pole Connector)
• Programmable Relay: DPST AC Rating: 240 VAC/4 A, DPST DC Rating: 4 A up to 35 VDC, 1 A up to 60 VDC
• Parallel Operation: Yes: up to 10 units can be Synchronized with Bluetooth
• Dimensions: 185 mm Height x 250 mm Width x 95 mm Depth
• Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
• Weight: 3 kg

Documents

• Specification Sheet
• Owners/User Manual


High Efficiency and Advanced MPPT Technology

The Victron Energy SmartSolar MPPT 250/70-Tr incorporates advanced Maximum Power Point Tracking technology to maximize solar panel energy harvest. This intelligent solar charger analyses and tracks the optimum power point of your solar panels, ensuring rapid and efficient battery charging. Its high conversion efficiency makes it ideal for off-grid systems, enabling users to take full advantage of their solar array in varying sunlight conditions. The SmartSolar technology also minimizes power loss and extends battery life by controlling the charging process precisely.

Robust Design and Wide Compatibility

Designed for durability and reliability, the SmartSolar MPPT 250/70-Tr features a rugged aluminum case that acts as an effective heat sink, allowing it to operate reliably under tough environmental conditions. It supports a maximum PV open circuit voltage of 250V, making it compatible with larger solar panels or arrays. This versatility makes it suitable for various applications including boats, RVs, and remote cabins. Additionally, the built-in Bluetooth connectivity allows easy monitoring and configuration via mobile devices.

Easy Monitoring and User-Friendly Interface

Equipped with Bluetooth, the Victron Energy SmartSolar offers seamless interaction through the VictronConnect app. Users can monitor real-time system performance, view historical charging data, and adjust settings remotely, bringing convenience right to your fingertips. This user-friendly approach makes it easier to optimize solar system performance without needing specialized technical skills. The app also supports firmware updates to keep the device’s software current for improved functionality and stability.
