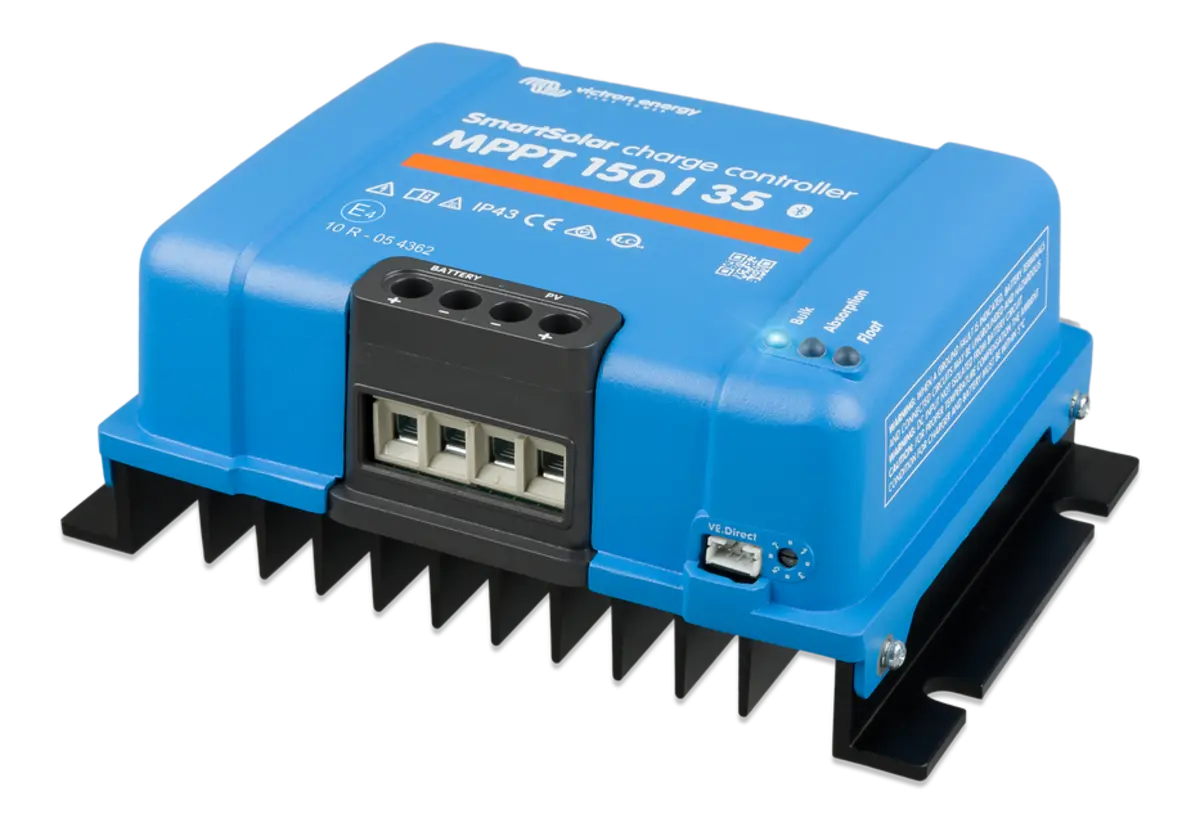

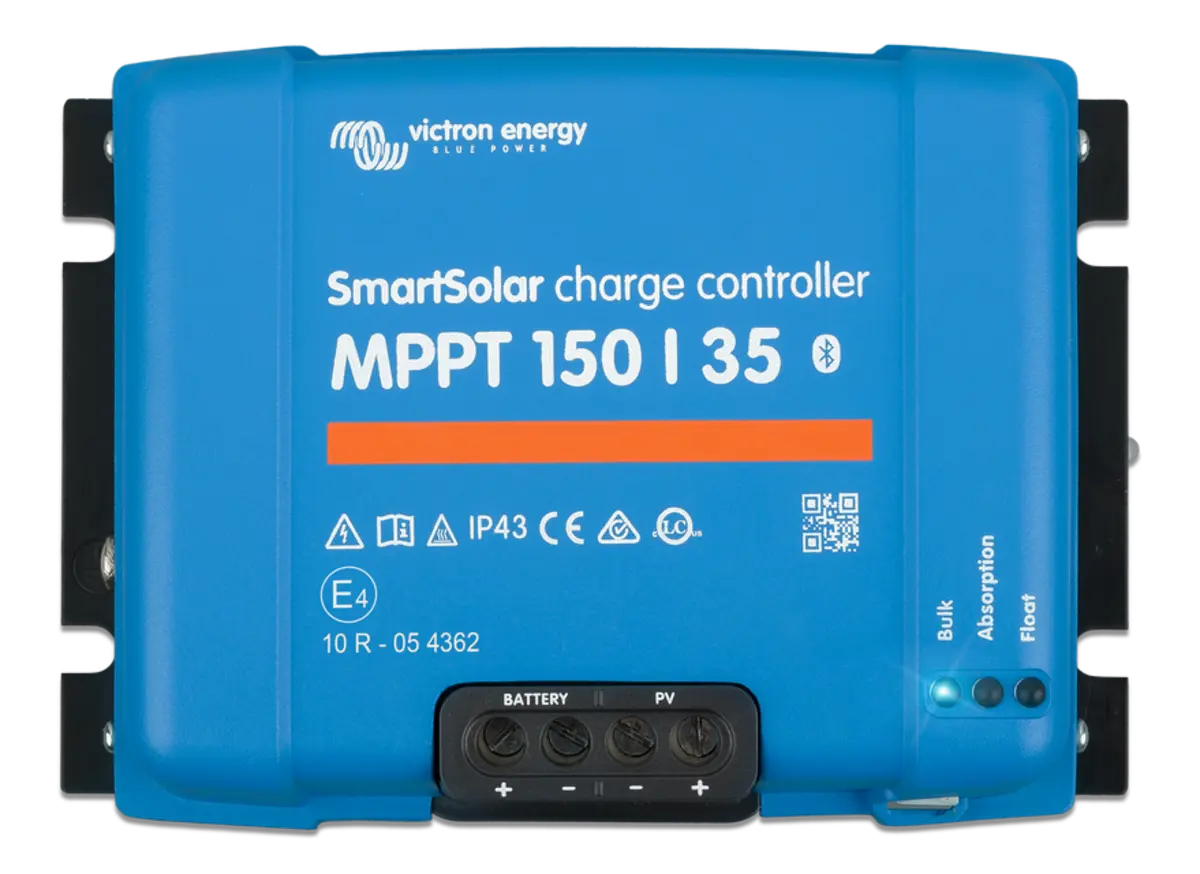

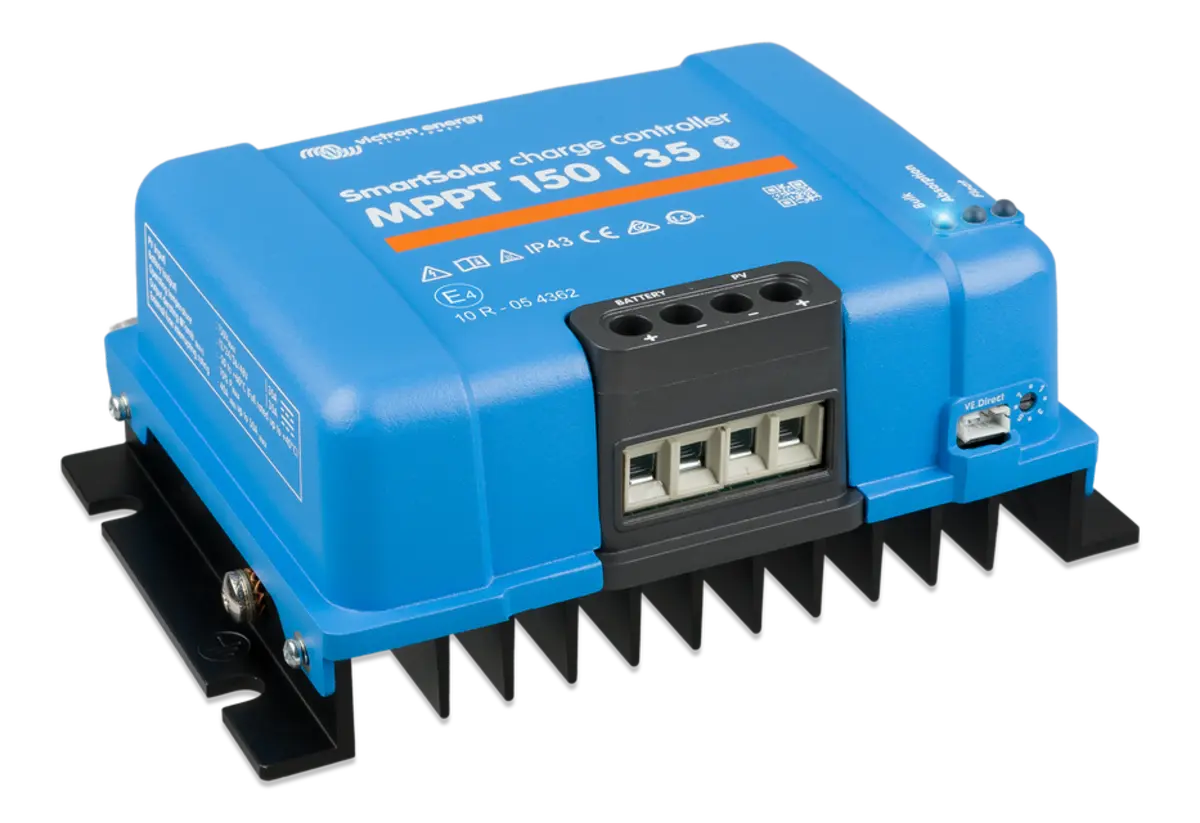

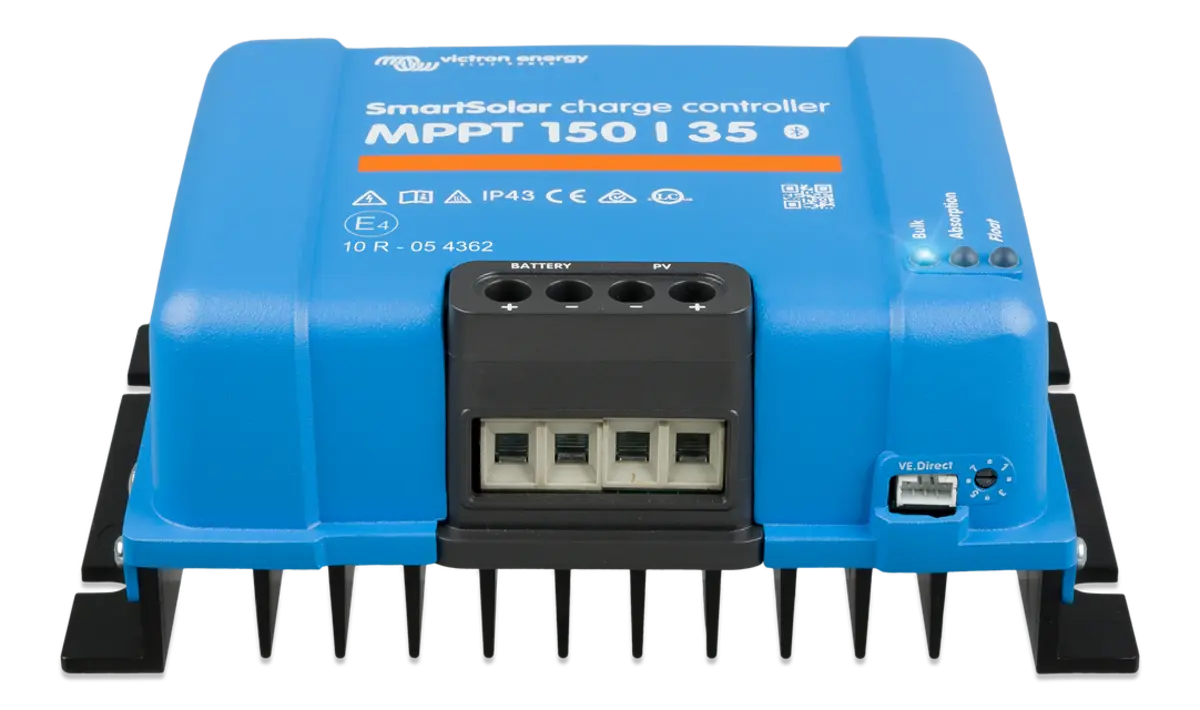

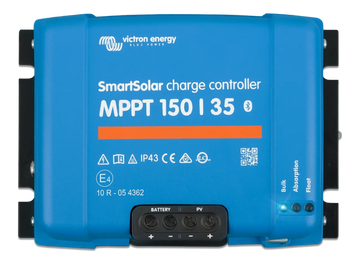

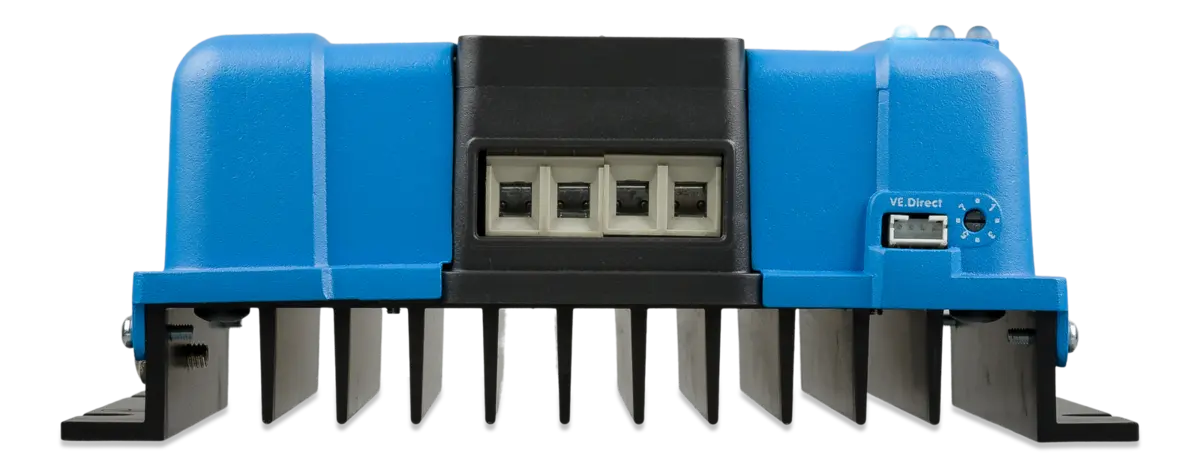

Victron Energy SmartSolar MPPT 150/35

Overview of the Victron Energy SmartSolar MPPT 150/35

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximizes this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life. The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

Features

• MPPT: Ultra fast maximum power point tracking by constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels and harvested for storage
• The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing
• Remote monitoring and control - remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a bluetooth dongle and pairing it with your smartphone or other device via VictronConnect
• If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use
• For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520

Specifications

• Type: MPPT
• Series/Model: 150/35
• Battery Voltage: 12/24/48V Auto Select (Software Tool Needed to Select 36V)
• Enclosure Rating: IP43 (Electronic Components), IP22 (Connection Area)
• Maximum PV Open Circuit Voltage: 150V Absolute Maximum (Coldest Conditions), 145V Start-Up and Operating Maximum
• Operating Temperature: -30°C to 60°C (Full Rated Output up to 40°C)
• Self-Consumption: 20 mA at 12V, 15 mA at 24V, 10 mA at 48V
• Humidity: 95%, Non-Condensing
• Power Terminal: 16 mm²/6 AWG
• Temperature Compensation: -16 mV/-32 mV/-64 mV per °C
• Maximum PV Short Circuit Current: 40A
• Nominal PV Power at 12V: 500W
• Nominal PV Power at 24V: 1000W
• Nominal PV Power at 36V: 1500W
• Nominal PV Power at 48V: 2000W
• Charge Current Rating: 35A
• Protection: PV Reverse Polarity, Output Short Circuit, Over-Temperature
• Absorption Charge: 14.4/28.8/43.2/57.6V (Adjustable: Rotary Switch, Display, VE.Direct, or Bluetooth)
• Float Charge: 13.8/27.6/41.4/55.2V (Adjustable: Rotary Switch, Display, VE.Direct, or Bluetooth)
• Peak Efficiency: 98%
• Charging Algorithm: Multi-Stage Adaptive (Eight Pre-Programmed Algorithms) or User-Defined Algorithm
• Data Communication: VE.Direct (Refer to the Data Communication White Paper on Website)
• Color: Blue (RAL 5012)
• Data Stored: Battery Voltage, Current, Temperature, Load Output Current, PV Voltage, PV Current
• Number of Days Trends Data is Stored: 46
• Dimensions: 130mm Height x 186mm Width x 70mm Depth
• Standards Compliance: EN/IEC 62109-1, UL 1741, CSA C22.2
• Weight: 1.25kg

Documents

• Specification Sheet
• Owners/User Manual


Advanced MPPT Technology for Maximum Solar Energy

The Victron Energy SmartSolar

MPPT 150/35 utilizes cutting-edge Maximum Power Point Tracking (MPPT) technology to extract the maximum possible energy from your solar panels. This ensures higher charging efficiency compared to traditional controllers, particularly in fluctuating weather conditions. It intelligently adjusts to varying voltage and current inputs, optimizing power harvest and preventing energy loss. With an impressive tracking efficiency exceeding 99%, it significantly boosts the overall system performance—ideal for both off-grid solar setups and hybrid energy systems.

Robust Design for Reliability and Longevity

Engineered to perform under demanding conditions, the Victron Energy SmartSolar

MPPT 150/35 features a rugged, corrosion-resistant enclosure suitable for outdoor installations. It delivers dependable operation even in extreme temperatures, ensuring consistent energy conversion. The unit’s advanced cooling system prevents overheating, extending its lifespan. This robust build not only protects internal electronics but also guarantees uninterrupted operation, making it a trustworthy choice for residential, commercial, or remote solar energy applications.

Seamless Connectivity and Smart Monitoring

This Victron Energy SmartSolar

MPPT charge controller integrates Bluetooth functionality for easy wireless monitoring and configuration using the VictronConnect app. Users gain real-time insight into system performance, battery status, and energy harvest directly from their smartphone or tablet. This level of smart connectivity facilitates troubleshooting and fine-tuning without physical access to the device. Additionally, compatibility with various Victron accessories and system components ensures a comprehensive and scalable solar energy management solution.
