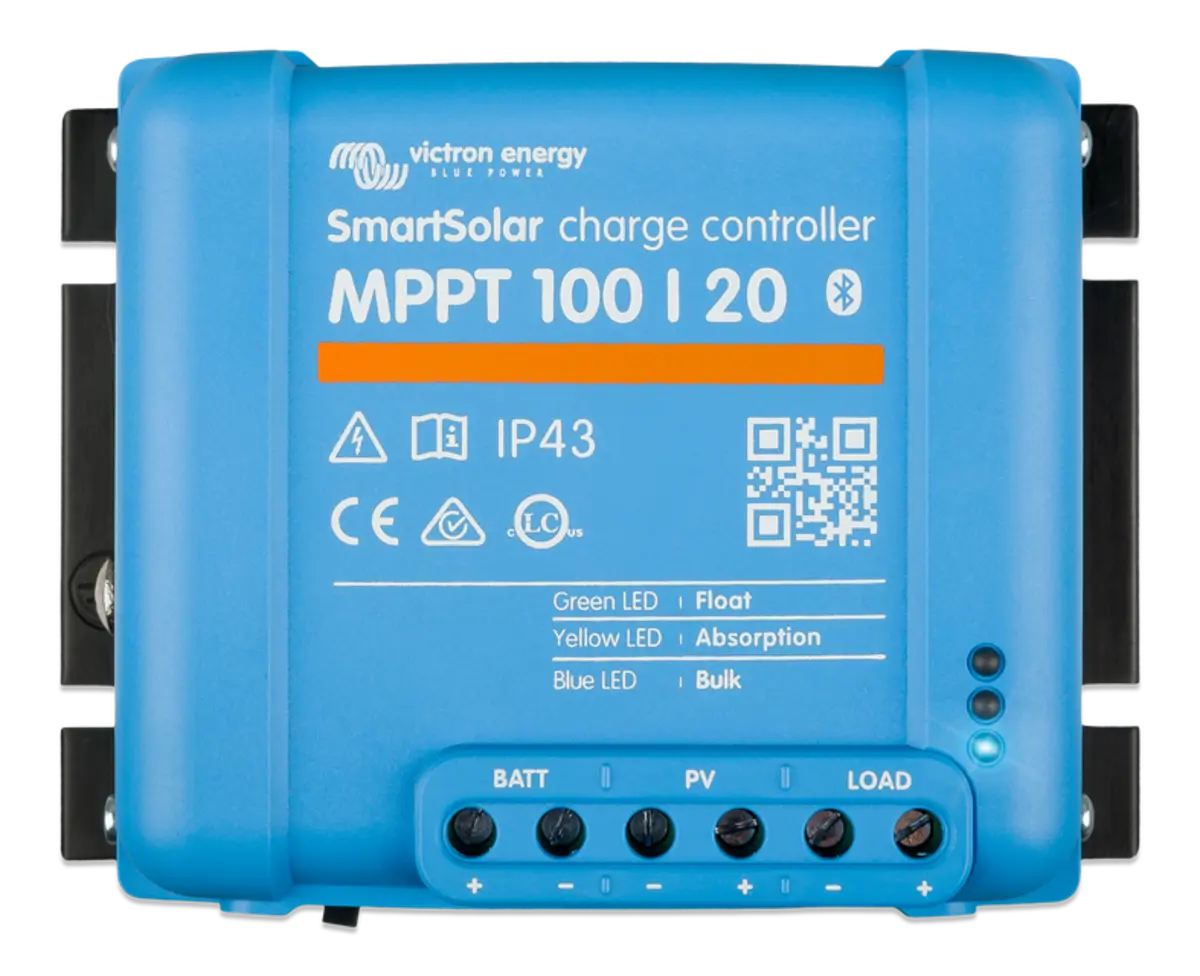

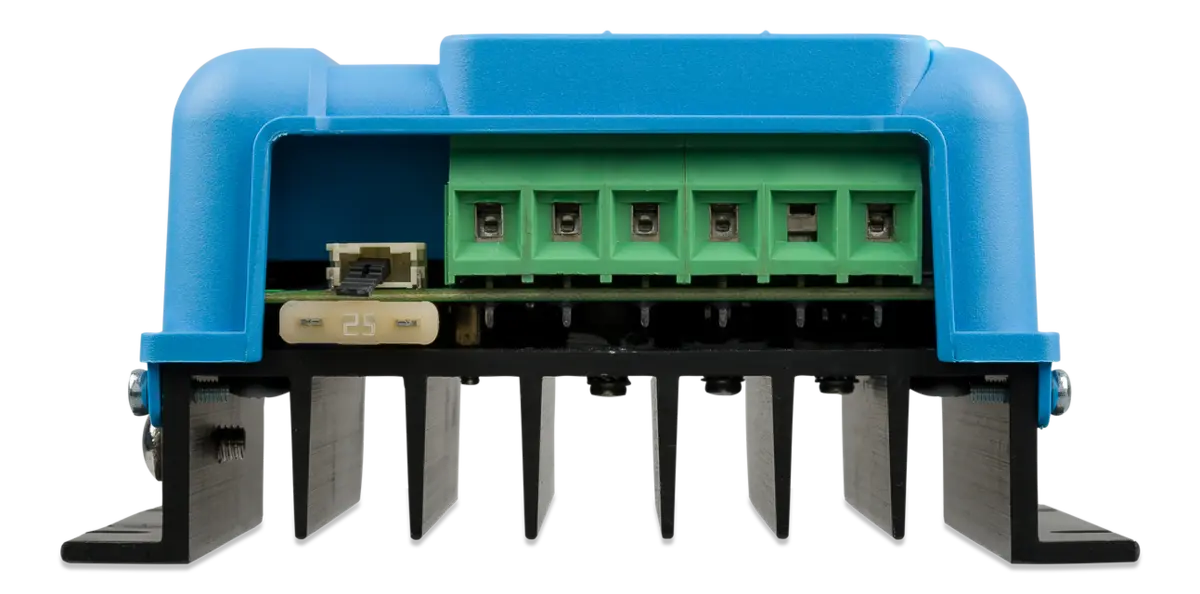

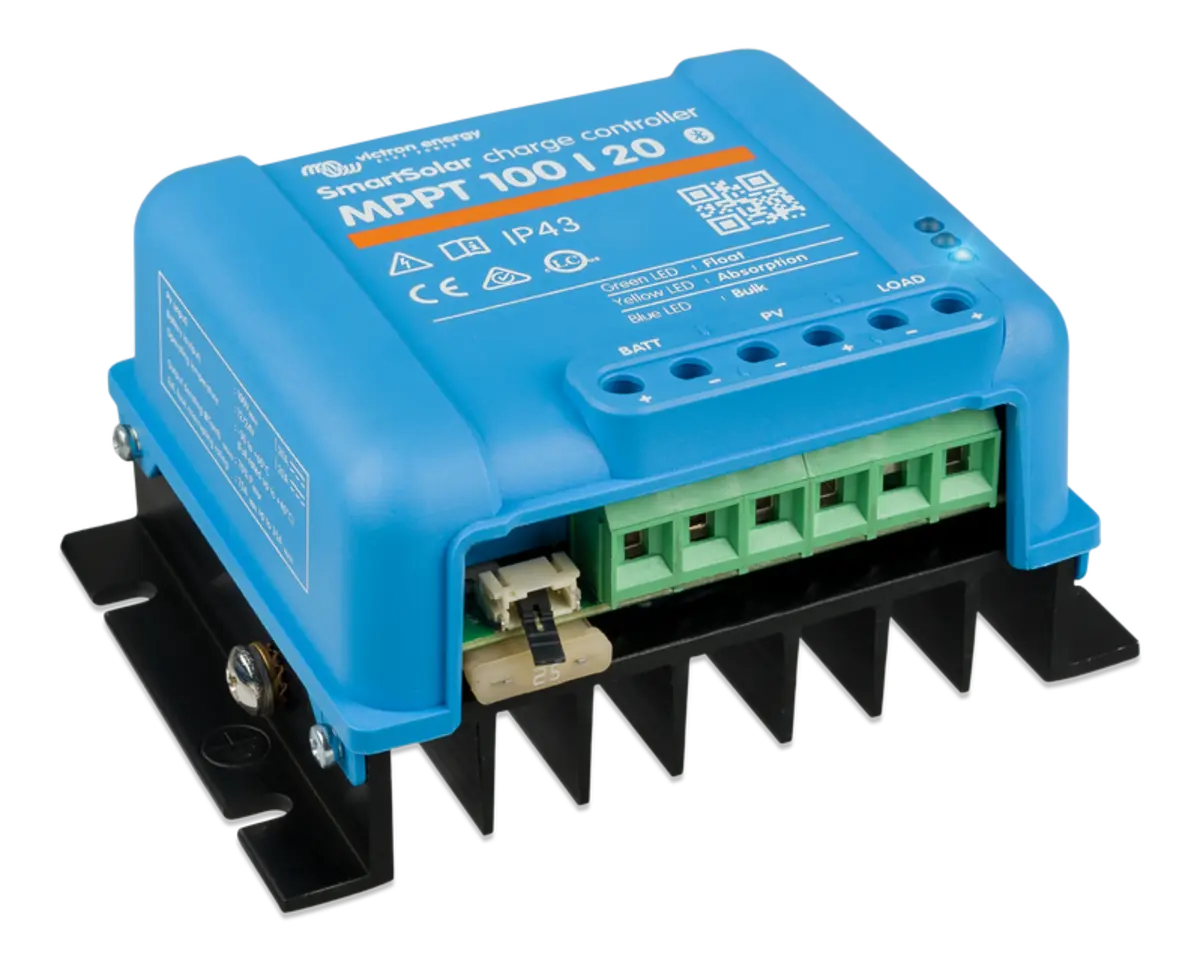

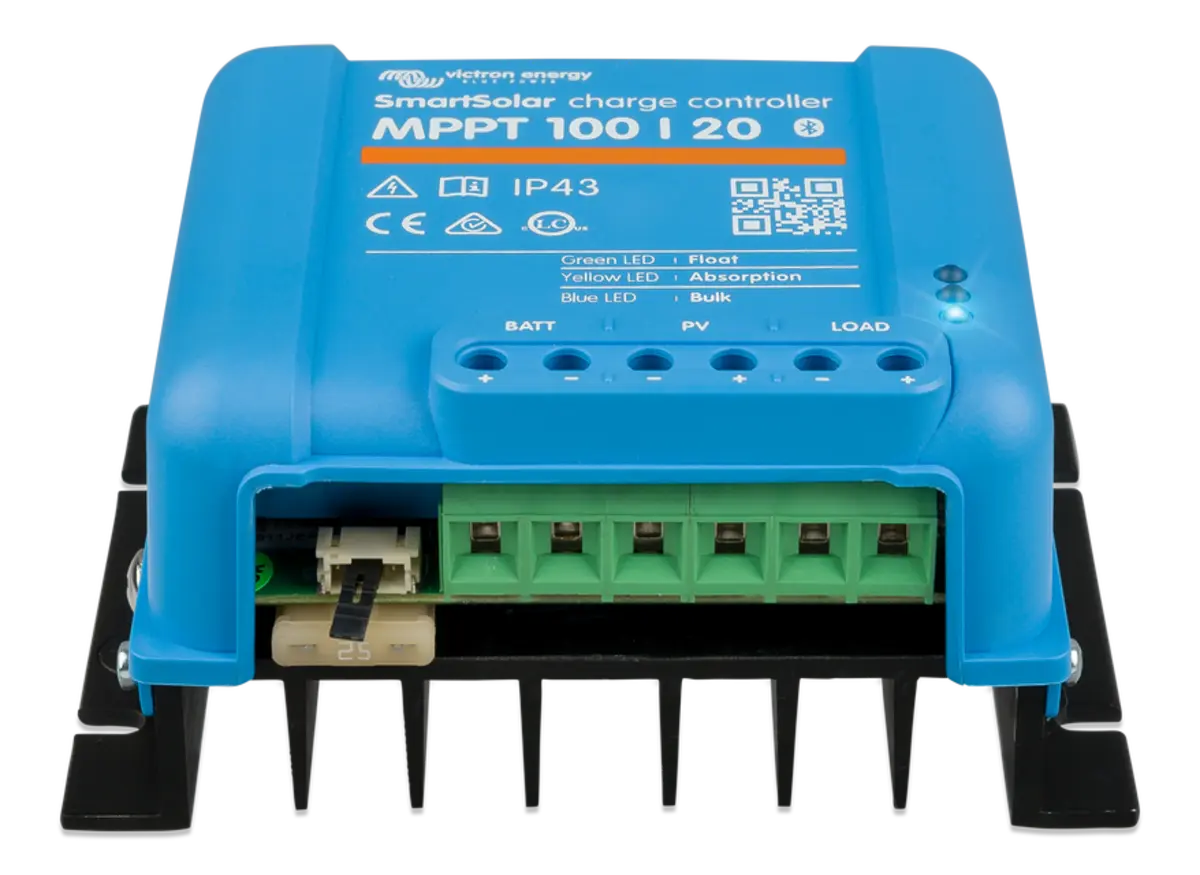

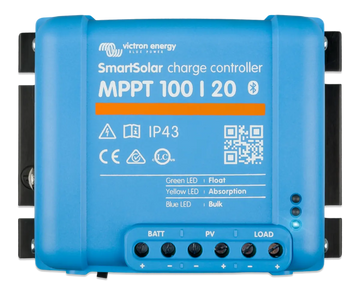

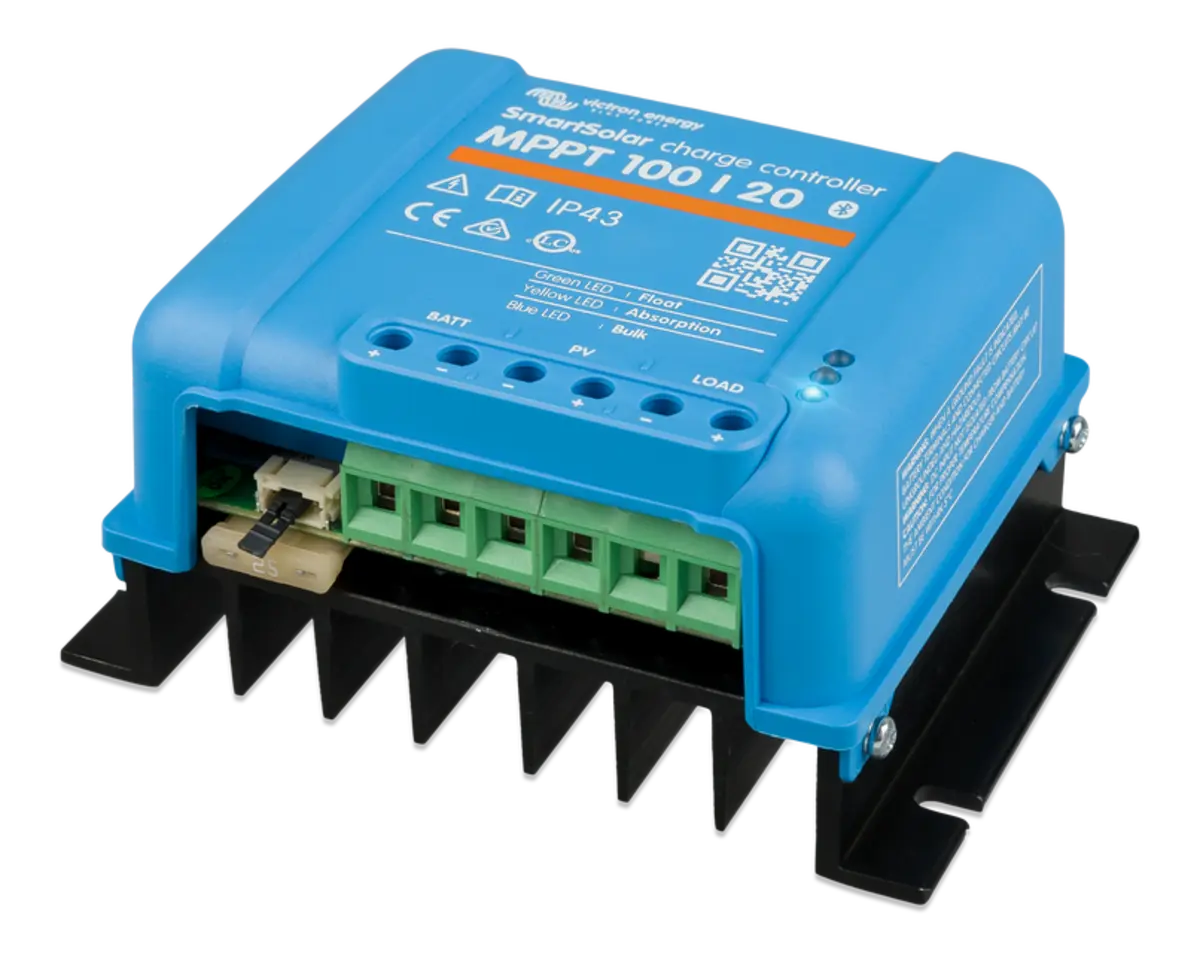

Victron Energy SmartSolar MPPT 100/20

Explore the Features and Benefits of Victron Energy SmartSolar MPPT 100/20

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximizes this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life. The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

Features

• MPPT: Ultra fast maximum power point tracking by constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels and harvested for storage
• The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing
• Remote monitoring and control - remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a bluetooth dongle and pairing it with your smartphone or other device via VictronConnect
• If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use
• For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520
• Load output - The intelligent Load output function prevents damage caused by running batteries 'flat'
• You can configure the voltage at which BlueSolar disconnects a load - thereby preventing excessive drain on your batteries
• And here's the clever bit: BlueSolar will attempt a 100% recharge every day
• If it can't - during periods of poor weather - it raises the disconnect voltage, daily, until it achieves success
• We call this feature BatteryLife because it maintains the health, and extends the life of your battery


Specifications

• Series: RNG
• Length: 65.6 in
• Width: 39.7 in
• Depth: 1.4 in
• Material: Anodized Aluminum Frame
• Color: Black
• Power Voltage: 33.7 V
• Power Current: 9.5 A
• Power Rating: 320 W
• Open Circuit Voltage: 40.1 V
• Short Circuit Current: 10.08 A
• Voltage Rating: 1000 Vdc
• Cell Type: Monocrystalline
• Number of Cells: 60
• Operating Temperature: -40 to 90°C
• Efficiency: 19.18%
• Standards: UL Listed


Documents

• Specification Sheet
• Owners/User Manual


Advanced Solar Charge Control Technology

The Victron Energy SmartSolar MPPT 100/20 is engineered to maximize solar energy harvest with its Maximum Power Point Tracking (MPPT) technology. This advanced controller optimizes the voltage and current from your solar panels, ensuring the battery gets charged efficiently under varying sunlight conditions. Designed for reliability and performance, the SmartSolar series improves energy yields by up to 30% compared to traditional controllers. Whether you are running off-grid systems or backup power solutions, this controller maintains battery health while delivering consistent power.

Smart Connectivity and Monitoring Features

Equipped with Bluetooth functionality, the Victron Energy SmartSolar lets users monitor their solar power system wirelessly through a smartphone or tablet. This allows real-time tracking of system performance, battery status, and energy yields. The intuitive VictronConnect app offers detailed insights and easy adjustments to charging settings. This smart connectivity enhances ease of use, making it perfect for both professional installers and solar power enthusiasts wanting to stay informed about their system.

Robust Design and Safety Features

Built to withstand harsh environments, the Victron Energy SmartSolar MPPT 100/20 features a durable casing and intelligent thermal management to prevent overheating. Its robust design provides protection against dirt, humidity, and mechanical wear, ensuring longevity and consistent operation. Moreover, the controller includes multiple safety protections such as overcurrent, overtemperature, and reverse polarity safeguards. These built-in protections help secure your solar setup, making the SmartSolar MPPT 100/20 a reliable component in any solar energy system.
