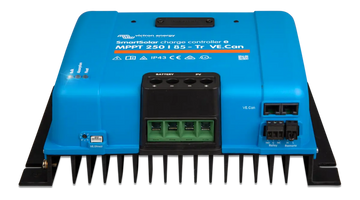

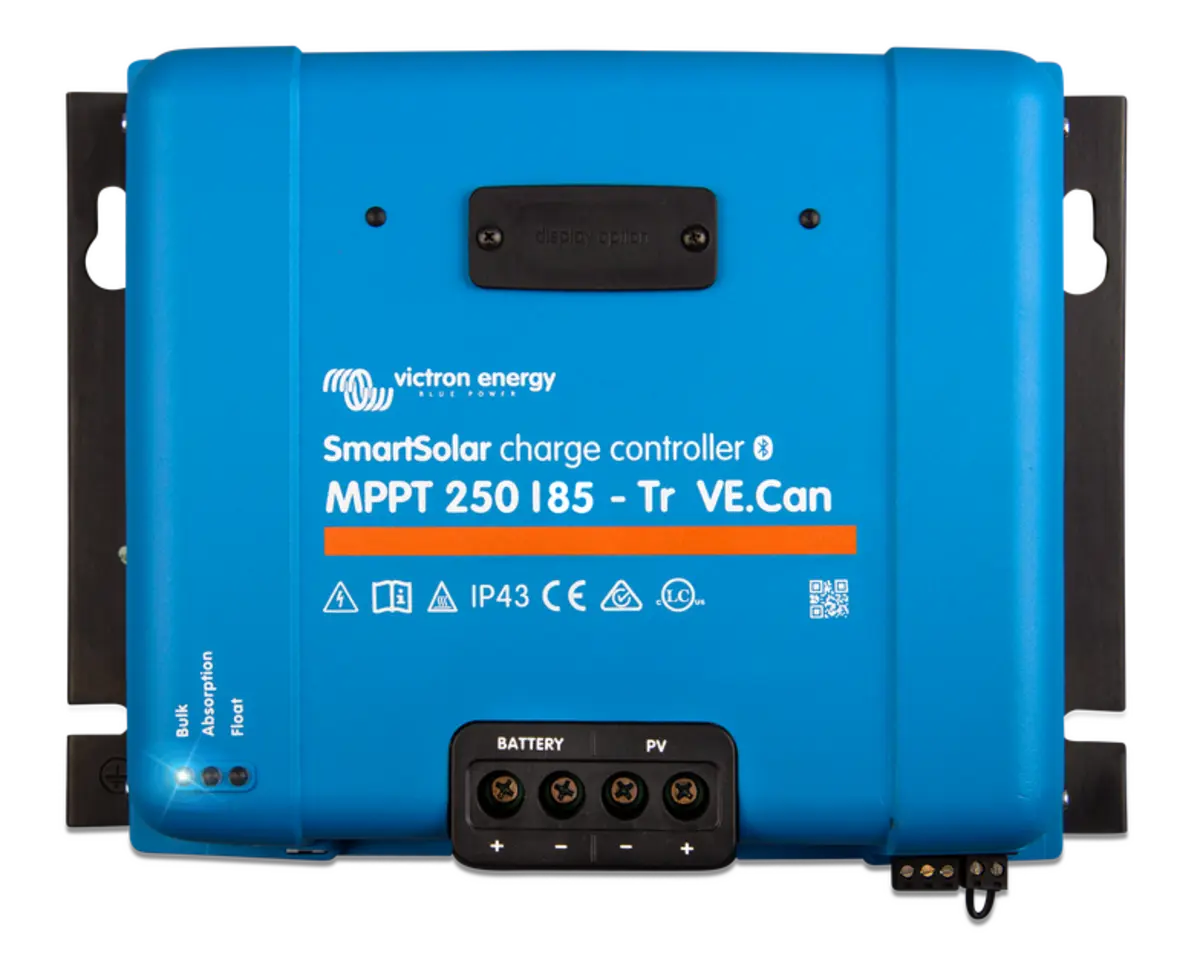

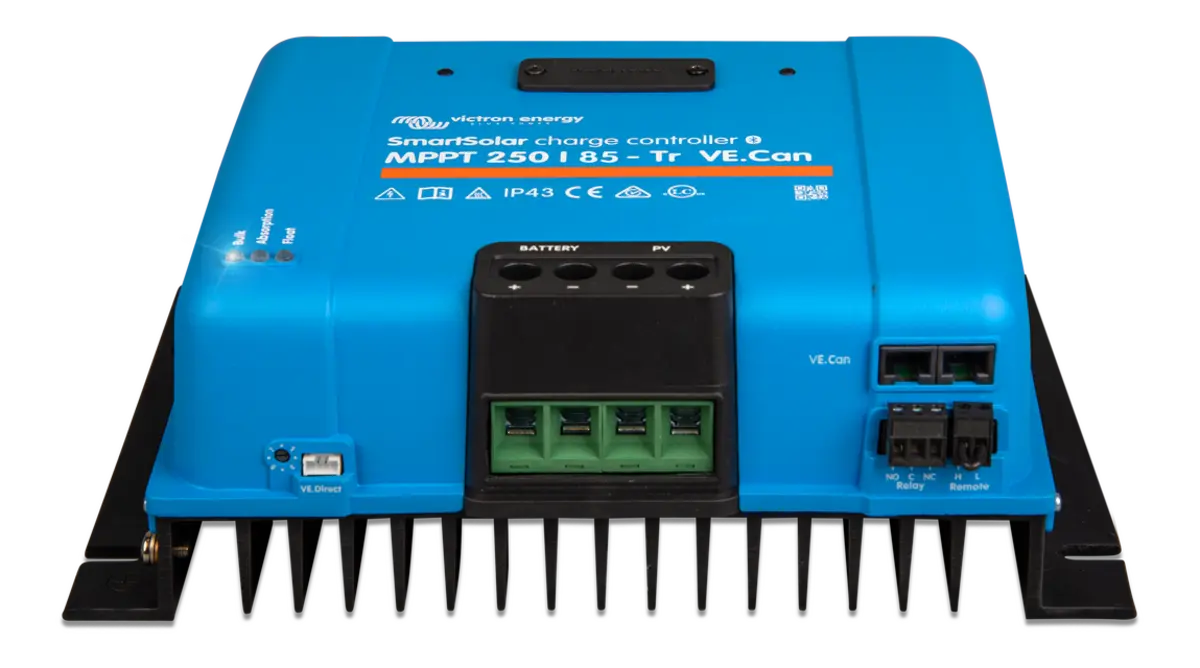

Victron Energy SmartSolar 250/85-Tr VE.Can MPPT Solar Charge Controller

Overview of Victron Energy SmartSolar 250/85-Tr VE.Can MPPT Solar Charge Controller

The MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges a battery banks. The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

Features

• MPPT: Ultra fast maximum power point tracking, the MPPT VE.can SmartSolar charger connects to a PV array of 150 or 250 Volt Voc and will automatically detect and charge your 12, 24, or 48V battery bank with current ranging from 70 to 100A depending on the model
• The charge settings are fully programmable and can even be set up for different battery chemistries, like lead-acid, lithium and others
• Control your charger remotely - The MPPT VE.Can SmartSolar charger can be remotely controlled and configured over Bluetooth via the VictronConnect App
• This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data
• Daisy chain additional units -The VE.Can SmartSolar charger is equipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply "daisy chained" to each other with a single RJ45 cable between the individual units
• When connected to each other, all individual VE.Can SmartSolar chargers, will synchronize their charge stages. They can also send their data, via a single cable, to a GX monitoring device
• Remote monitoring and control - If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s)
• For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520
• SmartSolar control display - The VE.Can SmartSolar charger is also equipped with a VE.Direct port like our other MPPT solar chargers. This port can be for single unit monitoring or for streetlight control
• The remote on/off connector can be externally controlled by a third-party device like a lithium battery, An optional plug-in LCD display/control provides live-data, set-up and management, straight from the face of the device

Specifications

• Type: MPPT
• Series/Model: 250/85-Tr VE.Can
• Battery Voltage: 12/24/48 V Auto Select (36 V Manual)
• Enclosure Rating: IP43 (Electronic Components), IP22 (Connection Area)
• Maximum PV Open Circuit Voltage: 250 V Absolute Maximum Coldest Conditions, 245 V Start-Up and Operating Maximum
• Operating Temperature: -30 to 60°C (Full Rated Output up to 40°C)
• Self-Consumption: <35 mA at 12 V, <20 mA at 48 V
• Humidity: 95%, Non-Condensing
• Power Terminal: 35 mm²/2 AWG
• Temperature Compensation: -16 mV/-32 mV/-64 mV/°C
• Maximum PV Short Circuit Current: 70 A
• Nominal PV Power at 12 V: 1200 W
• Nominal PV Power at 24 V: 2400 W
• Charge Current Rating: 85 A
• Protection: PV Reverse Polarity, Output Short Circuit, Over Temperature
• Absorption Charge: 14.4/28.8/43.2/57.6 V (Adjustable with Rotary Switch, Display, VE.Direct, or Bluetooth)
• Float Charge: 13.8/27.6/41.4/55.2 V (Adjustable with Rotary Switch, Display, VE.Direct, or Bluetooth)
• Peak Efficiency: 98%
• Charging Algorithm: Multi-Stage Adaptive (Eight Pre-Programmed Algorithms) or User-Defined Algorithm
• Data Communication: VE.Can
• Color: Blue (RAL 5012)
• Nominal PV Power at 48 V: 4900 W
• Battery Terminals: 35 mm²/2 AWG
• Nominal PV Power at 36 V: 3600 W
• Data Stored: Battery Voltage, Current, and Temperature, Load Output Current, PV Voltage, and PV Current
• Number of Days Trends Data is Stored: 46
• Charge Voltage Equalization: 16.2/32.4/48.6/64.8 V (Adjustable)
• Maximum Altitude: 5000 m (Full Rated Output up to 2000 m)
• Environmental Condition: Indoor, Unconditioned
• Pollution Degree: PD3
• Remote On/Off: Yes (2 Pole Connector)
• Programmable Relay: DPST AC Rating: 240 VAC/4 A, DPST DC Rating: 4 A up to 35 VDC, 1 A up to 60 VDC
• Parallel Operation: Yes, Parallel Synchronized Operation with VE.Can (Max 25 Units) or Bluetooth (Max 10 Units)
• Dimensions: 216 mm Height x 295 mm Width x 103 mm Depth
• Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
• Weight: 4.5 kg

Documents

• Specification Sheet
• Owners/User Manual


Advanced Solar Charge Management for Maximum Efficiency

The Victron Energy SmartSolar 250/85-Tr VE.Can MPPT solar charge controller offers highly efficient solar power regulation through Maximum Power Point Tracking (MPPT) technology. This cutting-edge controller optimizes the energy harvested from your solar panels by continuously adjusting to changing sunlight conditions, ensuring the battery is charged at the fastest rate possible. With a 250V input and 85A output capacity, it provides reliable, high-capacity control perfect for demanding solar setups. The SmartSolar line also includes integrated Bluetooth connectivity, enabling easy monitoring and configuration via the VictronConnect app for user-friendly operation.

Robust Design with VE.Can Communication for System Integration

Engineered with a VE.Can port, the Victron Energy SmartSolar 250/85-Tr allows seamless integration into larger energy systems, enabling communication between multiple devices such as inverters and battery monitors. This feature supports detailed system status monitoring and simplifies management of complex solar power installations. The robust design includes comprehensive protection against overheating, short circuits, and reverse polarity, ensuring durability in harsh environments. Its advanced system diagnostics provide real-time data that helps optimize performance while protecting your equipment.

Enhanced Battery Protection for Longer Lifespan

The Victron Energy SmartSolar 250/85-Tr incorporates sophisticated charging algorithms tailored to extend battery life and maintain optimal health. By intelligently regulating charging stages—bulk, absorption, float, and storage—the controller prevents overcharging and excessive discharging, key factors that can degrade batteries prematurely. It supports multiple battery chemistries, including lead-acid and lithium, offering versatile compatibility. With this controller, users benefit from enhanced safety features and longevity, making it an excellent choice for both off-grid and hybrid solar power systems looking to maximize battery performance and reliability.
