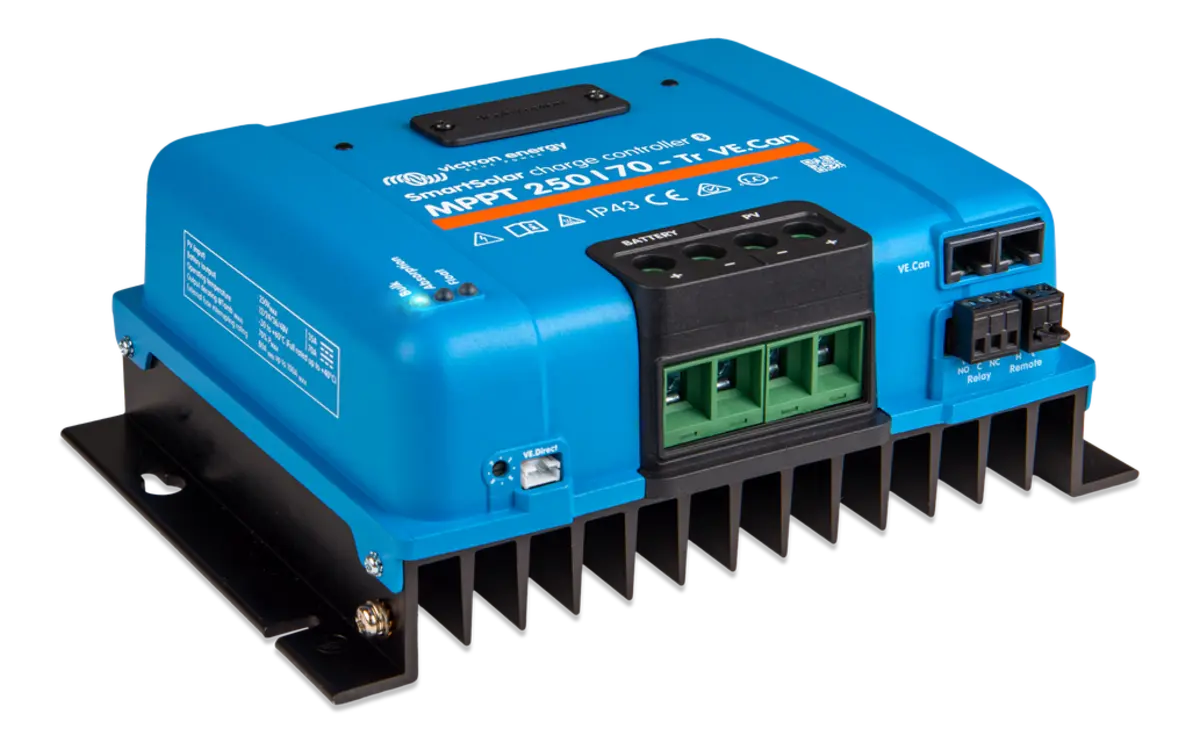

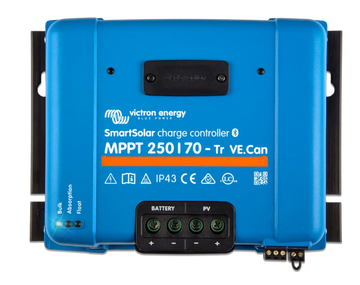

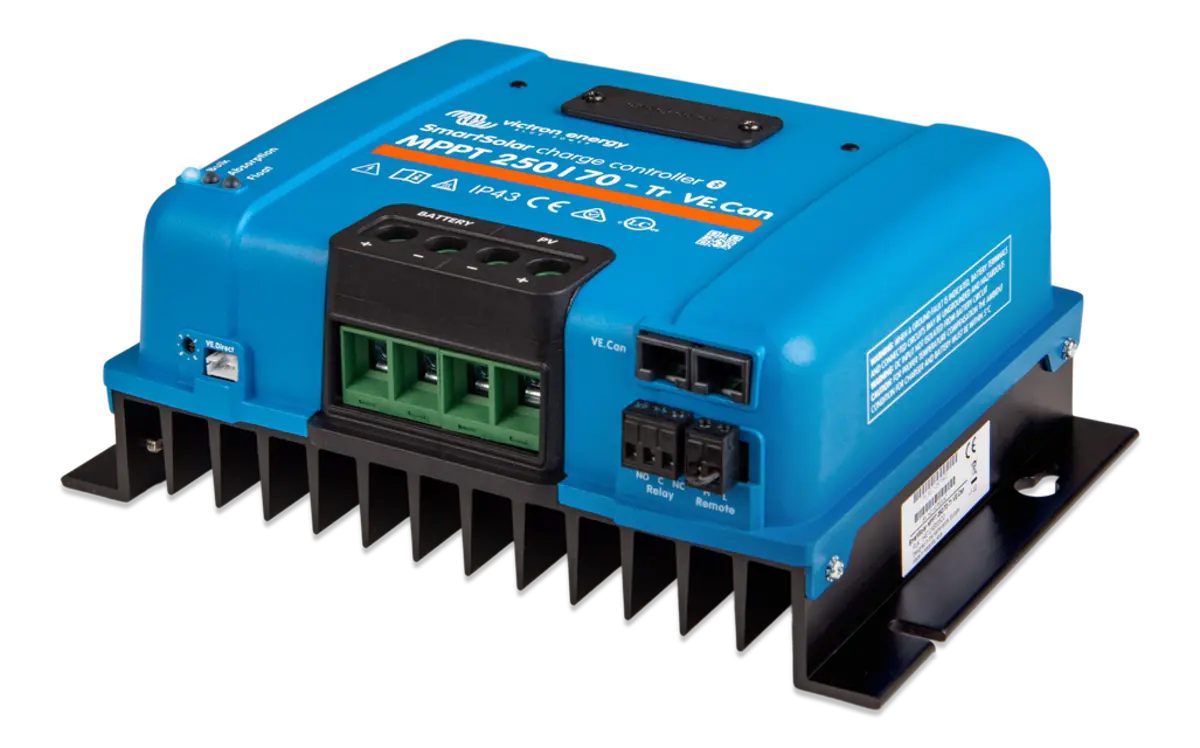

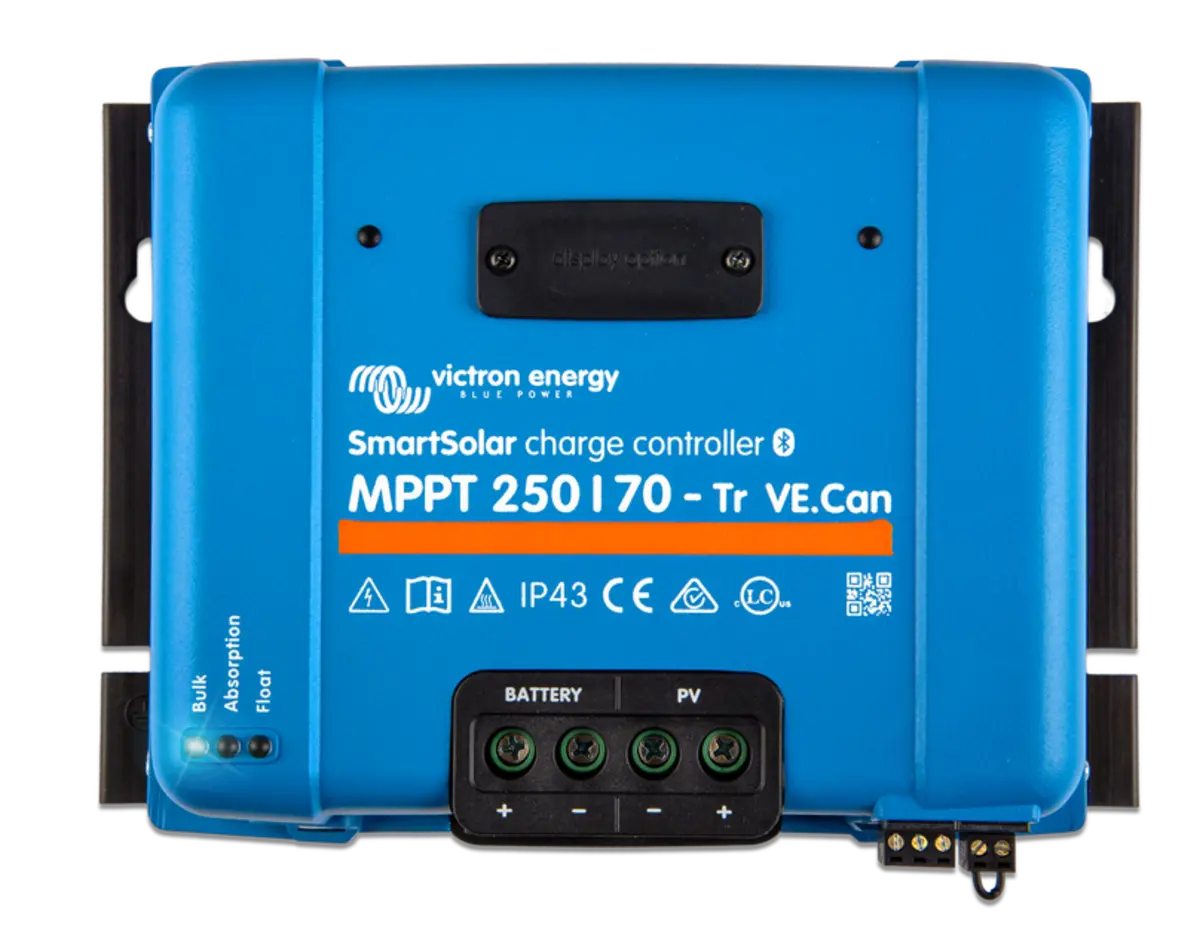

Victron Energy SmartSolar 250/70-Tr VE.Can MPPT Solar Charge Controller

Victron Energy SmartSolar: Advanced MPPT Solar Charge Controller

The MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges a battery banks. The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

Features

• MPPT: Ultra fast maximum power point tracking, the MPPT VE.can SmartSolar charger connects to a PV array of 150 or 250 Volt Voc and will automatically detect and charge your 12, 24, or 48V battery bank with current ranging from 70 to 100A depending on the model
• The charge settings are fully programmable and can even be set up for different battery chemistries, like lead-acid, lithium and others
• Control your charger remotely - The MPPT VE.Can SmartSolar charger can be remotely controlled and configured over Bluetooth via the VictronConnect App
• This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data

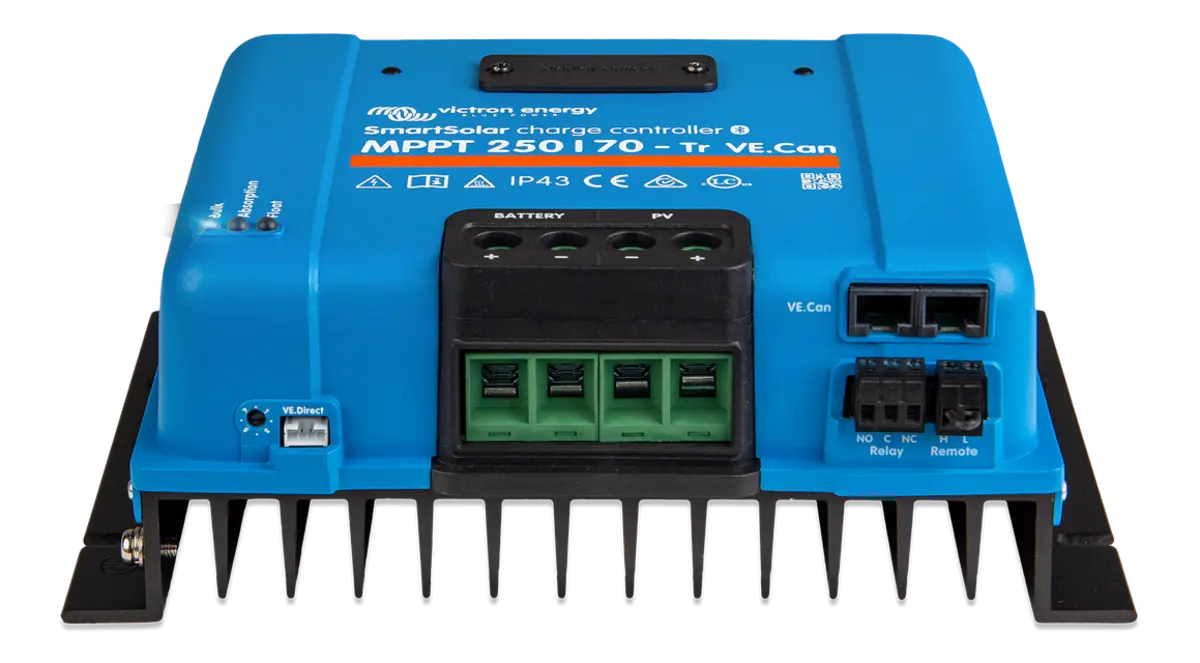

• Daisy chain additional units -The VE.Can SmartSolar charger is equipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply "daisy chained" to each other with a single RJ45 cable between the individual units
• When connected to each other, all individual VE.Can SmartSolar chargers, will synchronize their charge stages. They can also send their data, via a single cable, to a GX monitoring device
• Remote monitoring and control - If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s)
• For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520
• SmartSolar control display - The VE.Can SmartSolar charger is also equipped with a VE.Direct port like our other MPPT solar chargers. This port can be for single unit monitoring or for streetlight control

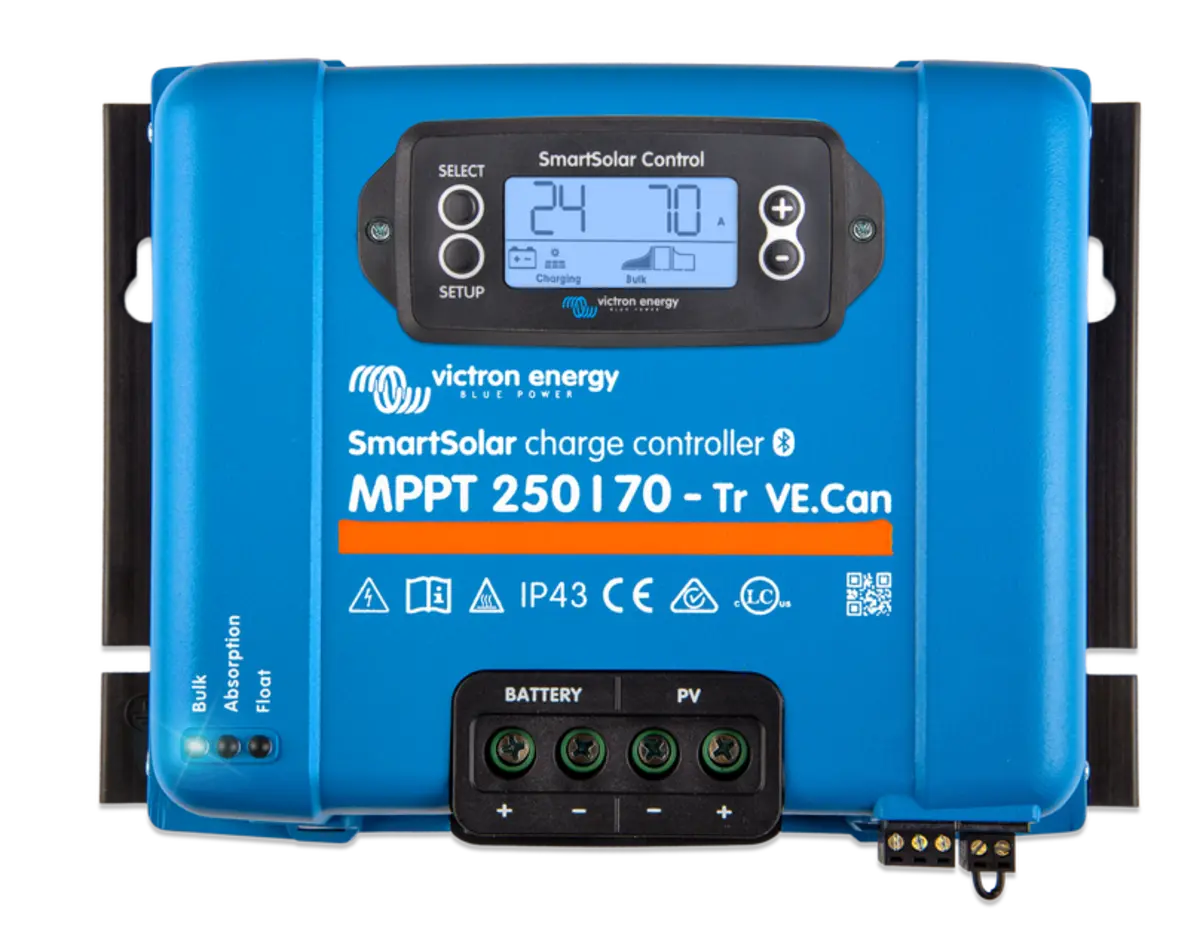

• The remote on/off connector can be externally controlled by a third-party device like a lithium battery, An optional plug-in LCD display/control provides live-data, set-up and management, straight from the face of the device

Specifications

• Type: MPPT
• Series/Model: 250/70-Tr VE.Can
• Battery Voltage: 12/24/48 V Auto Select (36 V Manual)
• Enclosure Rating: IP43 (Electronic Components), IP22 (Connection Area)
• Maximum PV Open Circuit Voltage: 250 V Absolute Maximum Coldest Conditions, 245 V Start-Up and Operating Maximum
• Operating Temperature: -30 to 60°C (Full Rated Output up to 40°C)
• Self-Consumption: <35 mA at 12 V, <20 mA at 48 V
• Humidity: 95%, Non-Condensing
• Power Terminal: 35 mm²/2 AWG
• Temperature Compensation: -16 mV/-32 mV/-64 mV/°C
• Maximum PV Short Circuit Current: 35 A
• Nominal PV Power at 12 V: 1000 W
• Nominal PV Power at 24 V: 2000 W
• Charge Current Rating: 70 A
• Protection: PV Reverse Polarity, Output Short Circuit, Over Temperature
• Absorption Charge: 14.4/28.8/43.2/57.6 V (Adjustable with Rotary Switch, Display, VE.Direct, or Bluetooth)
• Float Charge: 13.8/27.6/41.4/55.2 V (Adjustable with Rotary Switch, Display, VE.Direct, or Bluetooth)
• Peak Efficiency: 98%
• Charging Algorithm: Multi-Stage Adaptive (Eight Pre-Programmed Algorithms) or User-Defined Algorithm
• Data Communication: VE.Can
• Color: Blue (RAL 5012)
• Nominal PV Power at 48 V: 4000 W
• Battery Terminals: 35 mm²/2 AWG
• Nominal PV Power at 36 V: 3000 W
• Data Stored: Battery Voltage, Current, and Temperature, Load Output Current, PV Voltage, and PV Current
• Number of Days Trends Data is Stored: 46
• Charge Voltage Equalization: 16.2/32.4/48.6/64.8 V (Adjustable)
• Maximum Altitude: 5000 m (Full Rated Output up to 2000 m)
• Environmental Condition: Indoor, Unconditioned
• Pollution Degree: PD3
• Remote On/Off: Yes (2 Pole Connector)
• Programmable Relay: DPST AC Rating: 240 VAC/4 A, DPST DC Rating: 4 A up to 35 VDC, 1 A up to 60 VDC
• Parallel Operation: Yes, Parallel Synchronized Operation with VE.Can (Max 25 Units) or Bluetooth (Max 10 Units)
• Dimensions: 185 mm Height x 250 mm Width x 95 mm Depth
• Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
• Weight: 3 kg

Documents

• Specification Sheet
• Owners/User Manual


High-Performance Solar Charging Technology

The Victron Energy SmartSolar 250/70-Tr VE.Can MPPT Solar Charge Controller stands out by efficiently converting solar power to maximize battery charging. Featuring Maximum Power Point Tracking (MPPT) technology, it continuously adjusts the solar panel output to capture the highest possible energy. This controller supports a charging current of up to 70 amps and is designed to work with solar arrays up to 250 volts. Its high-speed processor ensures rapid and precise adjustments, improving the overall energy harvest and extending battery life, making it ideal for off-grid and hybrid solar systems.

Robust Connectivity and Monitoring Features

The SmartSolar 250/70-Tr is equipped with VE.Can connectivity for seamless integration with Victron’s ecosystem, enabling real-time data monitoring and system management. Users can monitor performance through Victron’s VRM Portal or via Bluetooth-enabled devices using the VictronConnect app. This connectivity allows for instant diagnostic feedback, firmware updates, and easy system configuration. The controller also supports parallel operation, enabling scalability when larger solar systems are required, ensuring flexibility and convenience in various installations.

Built for Durability and Reliability

Designed with high-quality materials, the Victron Energy SmartSolar 250/70-Tr ensures durability in harsh environments. Its rugged IP43-rated enclosure provides protection against dust and water spray, suitable for both marine and terrestrial installations. The integrated heatsink allows efficient heat dissipation, maintaining operational stability even under high loads. Furthermore, the controller’s multiple safety features protect against overvoltage, overload, and temperature extremes, guaranteeing secure and reliable solar power management for long-term usage.
