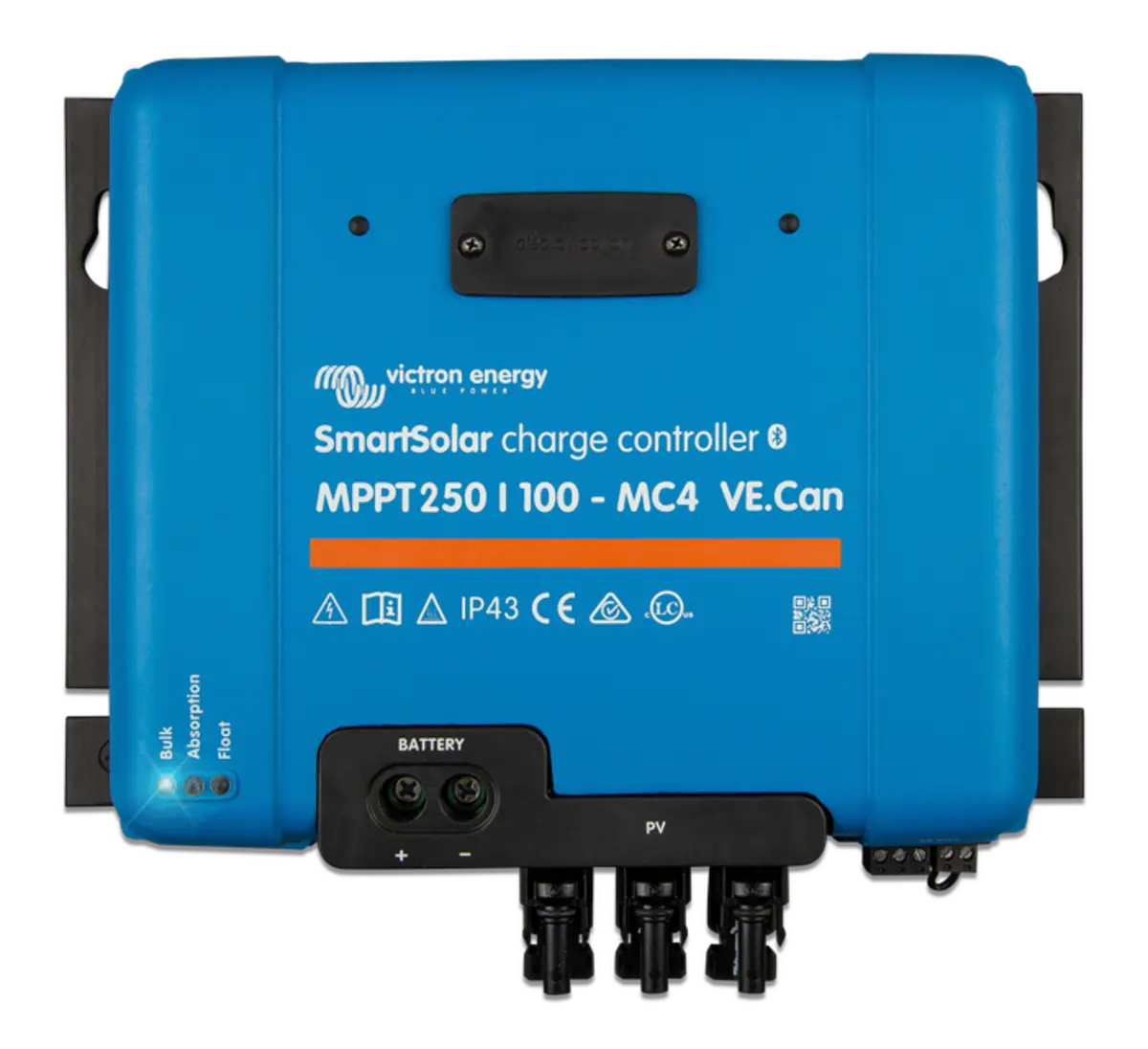

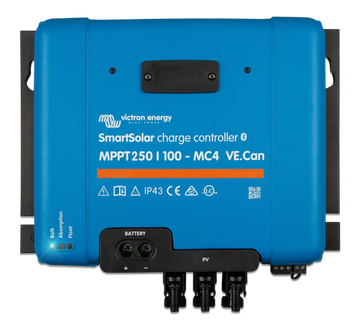

Victron Energy SmartSolar 250/100-MC4 VE.Can MPPT Solar Charge Controller

Victron Energy SmartSolar 250/100-MC4 VE.Can MPPT Solar Charge Controller Features and Benefits

The MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges a battery banks. The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

Features

• MPPT: Ultra fast maximum power point tracking, the MPPT VE.can SmartSolar charger connects to a PV array of 150 or 250 Volt Voc and will automatically detect and charge your 12, 24, or 48V battery bank with current ranging from 70 to 100A depending on the model
• The charge settings are fully programmable and can even be set up for different battery chemistries, like lead-acid, lithium and others
• Control your charger remotely - The MPPT VE.Can SmartSolar charger can be remotely controlled and configured over Bluetooth via the VictronConnect App
• This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data
• Daisy chain additional units -The VE.Can SmartSolar charger is equipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply "daisy chained" to each other with a single RJ45 cable between the individual units
• When connected to each other, all individual VE.Can SmartSolar chargers, will synchronize their charge stages. They can also send their data, via a single cable, to a GX monitoring device
• Remote monitoring and control - If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s)
• For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520
• SmartSolar control display - The VE.Can SmartSolar charger is also equipped with a VE.Direct port like our other MPPT solar chargers. This port can be for single unit monitoring or for streetlight control
• The remote on/off connector can be externally controlled by a third-party device like a lithium battery, An optional plug-in LCD display/control provides live-data, set-up and management, straight from the face of the device

Specifications

• Type: MPPT
• Series/Model: 250/100-MC4 VE.Can
• Battery Voltage: 12/24/48 V Auto Select (36 V Manual)
• Enclosure Rating: IP43 (Electronic Components), IP22 (Connection Area)
• Maximum PV Open Circuit Voltage: 250 V Absolute Maximum Coldest Conditions, 245 V Start-Up and Operating Maximum
• Operating Temperature: -30 to 60°C (Full Rated Output up to 40°C)
• Self-Consumption: <35 mA at 12 V, <20 mA at 48 V
• Humidity: 95%, Non-Condensing
• Power Terminal: Two Pairs of MC4 Connectors
• Temperature Compensation: -16 mV/-32 mV/-64 mV/°C
• Maximum PV Short Circuit Current: 70 A
• Nominal PV Power at 12 V: 1450 W
• Nominal PV Power at 24 V: 2900 W
• Charge Current Rating: 100 A
• Protection: PV Reverse Polarity, Output Short Circuit, Over temperature
• Absorption Charge: 14.4/28.8/43.2/57.6 V (Adjustable with: Rotary Switch, Display, VE.Direct or Bluetooth)
• Float Charge: 13.8/27.6/41.4/55.2 V (Adjustable: Rotary Switch, Display, VE.Direct or Bluetooth)
• Peak Efficiency: 98%
• Charging Algorithm: Multi-Stage Adaptive (Eight Pre-Programmed Algorithms) or User Defined Algorithm
• Data Communication: VE.Can
• Color: Blue (RAL 5012)
• Nominal PV Power at 48 V: 5800 W
• Battery Terminals: 35 mm²/2 AWG
• Nominal PV Power at 36 V: 4350 W
• Data Stored: Battery Voltage, Current and Temperature, as well as Load Output Current, PV Voltage and PV Current
• Number of Days Trends Data is Stored: 46
• Charge Voltage Equalization: 16.2/32.4/48.6/64.8 V (Adjustable)
• Maximum Altitude: 5000 m (Full Rated Output up to 2000 m)
• Environmental Condition: Indoor, Unconditioned
• Pollution Degree: PD3
• Remote On/Off: Yes (2 Pole Connector)
• Programmable Relay: DPST AC Rating: 240 VAC/4 A, DPST DC Rating: 4 A up to 35 VDC, 1 A up to 60 VDC
• Parallel Operation: Yes, Parallel Synchronized Operation with VE.Can (Max 25 Units) or Bluetooth (Max 10 Units)
• Dimensions: 246 mm Height x 295 mm Width x 103 mm Depth
• Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
• Weight: 4.5 kg

Documents

• Specification Sheet
• Owners/User Manual


Advanced Maximum Power Point Tracking with Victron Energy

The Victron Energy SmartSolar 250/100-MC4 VE.Can MPPT solar charge controller is designed to maximize solar power harvest effectively. With its advanced MPPT technology, it continuously optimizes the match between the solar array and the battery bank. This controller ensures higher energy yields in all weather conditions, even when the solar input varies due to shading or cloud cover. Victron Energy’s cutting-edge algorithms enhance conversion efficiency, making this product ideal for off-grid or hybrid solar power systems that demand reliable and efficient energy management.

Robust Design and Connectivity

Victron Energy has engineered the SmartSolar 250/100-MC4 to be both durable and highly functional. It features a robust IP67-rated enclosure, resistant to dust and water, making it suitable for harsh outdoor environments. The VE.Can interface offers seamless integration with Victron’s extensive energy ecosystem, allowing users to monitor and control the system remotely. The MC4 connectors simplify installations, ensuring secure and weatherproof connections. This design focus guarantees long-term performance and reduced maintenance for solar power setups.

Smart Monitoring and User-Friendly Interface

One of the standout features of the Victron Energy SmartSolar controller is its intelligent monitoring capabilities. Users can access real-time system data through the VictronConnect app or VE.Can network, enabling quick diagnostics and performance optimization. The controller supports programmable charging profiles tailored for various battery types, enhancing battery health and lifespan. Victron Energy’s commitment to user experience means this product is suitable for both professional solar installers and DIY enthusiasts seeking efficient solar charge management.
