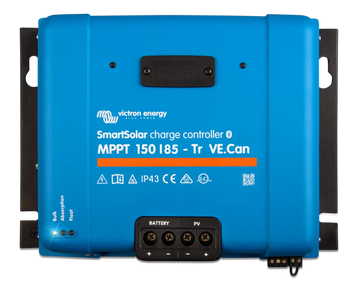

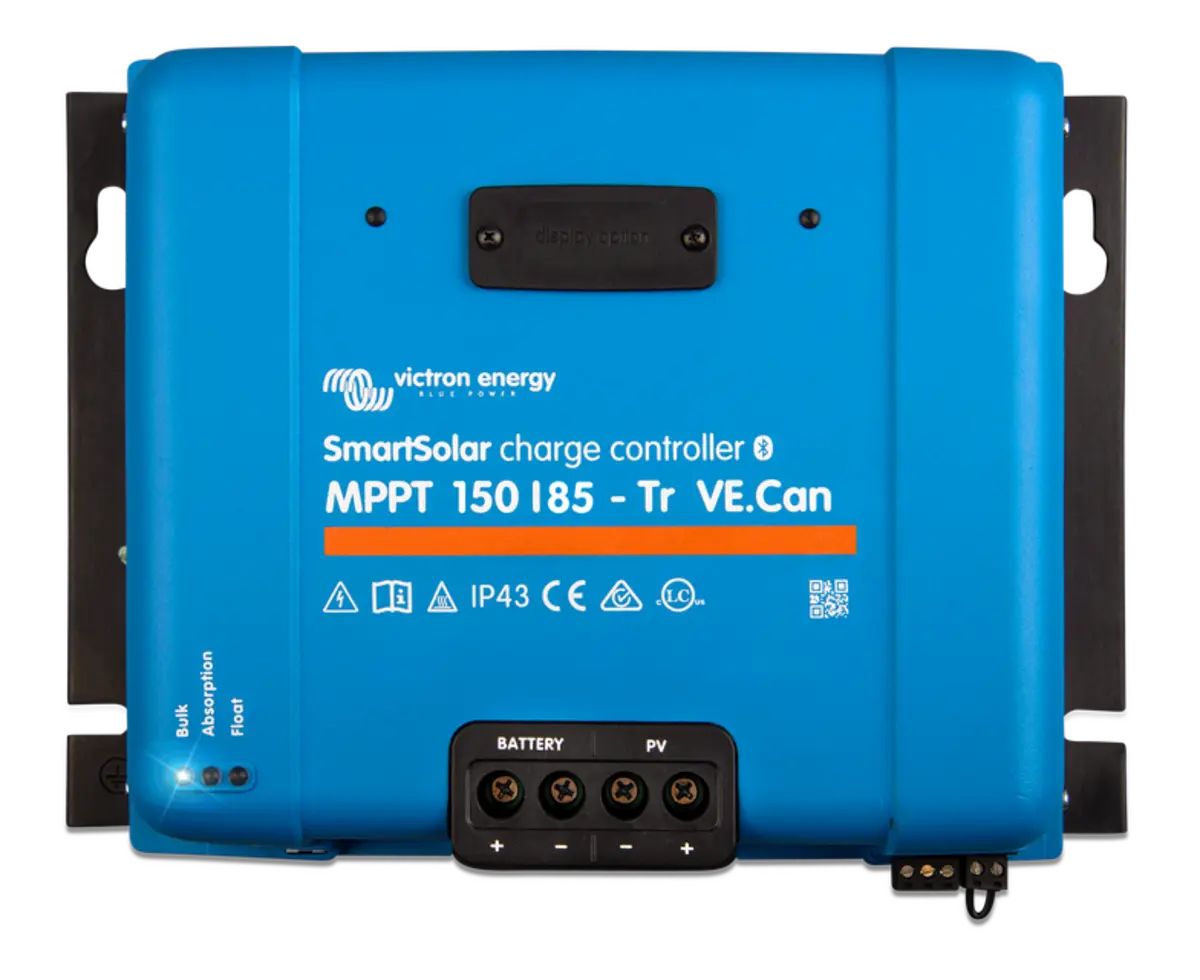

Victron Energy SmartSolar 150/85-Tr VE.Can MPPT Solar Charge Controller

Discover the Advantages of the Victron Energy SmartSolar 150/85-Tr

The MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges a battery banks. The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

Features

• MPPT: Ultra fast maximum power point tracking, the MPPT VE.can SmartSolar charger connects to a PV array of 150 or 250 Volt Voc and will automatically detect and charge your 12, 24, or 48V battery bank with current ranging from 70 to 100A depending on the model
• The charge settings are fully programmable and can even be set up for different battery chemistries, like lead-acid, lithium and others
• Control your charger remotely - The MPPT VE.Can SmartSolar charger can be remotely controlled and configured over Bluetooth via the VictronConnect App
• This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data
• Daisy chain additional units -The VE.Can SmartSolar charger is equipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply "daisy chained" to each other with a single RJ45 cable between the individual units
• When connected to each other, all individual VE.Can SmartSolar chargers, will synchronize their charge stages. They can also send their data, via a single cable, to a GX monitoring device
• Remote monitoring and control - If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s)
• For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520
• SmartSolar control display - The VE.Can SmartSolar charger is also equipped with a VE.Direct port like our other MPPT solar chargers. This port can be for single unit monitoring or for streetlight control
• The remote on/off connector can be externally controlled by a third-party device like a lithium battery, An optional plug-in LCD display/control provides live-data, set-up and management, straight from the face of the device


Specifications

• Type: MPPT
• Series/Model: 150/85-Tr VE.Can
• Battery Voltage: 12/24/48 V Auto Select (36 V Manual)
• Enclosure Rating: IP43 (Electronic Components), IP22 (Connection Area)
• Maximum PV Open Circuit Voltage: 150 V Absolute Maximum Coldest Conditions, 145 V Start-Up and Operating Maximum
• Operating Temperature: -30 to 60°C (Full Rated Output up to 40°C)
• Self-Consumption: <35 mA at 12 V, <20 mA at 48 V
• Humidity: 95%, Non-Condensing
• Power Terminal: 35 mm²/2 AWG
• Temperature Compensation: -16 mV/-32 mV/-64 mV/°C
• Maximum PV Short Circuit Current: 70 A
• Nominal PV Power at 12 V: 1200 W
• Nominal PV Power at 24 V: 2400 W
• Charge Current Rating: 85 A
• Protection: PV Reverse Polarity, Output Short Circuit, Over temperature
• Absorption Charge: 14.4/28.8/43.2/57.6 V (Adjustable with: Rotary Switch, Display, VE.Direct or Bluetooth)
• Float Charge: 13.8/27.6/41.4/55.2 V (Adjustable with: Rotary Switch, Display, VE.Direct or Bluetooth)
• Peak Efficiency: 98%
• Charging Algorithm: Multi-Stage Adaptive (Eight Pre-Programmed Algorithms) or User Defined Algorithm
• Data Communication: VE.Can
• Color: Blue (RAL 5012)
• Nominal PV Power at 48 V: 4900 W
• Battery Terminals: 35 mm²/2 AWG
• Nominal PV Power at 36 V: 3600 W
• Data Stored: Battery Voltage, Current and Temperature, as well as Load Output Current, PV Voltage and PV Current
• Number of Days Trends Data is Stored: 46
• Charge Voltage Equalization: 16.2/32.4/48.6/64.8 V (Adjustable)
• Maximum Altitude: 5000 m (Full Rated Output up to 2000 m)
• Environmental Condition: Indoor, Unconditioned
• Pollution Degree: PD3
• Remote On/Off: Yes (2 Pole Connector)
• Programmable Relay: DPST AC Rating: 240 VAC/4 A, DPST DC Rating: 4 A up to 35 VDC, 1 A up to 60 VDC
• Parallel Operation: Yes, Parallel Synchronized Operation with VE.Can (Max 25 Units) or Bluetooth (Max 10 Units)
• Dimensions: 216 mm Height x 295 mm Width x 103 mm Depth
• Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
• Weight: 4.5 kg

Documents

• Specification Sheet
• Owners/User Manual


Advanced MPPT Technology for Maximum Solar Efficiency

The Victron Energy SmartSolar 150/85-Tr VE.Can incorporates advanced MPPT (Maximum Power Point Tracking) technology to achieve optimal solar energy harvest. This controller intelligently adjusts to the solar panel’s voltage and current output to maximize charging efficiency. It ensures that your solar system delivers peak performance under varying solar conditions, improving energy yield significantly. With high tracking efficiency, it optimizes power conversion, making it ideal for residential and commercial solar installations seeking dependable energy management and enhanced system longevity.

Robust Build and Intelligent Connectivity

Designed with durability and smart control in mind, the Victron Energy SmartSolar 150/85-Tr features a rugged aluminum housing with effective heat dissipation. It supports VE.Can interface technology, allowing seamless communication with other Victron products for coordinated power optimization. This solar charge controller offers advanced monitoring capabilities via Bluetooth or remote portals, providing users real-time status and data logging. Whether integrating into a complex energy system or using standalone, its intelligent connectivity promotes easier management and improved system reliability.

Safety, Versatility, and User-Friendly Operation

Safety is a top priority with the Victron Energy SmartSolar 150/85-Tr. It includes comprehensive protection features such as overvoltage, overcurrent, and temperature safeguards to protect your solar setup and batteries. The controller supports multiple battery chemistries and charging profiles, making it versatile for various energy storage systems. Installation and configuration are straightforward, supported by Victron’s user-friendly software and mobile apps. This ease of use, combined with robust safety measures, ensures both expert and novice users can confidently manage their solar charging system.
