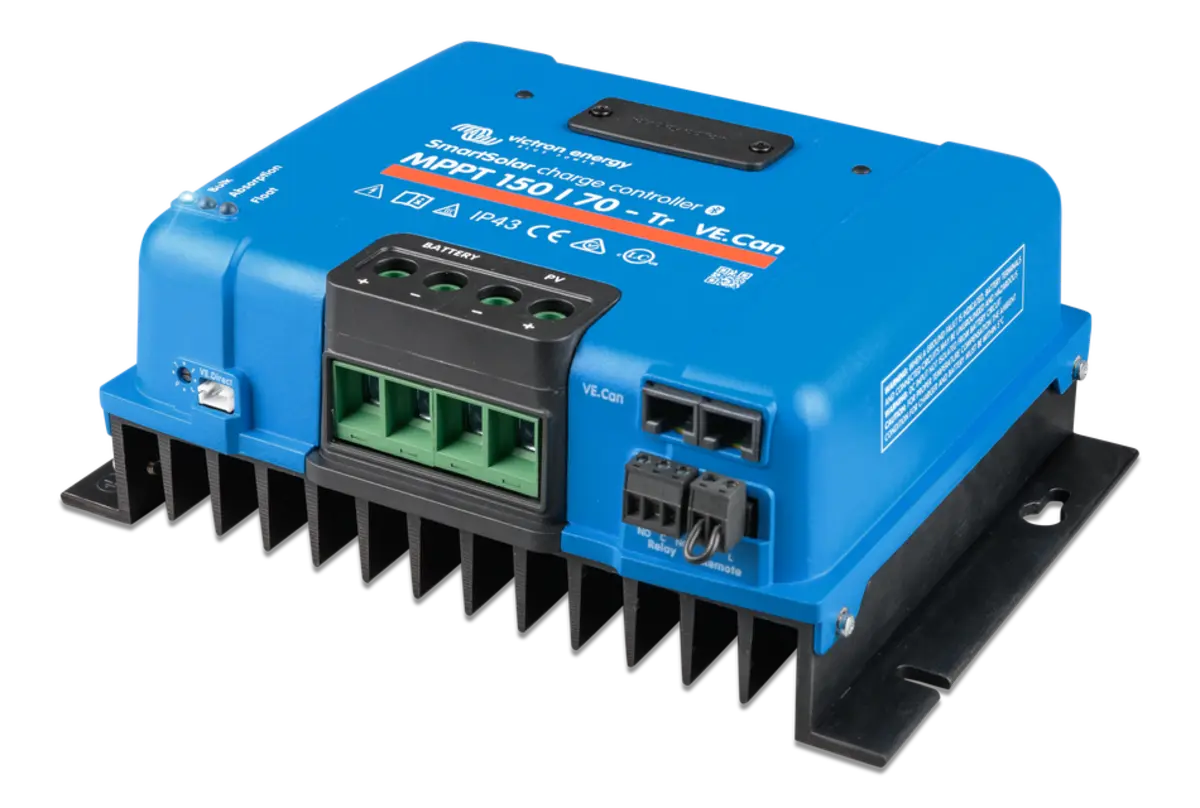

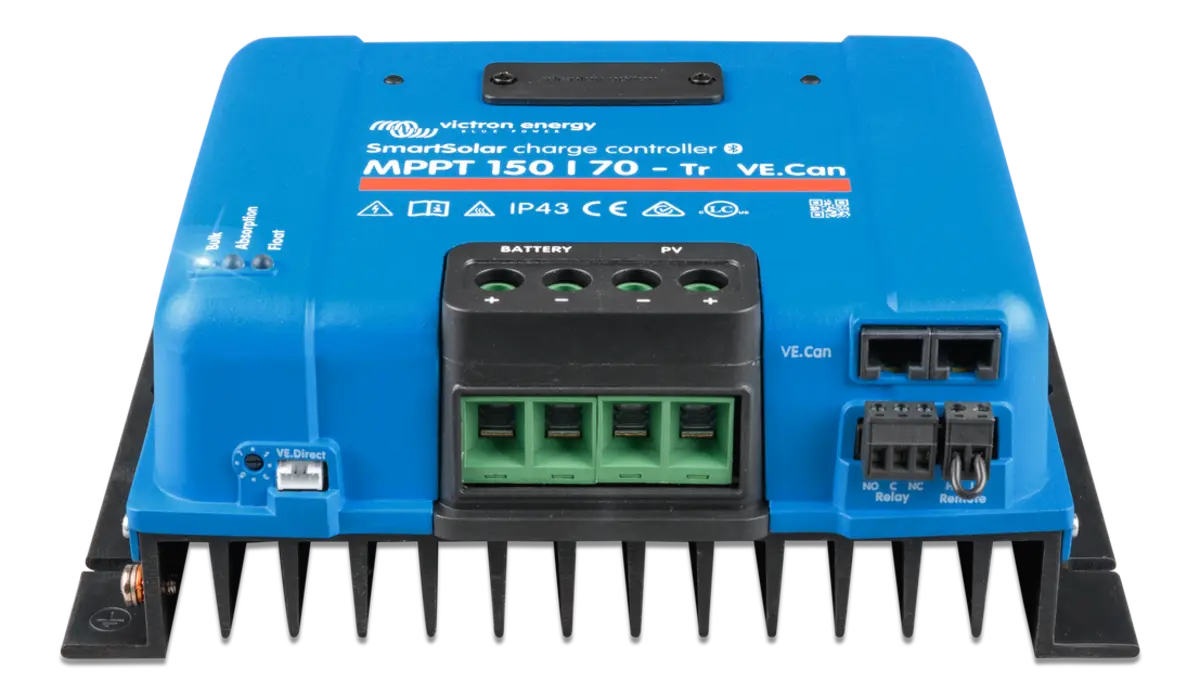

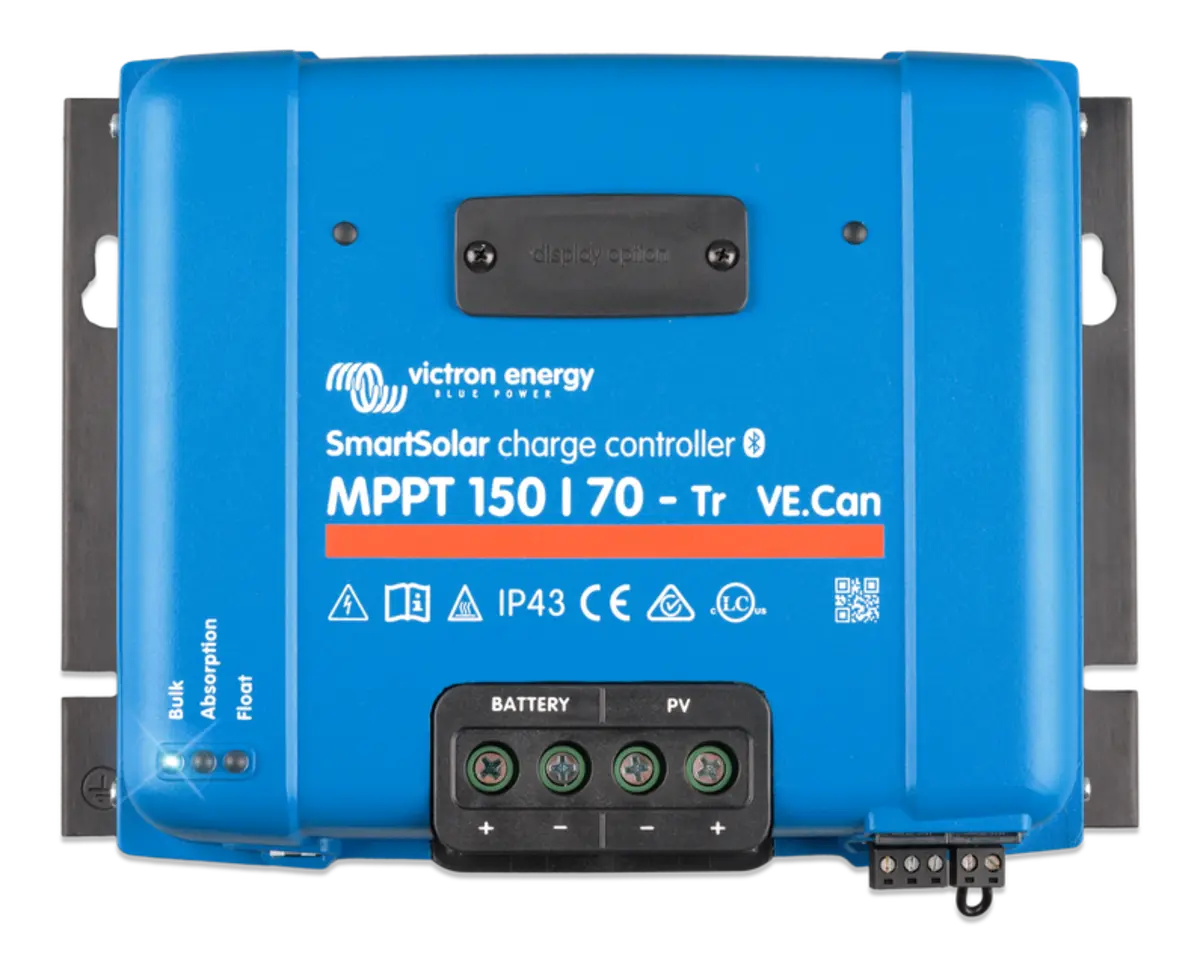

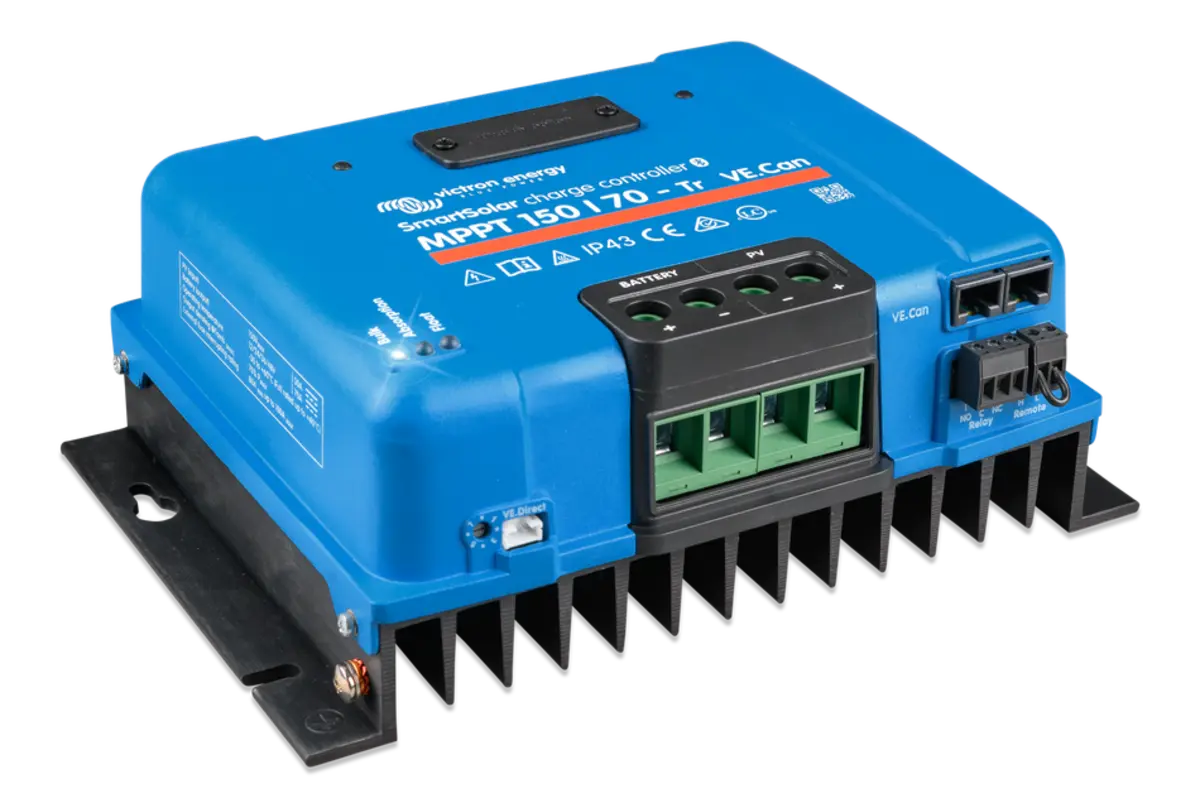

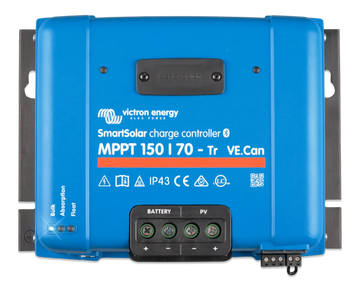

Victron Energy SmartSolar 150/70-Tr VE.Can MPPT Solar Charge Controller

Explore the Power and Efficiency of Victron Energy SmartSolar

The MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges a battery banks. The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

Features

• MPPT: Ultra fast maximum power point tracking, the MPPT VE.can SmartSolar charger connects to a PV array of 150 or 250 Volt Voc and will automatically detect and charge your 12, 24, or 48V battery bank with current ranging from 70 to 100A depending on the model
• The charge settings are fully programmable and can even be set up for different battery chemistries, like lead-acid, lithium and others
• Control your charger remotely - The MPPT VE.Can SmartSolar charger can be remotely controlled and configured over Bluetooth via the VictronConnect App
• This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data

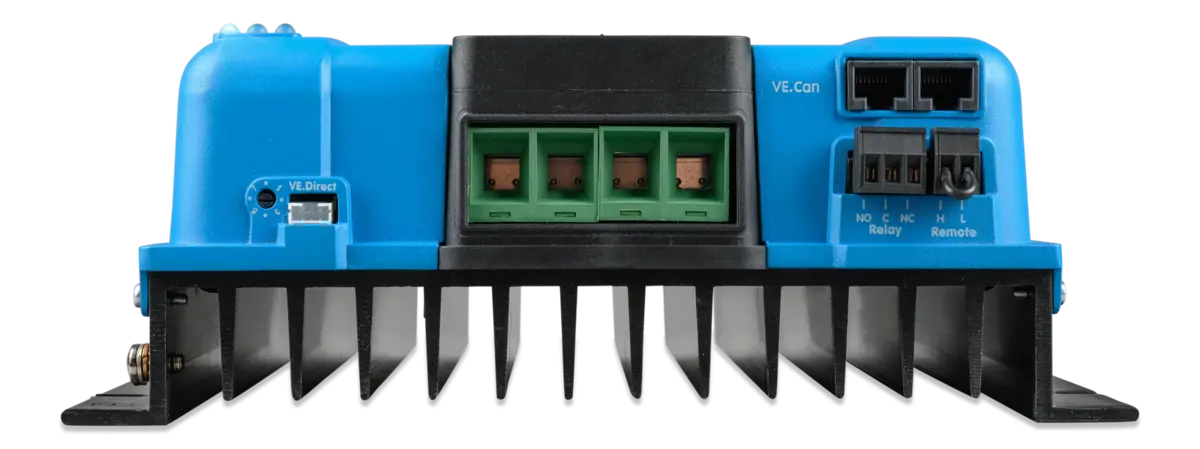

• Daisy chain additional units -The VE.Can SmartSolar charger is equipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply "daisy chained" to each other with a single RJ45 cable between the individual units
• When connected to each other, all individual VE.Can SmartSolar chargers, will synchronize their charge stages. They can also send their data, via a single cable, to a GX monitoring device
• Remote monitoring and control - If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s)
• For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520
• SmartSolar control display - The VE.Can SmartSolar charger is also equipped with a VE.Direct port like our other MPPT solar chargers. This port can be for single unit monitoring or for streetlight control

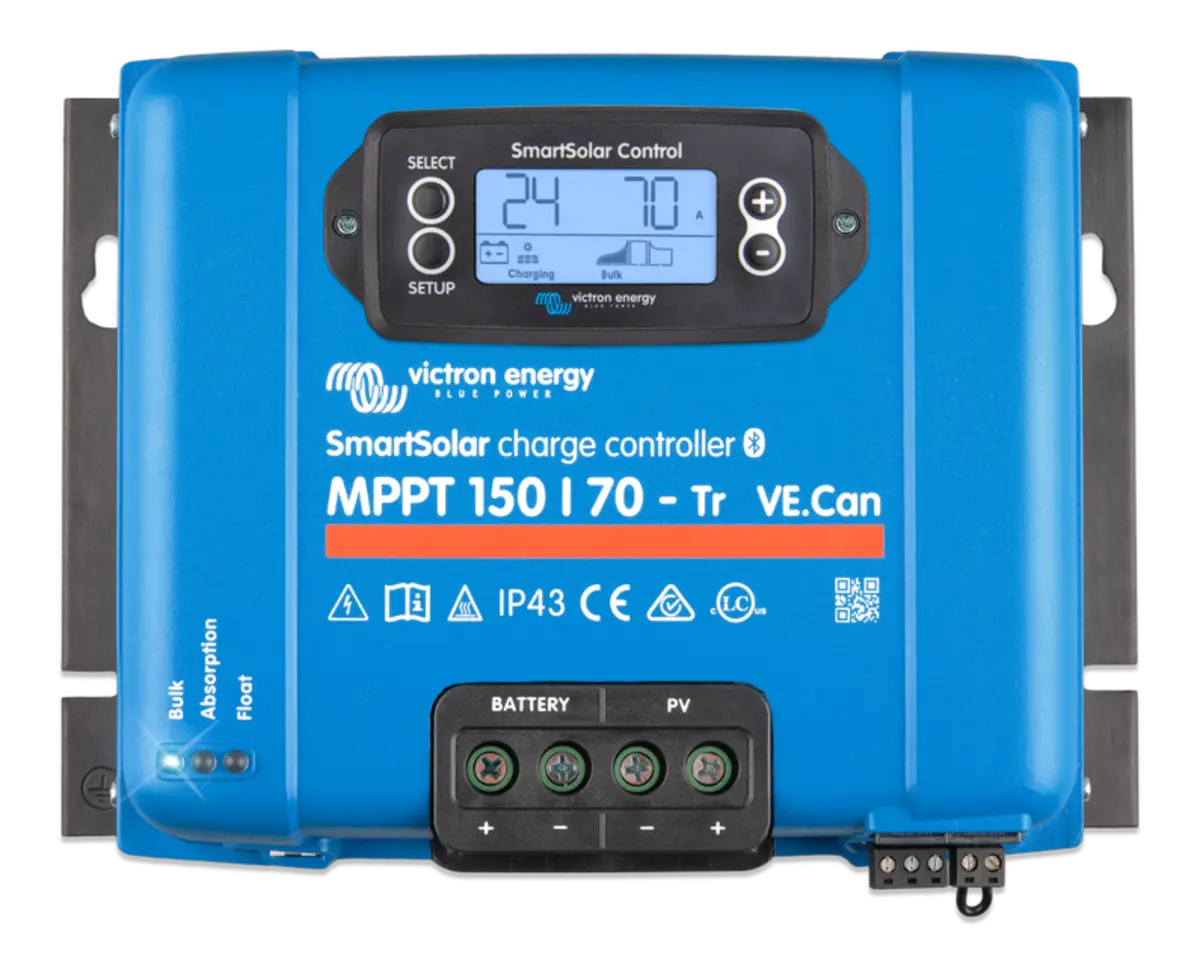

• The remote on/off connector can be externally controlled by a third-party device like a lithium battery, An optional plug-in LCD display/control provides live-data, set-up and management, straight from the face of the device

Specifications

• Type: MPPT
• Series/Model: 150/70-Tr VE.Can
• Battery Voltage: 12/24/48V Auto Select (36V Manual)
• Enclosure Rating: IP43 (Electronic Components), IP22 (Connection Area)
• Maximum PV Open Circuit Voltage: 150V absolute maximum in coldest conditions, 145V start-up and operating maximum
• Operating Temperature: -30°C to 60°C (Full-rated output up to 40°C)
• Self-Consumption: <35 mA at 12V, <20 mA at 48V
• Humidity: 95%, non-condensing
• Power Terminal: 35 mm²/2 AWG
• Temperature Compensation: -16 mV/-32 mV/-64 mV per °C
• Maximum PV Short Circuit Current: 50A
• Nominal PV Power at 12V: 1000W
• Nominal PV Power at 24V: 2000W
• Nominal PV Power at 48V: 4000W
• Nominal PV Power at 36V: 3000W
• Charge Current Rating: 70A
• Protection: PV reverse polarity, output short circuit, over-temperature protection
• Absorption Charge: 14.4/28.8/43.2/57.6V (Adjustable with rotary switch, display, VE.Direct, or Bluetooth)
• Float Charge: 13.8/27.6/41.4/55.2V (Adjustable with rotary switch, display, VE.Direct, or Bluetooth)
• Peak Efficiency: 98%
• Charging Algorithm: Multi-stage adaptive (Eight pre-programmed algorithms) or user-defined algorithm
• Data Communication: VE.Can
• Color: Blue (RAL 5012)
• Battery Terminals: 35 mm²/2 AWG
• Data Stored: Battery voltage, current, temperature, load output current, PV voltage, and PV current
• Number of Days Trends Data Stored: 46
• Charge Voltage Equalization: 16.2/32.4/48.6/64.8V (Adjustable)
• Maximum Altitude: 5000m (Full-rated output up to 2000m)
• Environmental Condition: Indoor, unconditioned
• Pollution Degree: PD3
• Remote On/Off: Yes (2-pole connector)
• Programmable Relay: DPST AC Rating: 240VAC/4A, DPST DC Rating: 4A up to 35VDC, 1A up to 60VDC
• Parallel Operation: Yes, with VE.Can (up to 25 units) or Bluetooth (up to 10 units)
• Dimensions: 185mm Height x 250mm Width x 95mm Depth
• Standards Compliance: EN/IEC 62109-1, UL 1741, CSA C22.2
• Weight: 3kg

Documents

• Specification Sheet
• Owners/User Manual


Advanced MPPT Technology for Maximum Solar Efficiency

The Victron Energy SmartSolar 150/70-Tr VE.Can solar charge controller incorporates cutting-edge Maximum Power Point Tracking (MPPT) technology, enabling it to extract the highest possible power from your solar panels. This results in increased charging efficiency and better energy yields, especially under changing weather conditions. By continuously adjusting to the optimal operating point, the Victron Energy SmartSolar enhances the overall performance and reliability of your solar setup, making it an excellent choice for both residential and commercial solar power systems.

Robust Design and High-Quality Components

Engineered with durability in mind, the Victron Energy SmartSolar 150/70-Tr features a rugged design ideal for harsh environments. Its sturdy enclosure and high-quality electronics provide long-lasting performance and resilience against temperature fluctuations and electrical disturbances. The controller’s ability to handle up to 150 volts and charge currents of 70 amps makes it suitable for demanding solar installations. This reliability ensures continuous power regulation and system protection, giving users peace of mind when managing their solar energy resources.

Seamless Integration with VE.Can Communication Port

One standout feature of the Victron Energy SmartSolar 150/70-Tr is its VE.Can communication port, allowing for easy networking with other Victron devices and remote monitoring capabilities. This integration supports advanced system diagnostics and configuration via Victron’s software platform, enhancing user control and making system management straightforward. The VE.Can interface ensures your solar setup is scalable, efficient, and ready for future upgrades, positioning it as a smart choice for evolving solar energy systems.
