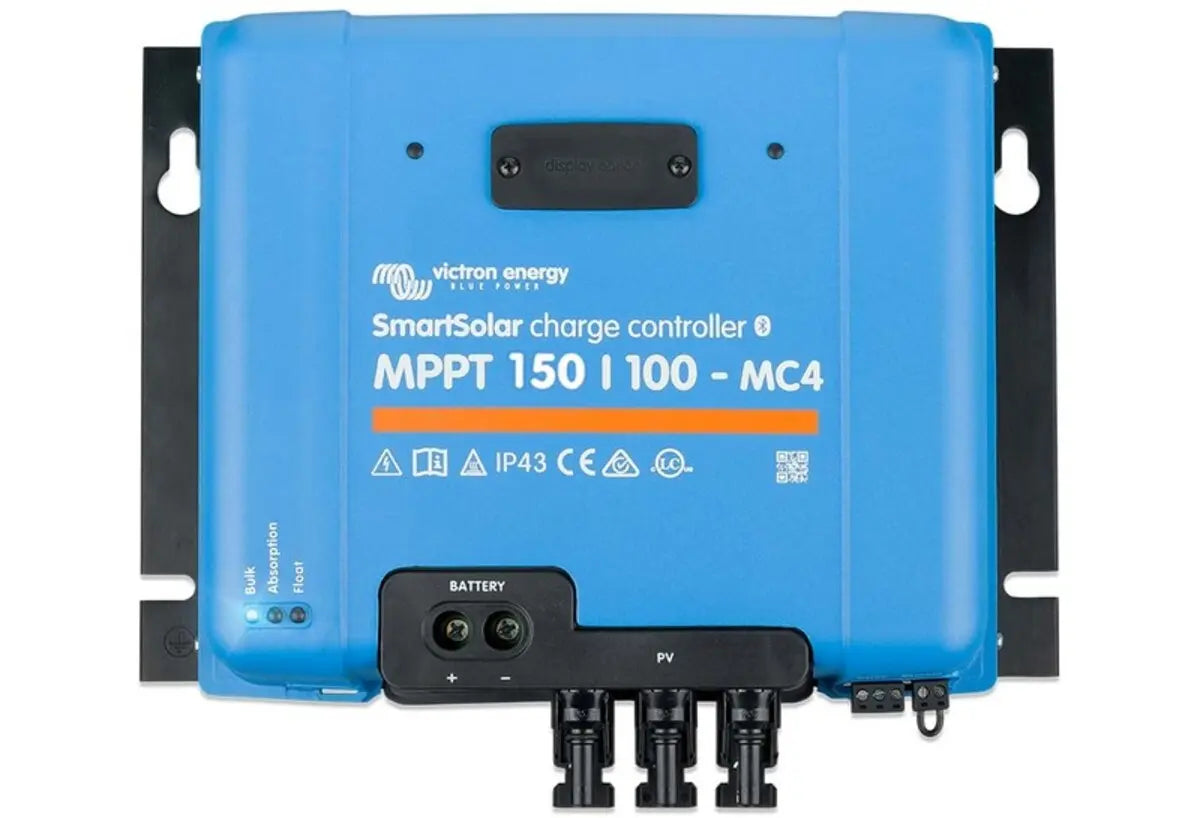

Victron Energy SmartSolar 150/100-MC4 VE.Can MPPT Solar Charge Controller

Victron Energy SmartSolar: Advanced Solar Charge Controller Technology

The MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges a battery banks. The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

Features

• MPPT: Ultra fast maximum power point tracking, the MPPT VE.can SmartSolar charger connects to a PV array of 150 or 250 Volt Voc and will automatically detect and charge your 12, 24, or 48V battery bank with current ranging from 70 to 100A depending on the model
• The charge settings are fully programmable and can even be set up for different battery chemistries, like lead-acid, lithium and others
• Control your charger remotely - The MPPT VE.Can SmartSolar charger can be remotely controlled and configured over Bluetooth via the VictronConnect App
• This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data
• Daisy chain additional units -The VE.Can SmartSolar charger is equipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply "daisy chained" to each other with a single RJ45 cable between the individual units
• When connected to each other, all individual VE.Can SmartSolar chargers, will synchronize their charge stages. They can also send their data, via a single cable, to a GX monitoring device
• Remote monitoring and control - If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s)
• For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520
• SmartSolar control display - The VE.Can SmartSolar charger is also equipped with a VE.Direct port like our other MPPT solar chargers. This port can be for single unit monitoring or for streetlight control
• The remote on/off connector can be externally controlled by a third-party device like a lithium battery, An optional plug-in LCD display/control provides live-data, set-up and management, straight from the face of the device

Specifications

• Type: MPPT
• Series/Model: 150/100-MC4 VE.Can
• Battery Voltage: 12/24/48 V Auto Select (36 V Manual)
• Enclosure Rating: IP43 (Electronic Components), IP22 (Connection Area)
• Maximum PV Open Circuit Voltage: 150 V Absolute Maximum Coldest Conditions, 145 V Start-Up and Operating Maximum
• Operating Temperature: -30 to 60°C (Full Rated Output up to 40°C)
• Self-Consumption: <35 mA at 12 V, <20 mA at 48 V
• Humidity: 95%, Non-Condensing
• Power Terminal: Two Pairs of MC4 Connectors
• Temperature Compensation: -16 mV/-32 mV/-64 mV/°C
• Maximum PV Short Circuit Current: 70 A
• Nominal PV Power at 12 V: 1450 W
• Nominal PV Power at 24 V: 2900 W
• Charge Current Rating: 100 A
• Protection: PV Reverse Polarity, Output Short Circuit, Over Temperature
• Absorption Charge: 14.4/28.8/43.2/57.6 V (Adjustable with Rotary Switch, Display, VE.Direct, or Bluetooth)
• Float Charge: 13.8/27.6/41.4/55.2 V (Adjustable with Rotary Switch, Display, VE.Direct, or Bluetooth)
• Peak Efficiency: 98%
• Charging Algorithm: Multi-Stage Adaptive (Eight Pre-Programmed Algorithms) or User-Defined Algorithm
• Data Communication: VE.Can
• Color: Blue (RAL 5012)
• Nominal PV Power at 48 V: 5800 W
• Battery Terminals: 35 mm²/2 AWG
• Nominal PV Power at 36 V: 4350 W
• Data Stored: Battery Voltage, Current, and Temperature, Load Output Current, PV Voltage, and PV Current
• Number of Days Trends Data is Stored: 46
• Charge Voltage Equalization: 16.2/32.4/48.6/64.8 V (Adjustable)
• Maximum Altitude: 5000 m (Full Rated Output up to 2000 m)
• Environmental Condition: Indoor, Unconditioned
• Pollution Degree: PD3
• Remote On/Off: Yes (2 Pole Connector)
• Programmable Relay: DPST AC Rating: 240 VAC/4 A, DPST DC Rating: 4 A up to 35 VDC, 1 A up to 60 VDC
• Parallel Operation: Yes, Parallel Synchronized Operation with VE.Can (Max 25 Units) or Bluetooth (Max 10 Units)
• Dimensions: 246 mm Height x 295 mm Width x 103 mm Depth
• Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
• Weight: 4.5 kg

Documents

• Specification Sheet
• Owners/User Manual


Innovative MPPT Technology for Maximum Efficiency

The Victron Energy SmartSolar 150/100-MC4 VE.Can MPPT solar charge controller is engineered with cutting-edge Maximum Power Point Tracking technology. This ensures that your solar panels operate at their peak efficiency, even under rapidly changing weather conditions. By continuously optimizing the power harvest, the SmartSolar controller maximizes battery charging speed and extends battery lifespan. Its intelligent algorithm works seamlessly with various battery types, making it a reliable choice for both off-grid and grid-tied solar systems.

Robust and Durable Design for Harsh Environments

Built to withstand demanding conditions, the Victron Energy SmartSolar 150/100-MC4 features a rugged enclosure with high-quality MC4 connectors that resist corrosion and water ingress. Its robust structure makes it ideal for marine, automotive, and remote solar applications. This controller offers high reliability and long-term performance, ensuring your solar installation remains protected against environmental challenges. Its compact size and smart cooling system allow easy installation without compromising on durability or efficiency.

Advanced Connectivity and User-Friendly Interface

Equipped with VE.Can communication ports, the Victron Energy SmartSolar provides seamless integration with other Victron devices and monitoring systems. Users can easily configure, monitor, and optimize their solar setups through Victron’s intuitive apps and software. The display and remote management features make it simple to track charging status, system performance, and energy yields in real-time. This level of connectivity ensures maximum control and convenience for both professional installers and end-users.
