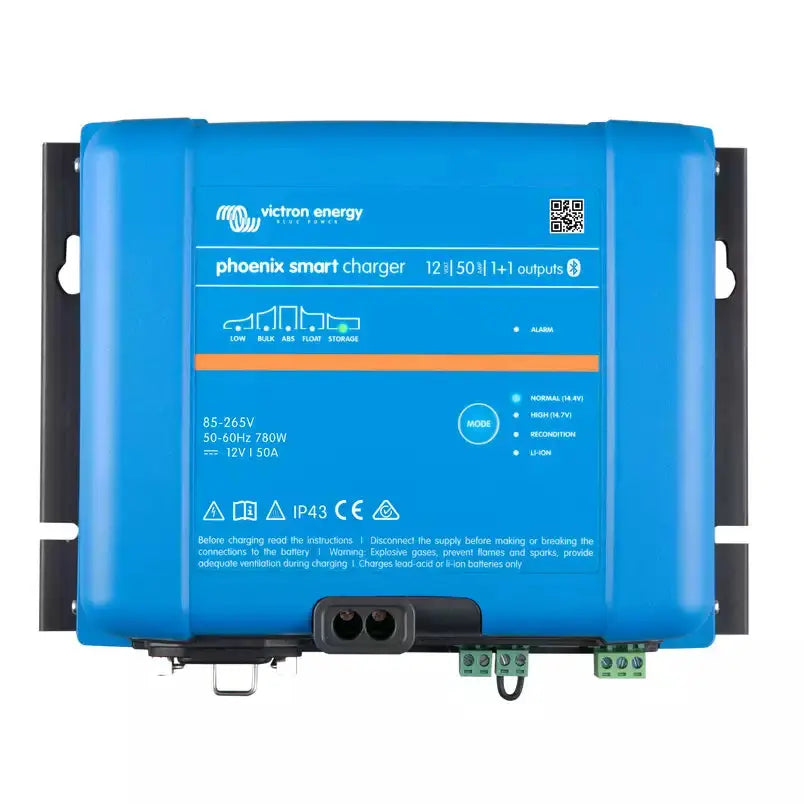

Victron Energy Phoenix Smart IP43 Charger
Reliable and Efficient Victron Energy Battery Charger
The Phoenix Smart IP43 Charger is a reliable, adaptive, and intelligent battery charger by Victron Energy. Available in 12V and 24V models with output options of 16A, 25A, 30A, or 50A, it is suitable for a wide range of applications including marine, RV, off-grid, eMobility, and industrial use.
With built-in Bluetooth, you can monitor, configure, and set alarms directly from your phone using the free VictronConnect app. Connect via VE.Direct to a GX device for full system integration and remote monitoring via the VRM Portal.
Key Features
- Adaptive 6-Stage Charging Algorithm: Bulk, Absorption, Float, Storage, Equalization, and Recondition
- Multiple Battery Bank Support: (3) models charge up to 3 battery banks simultaneously; (1+1) models provide a dedicated ~4A starter battery output
- Bluetooth Built-In: Monitor and configure via VictronConnect app on iOS or Android
- VE.Smart Networking: Synchronize multiple chargers and receive accurate battery voltage and temperature data from a Smart Battery Sense or BMV-712
- LiFePO4 Compatible: Supports lithium iron phosphate batteries with a dedicated charge profile
- Wide Input Voltage: 120-240V AC input for global compatibility
- High Efficiency: Up to 94% efficiency — generates up to 4x less heat than industry standard
- IP43 Rated: Protected against solid objects >1mm and water spray up to 60°
- Fully Programmable: Customize charge algorithm via VictronConnect
- VE.Direct Port: Connect to GX devices for system integration and VRM remote monitoring
- Temperature Compensation: Compatible with Smart Battery Sense for accurate temperature-compensated charging
Specifications
| Model | Output Voltage | Output Current | Outputs | SKU |
|---|---|---|---|---|
| 12/50(3) 120-240V | 12V | 50A | 3 banks | PSC125053095 |
| 12/50(1+1) 120-240V | 12V | 50A + 4A starter | 1+1 | PSC125051095 |
| 12/30(3) 120-240V | 12V | 30A | 3 banks | PSC123053095 |
| 12/30(1+1) 120-240V | 12V | 30A + 4A starter | 1+1 | PSC123051095 |
| 24/16(1+1) 120-240V | 24V | 16A + 4A starter | 1+1 | PSC241651095 |
| 24/25(1+1) 120-240V | 24V | 25A + 4A starter | 1+1 | PSC242551095 |
| 24/25(3) 120-240V | 24V | 25A | 3 banks | PSC242553095 |
General Specifications
- Input Voltage: 120-240V AC, 50/60 Hz
- Protection Rating: IP43
- Weight: 2.7 kg (6 lbs)
- Dimensions (H x W x D): 7.1" x 9.8" x 4.6" (180 x 249 x 117 mm)
- Battery Types Supported: GEL, AGM, Flooded/Wet, LiFePO4, High Voltage LiFePO4
- Connectivity: Bluetooth (VictronConnect), VE.Direct
- Efficiency: Up to 94%
- Operating Temperature: -20°C to +50°C (full output up to 40°C)
Warranty
5-Year Limited Warranty by Victron Energy on power products. Upgradable to 10 years for an additional 10% of the initial investment. For warranty claims or support, contact info@solarcellzusa.com.
Documents & Resources
- 📄 Datasheet - Victron Smart IP43 Charger 120-240V (PDF)
- 📘 Manual - Victron Smart IP43 Charger 120-240V (PDF)
- 📐 Dimension Drawing - (3) Output Model
- 📐 Dimension Drawing - (1+1) Output Model
Product images and specifications courtesy of Victron Energy. Source: victronenergy.com
Advanced Charging Technology for Optimal Battery Health
The Victron Energy battery charger Phoenix Smart IP43 uses advanced multi-stage charging technology designed to maintain battery health while delivering efficient power. This charger intelligently adjusts its charge according to the battery’s needs, ensuring maximum performance and long battery life. Its smart features prevent overcharging, reduce energy waste, and optimize charge cycles, making it perfect for various battery types including AGM, Gel, and Lithium. This technology enhances reliability and ensures your batteries remain in excellent condition, providing peace of mind for both professional and personal applications.
Durable IP43 Rated Design for Versatile Usage
Built with a robust IP43 rated enclosure, the Victron Energy battery charger Phoenix Smart offers protection against water spray and dust, making it suitable for a wide range of environments. Whether you are using it in a marine setting, in automotive applications, or off-grid solar systems, it ensures dependable operation under challenging conditions. The compact form factor combined with sturdy materials guarantees longevity and consistent performance. Its design allows easy installation and maintenance, which appeals to users seeking a reliable, long-term charging solution in demanding situations.
Smart Connectivity and User-Friendly Operation
This Victron Energy battery charger model stands out with its smart connectivity options, including Bluetooth. Users can monitor and configure the charger seamlessly via the VictronConnect app, providing real-time information on voltage, current, and state of charge. This feature adds convenience and control, helping users maintain optimal battery management remotely. The intuitive interface and automatic charging cycle adjustments enhance usability, making the Phoenix Smart IP43 an ideal choice for users who prioritize both performance and modern technological integration in their battery chargers.
