Victron Energy MultiPlus-II 48/3000/35-50 120V (UL)
-
Estimated Delivery:Jul 02 - Jul 06
-
Free Shipping & Returns: On all orders under $50
Victron Energy MultiPlus-II 48/3000/35-50 120V (UL)
Victron MultiPlus-II 48/3000 for Reliable Power Control
Our New Inverter/Charger
The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid. It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A). It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.
Key Features
- PowerAssist & PowerControl: Prevents overload of a limited AC source (generator or shore power). Battery charging is automatically reduced when an overload would otherwise occur. The MultiPlus-II can also boost the output of a generator or shore supply with power from the battery.
- ESS – Energy Storage System: The MultiPlus-II is the key component in a Victron ESS system, providing flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters.
- Uninterrupted AC Power (UPS Function): In the event of a grid failure, the inverter automatically activates and takes over supply to connected loads in less than 20 milliseconds — computers and electronics continue without disruption.
- Two AC Outputs: The main output has no-break functionality. The second output is live only when AC is present on the input — ideal for loads that should not discharge the battery (e.g., water heater).
- Virtually Unlimited Power: Up to 6 units can operate in parallel for higher output. Two units can be connected for 240V split-phase output; three units for three-phase output.
- Remote Monitoring & Control: When coupled with a GX device (e.g., Cerbo GX), monitor and control your system locally (LAN) or remotely via the free VRM app and VRM portal website from any device.
- Solar Energy: Compatible with both solar charge controllers and grid-tie inverters. AC power remains available even during a grid failure.
Technical Specifications
| Inverter | |
|---|---|
| DC Input Voltage Range | 38 – 66V |
| Output Voltage | 120 VAC ±2%, 60 Hz ±0.1% |
| Continuous Output Power at 25°C | 3000 VA / 2400W |
| Continuous Output Power at 40°C | 2200W |
| Continuous Output Power at 65°C | 1700W |
| Peak Power | 5500W |
| Maximum Efficiency | 95% |
| Zero Load Power | 11W |
| Zero Load Power (AES Mode) | 7W |
| Zero Load Power (Search Mode) | 2W |
| Charger | |
| AC Input Voltage Range | 90 – 140 VAC |
| AC Input Frequency | 55 – 65 Hz |
| Max. Battery Charge Current | 35A |
| Charge Voltage – Absorption | 57.6V |
| Charge Voltage – Float | 55.2V |
| Storage Mode Voltage | 52.8V |
| Battery Temperature Sensor | Yes |
| Transfer Switch | |
| Transfer Switch | 50A |
| Maximum AC Input Current | 50A |
| General | |
| Auxiliary Output | 32A |
| External AC Current Sensor (optional) | 100A |
| Programmable Relay | Yes |
| VE.Bus Communication Port | Yes (parallel, split-phase, three-phase, remote monitoring) |
| General Purpose Com. Port | Yes, 2x |
| Remote On/Off | Yes |
| Operating Temperature Range | -40 to +60°C (-40 to 140°F), fan-assisted cooling |
| Humidity (non-condensing) | Max 95% |
| Enclosure | |
| Material & Color | Steel, Blue RAL 5012 |
| Protection Category | IP22 |
| Battery Connection | M8 bolts |
| 120 VAC Connection | Screw terminals 13 mm² (6 AWG) |
| Weight | 19 kg / 42 lb |
| Dimensions (H x W x D) | 572 x 277 x 147 mm / 22.5 x 10.9 x 5.8 in |
| Certifications & Standards | |
| Listings | UL1741 |
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, CSA 22.2 107.1-16 |
| EMC | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
General Information
- Manufacturer: Victron Energy
- SKU / Model ID: PMP482305102
- Product Line: Inverter / Charger
- Condition: New
Warranty
This product is covered by Victron Energy's Limited Warranty Policy. Please refer to the official warranty document for full terms and conditions.
📄 Victron Energy Limited Warranty Policy (PDF)
Downloads & Documentation
- 📄 Datasheet – MultiPlus-II 3kVA & 5kVA 120V (PDF)
- 📄 Datasheet – MultiPlus-II 3kVA 5kVA 120V
- 📄 Manual – MultiPlus-II 3kVA 5kVA 120V
- 📄 Quick Install Guide – MultiPlus-II 48V 3000VA 120Vac
- 📄 Certificate – Safety UL 458

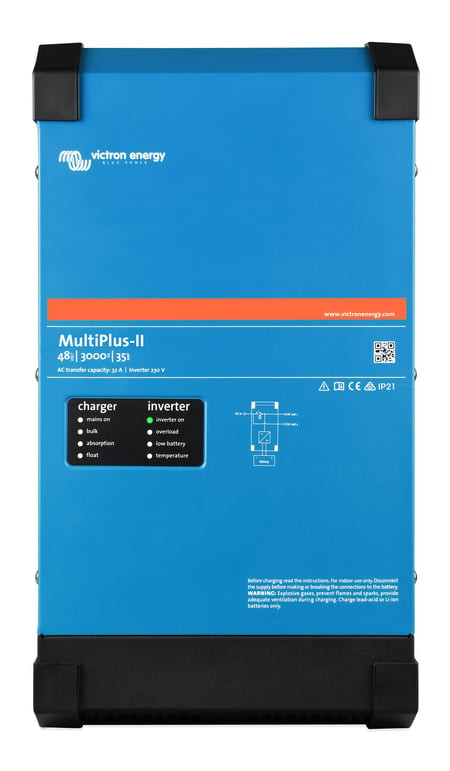

Product Image
Smart Inverter-Charger Performance
The Victron MultiPlus-II 48/3000 is built for users who need steady, efficient power in demanding 120V systems. It combines an inverter and charger in one compact unit, helping simplify installation while improving overall energy management. This model is designed to handle everyday loads with reliable conversion and smooth charging performance. Whether used in a solar setup, backup power system, or off-grid application, it provides stable output and smart control. The UL listing also adds confidence for residential and commercial installations where safety and compliance matter.
Flexible Power for Off-Grid and Backup Use
One of the main strengths of the Victron MultiPlus-II 48/3000 is its flexibility. It works well in off-grid environments, mobile power systems, and emergency backup setups where dependable power is essential. The 48V design supports efficient energy storage, while the 120V output makes it suitable for common household and business loads. Its inverter-charger design helps users manage battery charging and AC power conversion without needing separate devices. This makes it a practical choice for those who want a clean, organized power system with strong performance and easy integration.
Built for Safety, Stability, and Efficiency
Safety and system stability are key reasons many users choose the Victron MultiPlus-II 48/3000. The unit is engineered to support consistent operation while helping protect connected equipment from unstable power conditions. It is designed with advanced power control features that improve efficiency and support reliable battery use. For systems that need both performance and compliance, the UL certification is an important advantage. This model is ideal for users who want a trusted power solution that can handle changing energy demands while maintaining smooth operation and dependable results over time.
A Practical Choice for Modern Energy Systems
For solar energy users and backup power planners, the Victron MultiPlus-II 48/3000 offers a strong balance of power, safety, and convenience. It fits well into modern energy systems that require smart charging, efficient conversion, and dependable AC output. Its compact format helps save space, while its performance supports a wide range of residential and professional applications. If you are building a system that needs reliable 48V power management and 120V output, this model delivers a proven solution. It is a smart investment for users who value long-term reliability and easy system integration.
