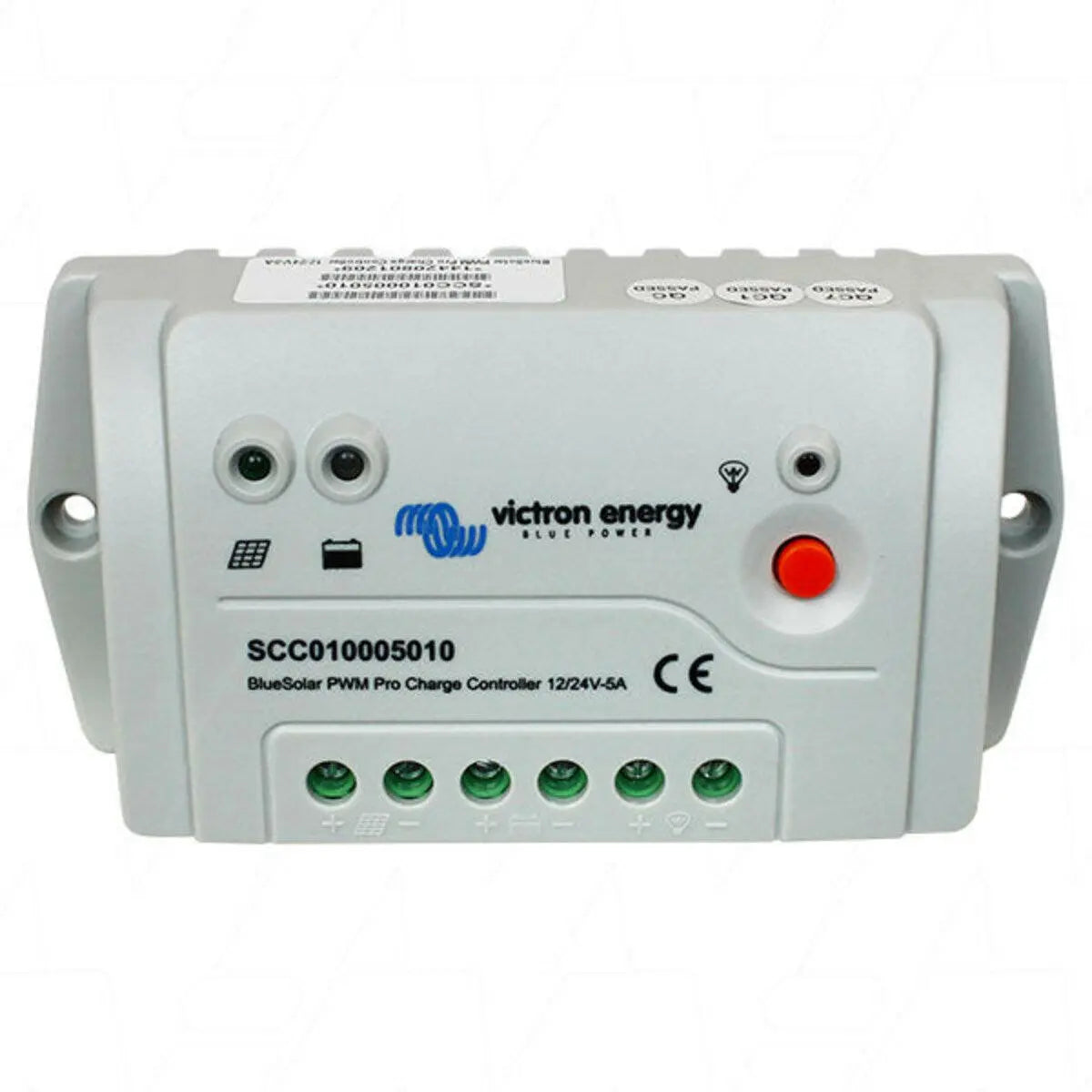

Victron Energy BlueSolar PWM-Pro Charge Controller 12/24V-5A

Efficient and Reliable Victron Energy BlueSolar PWM-Pro Charge Controller

The BlueSolar PWM-Pro series is ready for use with its default settings. It also is fully programmable, With help of a computer and software (available free of charge from our website), With the dedicated BlueSolar Pro Remote Panel (see features below).

Features

• Lighting control function, fully programmable
• Three stage battery charging (bulk, absorption, float), fully programmable
• Integrated battery monitor function (Remote Panel needed to display state of charge)
• Load output with low voltage disconnect and manual control (default setting)
• Optional external temperature sensor
• Load output protected against over load and short circuit
• Protected against reverse polarity connection of the solar panels and/or battery
• Day/night timing options: see manual Remote Panel for details


Specifications

• Type: PWM-Pro
• Series/Model: 12/24V-5A
• Battery Voltage: 12/24 V
• Battery Temperature Sensor: Optional (Article SCC940100100)
• Enclosure Rating: IP30
• Operating Temperature: -20 to 50 deg C (Full Load)
• Self-Consumption: <10 mA
• Humidity: Maximum 98% Non-Condensing
• Temperature Compensation: -30 mV/deg C Resp., -60 mV/deg C (If Temperature Sensor Installed)
• Maximum Solar Voltage: 28/55 V
• Terminal Size: 4 mm²
• Charge Current Rating: 5 A
• Automatic Load Disconnect: Yes
• Load Output: Manual Control + Low Voltage Disconnect
• Protection: Battery Reverse Polarity (Fuse), Output Short Circuit, Over Temperature
• Remote Panel: Optional (Article SCC900300000)
• Grounding: Common Positive
• Absorption Charge: 14.2/28.4 V
• Float Charge: 13.8/27.6 V
• Equalization Charge: 14.6/29.2 V
• Low Voltage Load Disconnect: 11.1/22.2 V
• Low Voltage Load Reconnect: 12.6/25.2 V
• Dimensions: 5.4 in Height x 2.7 in Width x 1.4 in Depth
• Standards: IEC 62109-1, EN 61000-6-1, EN 61000-6-3, ISO 7637-2
• Weight: 0.13 kg
• Application: 12V Use 36 Cell Solar Panels, 24V Use 72 Cell Solar Panels


Documents

• Specification Sheet
• Owners/User Manual

• Certificate

Overview of Victron Energy BlueSolar PWM-Pro

The Victron Energy BlueSolar PWM-Pro is a highly efficient charge controller designed to optimize solar panel output for 12V and 24V battery systems. With a maximum charging current of 5A, it offers reliable power management for small to medium solar setups. This controller integrates Pulse Width Modulation (PWM) technology to ensure batteries are charged safely and effectively, preventing overcharging and extending battery lifespan. Ideal for off-grid solar installations, it provides consistent performance with user-friendly installation and operation.

Key Features and Benefits

The BlueSolar PWM-Pro excels in delivering dependable energy regulation with features like multi-stage charging, temperature compensation, and protective measures against overload, overvoltage, and reverse polarity. Its LED indicators provide clear system status at a glance, simplifying monitoring and maintenance. Compact and robust, this controller is built to withstand various environmental conditions, making it suitable for outdoor solar applications and ensuring a stable power supply for your batteries.

Applications and Compatibility

Designed for versatility, the Victron Energy BlueSolar PWM-Pro supports both 12V and 24V battery banks, commonly used in solar lighting, RVs, boats, and remote cabins. Its 5A capacity makes it perfect for systems with moderate power requirements where efficient charge regulation is necessary. Compatibility with different battery types enhances its adaptability, allowing users to customize their renewable energy solutions with ease and confidence.
