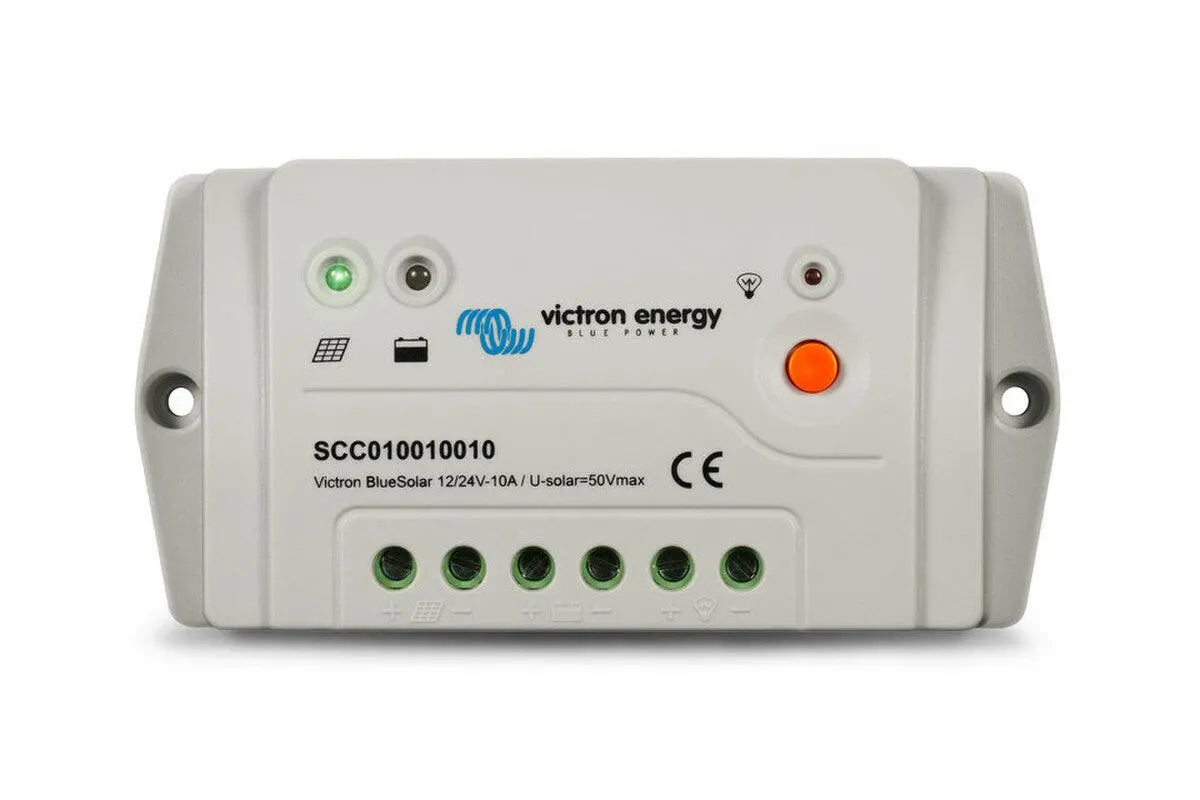

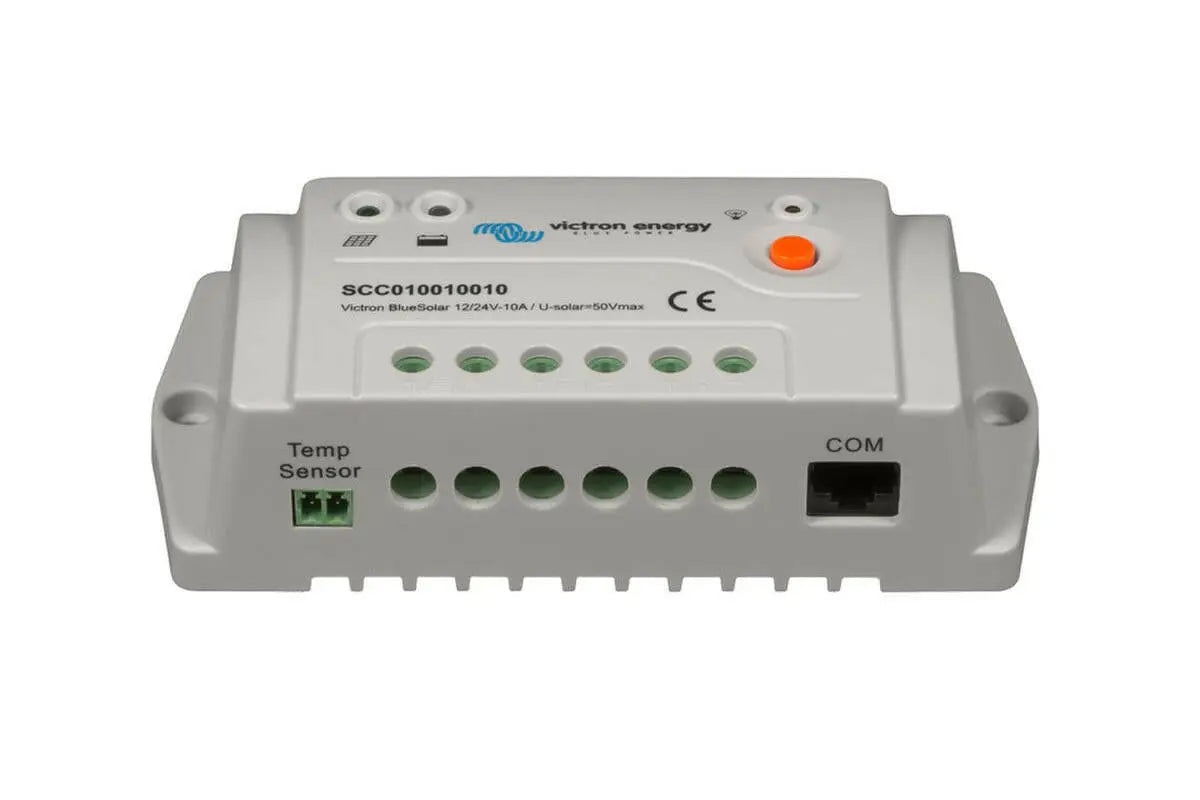

Victron Energy BlueSolar PWM-Pro Charge Controller 12/24V-10A

Overview of Victron Energy BlueSolar PWM-Pro Charge Controller

The BlueSolar PWM-Pro series is ready for use with its default settings. It also is fully programmable, With help of a computer and software (available free of charge from our website), With the dedicated BlueSolar Pro Remote Panel (see features below).

Features

• Lighting control function, fully programmable
• Three stage battery charging (bulk, absorption, float), fully programmable
• Integrated battery monitor function (Remote Panel needed to display state of charge)
• Load output with low voltage disconnect and manual control (default setting)
• Optional external temperature sensor
• Load output protected against over load and short circuit
• Protected against reverse polarity connection of the solar panels and/or battery
• Day/night timing options: see manual Remote Panel for details


Specifications

• Type: PWM-Pro
• Series/Model: 12/24V-10A
• Battery Voltage: 12/24 V
• Battery Temperature Sensor: Optional (Article SCC940100100)
• Enclosure Rating: IP30
• Operating Temperature: -20 to 50 deg C (Full Load)
• Self-Consumption: <10 mA
• Humidity: Maximum 98% Non-Condensing
• Temperature Compensation: -30 mV/deg C Resp., -60 mV/deg C (If Temperature Sensor Installed)
• Maximum Solar Voltage: 28/55 V
• Terminal Size: 4 mm²
• Charge Current Rating: 10 A
• Automatic Load Disconnect: Yes
• Load Output: Manual Control + Low Voltage Disconnect
• Protection: Battery Reverse Polarity (Fuse), Output Short Circuit, Over Temperature
• Remote Panel: Optional (Article SCC900300000)
• Grounding: Common Positive
• Absorption Charge: 14.2/28.4 V
• Float Charge: 13.8/27.6 V
• Equalization Charge: 14.6/29.2 V
• Low Voltage Load Disconnect: 11.1/22.2 V
• Low Voltage Load Reconnect: 12.6/25.2 V
• Dimensions: 5.4 in Height x 2.7 in Width x 1.4 in Depth
• Standards: IEC 62109-1, EN 61000-6-1, EN 61000-6-3, ISO 7637-2
• Weight: 0.13 kg
• Application: 12V Use 36 Cell Solar Panels, 24V Use 72 Cell Solar Panels


Documents

• Specification Sheet
• Owners/User Manual
• Certificate

Reliable Solar Power Management

The Victron Energy BlueSolar PWM-Pro is a high-performance charge controller designed for 12/24V solar systems with a 10A maximum current. As a core component of solar energy setups, the controller efficiently manages charging to protect batteries from overcharging or deep discharging. Using Pulse Width Modulation technology, it optimizes power transfer from solar panels, improving battery lifespan and system reliability. Whether for small off-grid systems or auxiliary power, this Victron Energy BlueSolar device offers dependable, user-friendly installation with advanced protection features.

Advanced Features and Benefits

This Victron Energy BlueSolar PWM-Pro charge controller includes essential features such as multi-stage battery charging, temperature compensation, and reverse polarity protection. Its ability to automatically detect system voltage (12V or 24V) ensures optimal charging without manual intervention. The LED indicators provide clear status updates, making monitoring simple even for beginners. The device is robust and compact, fitting seamlessly into a variety of solar applications while ensuring efficient energy conversion and long-term battery health.

Durability and Versatility for Various Applications

Built for durability, the Victron Energy BlueSolar PWM-Pro controller withstands harsh environments with a rugged enclosure and quality internal components. It supports a wide range of battery types, including lead-acid and gel batteries, making it a versatile choice for RVs, boats, cabins, and off-grid solar systems. Its straightforward setup and maintenance free operation make it an ideal solution for anyone seeking a reliable, cost-effective way to manage solar energy effectively and protect their investment in renewable power.
