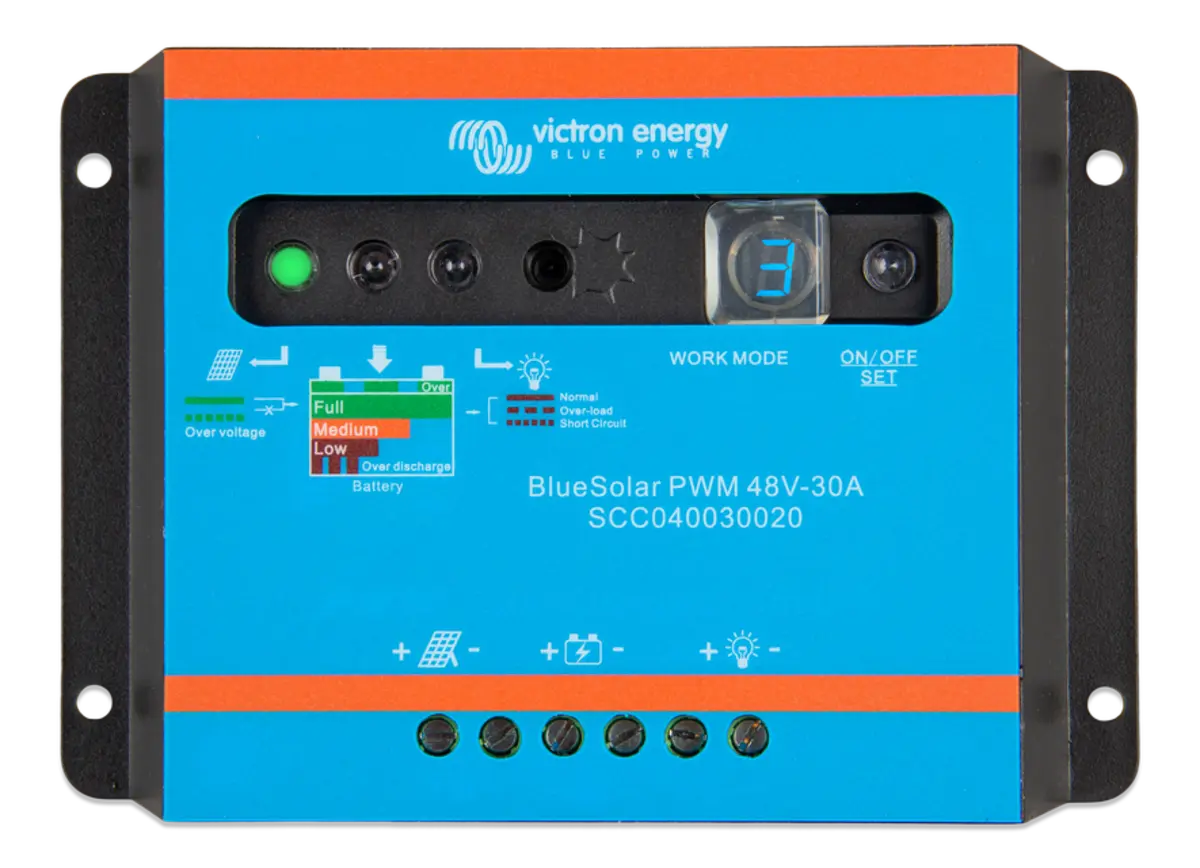

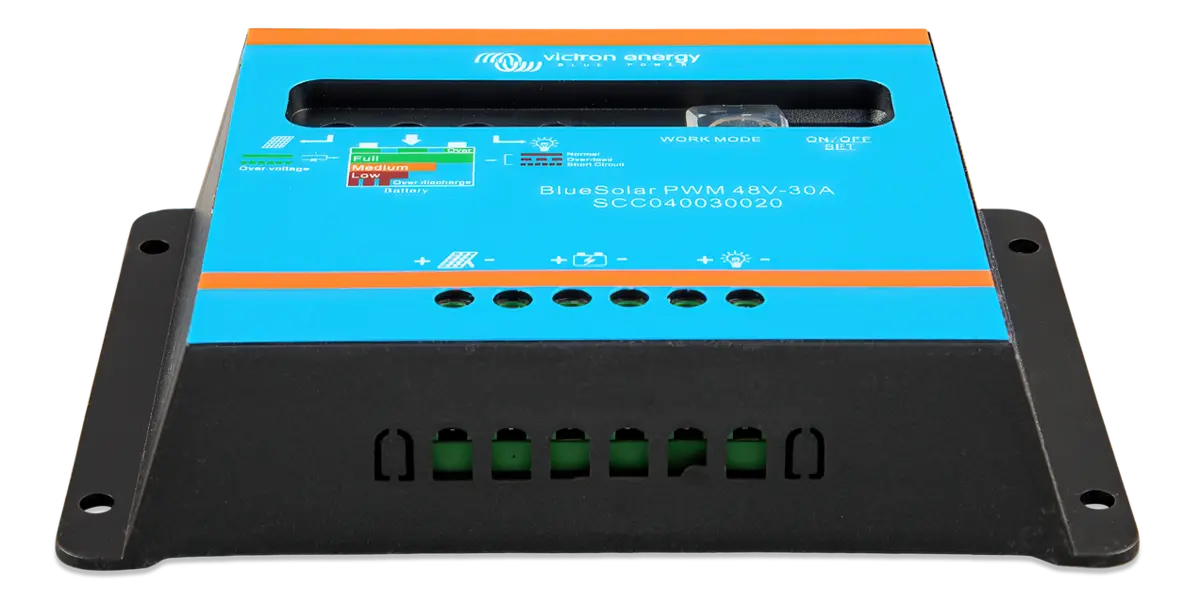

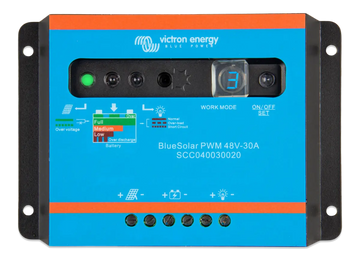

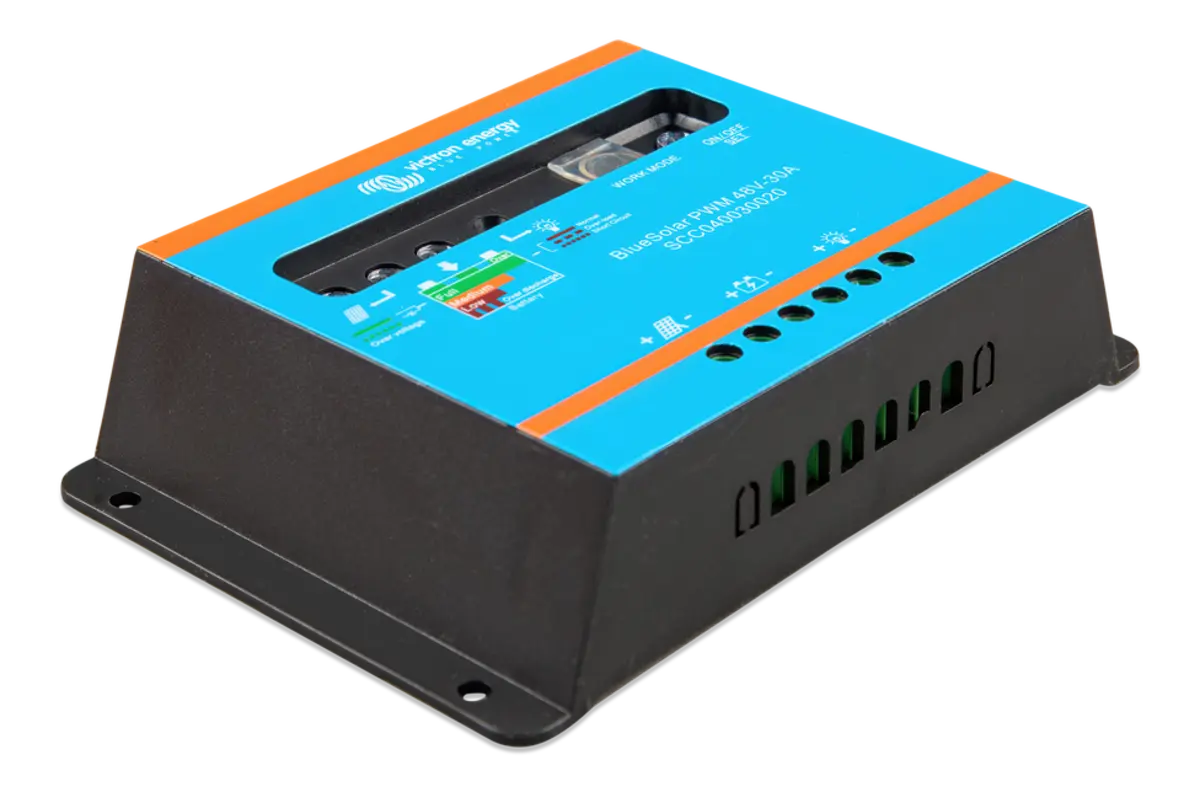

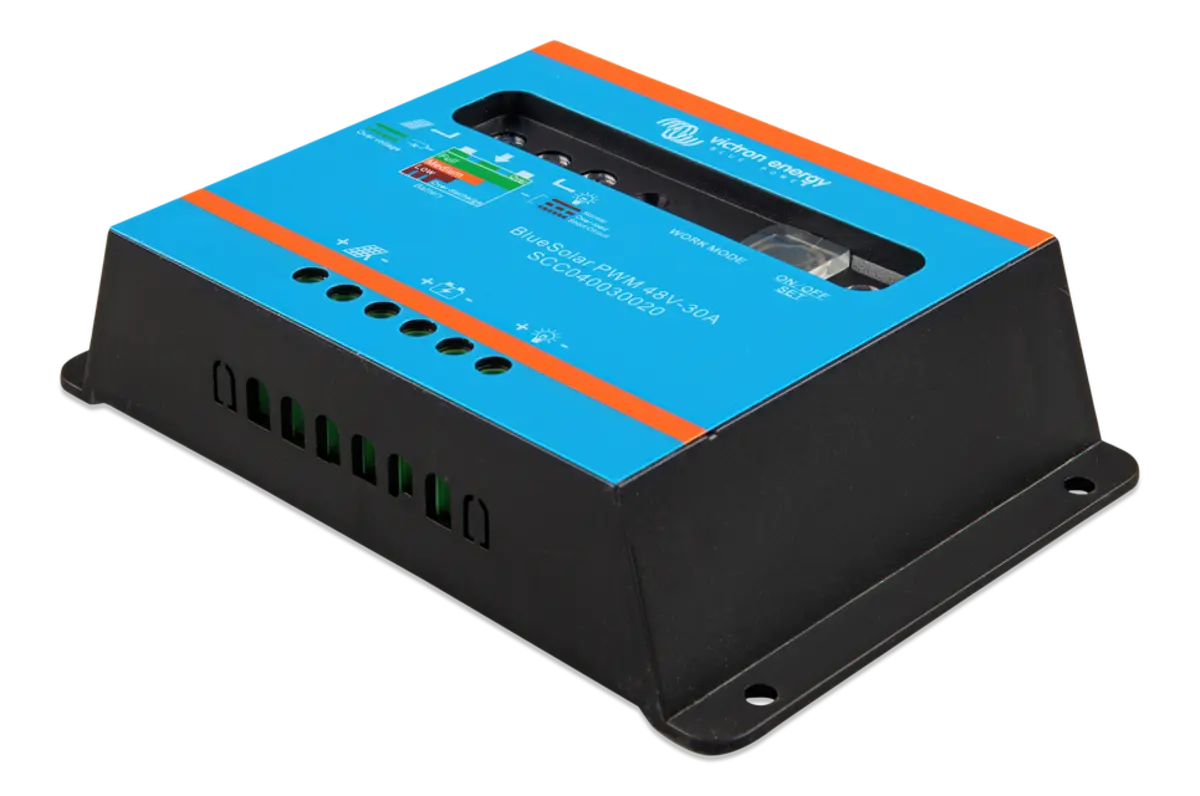

Victron Energy BlueSolar PWM-Light Charge Controller 48V-30A

Detailed Overview of Victron Energy BlueSolar Charge Controller

Features

• Load output with low battery voltage disconnect function
• Lighting control function, one timer only
• Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting
• Three stage battery charging (bulk, absorption, float), not programmable
• Load output protected against over load and short circuit
• Protected against reverse polarity connection of the solar array and/or battery
• Day/night timing options: see manual for details
• The Controller immediately switches to the lower absorption voltage level after the bulk charge level has been reached


Specifications

• Type: PWM-Light
• Series/Model: 48V-30A
• Battery Voltage: 48 V
• Enclosure Rating: IP20
• Operating Temperature: -20 to 50°C
• Self-Consumption: <10 mA
• Humidity: Max 95% Non-Condensing
• Maximum Solar Voltage: 28/55 V
• Terminal Size: 6 mm² / 10 AWG
• Charge Current Rating: 30 A
• Automatic Load Disconnect: Yes
• Load Output: Manual Control + Low Voltage Disconnect
• Protection:
  • Battery Reverse Polarity (Fuse)
  • Output Short Circuit
  • Over Temperature
• Grounding: Common Positive
• Charging Stages:
  • Bulk Charge: 58 V
  • Absorption Charge: 56.8 V
  • Float Charge: 55.2 V
• Low Voltage Load Management:
  • Disconnect: 44.8 V
  • Reconnect: 50.4 V (Manual), 52.4 V (Automatic)
• Overload Protection:
  • Shut Down After 60 sec at 130% Load
  • Shut Down After 5 sec at 160% Load
• Dimensions: 95 mm (H) x 140 mm (W) x 33.5 mm (D)
• Weight: 0.17 kg
• Standards Compliance:
  • IEC 62109-1
  • EN 61000-6-1
  • EN 61000-6-3


Documents

• Specification Sheet
• Owners/User Manual
• Specification Sheet


Advanced Solar Charge Regulation with Victron Energy BlueSolar Charge Controller

The Victron Energy BlueSolar Charge Controller offers precise and reliable solar charge management for off-grid photovoltaic systems. Designed to support 48V battery banks with a 30A current rating, this PWM-Light controller ensures optimized charging efficiency, prolonging battery life and safeguarding energy storage. Its robust design supports renewable energy setups of various sizes, making it a preferred choice for solar power installers and users focused on performance and durability.

Key Features and Benefits of the BlueSolar PWM-Light Controller

This Victron Energy BlueSolar Charge Controller utilizes Pulse Width Modulation technology to maximize energy absorption while preventing battery overcharging. It includes an integrated battery temperature sensor and versatile load output with multiple load disconnect options. The compact and lightweight design supports easy installation and maintenance. Its user-friendly interface pairs with Victron’s monitoring systems, allowing real-time data tracking and enhanced system control.

Applications and Compatibility of the 48V-30A Victron Controller

The BlueSolar PWM-Light Charge Controller is ideal for small to medium solar installations including residential cabins, remote telecom sites, and recreational vehicles. Compatible with a variety of battery types such as lead-acid and lithium-ion, it is engineered to offer flexible energy solutions. This controller seamlessly integrates into existing solar setups or new systems, boosting overall energy efficiency and reliability critical for sustainable solar power management.
