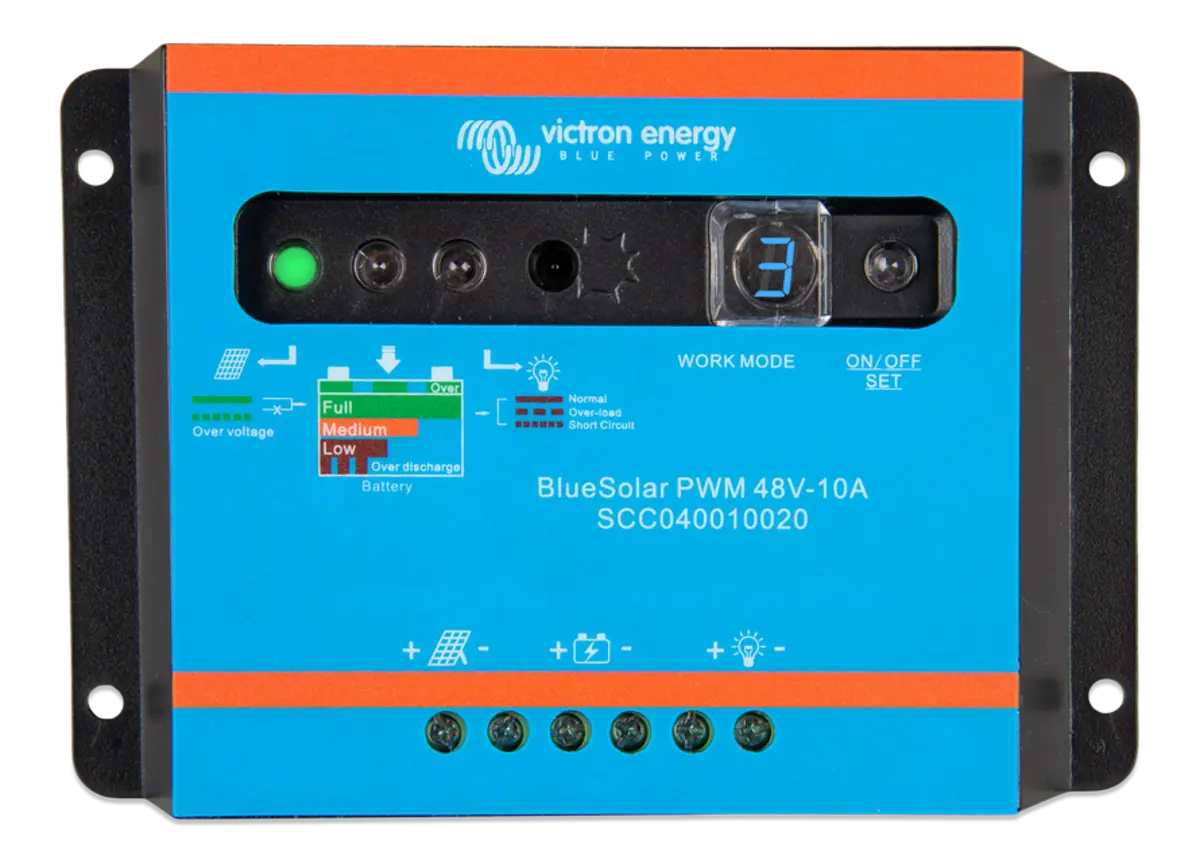

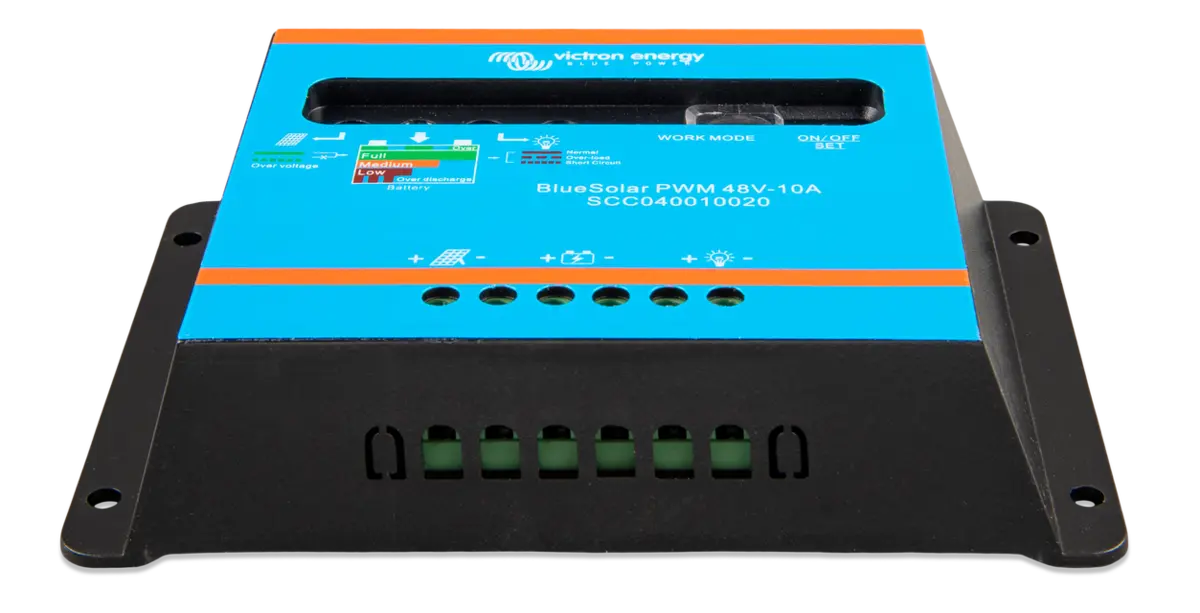

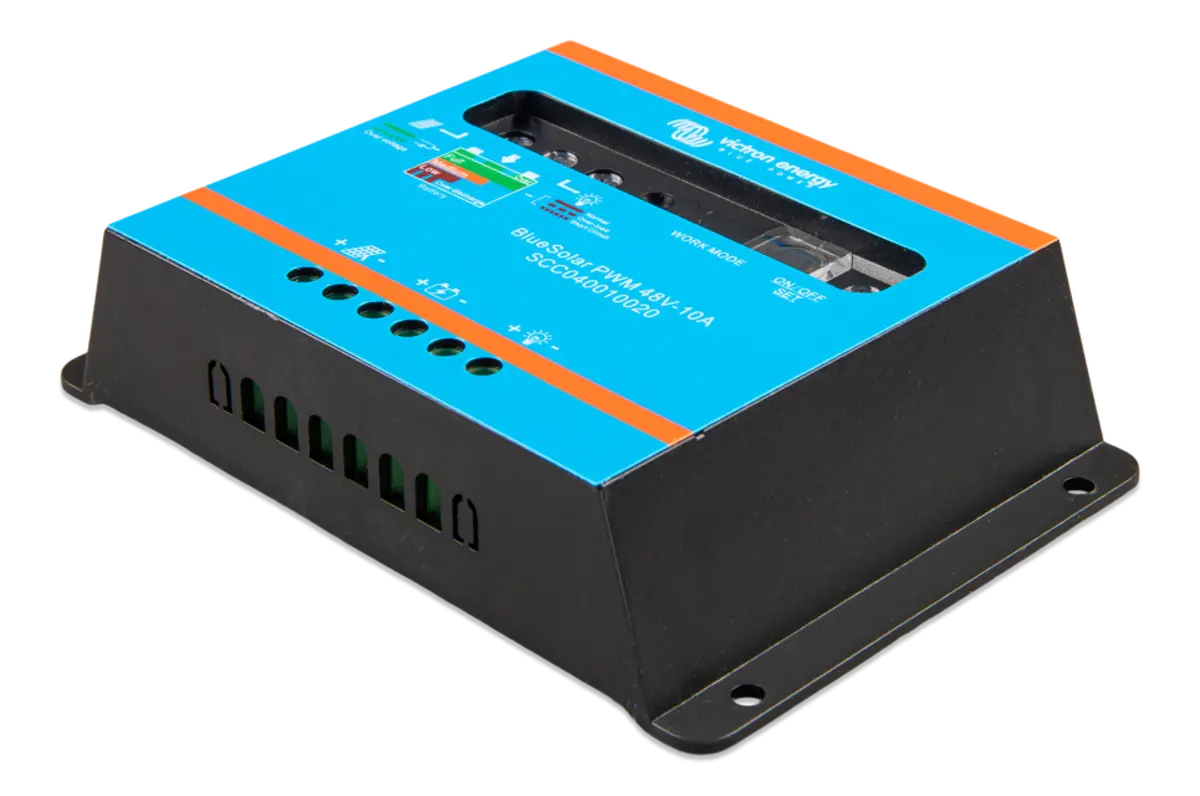

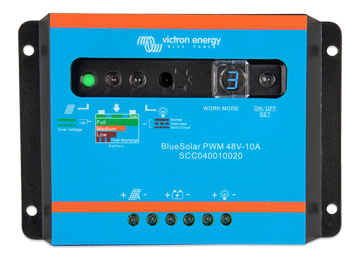

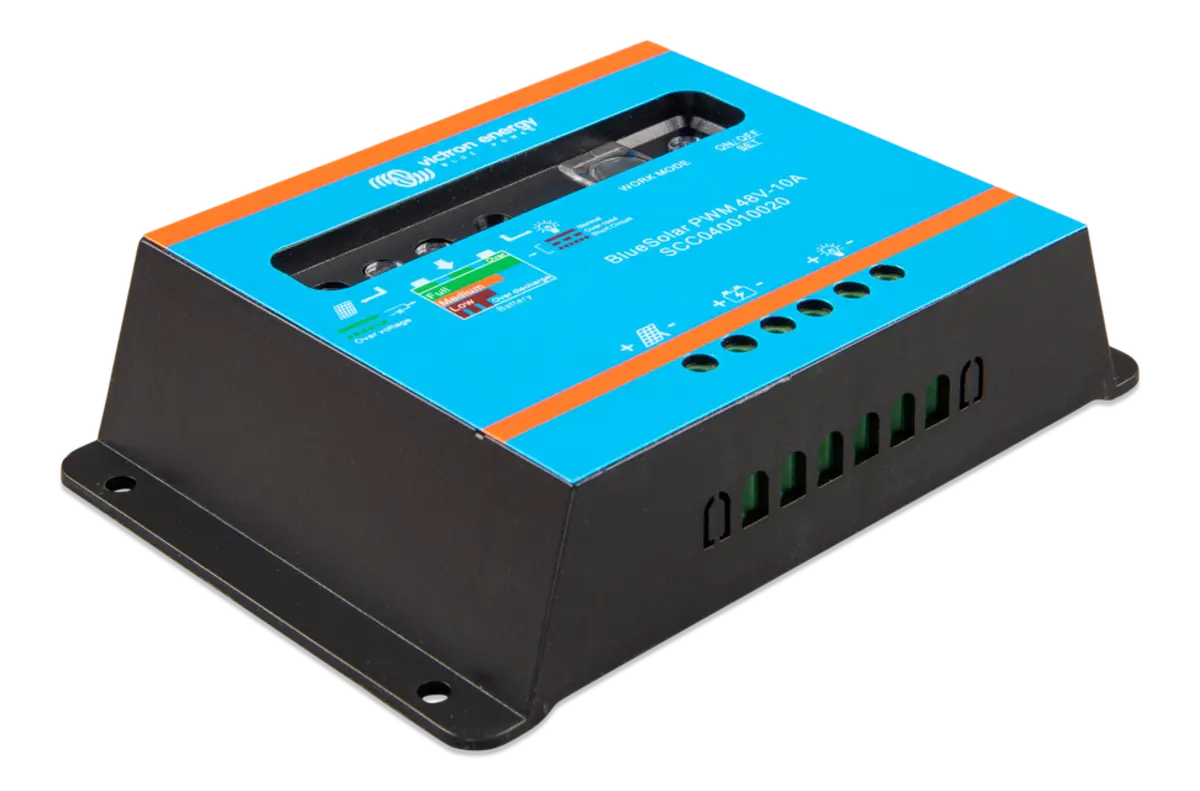

Victron Energy BlueSolar PWM-Light Charge Controller 48V-10A

Victron Energy BlueSolar PWM-Light Charge Controller Features and Benefits

Features

• Load output with low battery voltage disconnect function
• Lighting control function, one timer only
• Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting
• Three stage battery charging (bulk, absorption, float), not programmable
• Load output protected against over load and short circuit
• Protected against reverse polarity connection of the solar array and/or battery
• Day/night timing options: see manual for details
• The Controller immediately switches to the lower absorption voltage level after the bulk charge level has been reached


Specifications

• Type: PWM-Light
• Series/Model: 48V-10A
• Battery Voltage: 48 V
• Enclosure Rating: IP20
• Operating Temperature: -20 to 50°C
• Self-Consumption: <10 mA
• Humidity: Max 95% Non-Condensing
• Maximum Solar Voltage: 28/55 V
• Terminal Size: 6 mm² / 10 AWG
• Charge Current Rating: 10 A
• Automatic Load Disconnect: Yes
• Load Output: Manual Control + Low Voltage Disconnect
• Protection:
  • Battery Reverse Polarity (Fuse)
  • Output Short Circuit
  • Over Temperature
• Grounding: Common Positive
• Charging Stages:
  • Absorption Charge: 56.8 V
  • Float Charge: 55.2 V
  • Bulk Charge: 58 V
• Low Voltage Load Management:
  • Disconnect: 44.8 V
  • Reconnect: 50.4 V (Manual), 52.4 V (Automatic)
• Overload Protection:
  • Shut Down After 60 sec at 130% Load
  • Shut Down After 5 sec at 160% Load
• Dimensions: 95 mm (H) x 140 mm (W) x 33.5 mm (D)
• Weight: 0.17 kg
• Standards Compliance:
  • IEC 62109-1
  • EN 61000-6-1
  • EN 61000-6-3


Documents

• Specification Sheet
• Owners/User Manual
• Specification Sheet


Reliable Solar Charging with Victron Energy BlueSolar

The Victron Energy BlueSolar PWM-Light Charge Controller is designed to optimize energy capture from your solar panels, ensuring maximum recharge efficiency for 48V battery systems at 10A. Its PWM technology gently charges batteries, preventing overcharging and extending their lifespan. Renowned for reliability, the BlueSolar controller provides precise regulation, ideal for various off-grid solar applications. Using Victron Energy BlueSolar products means choosing trusted technology that safeguards your investment and supports a stable power supply.

Compact and User-Friendly Design

This compact charge controller is lightweight and easy to install, making it perfect for small to medium solar power setups. Its simple interface allows users to monitor charging status and battery health with ease. The device’s low power consumption enhances the overall system efficiency while offering protection against reverse polarity, over-voltage, and short circuits. The Victron Energy BlueSolar PWM-Light Charge Controller combines modern engineering with user-focused design for seamless solar energy management.

Durability and Efficiency for Long-Term Use

Built to withstand harsh environmental conditions, the Victron Energy BlueSolar PWM-Light Charge Controller features solid construction and components that ensure long-lasting performance. Its high efficiency minimizes energy wastage, converting solar power into usable charge more effectively. The controller’s adaptive charging algorithm protects battery health and improves system uptime, making it a valuable addition to sustainable energy projects. Investing in this controller means benefiting from consistent solar power control that supports your renewable energy goals.
