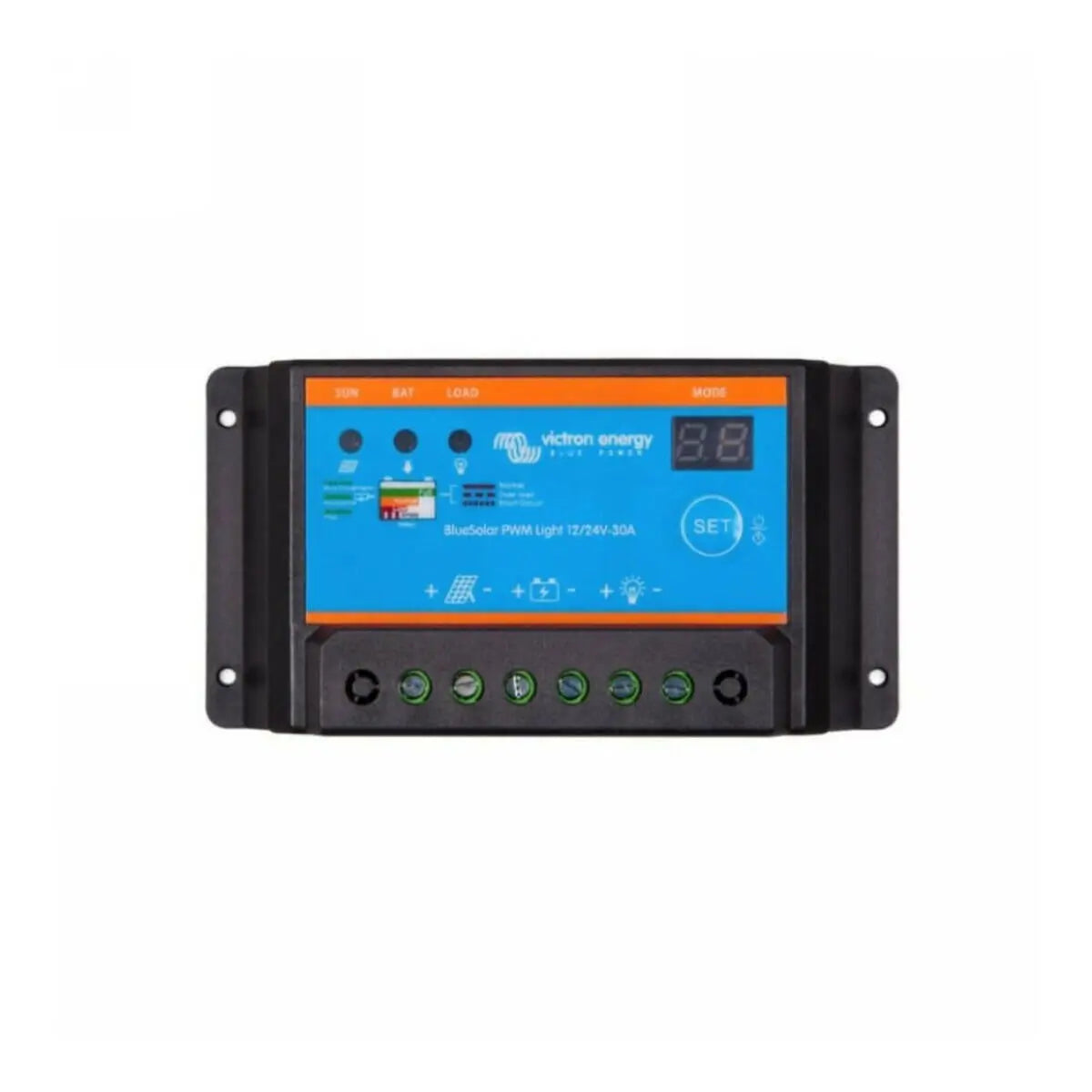

Victron Energy BlueSolar PWM-Light Charge Controller 12/24V-30A

Victron Energy Charge Controller: Efficient Solar Power Management

Features

• Load output with low battery voltage disconnect function
• Lighting control function, one timer only
• Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting
• Three stage battery charging (bulk, absorption, float), not programmable
• Load output protected against over load and short circuit
• Protected against reverse polarity connection of the solar array and/or battery
• Day/night timing options: see manual for details


Specifications

• Type: PWM-Light
• Series/Model: 12/24V-30A
• Battery Voltage: 12/24 V
• Enclosure Rating: IP20
• Operating Temperature: -20 to 50 deg C
• Self-Consumption: <10 mA
• Humidity: Max 95% Non-Condensing
• Maximum Solar Voltage: 28/55 V
• Terminal Size: 5 mm2/10 AWG
• Charge Current Rating: 30 A
• Automatic Load Disconnect: Yes
• Load Output: Manual Control + Low Voltage Disconnect
• Protection: Battery Reverse Polarity (Fuse), Output Short Circuit, Over Temperature
• Grounding: Common Positive
• Absorption Charge: 14.2/28.4 V
• Float Charge: 13.8/27.6 V
• Low Voltage Load Disconnect: 11.22/22.4 V
• Low Voltage Load Reconnect: 12.6/25.2 V (Manual), 13.1/26.2 V (Automatic)
• Overload Protection: Shut Down After 60 sec in Case of 130% Load, Shut Down After 5 sec in Case of 160% Load
• Dimensions: 2.8 in Height x 5.3 in Width x 1.3 in Depth
• Standards: IEC 62109-1, EN 61000-6-1, EN 61000-6-3, ISO 7637-2
• Weight: 0.2 kg
• Application: 12V Use 36 Cell Solar Panels, 24V Use 72 Cell Solar Panels or 2x 36 Cell in Series


Documents

• Specification Sheet
• Owners/User Manual
• Certificate

Advanced Solar Charging Technology

The Victron Energy charge controller BlueSolar PWM-Light 12/24V-30A is designed to efficiently manage solar panel output and battery charging. It uses Pulse Width Modulation (PWM) technology, which ensures optimal battery charging and longevity by controlling the voltage and current applied. This controller is compatible with both 12V and 24V battery systems, automatically detecting system voltage to remove user errors. PWM technology optimizes the battery’s charging process, reduces power loss, and extends battery life, making it an ideal choice for small to mid-sized solar power installations seeking dependable energy management solutions.

Durability and Smart Protection Features

Built for long-term reliability, the Victron Energy charge controller integrates multiple protection mechanisms to safeguard your battery and solar panels. Its robust design protects against overcharging, deep discharge, reverse polarity, and short circuits. Additionally, it includes temperature compensation to adjust charging parameters based on ambient conditions, enhancing battery performance and reliability. The controller’s compact and durable enclosure is designed for harsh environments, making it suitable for both residential and remote off-grid solar systems, ensuring consistent and safe operation under varied conditions.

Easy Installation and User-Friendly Interface

The BlueSolar PWM-Light charge controller by Victron Energy features a straightforward installation process suitable for both professionals and hobbyists. It includes clear LED indicators that display system status, making it simple to monitor charging progress and system health at a glance. The device supports flexible wiring options and can be integrated seamlessly into existing solar setups without complex configuration. This ease of installation, combined with its automatic system voltage detection, makes the Victron Energy charge controller highly user-friendly and reduces setup time for efficient solar energy use.
