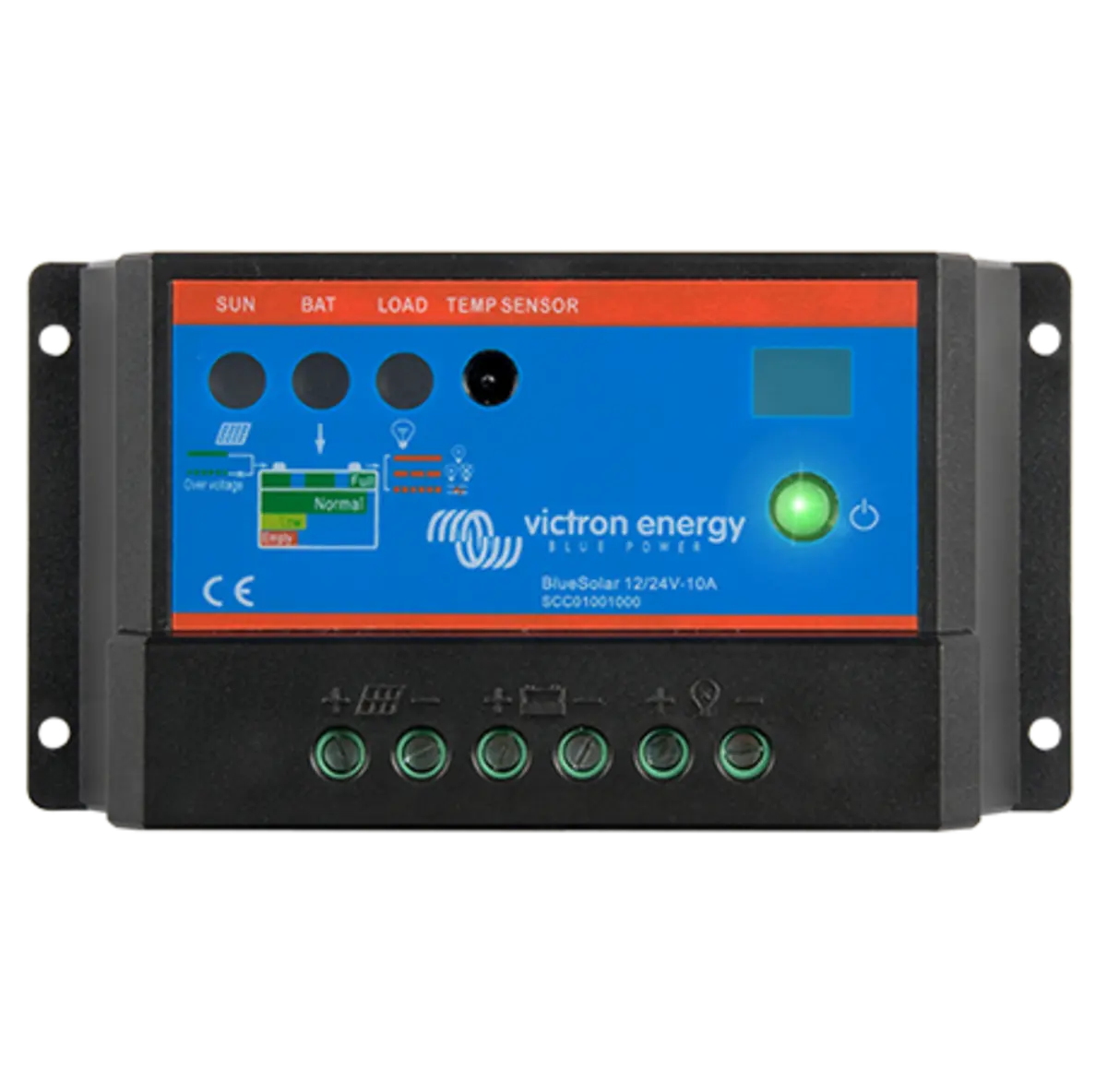

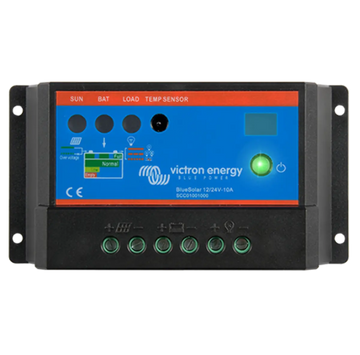

Victron Energy BlueSolar PWM-Light Charge Controller 12/24V-10A

Efficient Solar Power Regulation with Victron Energy BlueSolar

Features

• Load output with low battery voltage disconnect function
• Lighting control function, one timer only
• Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting
• Three stage battery charging (bulk, absorption, float), not programmable
• Load output protected against over load and short circuit
• Protected against reverse polarity connection of the solar array and/or battery
• Day/night timing options: see manual for details


Specifications

• Type: PWM-Light
• Series/Model: 12/24V-10A
• Battery Voltage: 12/24 V
• Enclosure Rating: IP20
• Operating Temperature: -20 to 50 deg C
• Self-Consumption: <10 mA
• Humidity: Max 95% Non-Condensing
• Maximum Solar Voltage: 28/55 V
• Terminal Size: 5 mm²/10 AWG
• Charge Current Rating: 10 A
• Automatic Load Disconnect: Yes
• Load Output: Manual Control + Low Voltage Disconnect
• Protection: Battery Reverse Polarity (Fuse), Output Short Circuit, Over Temperature
• Grounding: Common Positive
• Absorption Charge: 14.2/28.4 V
• Float Charge: 13.8/27.6 V
• Low Voltage Load Disconnect: 11.22/22.4 V
• Low Voltage Load Reconnect: 12.6/25.2 V (Manual), 13.1/26.2 V (Automatic)
• Overload Protection: Shut Down After 60 sec in Case of 130% Load, Shut Down After 5 sec in Case of 160% Load
• Dimensions: 2.8 in Height x 5.3 in Width x 1.3 in Depth
• Standards: IEC 62109-1, EN 61000-6-1, EN 61000-6-3, ISO 7637-2
• Weight: 0.15 kg
• Application: 12V Use 36 Cell Solar Panels, 24V Use 72 Cell Solar Panels or 2x 36 Cell in Series


Documents

• Specification Sheet
• Owners/User Manual

• Certificate

Overview of Victron Energy BlueSolar PWM-Light Charge Controller

The Victron Energy BlueSolar PWM-Light Charge Controller 12/24V-10A is designed to deliver efficient and reliable solar power regulation for small to medium solar systems. This product ensures optimal battery charging and protects battery life by preventing overcharging or deep discharge. The PWM technology helps maintain battery health and maximizes energy yield from your solar panels. Compatible with both 12V and 24V systems, this controller suits a wide range of standalone solar installations. Its compact, durable design from Victron Energy guarantees easy installation and long-term reliability, perfect for off-grid solar applications.

Key Features and Benefits

Equipped with state-of-the-art PWM (Pulse Width Modulation) technology, the Victron Energy BlueSolar controller efficiently manages the charging cycle, ensuring you get the most out of your solar panels. The controller's 10A current capacity provides stable and safe charging for small battery banks. It offers advanced protection against overvoltage, short circuits, and reverse polarity, securing both solar panels and batteries. Additionally, the controller’s LED indicator offers real-time charging status, making it straightforward to monitor system performance without complex setups. This product is engineered to promote battery longevity and system reliability.

Installation and Application Suitability

Installation of the Victron Energy BlueSolar PWM-Light Charge Controller is simple and user-friendly, offering plug-and-play convenience for users new to solar systems. The unit supports both 12V and 24V batteries automatically, which adds flexibility to its application in various solar setups including RVs, boats, cabins, and remote off-grid locations. Its compact size and lightweight design allow installation in tight spaces while maintaining high efficiency. Victron Energy’s proven technology ensures the controller can withstand harsh environmental conditions, making it an ideal choice for reliable renewable energy management anywhere.
