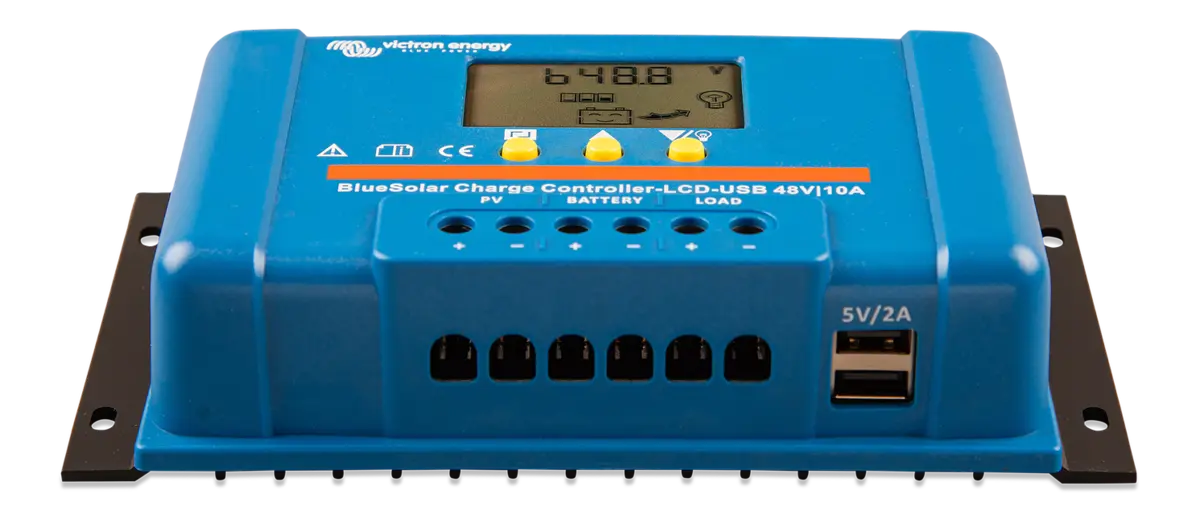

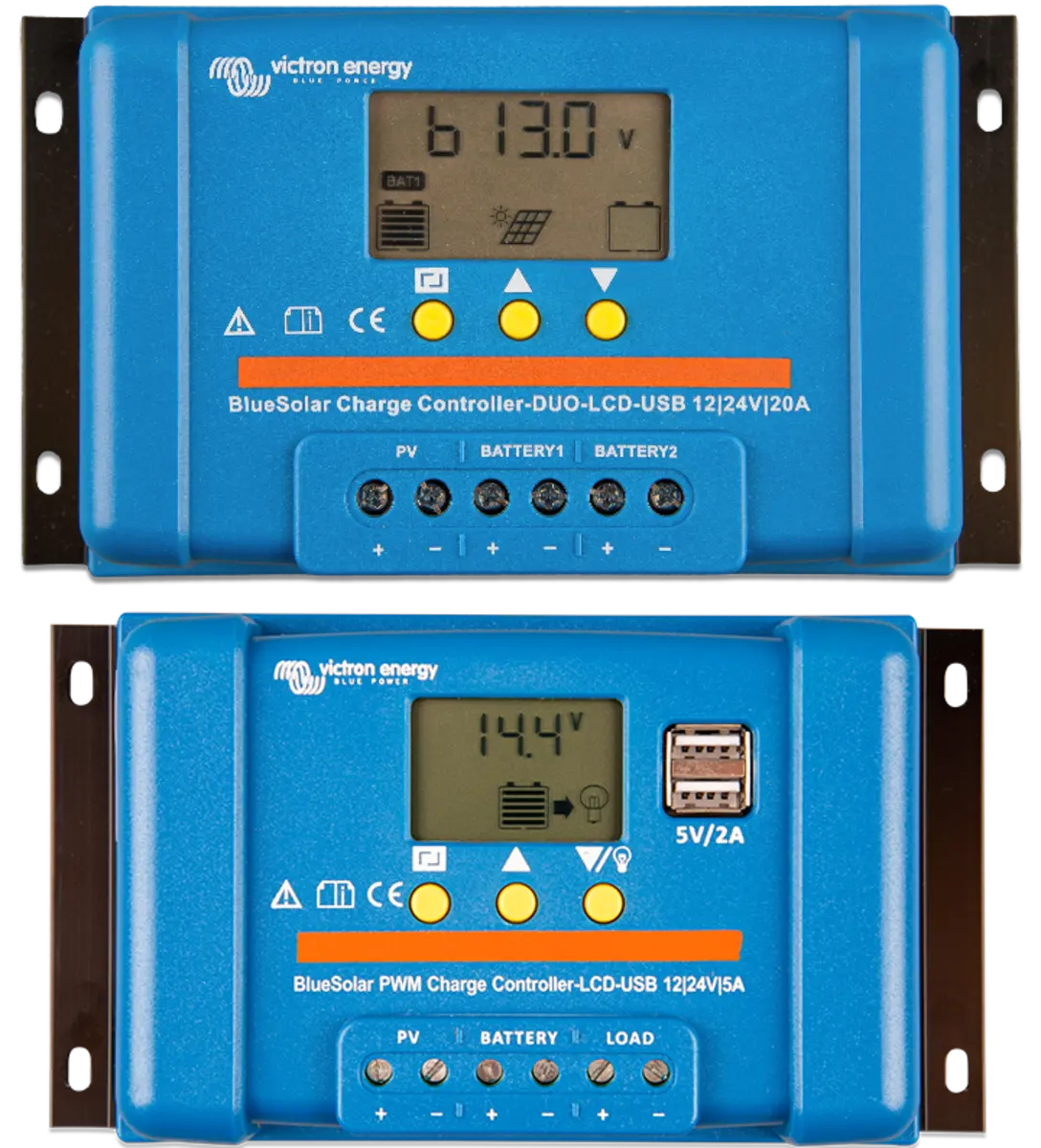

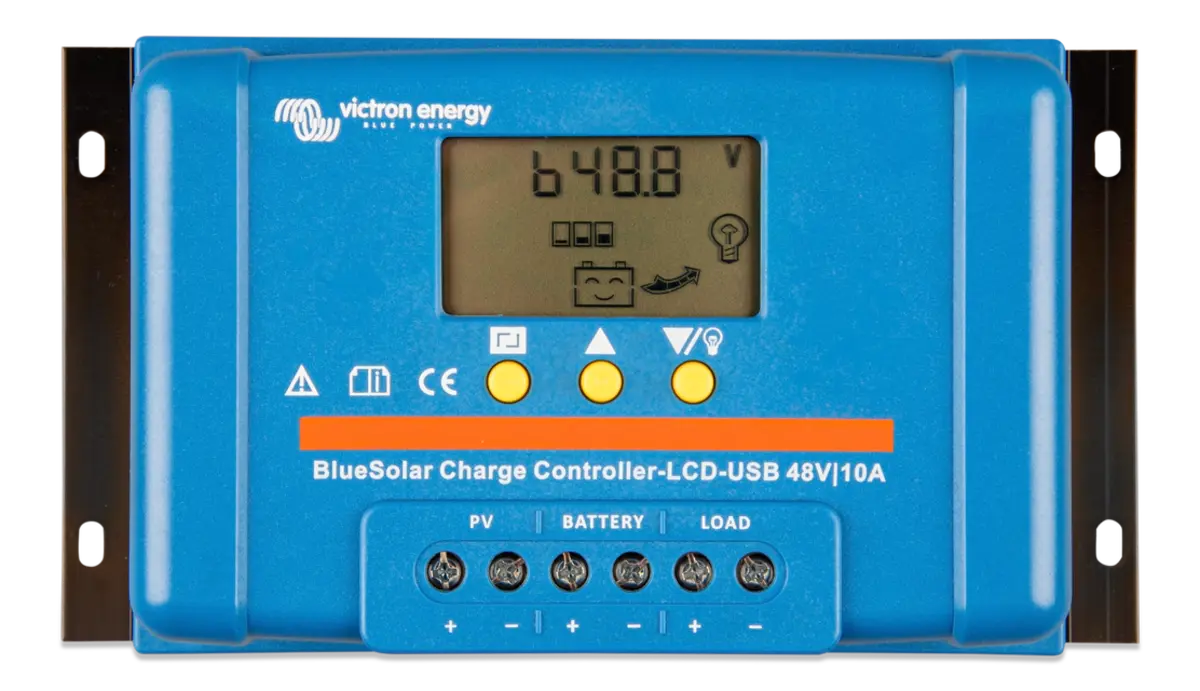

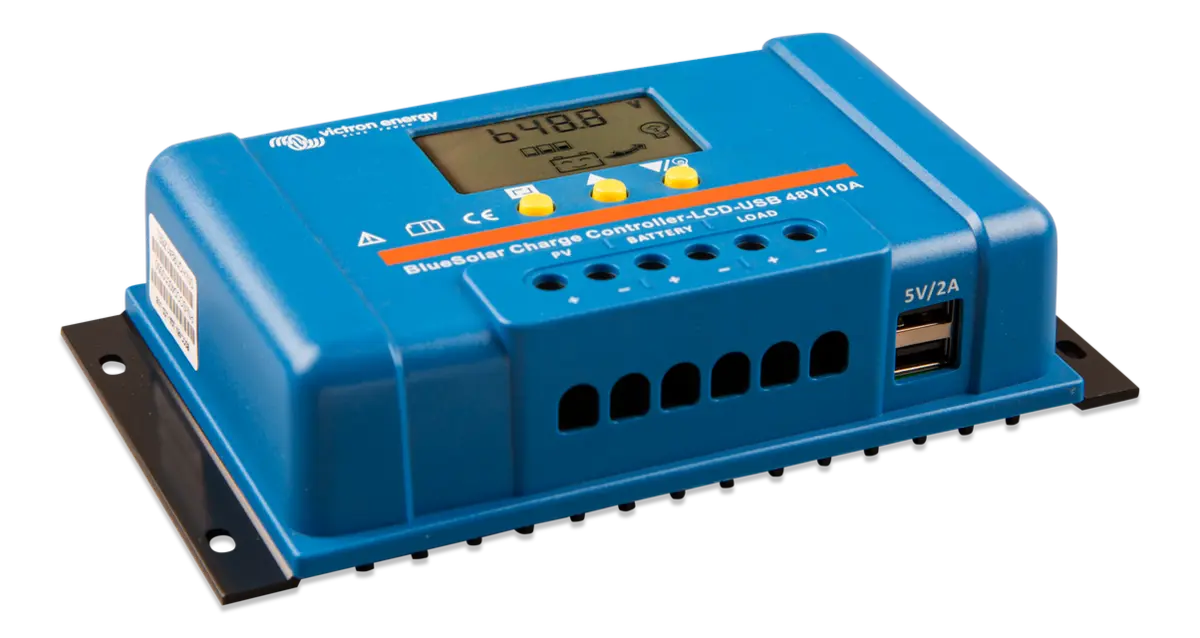

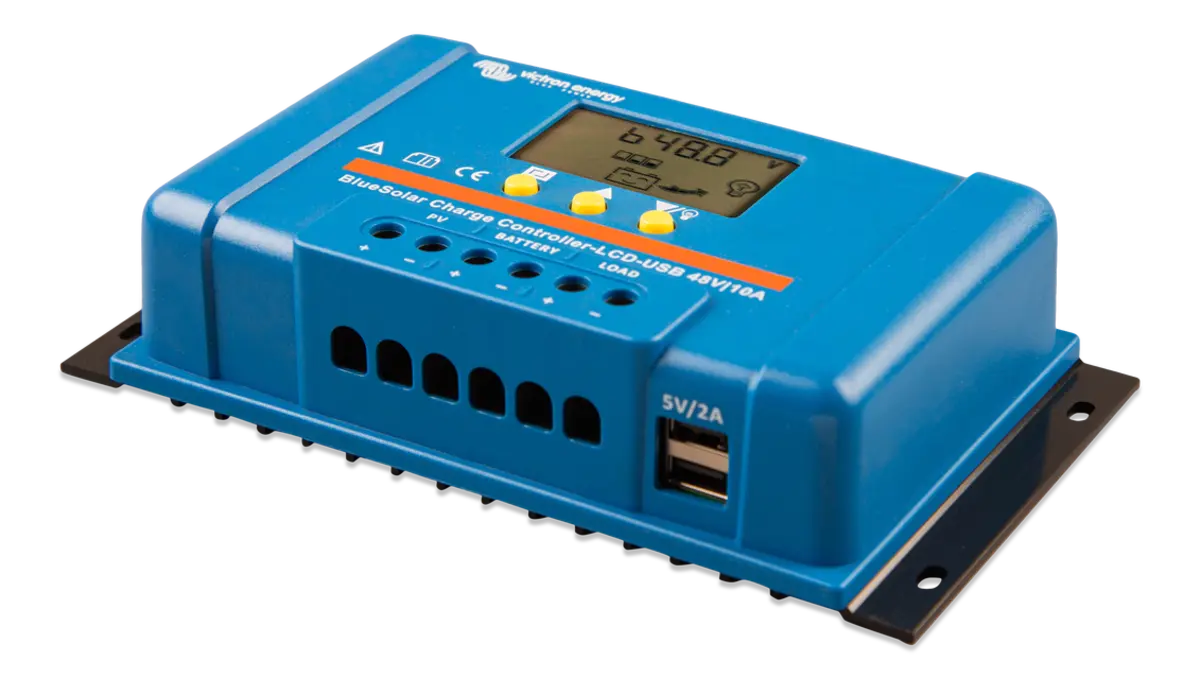

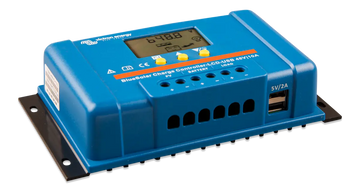

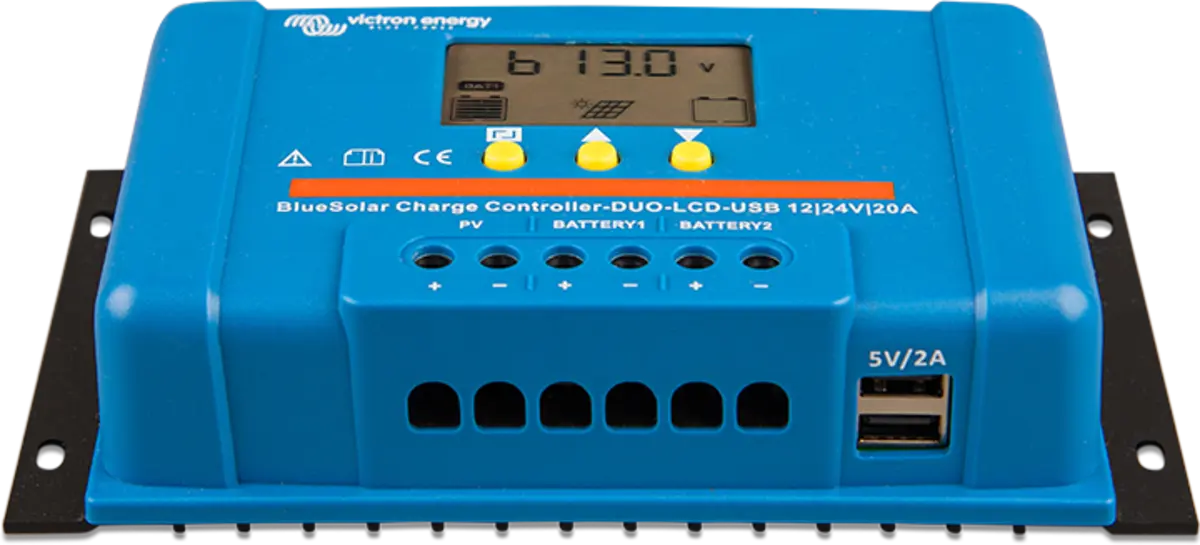

Victron Energy BlueSolar PWM-LCD&USB 48V-30A

Explore the Features of Victron Energy BlueSolar PWM-LCD&USB 48V-30A

Features

• Liquid crystal display
• Two 5 V USB outputs
• Lighting control function, fully programmable
• Three stage battery charging (bulk, absorption, float), fully programmable
• Load output with low voltage and manual disconnect (programmable)
• Load output protected against over load and short circuit
• Protected against reverse polarity connection of the solar panels and/or battery


Specifications

• Type: PWM-LCD & USB
• Series/Model: 48V-30A
• Battery Voltage: 48 V
• Enclosure Rating: IP20
• Operating Temperature: -35 to 60°C
• Self-Consumption: <10 mA
• Humidity: Max 95% Non-Condensing
• Maximum Solar Voltage: 100 V
• Terminal Size: 16 mm² / 6 AWG
• USB Specifications:
  • Voltage: 5 V
  • Current: 2 A
• Charge Current Rating: 30 A
• Automatic Load Disconnect: Yes
• Load Output Features:
  • Manual Control
  • Low Voltage Disconnect
  • Timer Function
• Protection Features:
  • Battery Reverse Polarity (Fuse)
  • Output Short Circuit
  • Over Temperature
• Grounding: Common Positive
• Charging Stages:
  • Absorption Charge: 57.6 V
  • Float Charge: 54.8 V
• Low Voltage Load Management:
  • Disconnect: 44.8 V
  • Reconnect: 50.4 V
• Overload Protection:
  • Shut Down After 60 sec at 130% Load
  • Shut Down After 5 sec at 160% Load
• Dimensions: 4 in (H) x 7.4 in (W) x 1.8 in (D)
• Weight: 0.3 kg
• Standards Compliance:
  • EN 60335-1
  • IEC 62109-1
  • EN 61000-6-1
  • EN 61000-6-3
  • ISO 7637-2
• Application:
  • 48V Systems: Use 2x 72-Cell Solar Panels or 4x 36-Cell Panels in Series


Documents

• Specification Sheet
• Owners/User Manual


Efficient Solar Charge Control with Victron Energy BlueSolar

The Victron Energy BlueSolar PWM-LCD&USB 48V-30A is an advanced solar charge controller designed to maximize the efficiency of your solar power system. Utilizing PWM (Pulse Width Modulation) technology, it offers precise battery charging to extend battery life while reducing energy loss. This controller is especially suitable for 48V solar systems and can handle up to 30 amps, making it ideal for medium-sized solar installations. Its high-quality construction ensures reliable performance under various conditions, ensuring your solar setup operates smoothly and effectively.

Intuitive LCD Display and USB Connectivity

One of the standout features of the Victron Energy BlueSolar PWM-LCD&USB 48V-30A is its built-in LCD screen that offers real-time data on battery status, charging progress, and system parameters. This user-friendly interface allows for easy monitoring and configuration directly on the device without additional tools. Furthermore, the integrated USB port enables easy firmware updates and data transfers, enhancing control and management capabilities for both end-users and installers. This controller effectively combines performance with user convenience in one compact unit.

Reliable and Durable Design for Long-Term Use

Designed by Victron Energy, a trusted name in renewable energy, the BlueSolar PWM-LCD&USB 48V-30A is built to last in demanding environments. Its robust casing protects sensitive electronics from dust, moisture, and mechanical shocks, making it suitable for off-grid solar solutions. Additionally, the controller incorporates multiple safety protections such as overcharge, overload, and short circuit prevention to safeguard your battery bank and solar panels. This ensures consistent, safe operation, giving users peace of mind for their solar energy investment.
