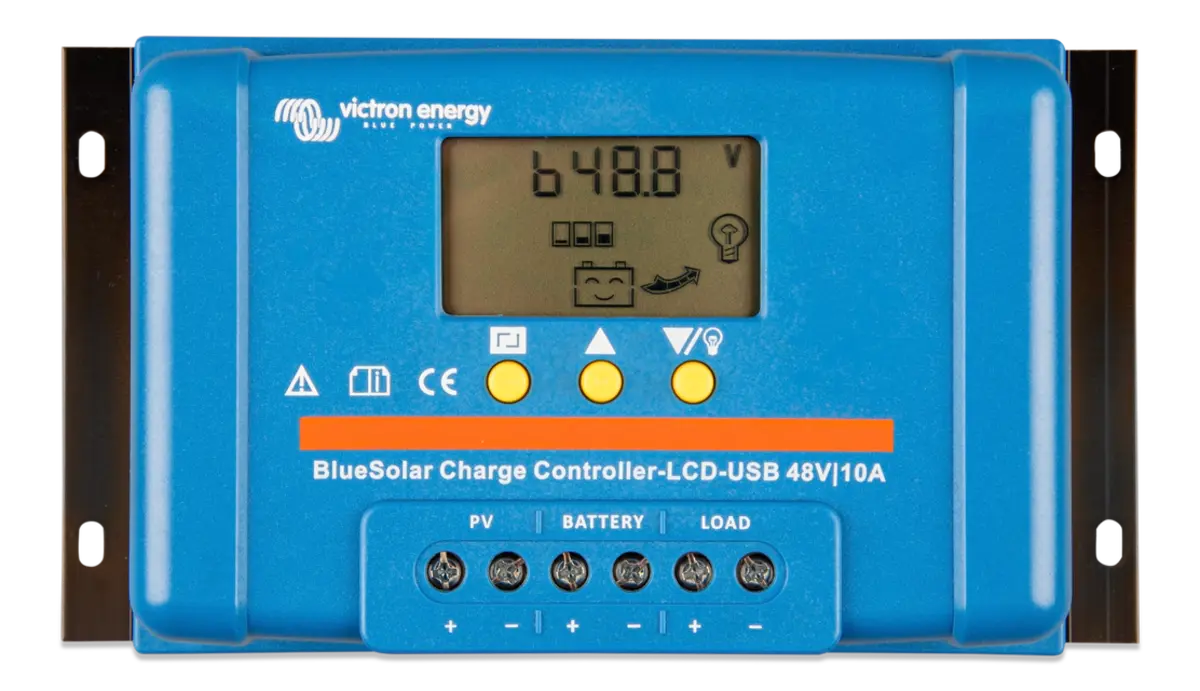

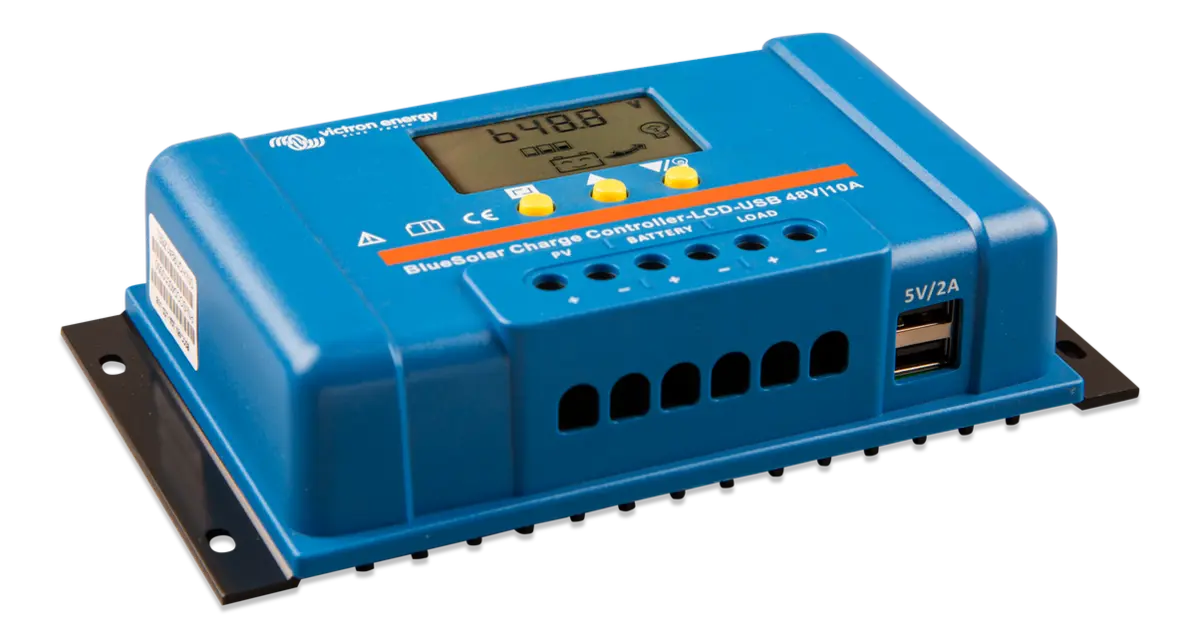

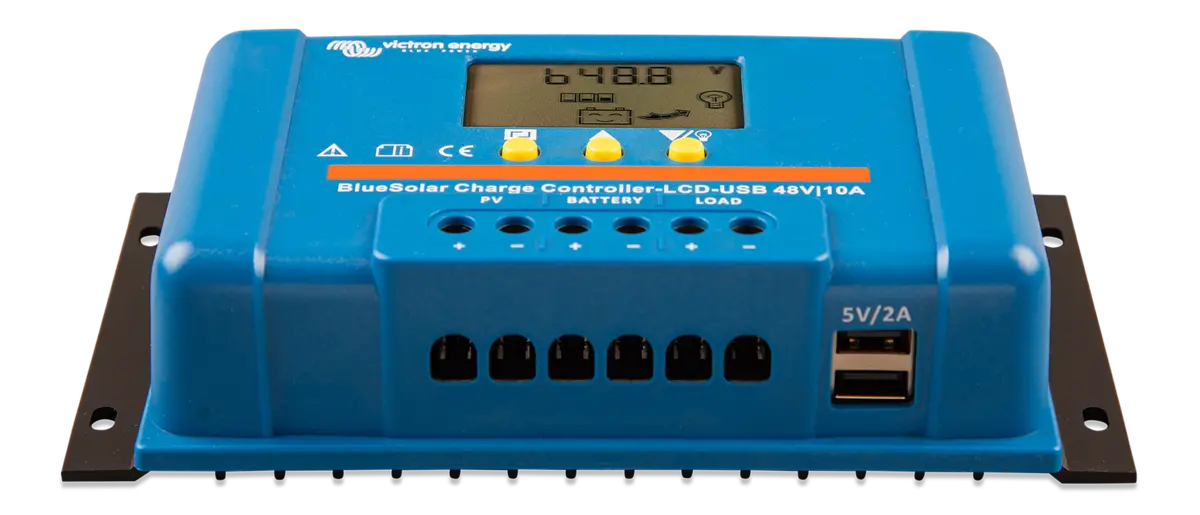

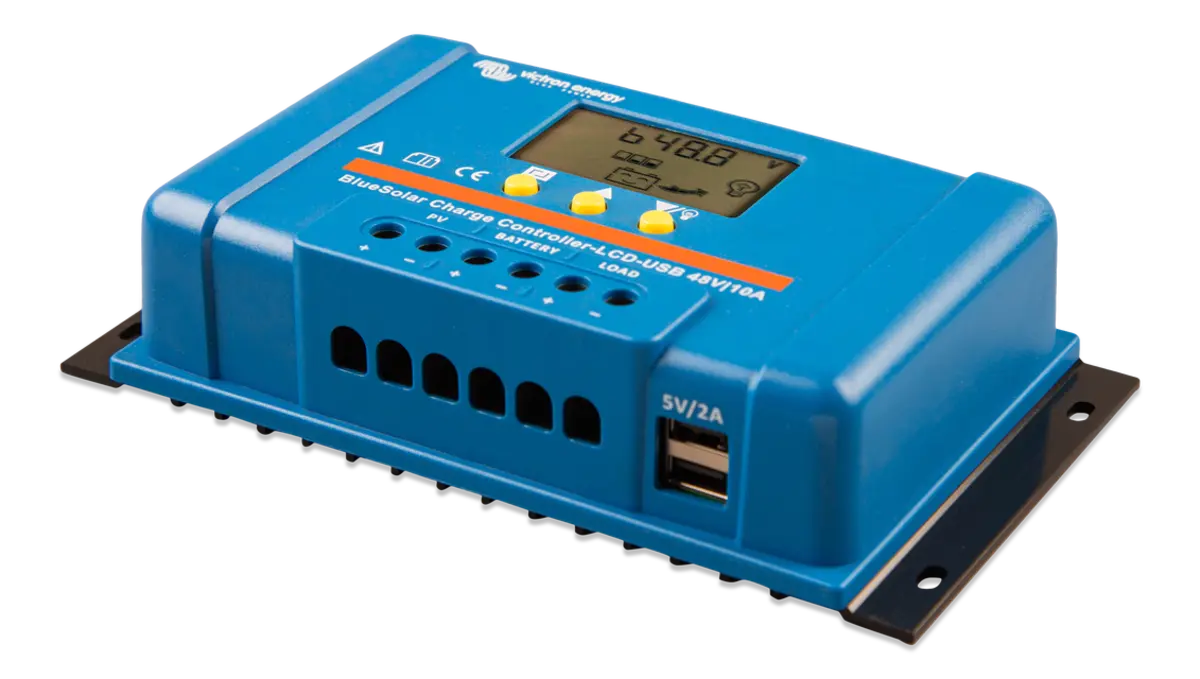

Victron Energy BlueSolar PWM-LCD&USB 48V-10A

Explore the Features and Benefits of Victron Energy BlueSolar PWM-LCD&USB 48V-10A

Features

• Liquid crystal display
• Two 5 V USB outputs
• Lighting control function, fully programmable
• Three stage battery charging (bulk, absorption, float), fully programmable
• Load output with low voltage and manual disconnect (programmable)
• Load output protected against over load and short circuit
• Protected against reverse polarity connection of the solar panels and/or battery


Specifications

• Type: PWM-LCD & USB
• Series/Model: 48V-10A
• Battery Voltage: 48 V
• Enclosure Rating: IP20
• Operating Temperature: -35 to 60°C
• Self-Consumption: <10 mA
• Humidity: Maximum 95% Non-Condensing
• Maximum Solar Voltage: 100 V
• Terminal Size: 16 mm² / 6 AWG
• USB Voltage: 5 V
• Charge Current Rating: 10 A
• Automatic Load Disconnect: Yes
• Load Output: Manual Control + Low Voltage Disconnect + Timer
• Protection:
  • Battery Reverse Polarity (Fuse)
  • Output Short Circuit
  • Over Temperature
• Grounding: Common Positive
• Charging Stages:
  • Absorption Charge: 57.6 V
  • Float Charge: 54.8 V
• Low Voltage Load Management:
  • Disconnect: 44.8 V
  • Reconnect: 50.4 V
• Overload Protection:
  • Shut Down After 60 sec at 130% Load
  • Shut Down After 5 sec at 160% Load
• USB Current: 2 A
• Dimensions: 4 in (H) x 7.4 in (W) x 1.8 in (D)
• Weight: 0.3 kg
• Standards Compliance:
  • EN60335-1
  • IEC 62109-1
  • EN 61000-6-1
  • EN 61000-6-3
  • ISO 7637-2
• Application: 48V Use 2x 72 Cell Solar Panels or 4x 36 Cell in Series


Documents

• Specification Sheet
• Owners/User Manual


Efficient Power Regulation with Victron Energy BlueSolar

The Victron Energy BlueSolar PWM-LCD&USB 48V-10A is designed to optimize solar energy management, ensuring your solar panels operate at peak performance. This PWM (Pulse Width Modulation) solar charge controller efficiently regulates the flow of electricity from solar panels to batteries, preventing overcharging and extending battery lifespan. With its built-in LCD display and USB interface, users can monitor system status and configure settings easily, making it an ideal choice for small to medium solar systems. The 48V rating suits a wide range of applications, providing versatility for residential and off-grid solar setups.

User-Friendly LCD Display and USB Connectivity

Equipped with a clear LCD screen, the Victron Energy BlueSolar PWM-LCD&USB gives real-time insight into voltage, current, and state of charge. This user-friendly interface simplifies troubleshooting and system adjustments without additional tools. The USB port allows firmware updates and data logging, ensuring your solar charge controller remains up-to-date with the latest features. This seamless integration of digital technology makes managing your solar power system intuitive and efficient, appealing to both beginners and experienced users in renewable energy applications.

Durability and Safety Features for Reliable Performance

Built to withstand harsh environments, the Victron Energy BlueSolar PWM-LCD&USB 48V-10A features robust components that ensure long-lasting operation. Its advanced protection mechanisms include overcharge, over-discharge, short circuit, and reverse polarity safety features. These safeguards protect your batteries and connected devices from damage, enhancing system reliability. Additionally, the compact design allows for easy installation in various settings, making it a dependable and convenient solution for managing solar power systems effectively.
