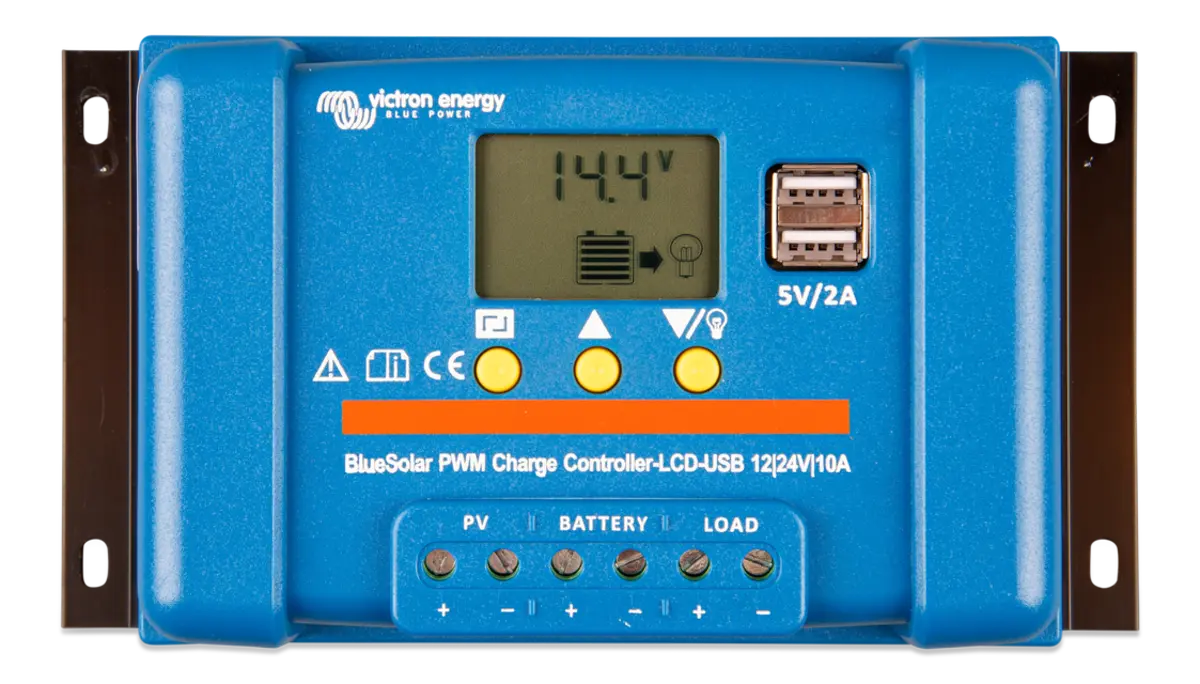

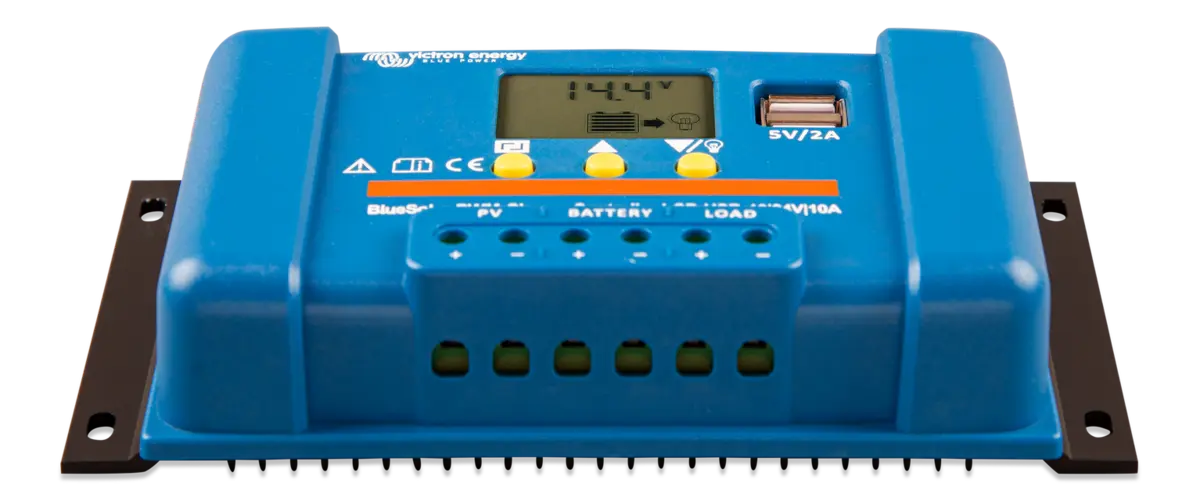

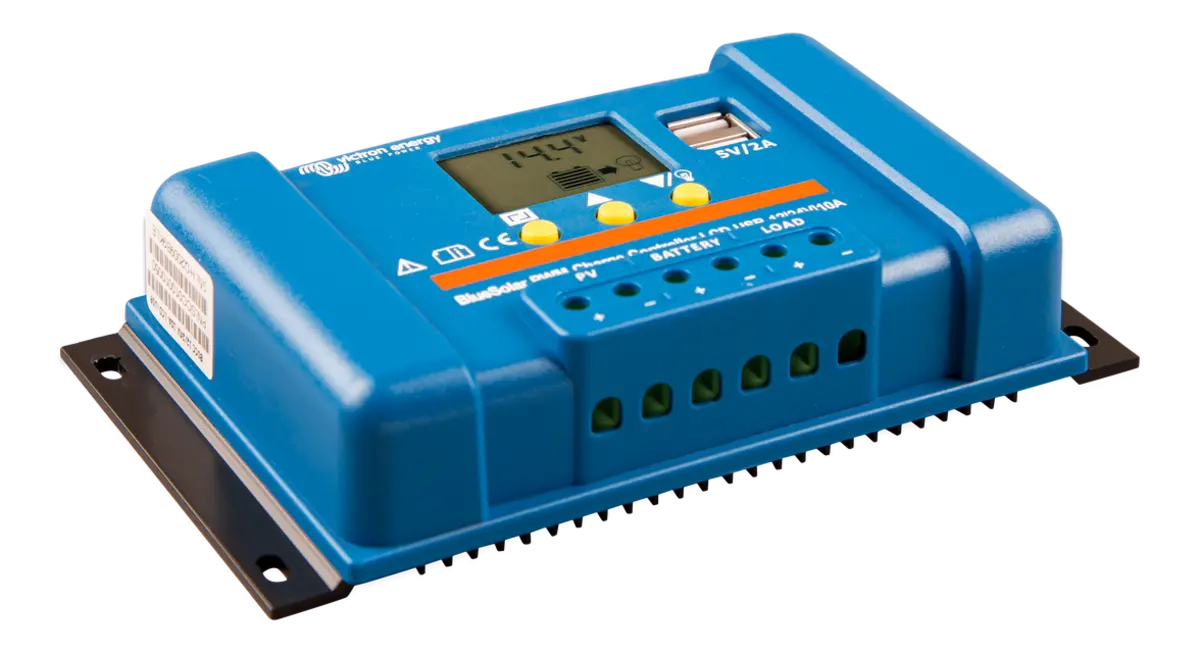

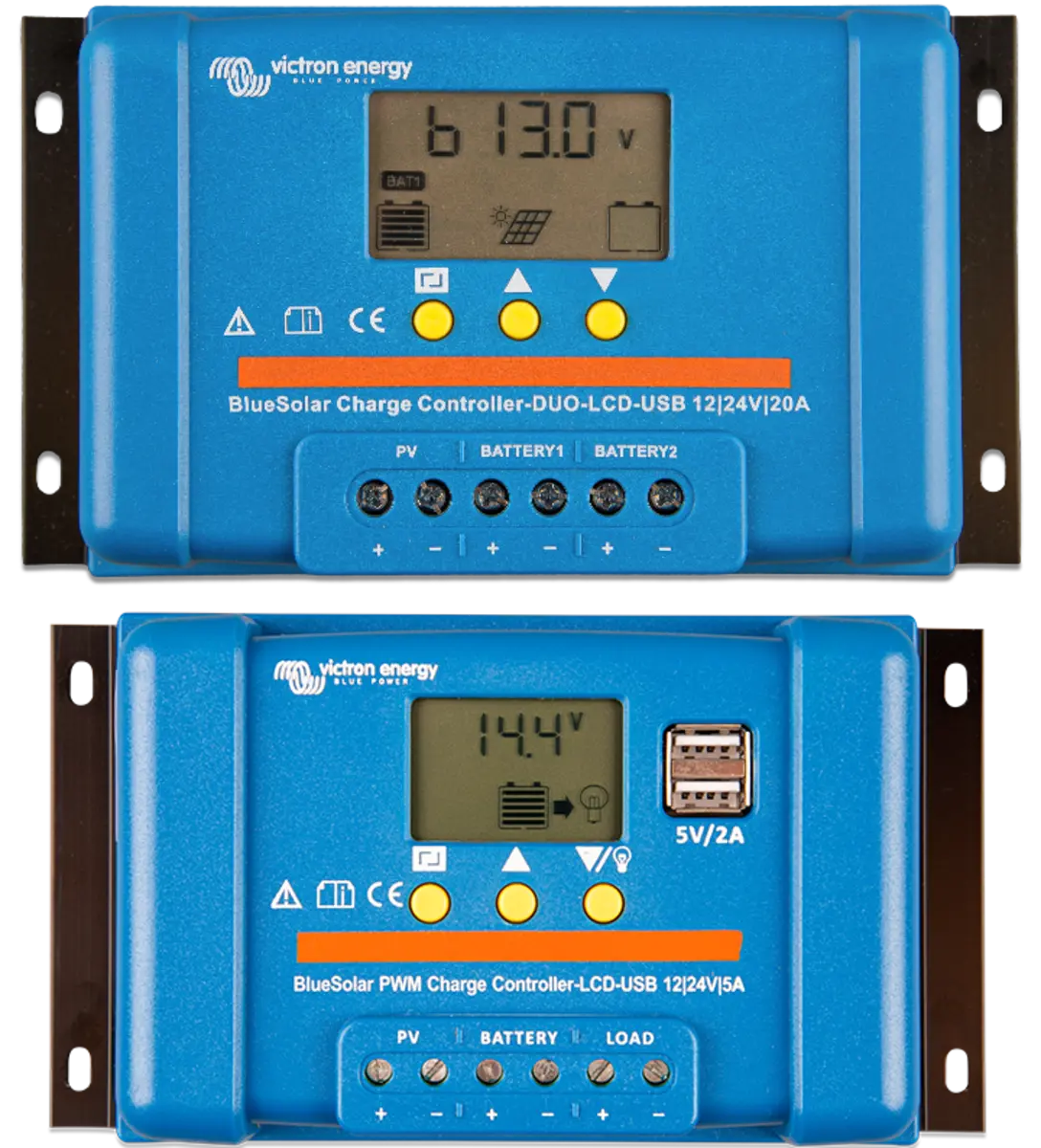

Victron Energy BlueSolar PWM-LCD&USB 12/24V-30A

Victron Energy BlueSolar PWM-LCD&USB 12/24V-30A Overview

Features

• Liquid crystal display
• Two 5 V USB outputs
• Lighting control function, fully programmable
• Three stage battery charging (bulk, absorption, float), fully programmable
• Load output with low voltage and manual disconnect (programmable)
• Load output protected against over load and short circuit
• Protected against reverse polarity connection of the solar panels and/or battery


Specifications

• Type: PWM-LCD & USB
• Series/Model: 12/24V-30A
• Battery Voltage: 12/24 V
• Enclosure Rating: IP20
• Operating Temperature: -35 to 60 deg C
• Self-Consumption: <10 mA
• Humidity: Maximum 95% Non-Condensing
• Maximum Solar Voltage: 28/55 V
• Terminal Size: 6 mm2/10 AWG
• USB Voltage: 5 V
• Charge Current Rating: 30 A
• Automatic Load Disconnect: Yes
• Load Output: Manual Control + Low Voltage Disconnect + Timer
• Protection: Battery Reverse Polarity (Fuse), Output Short Circuit, Over Temperature
• Grounding: Common Positive
• Absorption Charge: 14.4/28.8 V
• Float Charge: 13.7/27.4 V
• Low Voltage Load Disconnect: 11.2/22.4 V
• Low Voltage Load Reconnect: 12.6/25.2 V
• Overload Protection: Shut Down After 60 sec in Case of 130% Load, Shut Down After 5 sec in Case of 160% Load
• USB Current: 2 A
• Dimensions: 3.8 in Height x 6.7 in Width x 1.4 in Depth
• Standards: EN60335-1, IEC 62109-1, EN 61000-6-1, EN 61000-6-3, ISO 7637-2
• Weight: 0.15 kg
• Application: 12V Use 36 Cell Solar Panels, 24V Use 72 Cell Solar Panels or 2x 36 Cell in Series


Documents

• Specification Sheet
• Owners/User Manual


Efficient Solar Charging with Victron Energy BlueSolar

The Victron Energy BlueSolar PWM-LCD&USB 12/24V-30A solar charge controller provides efficient and reliable solar power management. Designed to work seamlessly with 12V and 24V battery systems, it optimizes solar energy by preventing battery overcharge and deep discharge. The PWM (Pulse Width Modulation) technology helps in maintaining battery health for long-term performance, making it suitable for a range of off-grid applications including recreational vehicles, boats, and remote solar installations. Its compatibility with multiple battery types enhances its versatility and ensures reliable daily solar energy absorption with maximum efficiency.

User-Friendly LCD Display and USB Interface

This Victron Energy BlueSolar model features an integrated LCD screen that offers clear real-time monitoring of charging status, system voltage, and battery condition. The screen makes it easy for users to track and adjust settings without additional devices. Additionally, the USB port allows for convenient updates and connectivity options, simplifying control and configuration. This blend of digital interface and USB functionality fosters an intuitive user experience, empowering users to maximize their solar setup’s performance with minimal technical knowledge.

Durable Design Built for Long-Term Use

Built to withstand various environmental conditions, the Victron Energy BlueSolar PWM-LCD&USB 12/24V-30A boasts a robust construction with quality components ensuring durability and longevity. Its compact design fits easily in tight spaces and integrates well into existing solar power systems. The unit includes protection features such as overvoltage, reverse polarity, and short circuit safeguards, enhancing safety and reliability. These design choices make the BlueSolar controller a dependable choice for users seeking a long-lasting, hassle-free solar charge management solution.
