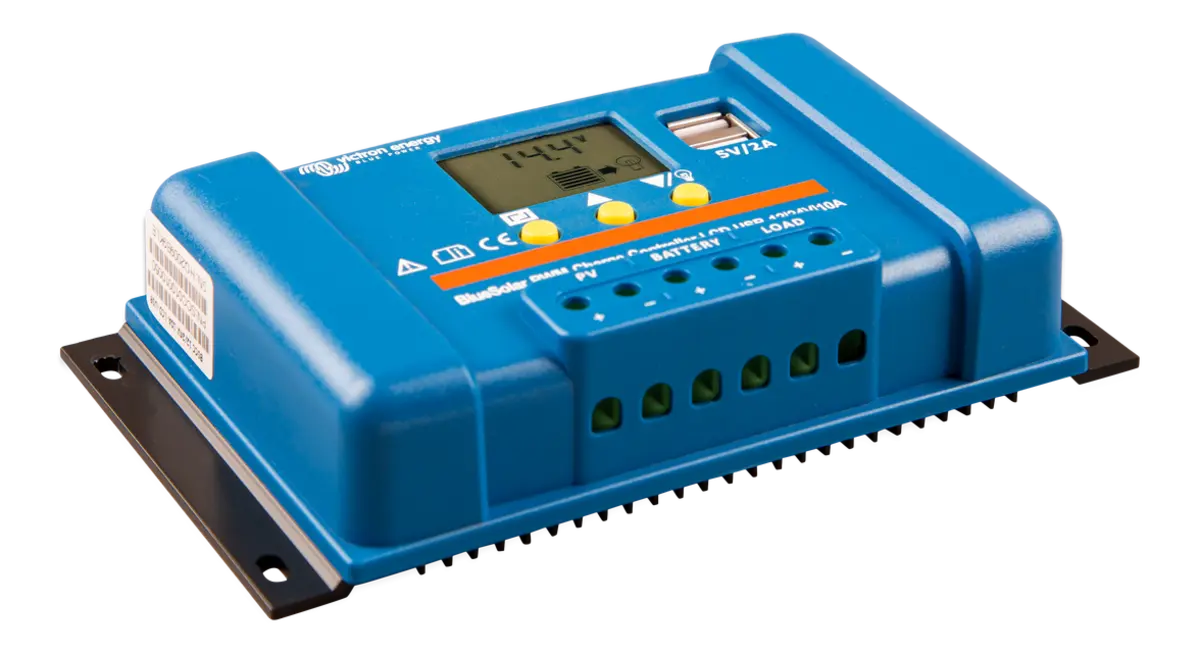

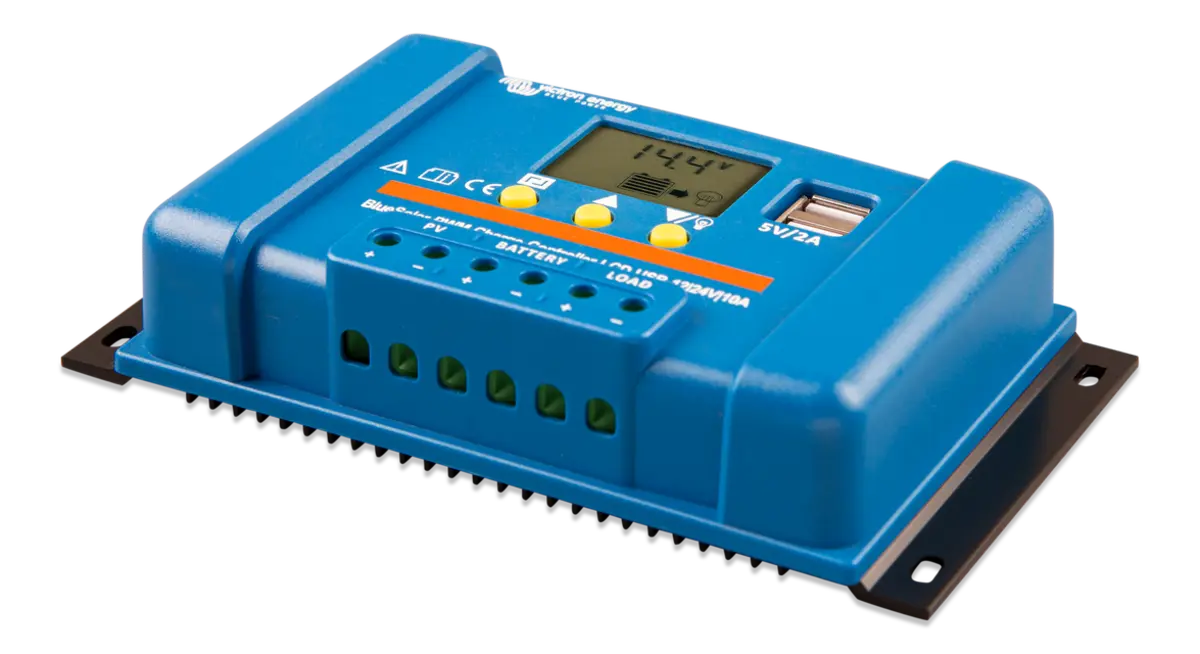

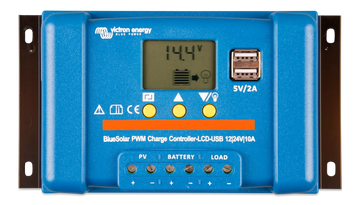

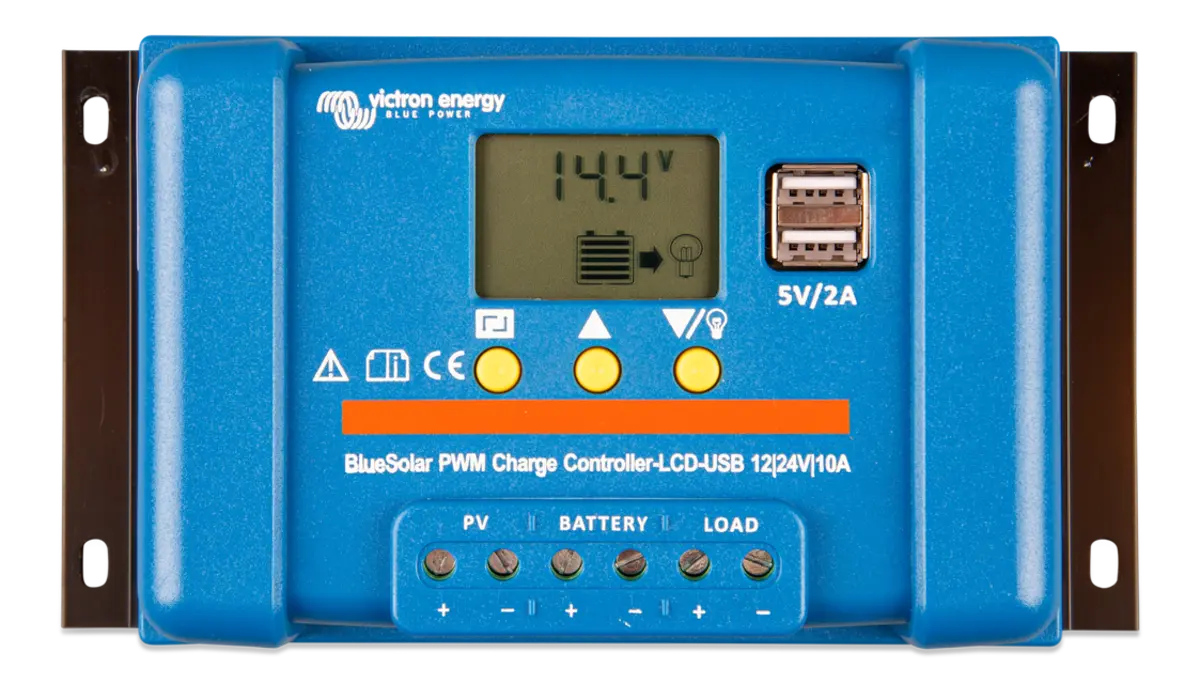

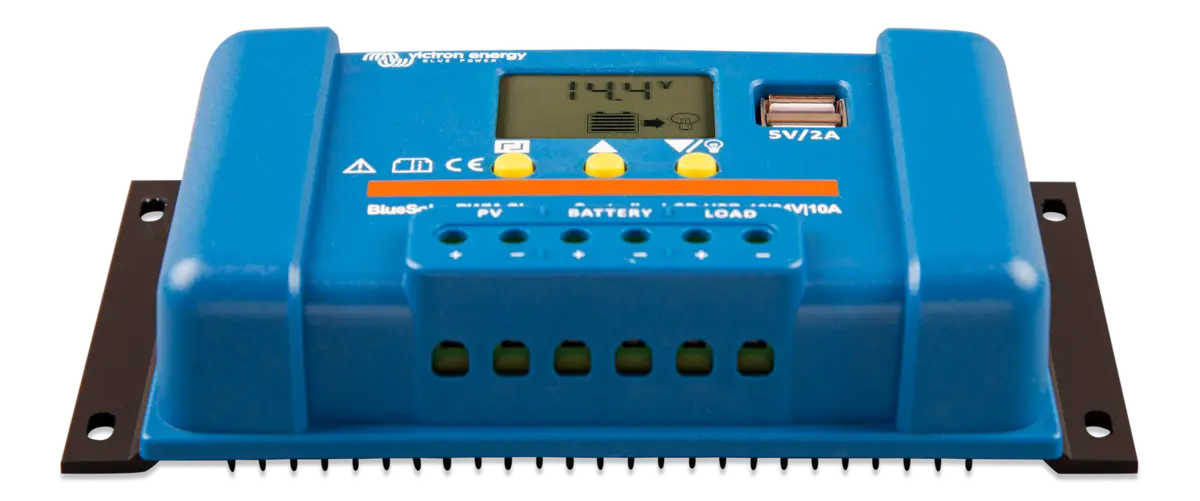

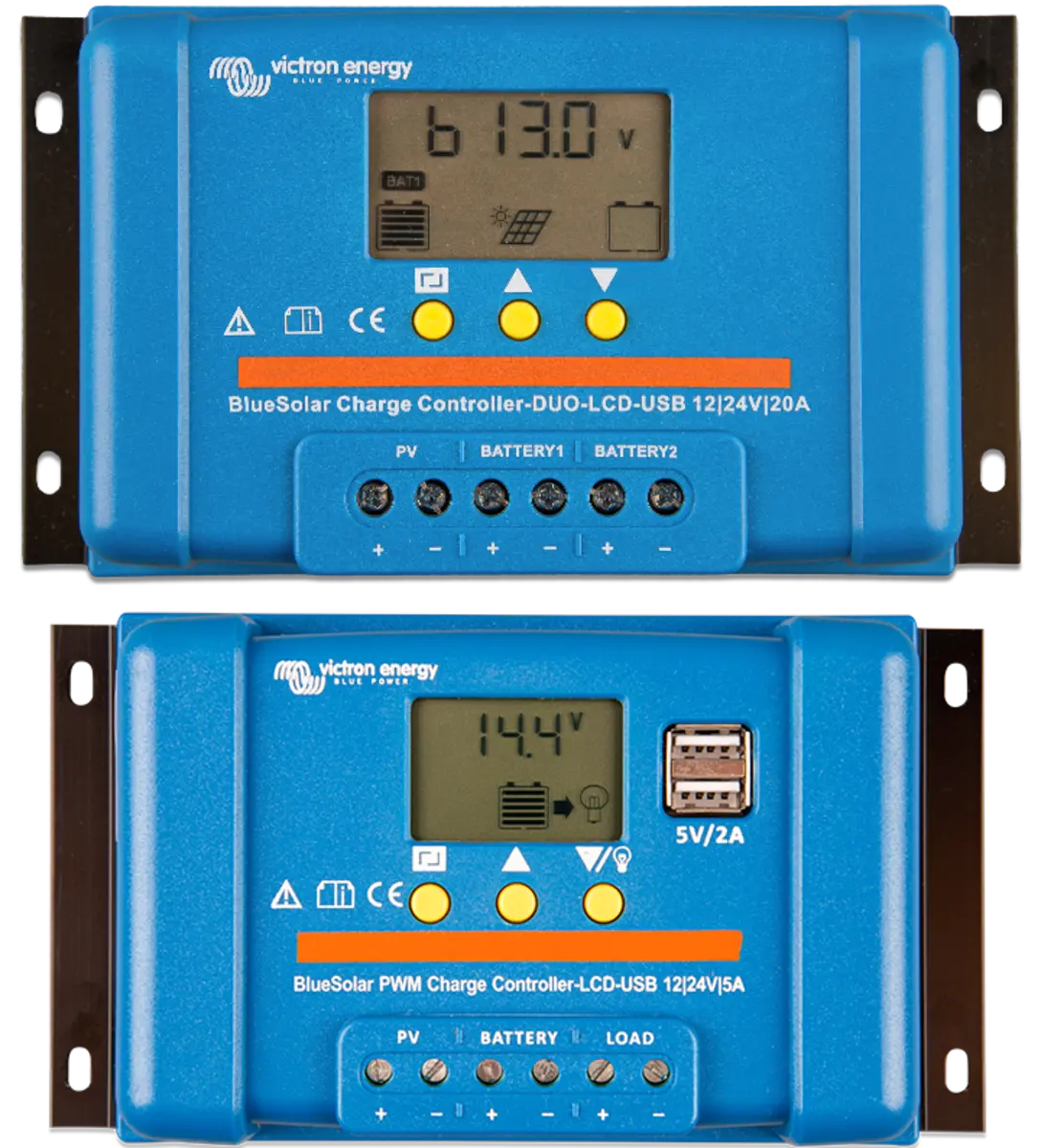

Victron Energy BlueSolar PWM-LCD&USB 12/24V-10A

Victron Energy BlueSolar PWM-LCD&USB 12/24V-10A: Efficient Solar Energy Management

Features

• Liquid crystal display
• Two 5 V USB outputs
• Lighting control function, fully programmable
• Three stage battery charging (bulk, absorption, float), fully programmable
• Load output with low voltage and manual disconnect (programmable)
• Load output protected against over load and short circuit
• Protected against reverse polarity connection of the solar panels and/or battery


Specifications

• Type: PWM-LCD & USB
• Series/Model: 12/24V-10A
• Battery Voltage: 12/24 V
• Enclosure Rating: IP20
• Operating Temperature: -35 to 60 deg C
• Self-Consumption: <10 mA
• Humidity: Max 95% Non-Condensing
• Maximum Solar Voltage: 28/55 V
• Terminal Size: 6 mm²/10 AWG
• USB Voltage: 5 V
• Charge Current Rating: 10 A
• Automatic Load Disconnect: Yes
• Load Output: Manual Control + Low Voltage Disconnect + Timer
• Protection: Battery Reverse Polarity (Fuse), Output Short Circuit, Over Temperature
• Grounding: Common Positive
• Absorption Charge: 14.4/28.8 V
• Float Charge: 13.7/27.4 V
• Low Voltage Load Disconnect: 11.2/22.4 V
• Low Voltage Load Reconnect: 12.6/25.2 V
• Overload Protection: Shut Down After 60 sec in Case of 130% Load, Shut Down After 5 sec in Case of 160% Load
• USB Current: 2 A
• Dimensions: 3.8 in Height x 6.7 in Width x 1.4 in Depth
• Standards: EN60335-1, IEC 62109-1, EN 61000-6-1, EN 61000-6-3, ISO 7637-2
• Weight: 0.15 kg
• Application: 12V Use 36 Cell Solar Panels, 24V Use 72 Cell Solar Panels or 2x 36 Cell in Series


Documents

• Specification Sheet
• Owners/User Manual


Reliable and User-Friendly Solar Charge Controller

The Victron Energy BlueSolar PWM-LCD&USB 12/24V-10A is a trusted solar charge controller that efficiently manages power from your solar panels while protecting your battery. Designed for both 12V and 24V systems, this device ensures optimal charging with reliable PWM technology. It features a clear LCD display that offers real-time data and settings, making it simple to monitor your solar system’s performance. With an easy-to-access USB port, it adds convenience for charging mobile devices or powering accessories, enhancing the overall user experience.

Advanced Battery Protection and Versatility

Equipped with automatic battery voltage detection and intelligent charge algorithms, the Victron Energy BlueSolar PWM-LCD&USB 12/24V-10A safeguards battery longevity by preventing overcharging and deep discharge. It supports a variety of battery types, including lead-acid and lithium-ion, providing flexibility for different solar applications. Its compact, durable design is ideal for both residential and mobile uses, meaning it can be deployed in RVs, boats, or off-grid solar setups, delivering stable and efficient energy management regardless of location.

Easy Installation and Durable Build Quality

The BlueSolar PWM-LCD&USB 12/24V-10A by Victron Energy boasts straightforward installation with intuitive wiring terminals and clear instructions, reducing setup time for beginners and professionals alike. Its robust construction is weather-resistant and designed to withstand harsh environmental conditions, ensuring long-term reliability. The device’s low self-consumption helps maximize the energy harvested from your solar panels, increasing overall system efficiency. Combining quality, efficiency, and ease of use, this solar charge controller is an excellent choice for users seeking dependable solar power solutions.
