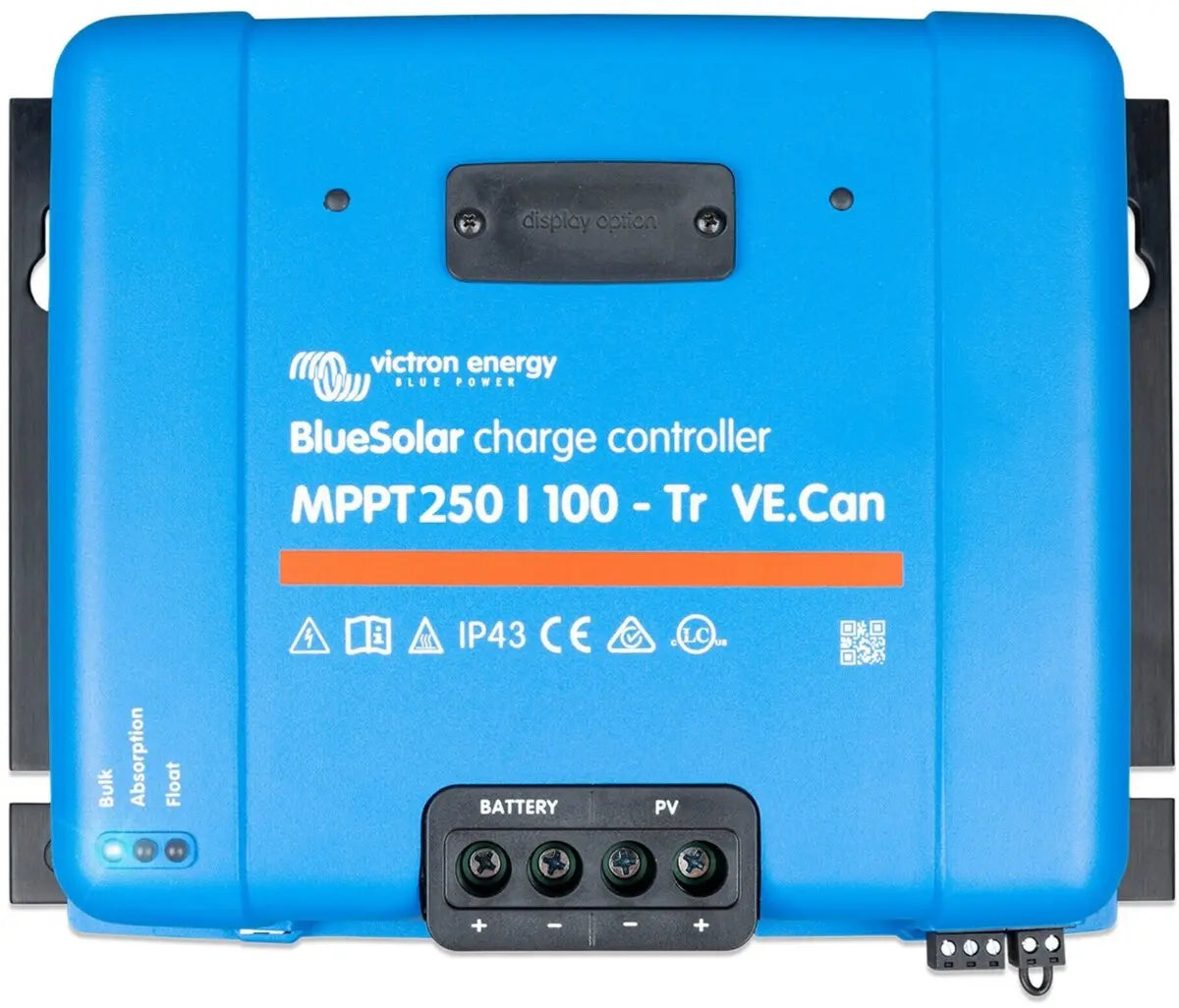

Victron Energy BlueSolar MPPT 250/100-Tr VE.Can

Victron Energy BlueSolar MPPT 250/100: Advanced Solar Charge Controller Solution

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximizes this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.

Features

• MPPT: Ultra fast maximum power point tracking by constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels and harvested for storage
• The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing
• Remote monitoring and control - remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a Bluetooth dongle and pairing it with your smartphone or other device via VictronConnect
• If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT anytime, anywhere; both VictronConnect and VRM are free to use
• For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520

Specifications

• Type: MPPT
• Series/Model: 250/100-Tr VE.Can
• Battery Voltage: 12/24/48 V Auto Select
• Enclosure Rating: IP43 (Electronic Components), IP22 (Connection Area)
• Maximum PV Open Circuit Voltage: 150 V (Responsibly), 250 V Absolute Maximum Coldest Conditions; 145 V (Responsibly), 245 V Start-Up and Operating Maximum
• Operating Temperature: -30 to 60°C (Full Rated Output up to 40°C)
• Self-Consumption: <35 mA at 12 V, <20 mA at 24 V
• Humidity: 95%, Non-Condensing
• Temperature Compensation: -16 mV/-32 mV/-64 mV/°C
• Maximum PV Short Circuit Current: 70 A
• Nominal PV Power at 12 V: 1450 W
• Nominal PV Power at 24 V: 2900 W
• Charge Current Rating: 100 A
• Protection: PV Reverse Polarity, Output Short Circuit, Over Temperature
• Absorption Charge: 14.4/28.8/43.2/57.6 V (Adjustable with Rotary Switch, Display, VE.Direct or Bluetooth)
• Float Charge: 13.8/27.6/41.4/55.2 V (Adjustable with Rotary Switch, Display, VE.Direct or Bluetooth)
• Peak Efficiency: 99%
• Charging Algorithm: Multi-Stage Adaptive (Eight Pre-Programmed Algorithms)
• Data Communication: VE.Direct, VE.Can
• Color: Blue (RAL 5012)
• Nominal PV Power at 48 V: 5800 W
• Battery Terminals: 35 mm²/2 AWG
• Nominal PV Power at 36 V: 4350 W
• Charge Voltage Equalization: 16.2/32.4/48.6/64.8 V (Adjustable)
• Maximum Altitude: 5000 m (Full Rated Output up to 2000 m)
• Environmental Condition: Indoor, Unconditioned
• Pollution Degree: PD3
• Remote On/Off: Yes (2 Pole Connector)
• Programmable Relay: DPST AC Rating: 240 VAC/4 A, DPST DC Rating: 4 A up to 35 VDC, 1 A up to 60 VDC
• Parallel Operation: Yes, Parallel Synchronized Operation with VE.Can (Max 25 Units)
• PV Terminal: 35 mm²/2 AWG
• Dimensions: 216 mm Height x 295 mm Width x 103 mm Depth
• Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
• Weight: 4.5 kg

Documents

• Specification Sheet
• Owners/User Manual


Optimized Solar Power Tracking Technology

The Victron Energy BlueSolar MPPT 250/100 is engineered with advanced Maximum Power Point Tracking (MPPT) to maximize energy harvest from solar panels. By continuously monitoring voltage and current, it adapts to changing sunlight and temperature conditions, ensuring peak efficiency even in less-than-ideal weather. This high-performance controller supports solar arrays up to 250 volts and battery charging currents up to 100 amps, making it ideal for both residential and commercial solar installations demanding reliable and scalable power management.

Robust Communication and System Integration

Equipped with VE.Can communication interface, the Victron Energy BlueSolar MPPT 250/100 facilitates seamless integration into comprehensive energy systems. This allows real-time monitoring, remote firmware updates, and centralized management via Victron’s Venus OS-based GX devices. The controller’s intelligent system design supports flexible setup options, enabling users to coordinate multiple controllers together for larger solar arrays, enhancing reliability and simplifying system configuration for optimized performance.

Durability and Protective Design Features

Built to withstand challenging outdoor environments, the Victron Energy BlueSolar MPPT 250/100 features a rugged design with IP43 rated cooling to prevent overheating without the need for noisy fans. It incorporates an array of safety features including overvoltage, overcurrent, and reverse polarity protection, ensuring system security and long service life. This durable product is engineered for continuous operation, providing efficient and reliable solar charging to maintain battery health while reducing maintenance requirements.
