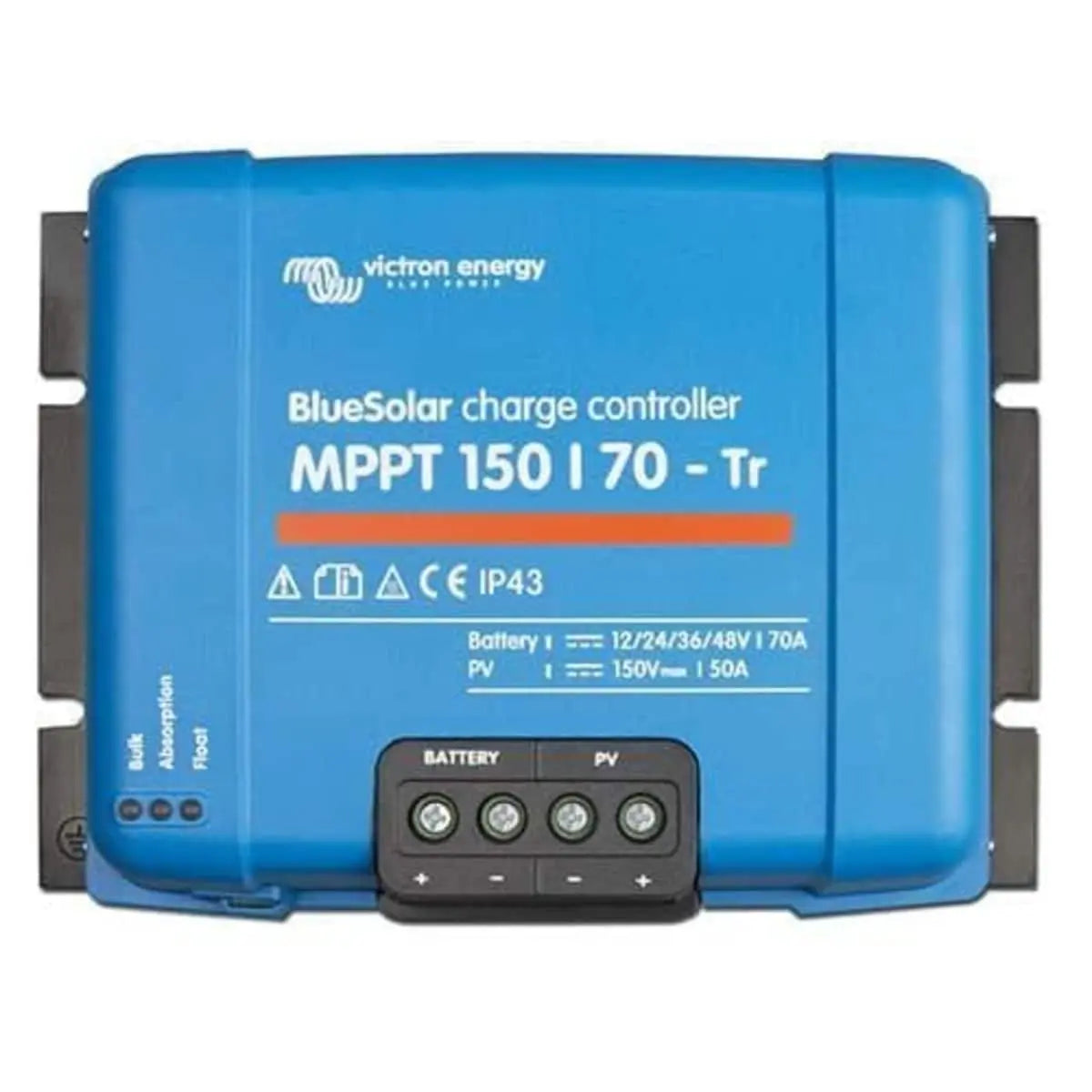

Victron Energy BlueSolar MPPT 150/70-Tr

Product Overview of Victron Energy BlueSolar MPPT 150/70-Tr

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximizes this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.

Features

• MPPT: Ultra fast maximum power point tracking by constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels and harvested for storage
• The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing
• Remote monitoring and control - remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a bluetooth dongle and pairing it with your smartphone or other device via VictronConnect
• If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use
• For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520

Specifications

• Type: MPPT
• Series/Model: 150/70-Tr
• Battery Voltage: 12/24/48V Auto Select
• Enclosure Rating: IP43 (Electronic Components), IP22 (Connection Area)
• Maximum PV Open Circuit Voltage: 150V Absolute Maximum (Coldest Conditions), 145V Start-Up and Operating Maximum
• Operating Temperature: -30°C to 60°C (Full Rated Output up to 40°C)
• Self-Consumption: 10 mA
• Humidity: 95%, Non-Condensing
• Power Terminal: 35 mm²/2 AWG
• Temperature Compensation: -16 mV/-32 mV/-64 mV per °C
• Maximum PV Short Circuit Current: 50A
• Nominal PV Power at 12V: 1000W
• Nominal PV Power at 24V: 2000W
• Charge Current Rating: 70A
• Protection: PV Reverse Polarity, Output Short Circuit, Over-Temperature
• Absorption Charge: 14.4/28.8/43.2/57.6V (Adjustable)
• Float Charge: 13.8/27.6/41.4/55.2V (Adjustable)
• Peak Efficiency: 98%
• Charging Algorithm: Multi-Stage Adaptive
• Data Communication: VE.Direct
• Color: Blue (RAL 5012)
• Nominal PV Power at 48V: 4000W
• Battery Terminals: 35 mm²/2 AWG
• Dimensions: 185mm Height x 250mm Width x 95mm Depth
• Standards Compliance: EN/IEC 62109-1, UL 1741, CSA C22.2
• Weight: 3kg

Documents

• Specification Sheet
• Owners/User Manual


Advanced MPPT Technology for Maximum Solar Efficiency

The Victron Energy BlueSolar MPPT 150/70-Tr incorporates high-performance Maximum Power Point Tracking (MPPT) technology to optimize solar panel output. It swiftly adjusts to varying sunlight conditions, ensuring the highest energy harvest possible. Designed for systems requiring up to 150 volts and a current of 70 amps, this controller is ideal for medium to large solar setups. The MPPT innovation makes it highly efficient, especially in less-than-ideal environmental conditions, significantly boosting battery charging performance and system longevity.

Robust Design and Versatile Installation Options

Built with durability in mind, the BlueSolar MPPT 150/70-Tr features an IP43 rated enclosure that offers excellent protection against dust and water splashes. Its compact design eases installation in tight spaces, while the option to connect multiple units expands system capability. The device supports extensive battery voltage ranges, including 12V, 24V, 36V, and 48V systems, making it adaptable for various solar power applications, whether off-grid or in hybrid configurations.

User-Friendly Interface and Smart Connectivity

Victron Energy has integrated smart features within the BlueSolar MPPT 150/70-Tr to enhance user experience. It offers Bluetooth connectivity, enabling remote monitoring and configuration via the VictronConnect app. Users can track real-time data, monitor battery status, and customize settings with ease. This intelligent interface helps maintain optimal system performance and provides diagnostic information, empowering solar users to manage their energy systems efficiently and effectively.
