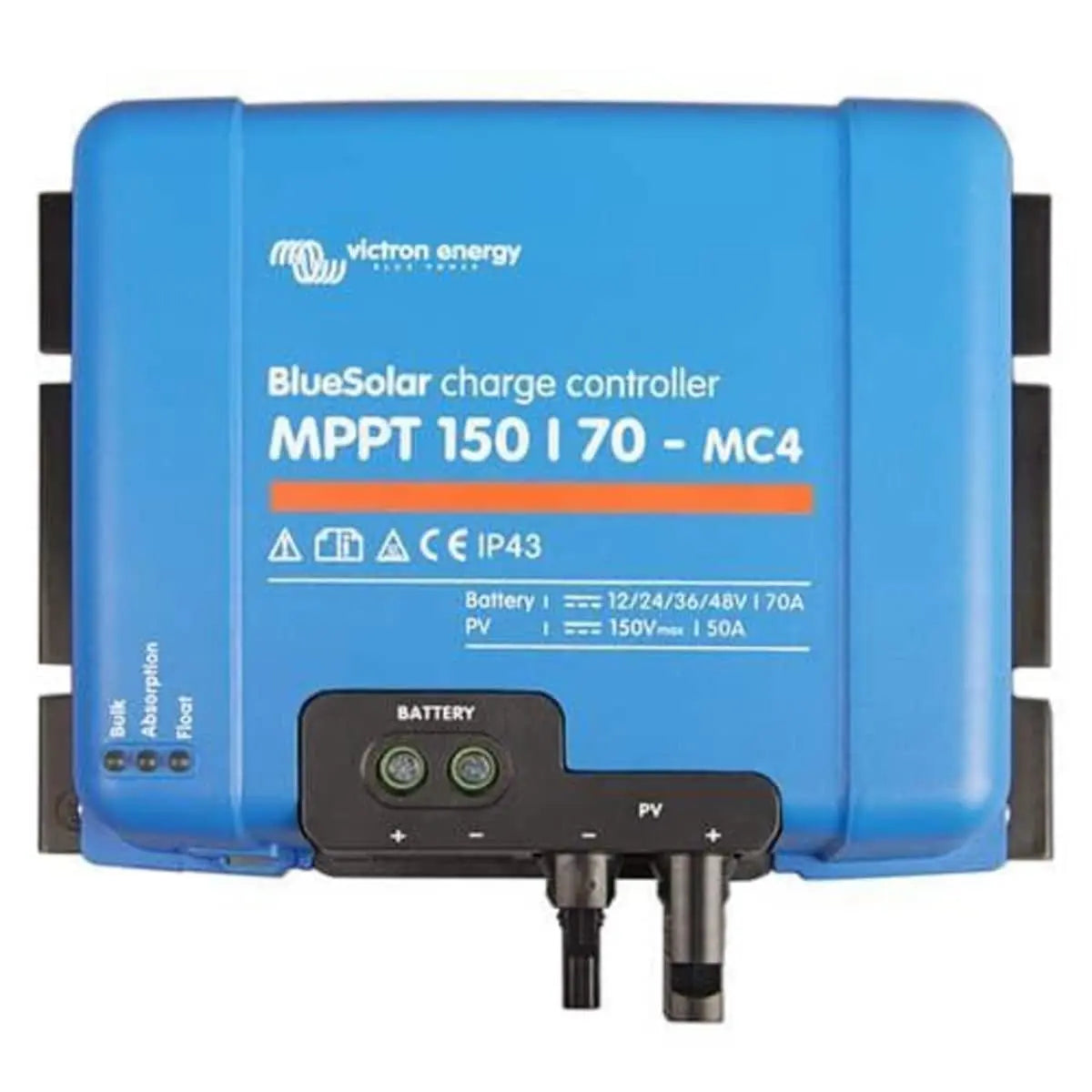

Victron Energy BlueSolar MPPT 150/70-MC4

Comprehensive Overview of Victron Energy BlueSolar MPPT 150/70-MC4

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximizes this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.

Features

• MPPT: Ultra fast maximum power point tracking by constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels and harvested for storage
• The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing
• Remote monitoring and control - remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a bluetooth dongle and pairing it with your smartphone or other device via VictronConnect
• If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use
• For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520

Specifications

• Type: MPPT
• Series/Model: 150/70-MC4
• Battery Voltage: 12/24/48V Auto Select
• Enclosure Rating: IP43 (Electronic Components), IP22 (Connection Area)
• Maximum PV Open Circuit Voltage: 150V Absolute Maximum (Coldest Conditions), 145V Start-Up and Operating Maximum
• Operating Temperature: -30°C to 60°C (Full Rated Output up to 40°C)
• Self-Consumption: 10 mA
• Humidity: 95%, Non-Condensing
• Power Terminal: Two Pairs of MC4 Connectors
• Temperature Compensation: -16 mV/-32 mV/-64 mV per °C
• Maximum PV Short Circuit Current: 50A
• Nominal PV Power at 12V: 1000W
• Nominal PV Power at 24V: 2000W
• Charge Current Rating: 70A
• Protection: PV Reverse Polarity, Output Short Circuit, Over-Temperature
• Absorption Charge: 14.4/28.8/43.2/57.6V (Adjustable)
• Float Charge: 13.8/27.6/41.4/55.2V (Adjustable)
• Peak Efficiency: 98%
• Charging Algorithm: Multi-Stage Adaptive
• Data Communication: VE.Direct
• Color: Blue (RAL 5012)
• Nominal PV Power at 48V: 4000W
• Battery Terminals: 35 mm²/2 AWG
• Dimensions: 215mm Height x 250mm Width x 95mm Depth
• Standards Compliance: EN/IEC 62109-1, UL 1741, CSA C22.2
• Weight: 3kg

Documents

• Specification Sheet
• Owners/User Manual


Advanced Solar Charging Technology

The Victron Energy BlueSolar MPPT 150/70-MC4 stands out as an advanced solar charge controller featuring Maximum Power Point Tracking (MPPT) technology. This technology optimizes the voltage input from solar panels, ensuring maximum energy harvest and efficient battery charging. It can handle solar arrays with voltages up to 150V, allowing flexibility in system design. The BlueSolar series is known for its reliability in diverse environments, making it an excellent choice for both residential and remote power applications.

Robust and User-Friendly Design

Designed with durability and ease of use in mind, the Victron Energy BlueSolar MPPT 150/70-MC4 comes with MC4 connectors, simplifying installation and maintenance. Its robust casing offers superior protection against harsh weather conditions. The product also supports Bluetooth connectivity through an optional dongle, enabling users to monitor system performance in real time via the VictronConnect app. This user-centric design ensures accessible, precise control over solar energy management.

Efficient Battery Compatibility and Safety Features

This solar charge controller supports a wide range of battery types, including lithium, AGM, and flooded lead-acid batteries, adapting charge profiles accordingly. Built-in safety features like overvoltage protection, temperature compensation, and short circuit prevention enhance system longevity and safety. The Victron Energy BlueSolar MPPT 150/70-MC4 is engineered to maximize battery life while delivering clean, stable power, making it an essential component for optimizing renewable energy systems effectively.
