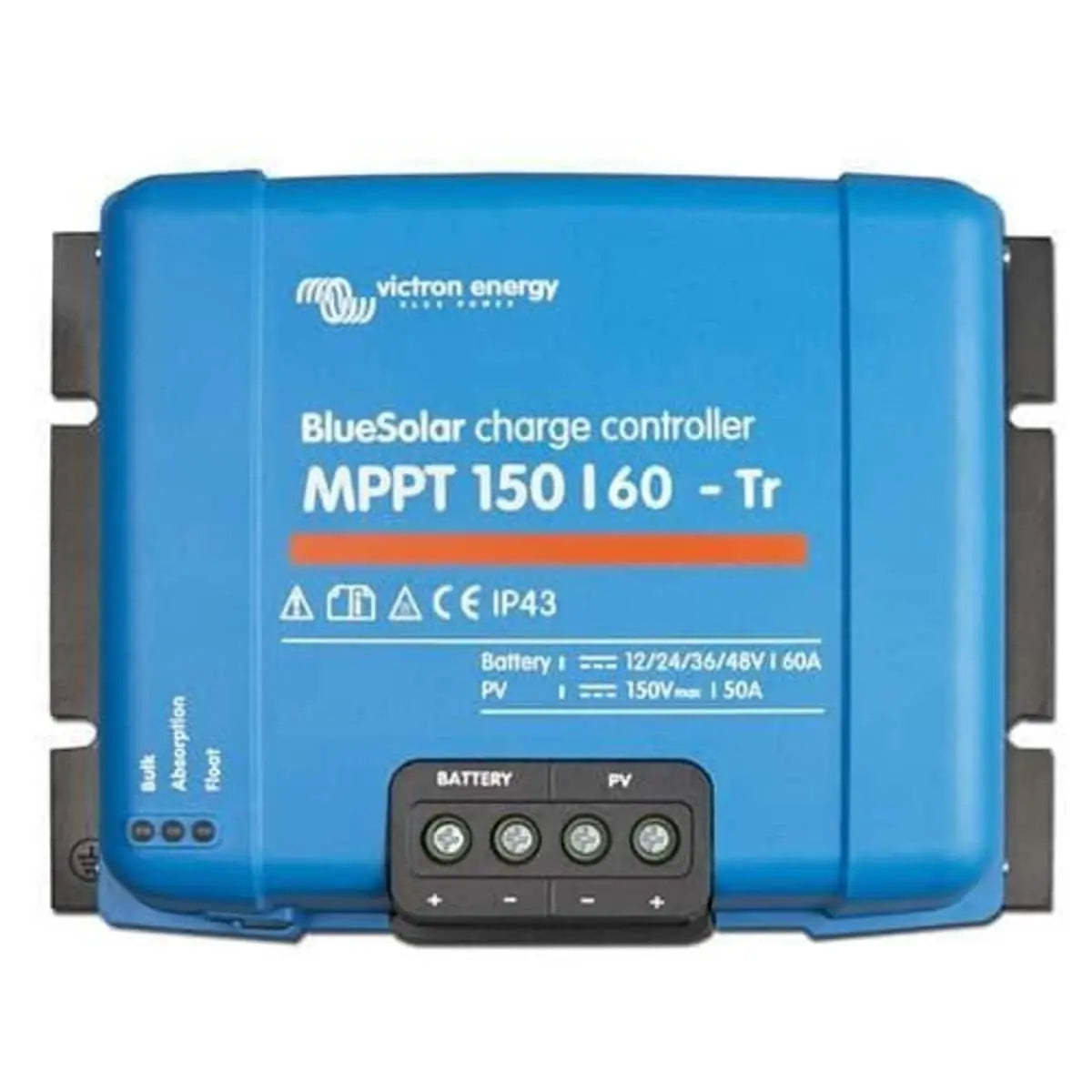

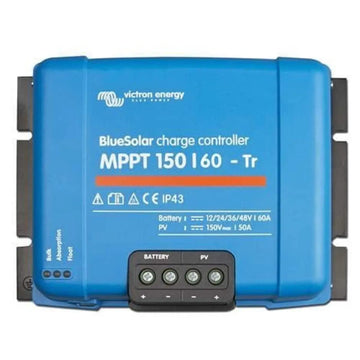

Victron Energy BlueSolar MPPT 150/60-Tr

Overview of the Victron Energy BlueSolar MPPT 150/60-Tr

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximizes this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.

Features

• MPPT: Ultra fast maximum power point tracking by constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels and harvested for storage
• The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing
• Remote monitoring and control - remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a bluetooth dongle and pairing it with your smartphone or other device via VictronConnect
• If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use
• For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520

Specifications

• Type: MPPT
• Series/Model: 150/60-Tr
• Battery Voltage: 12/24/48V Auto Select
• Enclosure Rating: IP43 (Electronic Components), IP22 (Connection Area)
• Maximum PV Open Circuit Voltage: 150V Absolute Maximum (Coldest Conditions), 145V Start-Up and Operating Maximum
• Operating Temperature: -30°C to 60°C (Full Rated Output up to 40°C)
• Self-Consumption: 10 mA
• Humidity: 95%, Non-Condensing
• Power Terminal: 35 mm²/2 AWG
• Temperature Compensation: -16 mV/-32 mV/-64 mV per °C
• Maximum PV Short Circuit Current: 50A
• Nominal PV Power at 12V: 860W
• Nominal PV Power at 24V: 1720W
• Charge Current Rating: 60A
• Protection: PV Reverse Polarity, Output Short Circuit, Over-Temperature
• Absorption Charge: 14.4/28.8/43.2/57.6V (Adjustable)
• Float Charge: 13.8/27.6/41.4/55.2V (Adjustable)
• Peak Efficiency: 98%
• Charging Algorithm: Multi-Stage Adaptive
• Data Communication: VE.Direct
• Color: Blue (RAL 5012)
• Nominal PV Power at 48V: 3440W
• Battery Terminals: 35 mm²/2 AWG
• Dimensions: 185mm Height x 250mm Width x 95mm Depth
• Standards Compliance: EN/IEC 62109-1, UL 1741, CSA C22.2
• Weight: 3kg

Documents

• Specification Sheet
• Owners/User Manual


Advanced MPPT Technology for Maximum Power

The Victron Energy BlueSolar MPPT 150/60-Tr uses advanced Maximum Power Point Tracking (MPPT) technology designed to maximize the energy harvested from solar panels. This model intelligently adjusts the electrical operating point of the solar panels to extract the most power, even under challenging light conditions. The MPPT 150/60-Tr is highly efficient, improving solar energy yield by up to 30% compared to traditional controllers. Its ability to optimize charging results in faster battery charging times and extended battery life, making it an ideal choice for residential or commercial solar installations.

Robust and Versatile Design for Various Applications

Designed to meet demanding requirements, the Victron Energy BlueSolar MPPT 150/60-Tr features a robust enclosure and thermal management system, ensuring reliable performance in harsh environments. This controller supports a wide input voltage range, accommodating different solar panel configurations. It is suitable for 12V, 24V, 36V, and 48V battery systems, providing flexible integration options. The unit’s compact build and high power density enable easy installation in tight spaces, making it perfect for off-grid applications, marine, RV, and remote power setups.

Comprehensive Monitoring and Connectivity Options

The Victron Energy BlueSolar MPPT 150/60-Tr comes equipped with versatile communication interfaces, including VE.Direct, allowing users to monitor system performance easily and remotely. Compatible with Victron’s VRM portal and mobile apps, it provides real-time data on solar production, battery status, and energy consumption. This connectivity empowers users to optimize system performance and quickly identify potential issues. Additionally, the controller supports programmable settings through the VictronConnect app, giving users full control over charging parameters tailored to specific battery types.
