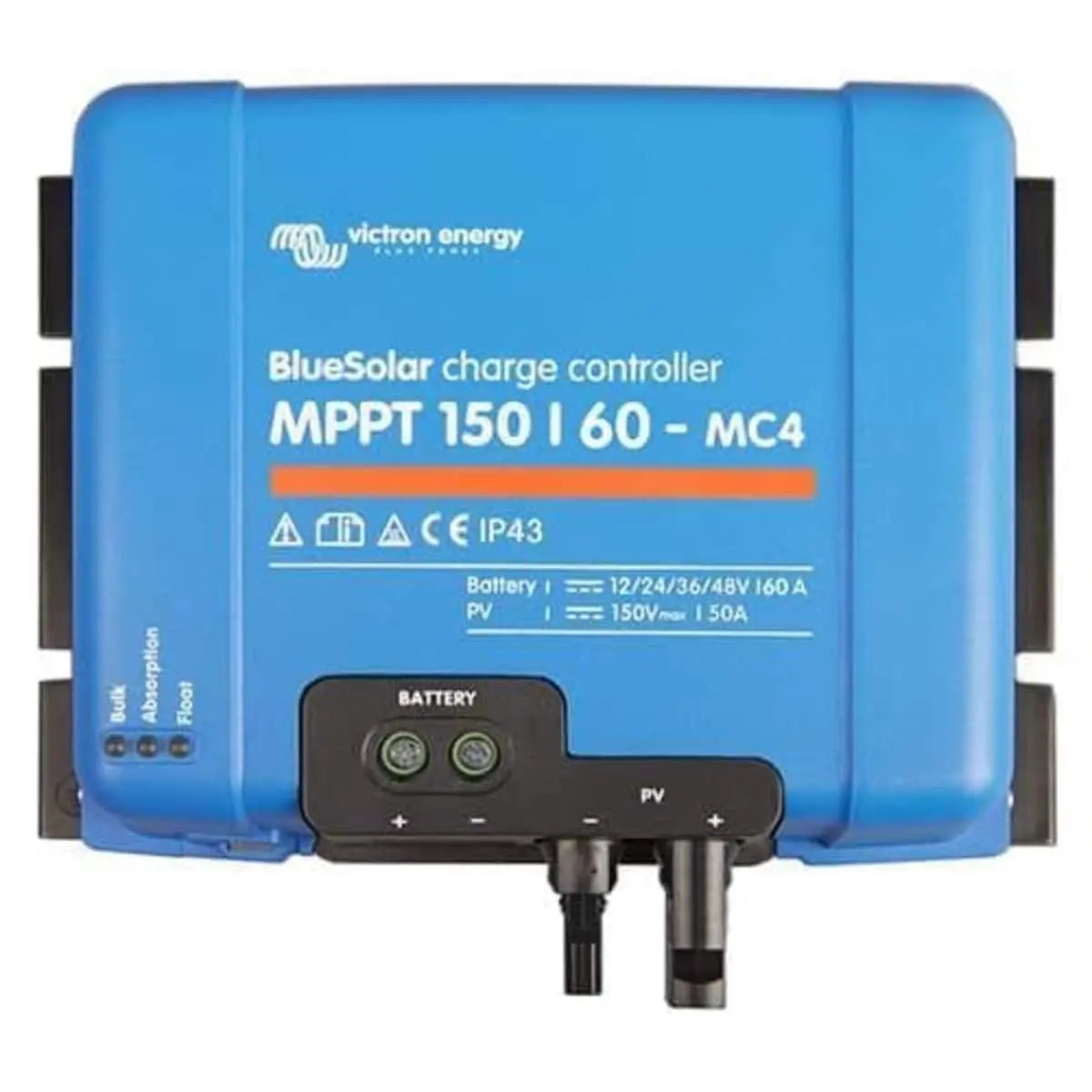

Victron Energy BlueSolar MPPT 150/60-MC4

Victron Energy BlueSolar MPPT 150/60-MC4: Efficient Solar Charge Control

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximizes this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.

Features

• MPPT: Ultra fast maximum power point tracking by constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels and harvested for storage
• The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing
• Remote monitoring and control - remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a bluetooth dongle and pairing it with your smartphone or other device via VictronConnect
• If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use
• For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520

Specifications

• Type: MPPT
• Series/Model: 150/60-MC4
• Battery Voltage: 12/24/48V Auto Select
• Enclosure Rating: IP43 (Electronic Components), IP22 (Connection Area)
• Maximum PV Open Circuit Voltage: 150V Absolute Maximum (Coldest Conditions), 145V Start-Up and Operating Maximum
• Operating Temperature: -30°C to 60°C (Full Rated Output up to 40°C)
• Self-Consumption: 10 mA
• Humidity: 95%, Non-Condensing
• Power Terminal: Two Pairs of MC4 Connectors
• Temperature Compensation: -16 mV/-32 mV/-64 mV per °C
• Maximum PV Short Circuit Current: 50A
• Nominal PV Power at 12V: 860W
• Nominal PV Power at 24V: 1720W
• Charge Current Rating: 60A
• Protection: PV Reverse Polarity, Output Short Circuit, Over-Temperature
• Absorption Charge: 14.4/28.8/43.2/57.6V (Adjustable)
• Float Charge: 13.8/27.6/41.4/55.2V (Adjustable)
• Peak Efficiency: 98%
• Charging Algorithm: Multi-Stage Adaptive
• Data Communication: VE.Direct
• Color: Blue (RAL 5012)
• Nominal PV Power at 48V: 3440W
• Battery Terminals: 35 mm²/2 AWG
• Dimensions: 215mm Height x 250mm Width x 95mm Depth
• Standards Compliance: EN/IEC 62109-1, UL 1741, CSA C22.2
• Weight: 3kg

Documents

• Specification Sheet
• Owners/User Manual


Advanced Maximum Power Point Tracking Technology

The Victron Energy BlueSolar MPPT 150/60-MC4 incorporates advanced MPPT technology to maximize energy harvest from solar panels. This product continuously monitors the voltage and current from the PV array, adjusting the input for the best power output. Its ability to track rapidly changing solar conditions allows for improved efficiency compared to traditional charge controllers. Designed for both small and large solar setups, the BlueSolar MPPT 150/60-MC4 ensures your batteries charge quickly and safely, extending battery life and optimizing overall system performance.

Robust Build and Reliable Performance

Built for durability and reliability, the Victron Energy BlueSolar MPPT 150/60-MC4 features a rugged design that can withstand harsh outdoor environments. It includes MC4 connectors for easy and secure installation with solar panels. The controller supports a wide input voltage up to 150V and can deliver up to 60A of charge current, making it suitable for various off-grid and grid-tied solar applications. Its sophisticated electronics provide protection against reverse polarity, over-temperature, and short circuits, enhancing system safety and longevity.

Smart Monitoring and Connectivity Options

Victron Energy BlueSolar MPPT 150/60-MC4 offers excellent monitoring capabilities through its VE.Direct communication port. Users can easily connect it to a Victron GX device or use the VictronConnect app for real-time data and system configuration. This connectivity allows you to track battery status, solar production, and system diagnostics, enabling proactive management of your solar energy system. With user-friendly interface options, the controller supports optimal performance monitoring and ensures you get the most out of your solar investment.
