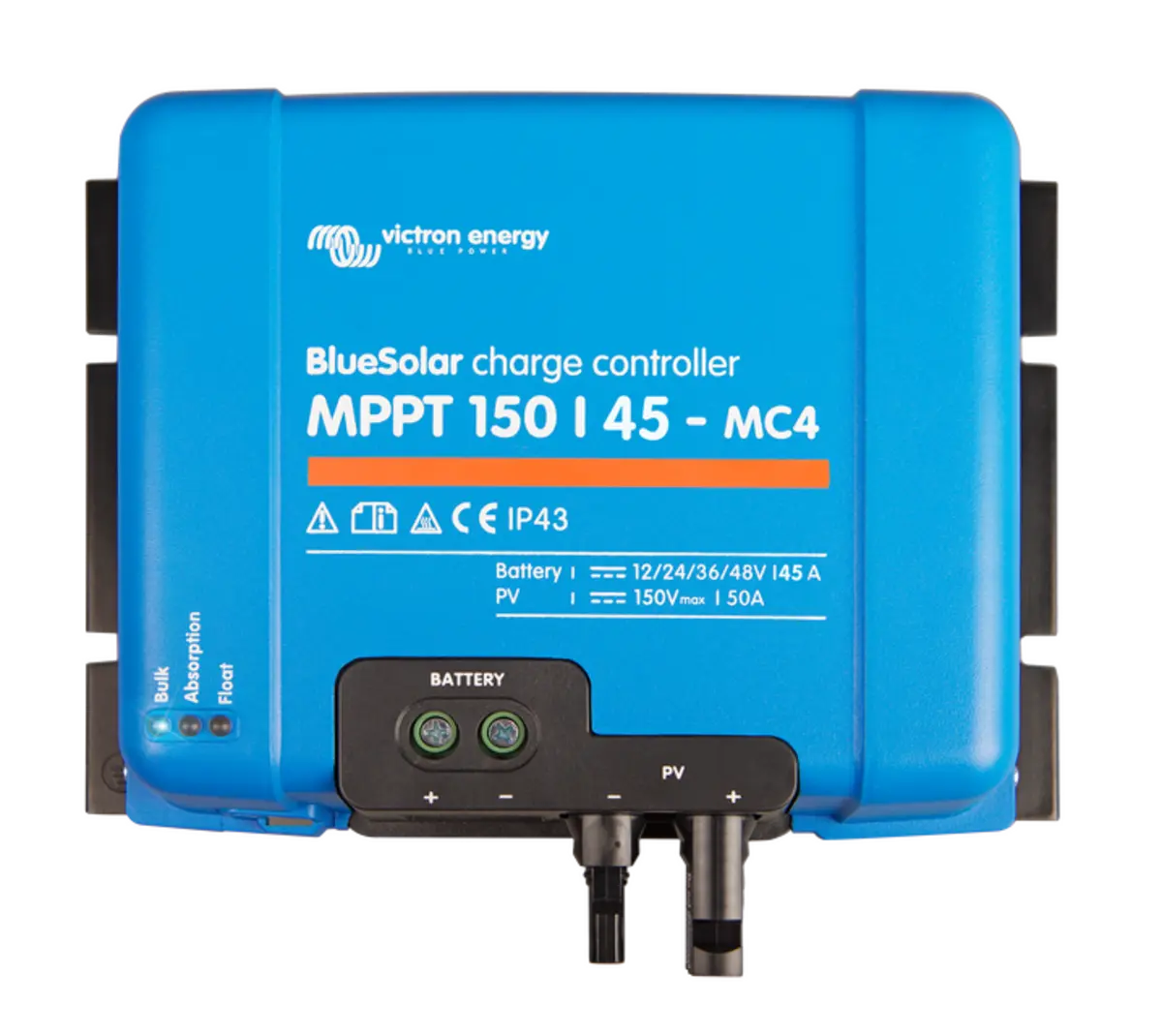

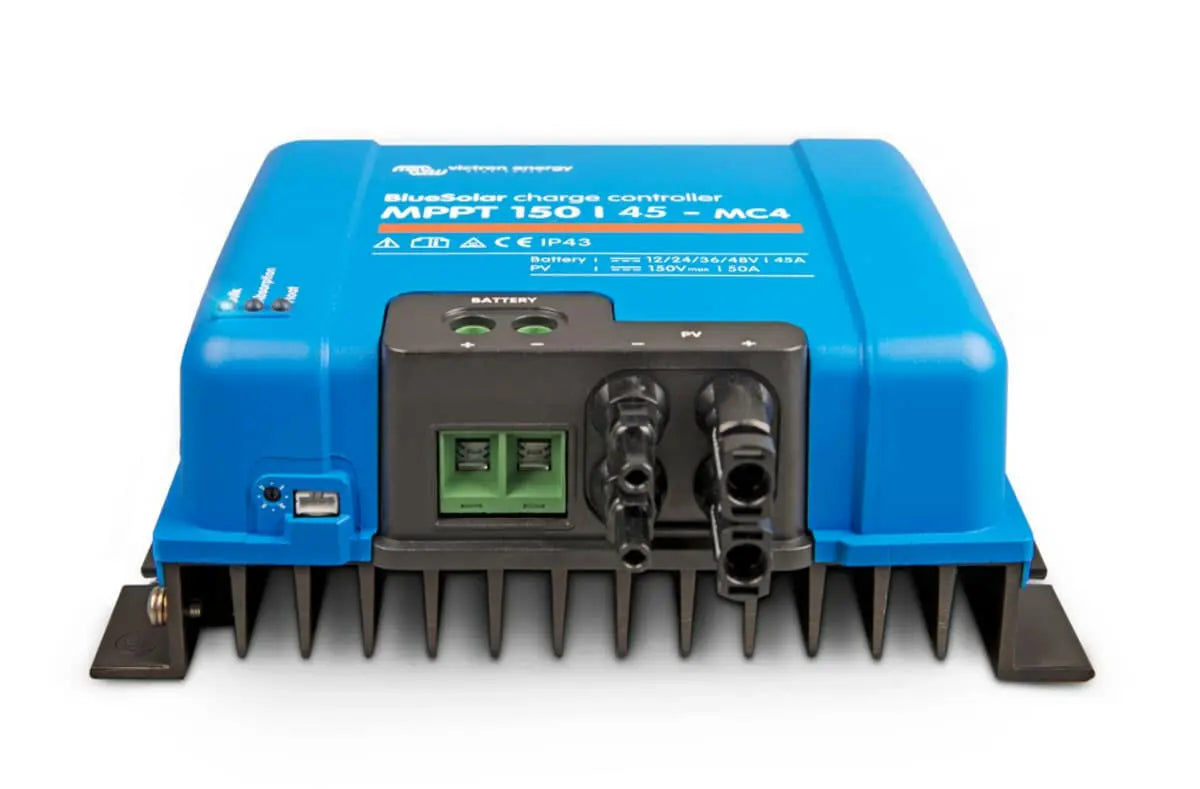

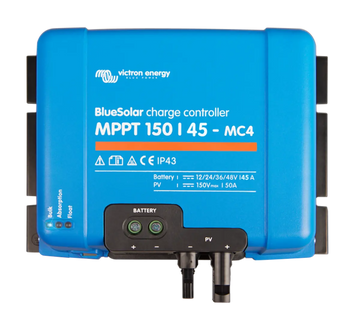

Victron Energy BlueSolar MPPT 150/45

Comprehensive Overview of Victron Energy BlueSolar MPPT 150/45

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximizes this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.

Features

• MPPT: Ultra fast maximum power point tracking by constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels and harvested for storage
• The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing
• Remote monitoring and control - remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a Bluetooth dongle and pairing it with your smartphone or other device via VictronConnect
• If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT anytime, anywhere; both VictronConnect and VRM are free to use
• For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520

Specifications

• Type: MPPT
• Series/Model: 150/45
• Battery Voltage: 12/24/48V Auto Select
• Enclosure Rating: IP43 (Electronic Components), IP22 (Connection Area)
• Maximum PV Open Circuit Voltage: 150V Absolute Maximum (Coldest Conditions), 145V Start-Up and Operating Maximum
• Operating Temperature: -30°C to 60°C (Full Rated Output up to 40°C)
• Self-Consumption: 20 mA at 12V, 15 mA at 24V, 10 mA at 48V
• Humidity: 95%, Non-Condensing
• Power Terminal: 16 mm²/6 AWG
• Temperature Compensation: -16 mV/-32 mV/-64 mV per °C
• Maximum PV Short Circuit Current: 50A
• Nominal PV Power at 12V: 650W
• Nominal PV Power at 24V: 1300W
• Nominal PV Power at 36V: 1950W
• Nominal PV Power at 48V: 2600W
• Charge Current Rating: 45A
• Protection: PV Reverse Polarity, Output Short Circuit, Over-Temperature
• Absorption Charge: 14.4/28.8/43.2/57.6V (Adjustable)
• Float Charge: 13.8/27.6/41.4/55.2V (Adjustable)
• Peak Efficiency: 98%
• Charging Algorithm: Multi-Stage Adaptive (Eight Pre-Programmed Algorithms)
• Data Communication: VE.Direct
• Color: Blue (RAL 5012)
• Dimensions: 130mm Height x 186mm Width x 70mm Depth
• Standards Compliance: EN/IEC 62109-1, UL 1741, CSA C22.2
• Weight: 1.25kg

Documents

• Specification Sheet
• Owners/User Manual


Advanced Maximum Power Point Tracking Technology

The Victron Energy BlueSolar MPPT 150/45 incorporates advanced maximum power point tracking (MPPT) technology that maximizes energy harvest from solar panels. This controller continuously monitors the solar panel output and adjusts the electrical operating point to extract the maximum possible power. With an efficiency rating of up to 98%, it enhances charging efficiency compared to traditional PWM regulators. This results in faster battery charging and better performance, especially under fluctuating weather conditions. Its MPPT technology also allows it to work seamlessly with various panel voltages, making it highly compatible and versatile for different solar installations.

Robust Build and Versatile Application

Designed for demanding environments, the Victron Energy BlueSolar MPPT 150/45 features a robust construction with IP43 rating for dust and water resistance. It supports solar array input voltages up to 150V and delivers a maximum charging current of 45A, capable of addressing the needs of medium to large solar energy systems. Compatible with different battery types including AGM, Gel, and Lithium, it offers a flexible and reliable solution for off-grid, grid-tied, and hybrid energy systems. The integrated Bluetooth connectivity enables easy installation monitoring and configuration via Victron's smartphone app.

Intelligent Battery Management and User-Friendly Interface

The Victron Energy BlueSolar MPPT 150/45 is equipped with intelligent battery management algorithms that optimize battery life and ensure safe charging. It supports multiple battery profiles and includes adaptive charge algorithms tailored to maintain battery health over long-term use. The controller also features a clear digital display and LED indicators for real-time system status, while the included Bluetooth interface allows users to track performance, adjust settings, and troubleshoot remotely. These features collectively simplify system management and enhance user confidence in solar energy applications.
