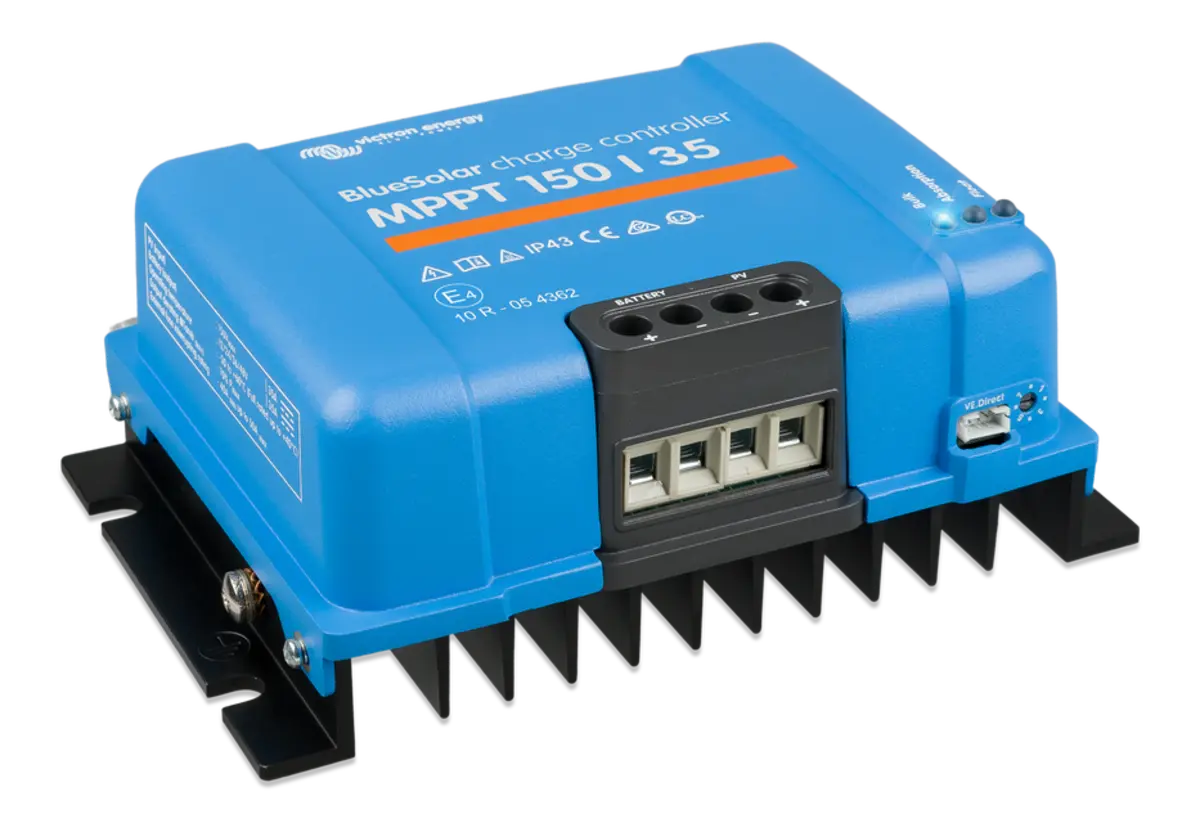

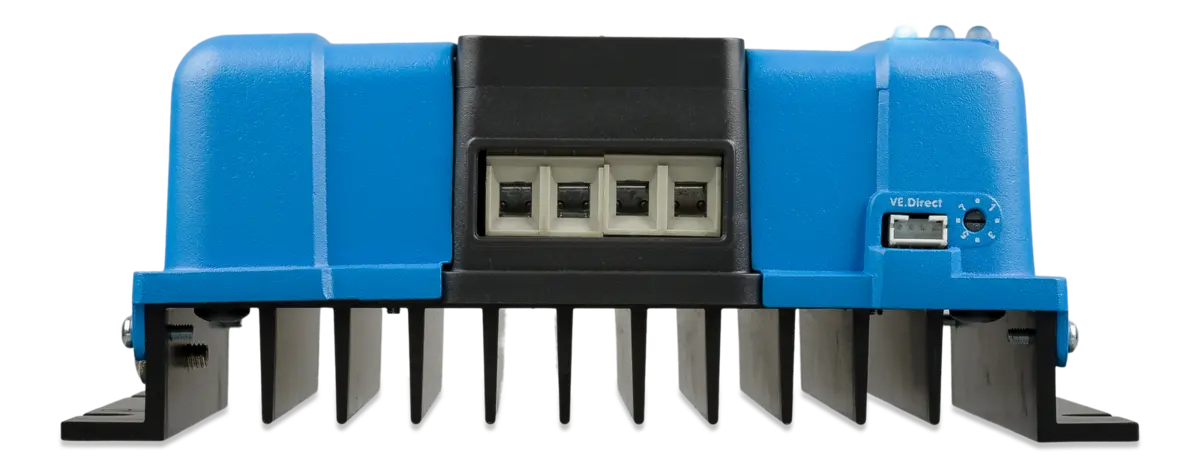

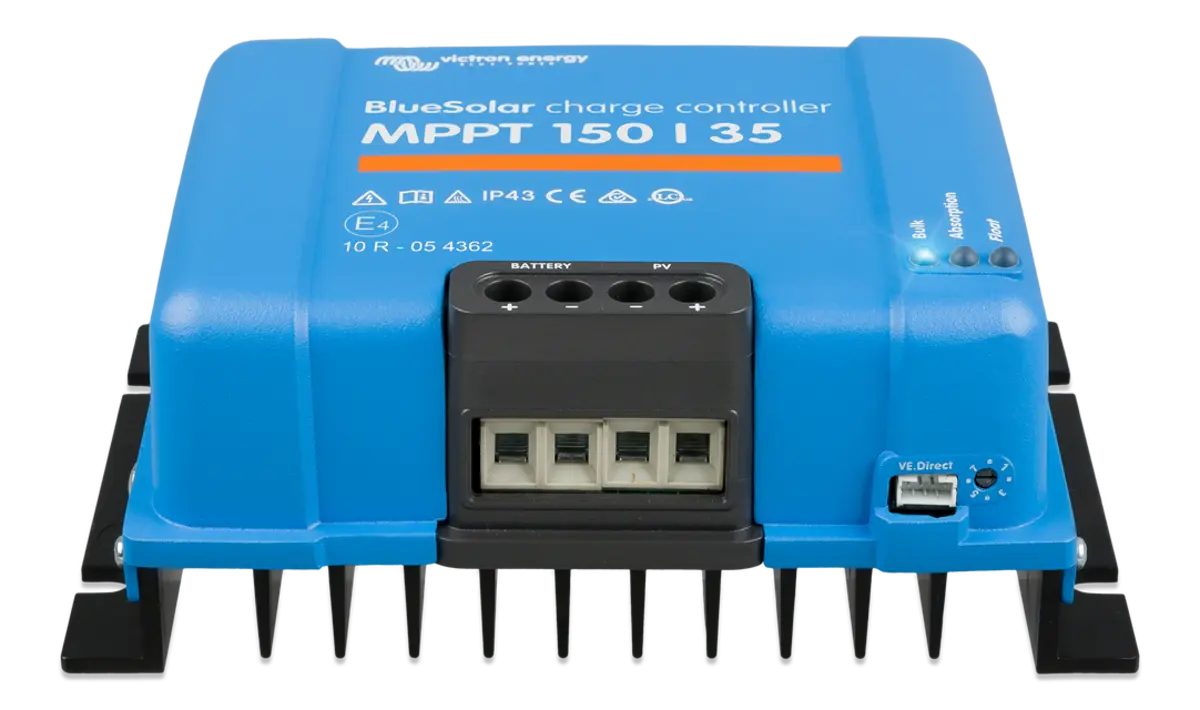

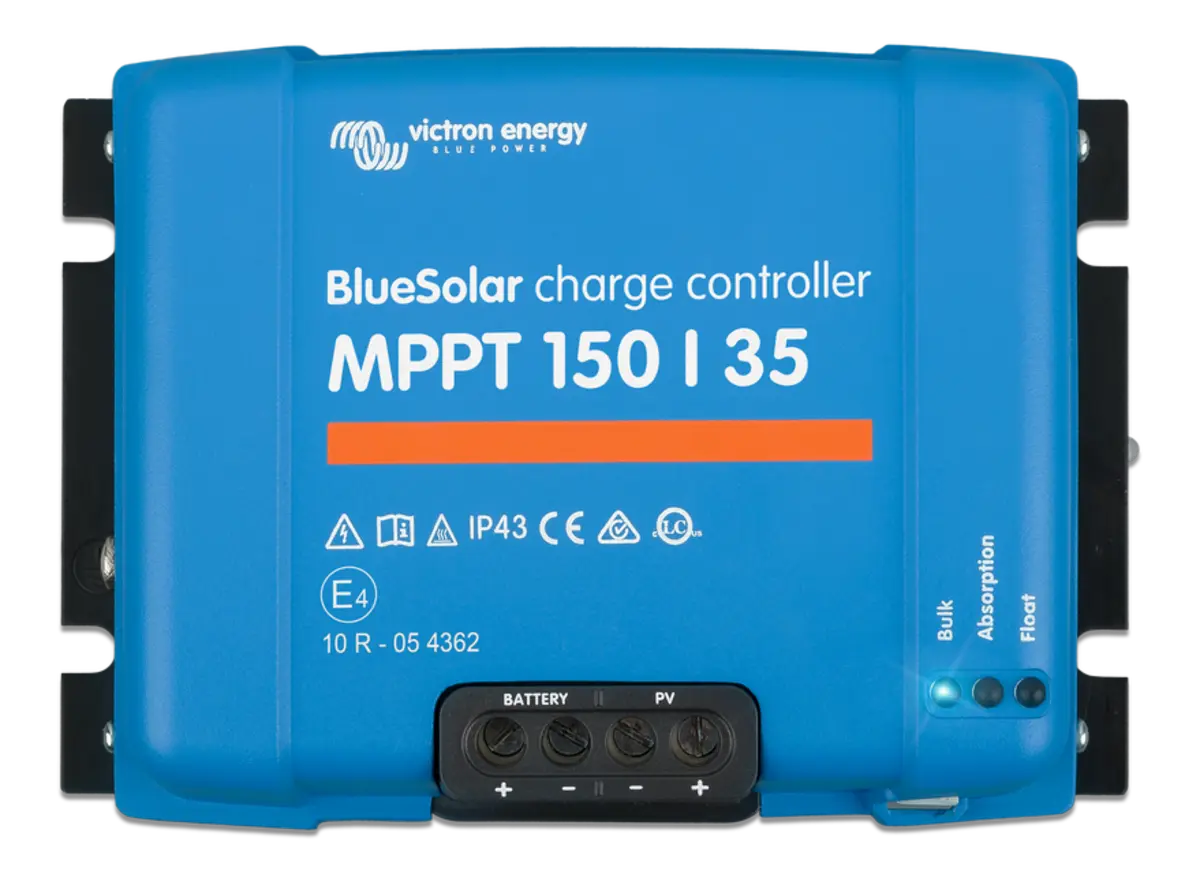

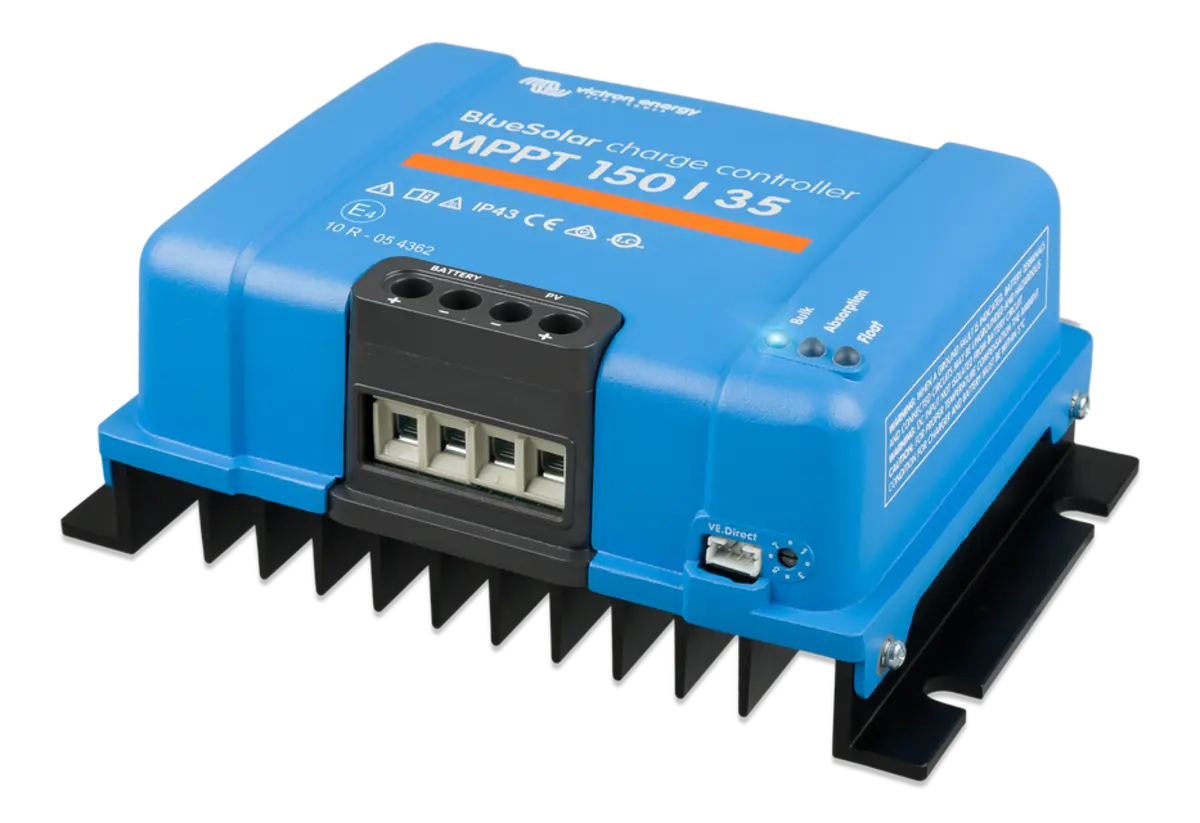

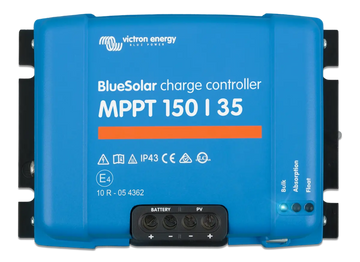

Victron Energy BlueSolar MPPT 150/35

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximizes this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.

Features

• MPPT: Ultra fast maximum power point tracking by constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels and harvested for storage
• The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing
• Remote monitoring and control - remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a bluetooth dongle and pairing it with your smartphone or other device via VictronConnect
• If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use
• For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520


Specifications

• Type: MPPT
• Series/Model: 150/35
• Battery Voltage: 12/24/48 V
• Enclosure Rating:
  • IP43 (electronic components)
  • IP22 (connection area)
• Maximum PV Open Circuit Voltage:
  • 150 V Absolute Maximum (Coldest Conditions)
  • 145 V Start-Up and Operating Maximum
• Operating Temperature: -30 to 60°C (Full Rated Output up to 40°C)
• Self-Consumption:
  • 20 mA at 12 V
  • 15 mA at 24 V
  • 10 mA at 48 V
• Humidity: 95%, Non-Condensing
• Power Terminal: 16 mm² / 6 AWG
• Temperature Compensation:
  • -16 mV/°C at 12 V
  • -32 mV/°C at 24 V
  • -64 mV/°C at 48 V
• Maximum PV Short Circuit Current: 40 A
• Nominal PV Power:
  • 12 V: 500 W
  • 24 V: 1000 W
  • 48 V: 2000 W
  • 36 V: 1500 W
• Charge Current Rating: 35 A
• Protection:
  • PV Reverse Polarity
  • Output Short Circuit
  • Over temperature
• Charging Stages:
  • Absorption Charge: 14.4/28.8/43.2/57.6 V (Adjustable)
  • Float Charge: 13.8/27.6/41.4/55.2 V (Adjustable)
• Peak Efficiency: 98%
• Charging Algorithm: Multi-Stage Adaptive (Eight Pre-Programmed Algorithms)
• Data Communication: VE.Direct
• Color: Blue (RAL 5012)
• Dimensions: 130 mm (H) x 186 mm (W) x 70 mm (D)
• Weight: 1.25 kg
• Standards Compliance:
  • EN/IEC 62109-1
  • UL 1741
  • CSA C22.2


Documents

• Specification Sheet
• Owners/User Manual
• Specification Sheet
