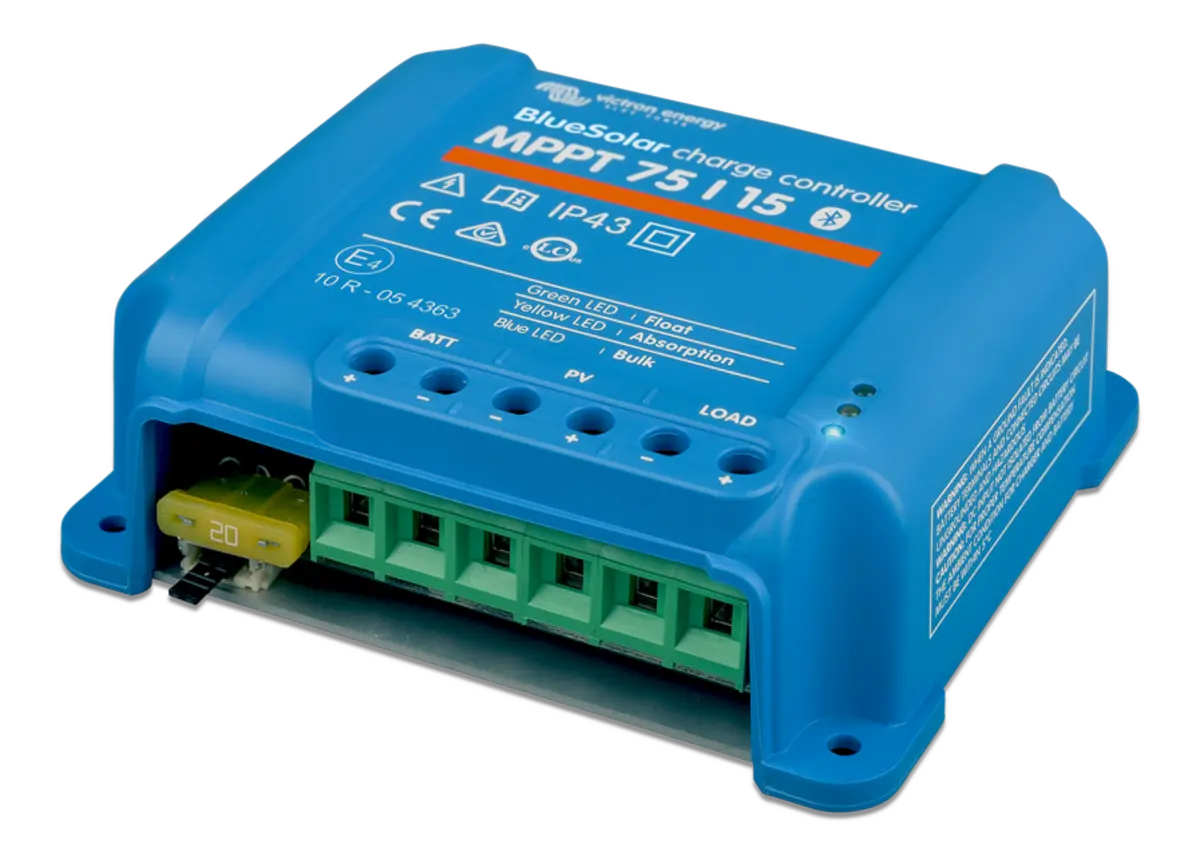

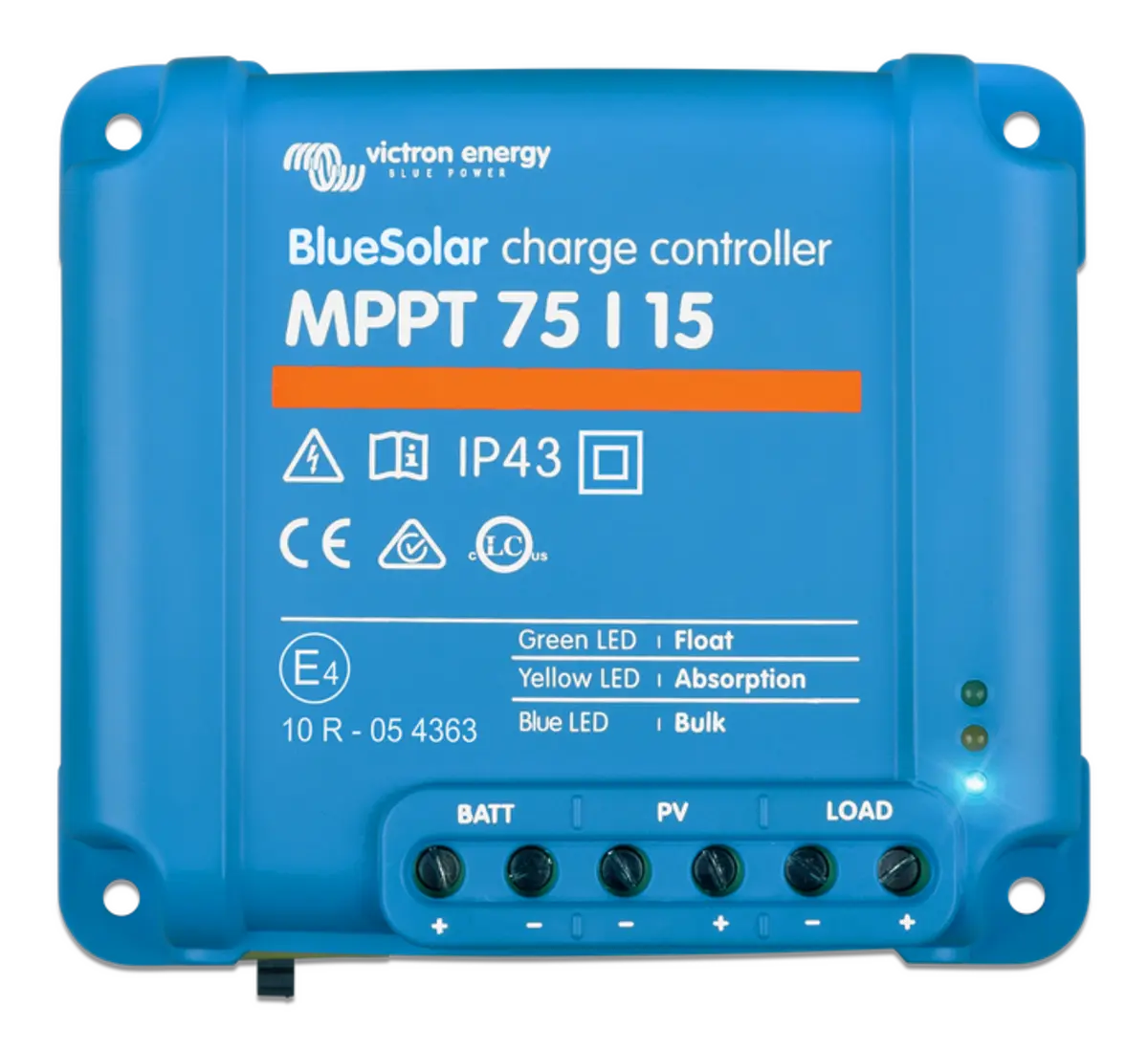

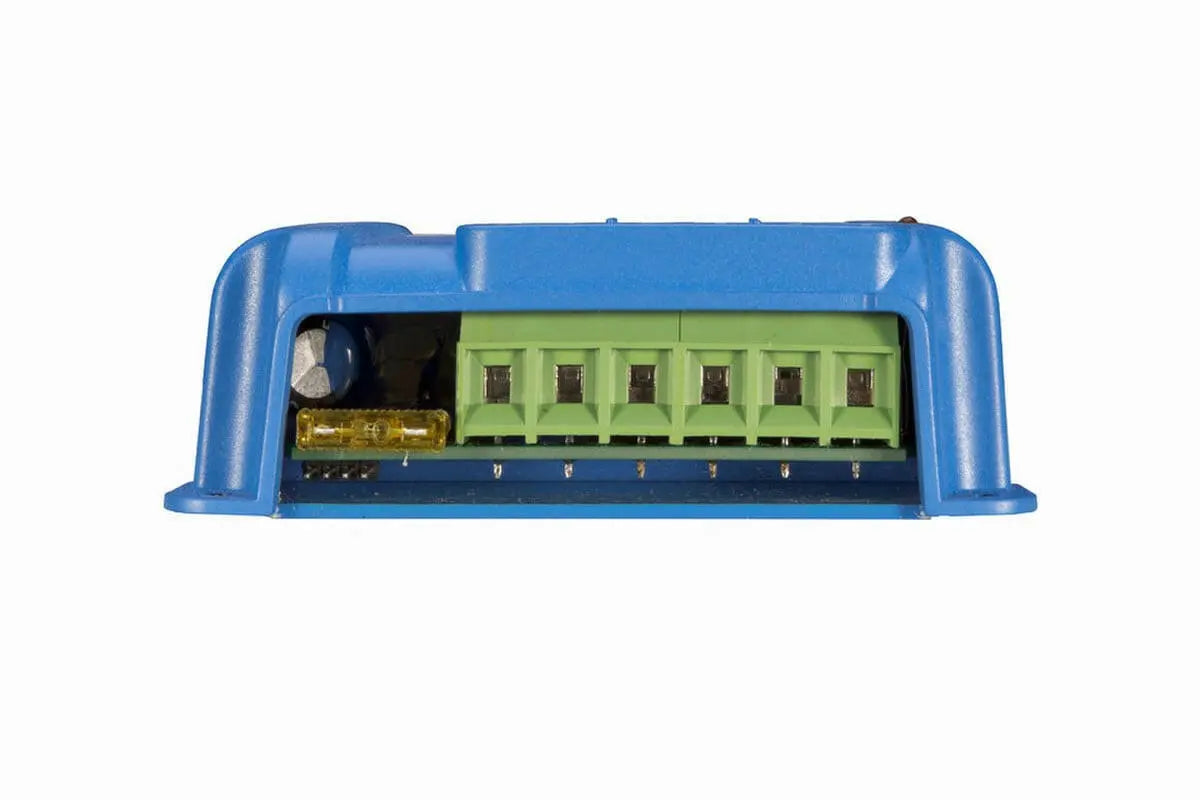

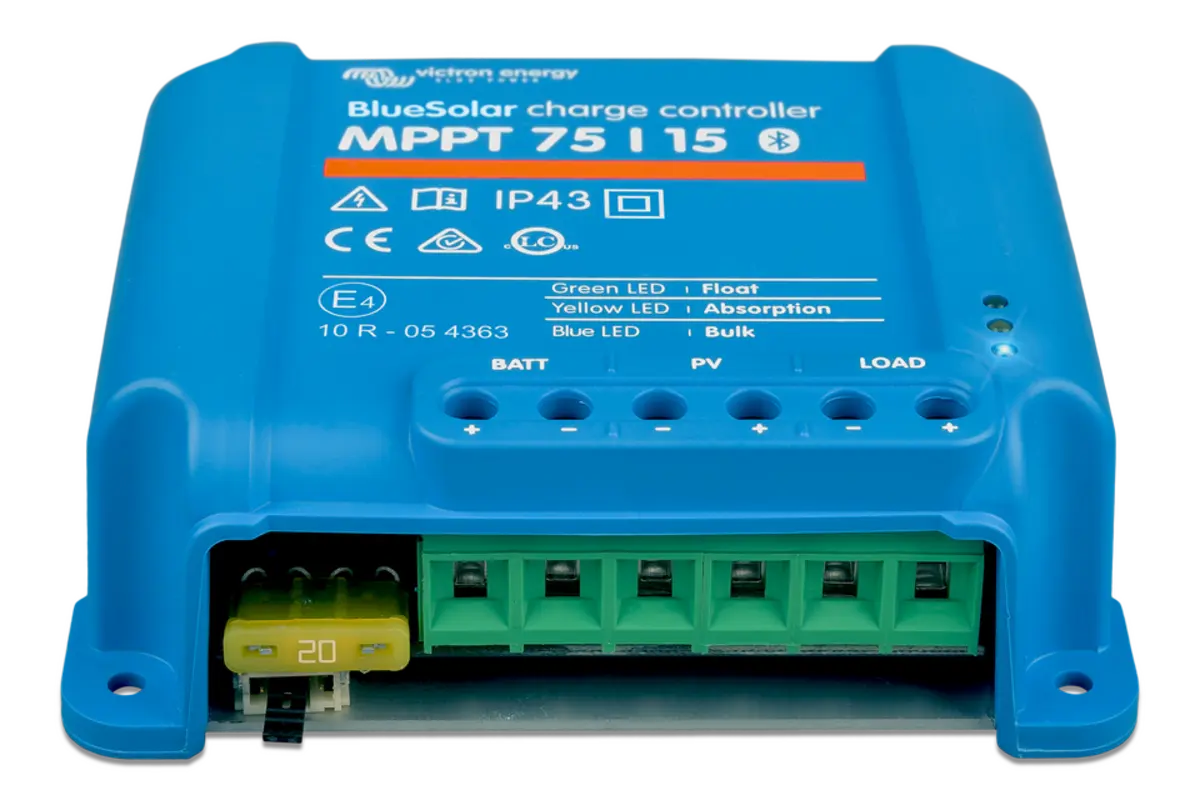

Victron Energy BlueSolar 75/15 MPPT Solar Charge Controller - Retail

Victron Energy BlueSolar: Superior Solar Charge Control for Your Setup

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximizes this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.

Features

• MPPT: Ultra fast maximum power point tracking by constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels and harvested for storage
• The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing
• Remote monitoring and control - remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a Bluetooth dongle and pairing it with your smartphone or other device via VictronConnect
• If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT anytime, anywhere; both VictronConnect and VRM are free to use
• For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520
• Load output - The intelligent Load output function prevents damage caused by running batteries 'flat'
• You can configure the voltage at which BlueSolar disconnects a load - thereby preventing excessive drain on your batteries
• And here's the clever bit: BlueSolar will attempt a 100% recharge every day
• If it can't - during periods of poor weather - it raises the disconnect voltage, daily, until it achieves success
• We call this feature BatteryLife because it maintains the health, and extends the life of your battery


Specifications

• Type: MPPT
• Series/Model: 75/15
• Battery Voltage: 12/24 V
• Enclosure Rating: IP43 (Electronic Components), IP22 (Connection Area)
• Maximum PV Open Circuit Voltage: 75 V
• Operating Temperature: -30 to 60 deg C (Full Rated Output up to 40 deg C)
• Humidity: 95%, Non-Condensing
• Power Terminal: 6 mm2/10 AWG
• Temperature Compensation: -16 mV/deg C Resp., -32 mV/deg C
• Maximum PV Short Circuit Current: 15 A
• Nominal PV Power at 12 V: 220 W
• Nominal PV Power at 24 V: 440 W
• Charge Current Rating: 15 A
• Automatic Load Disconnect: Yes
• Protection: Output Short Circuit, Over Temperature
• Absorption Charge: 14.4/28.8 V (Adjustable)
• Float Charge: 13.8/27.6 V (Adjustable)
• Low Voltage Load Disconnect: 11.1/22.2/44.4 or 11.8/23.6/47.2 V or Battery Life Algorithm
• Low Voltage Load Reconnect: 13.1/26.2/52.4 or 14/28/56 V or Battery Life Algorithm
• Peak Efficiency: 98%
• Self-Consumption - Load On: 25 mA at 12 V, 15 mA at 24 V
• Self-Consumption - Load Off: 25 mA at 12 V, 15 mA at 24 V
• Charging Algorithm: Multi-Stage Adaptive
• Maximum Continuous Load Current: 15 A
• Data Communication: VE.Direct
• Color: Blue (RAL 5012)
• Dimensions: 100 mm Height x 113 mm Width x 40 mm Depth
• Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
• Weight: 0.5 kg


Advanced MPPT Technology for Maximum Efficiency

The Victron Energy BlueSolar 75/15 model utilizes state-of-the-art MPPT (Maximum Power Point Tracking) technology to optimize the energy harvest from your solar panels. This technology is designed to track the solar array’s maximum power point, improving charge efficiency by up to 30% compared to traditional controllers. The result is a more efficient battery charging process, ensuring your solar system converts as much sunlight as possible into usable energy. This makes it ideal for off-grid solar setups and energy storage solutions.

Durable and Reliable Design for Long-Term Use

Built to withstand harsh environmental conditions, the Victron Energy BlueSolar 75/15 features a rugged design with durable IP43 protection. This ensures safety against dust and water splashes, making it suitable for outdoor installations in various climates. Its thermal design enables it to operate efficiently without the need for a cooling fan, minimizing maintenance and prolonging the product's lifespan. Such reliability guarantees consistent performance for your solar energy system over many years.

Easy Installation and User-Friendly Monitoring

The BlueSolar 75/15 model offers a simple and straightforward installation process, making it accessible for both professionals and DIY enthusiasts. It includes clear LED indicators for status monitoring, displaying information on battery state and charge levels. Additionally, the device supports remote monitoring via Victron’s Bluetooth app, allowing users to track performance in real-time from their smartphones. This feature helps maintain optimal system function and troubleshooting convenience.
