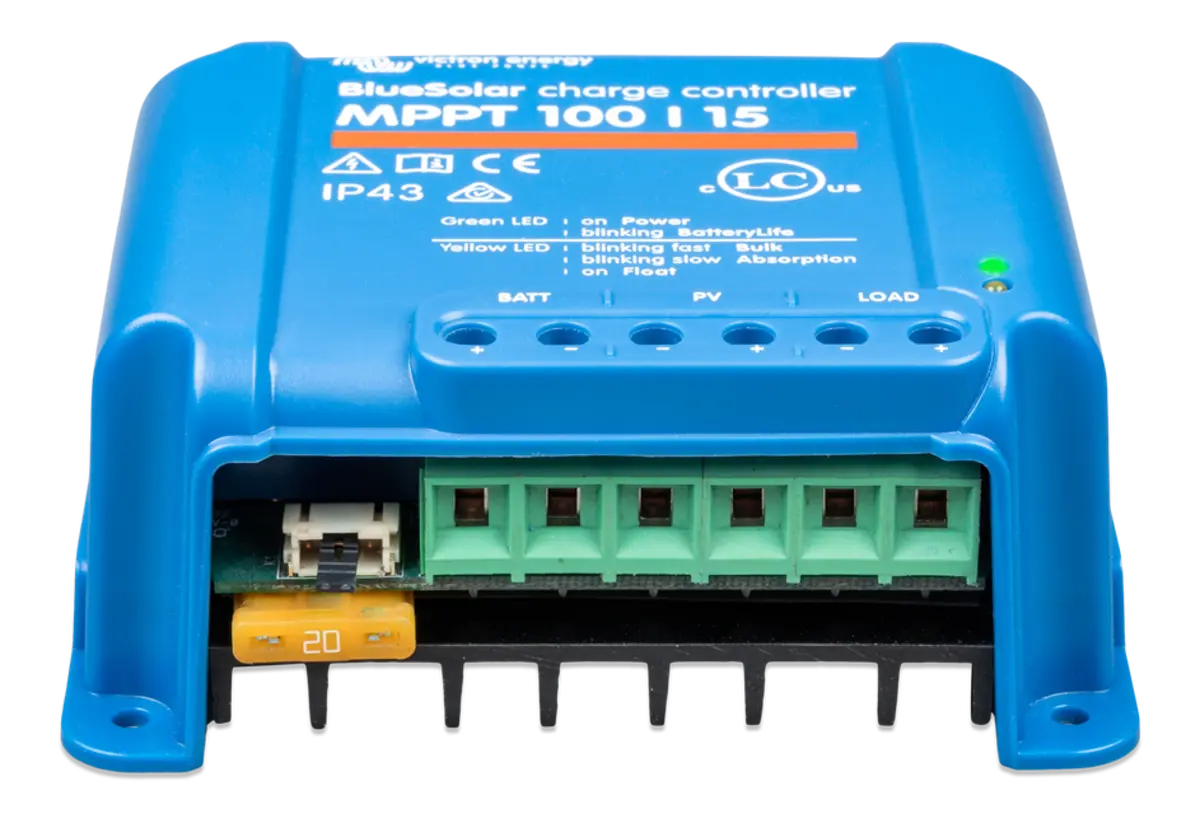

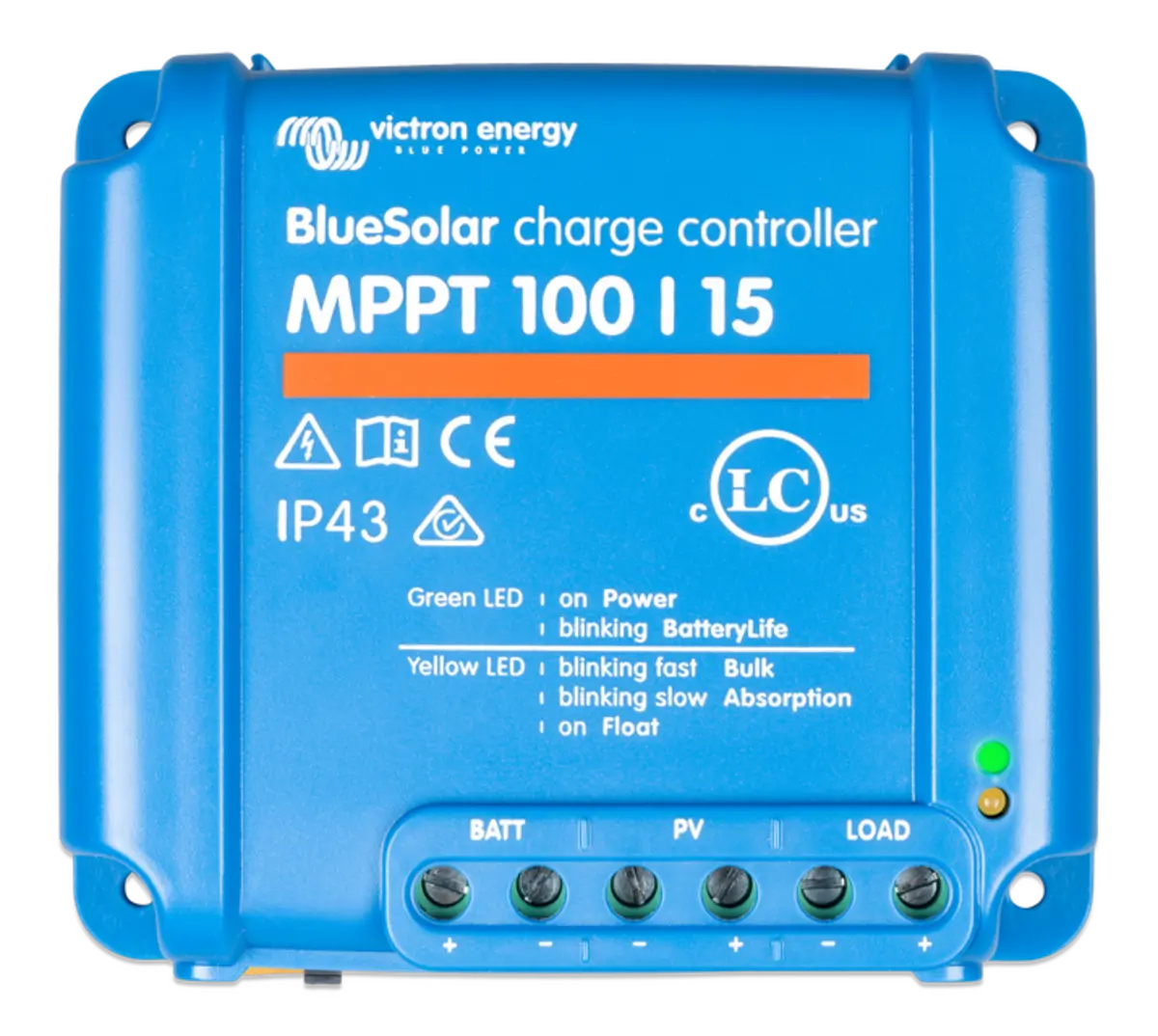

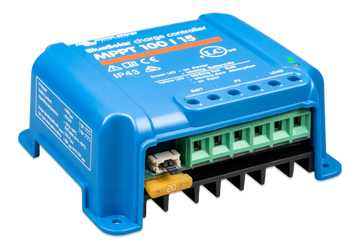

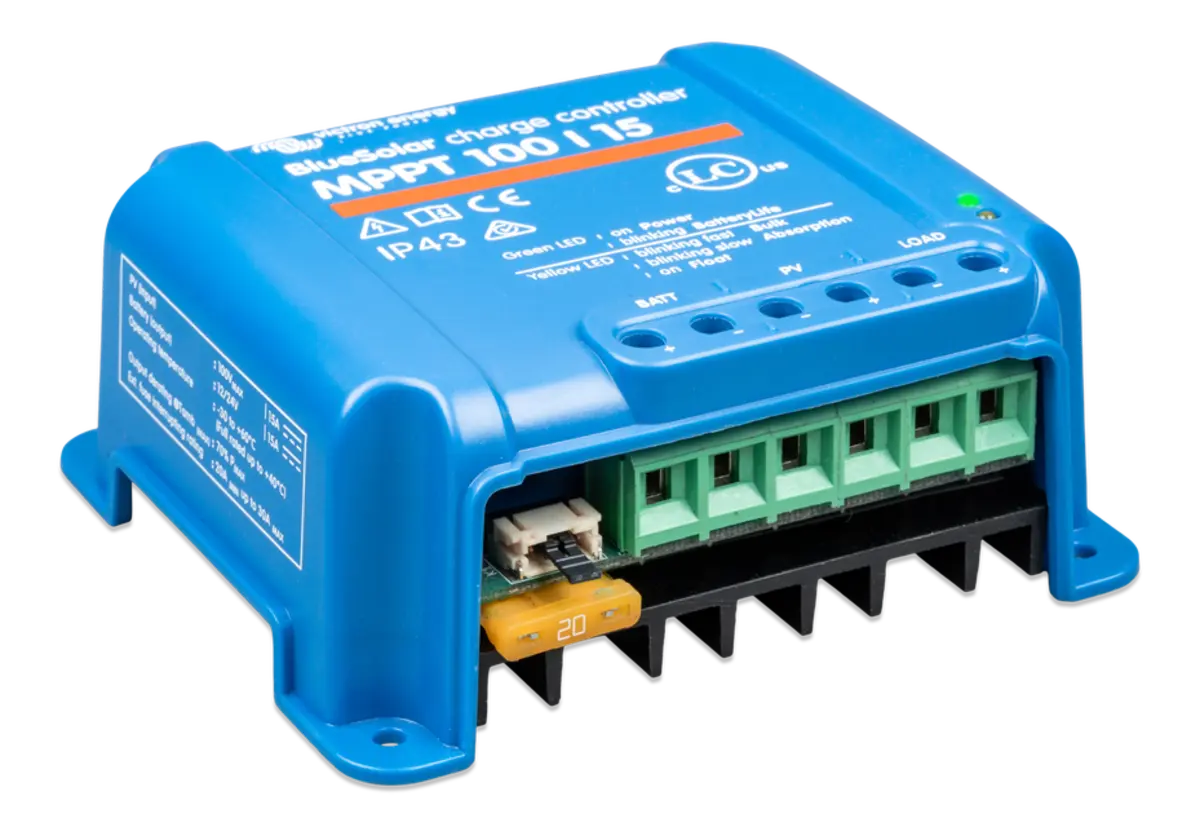

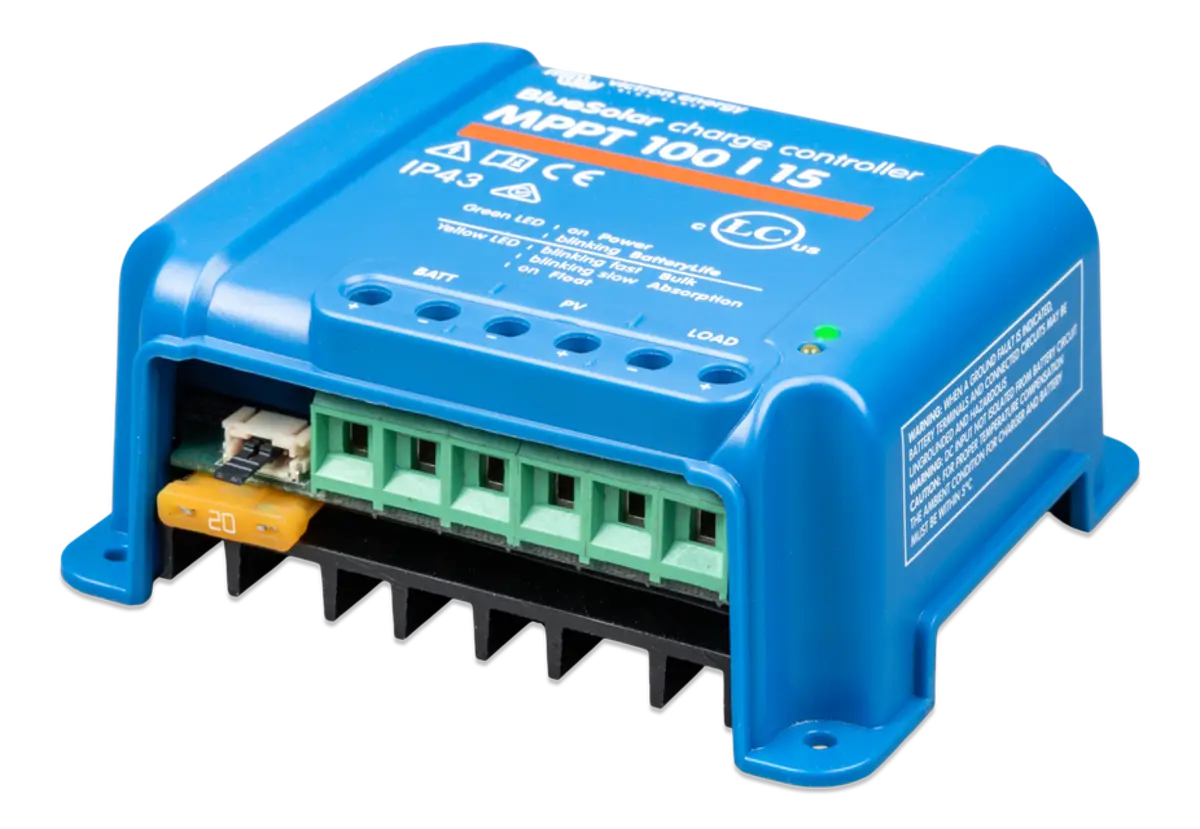

Victron Energy BlueSolar 100/15 MPPT Solar Charge Controller - Retail

Explore the Power and Efficiency of the Victron Energy BlueSolar MPPT Charge Controller

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximizes this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.

Features

• MPPT: Ultra fast maximum power point tracking by constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels and harvested for storage
• The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing
• Remote monitoring and control - remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a Bluetooth dongle and pairing it with your smartphone or other device via VictronConnect
• If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT anytime, anywhere; both VictronConnect and VRM are free to use
• For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520
• Load output - The intelligent Load output function prevents damage caused by running batteries 'flat'
• You can configure the voltage at which BlueSolar disconnects a load - thereby preventing excessive drain on your batteries
• And here's the clever bit: BlueSolar will attempt a 100% recharge every day
• If it can't - during periods of poor weather - it raises the disconnect voltage, daily, until it achieves success
• We call this feature BatteryLife because it maintains the health, and extends the life of your battery


Specifications

• Type: MPPT
• Series/Model: 100/15
• Battery Voltage: 12/24 V
• Enclosure Rating: IP43 (Electronic Components), IP22 (Connection Area)
• Maximum PV Open Circuit Voltage: 100 V
• Operating Temperature: -30 to 60 deg C (Full Rated Output up to 40 deg C)
• Humidity: 95%, Non-Condensing
• Power Terminal: 6 mm2/10 AWG
• Temperature Compensation: -16 mV/deg C Resp., -32 mV/deg C
• Maximum PV Short Circuit Current: 15 A
• Nominal PV Power at 12 V: 220 W
• Nominal PV Power at 24 V: 440 W
• Charge Current Rating: 15 A
• Automatic Load Disconnect: Yes
• Protection: Output Short Circuit, Over Temperature
• Absorption Charge: 14.4/28.8 V (Adjustable)
• Float Charge: 13.8/27.6 V (Adjustable)
• Low Voltage Load Disconnect: 11.1/22.2/44.4 or 11.8/23.6/47.2 V or Battery Life Algorithm
• Low Voltage Load Reconnect: 13.1/26.2/52.4 or 14/28/56 V or Battery Life Algorithm
• Peak Efficiency: 98%
• Self-Consumption - Load On: 25 mA at 12 V, 15 mA at 24 V
• Self-Consumption - Load Off: 25 mA at 12 V, 15 mA at 24 V
• Charging Algorithm: Multi-Stage Adaptive
• Maximum Continuous Load Current: 15 A
• Data Communication: VE.Direct
• Color: Blue (RAL 5012)
• Dimensions: 100 mm Height x 113 mm Width x 50 mm Depth
• Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
• Weight: 0.6 kg


Advanced Maximum Power Point Tracking Technology

The Victron Energy BlueSolar MPPT charge controller employs state-of-the-art Maximum Power Point Tracking (MPPT) technology, which optimizes the energy harvest from solar panels. This controller intelligently adjusts its operating point to extract maximum power, allowing for up to 30% more efficient charging compared to traditional PWM controllers. Whether used in small off-grid systems or larger solar installations, this MPPT charge controller ensures the battery receives consistent, high-quality power, extending the battery lifespan and enhancing system reliability.

Robust Design and User-Friendly Interface

Designed for durability and simplicity, the Victron Energy BlueSolar 100/15 controller features a robust enclosure that is resistant to dust and water, making it suitable for various environments. Its intuitive LED indicators provide clear real-time information on charging status and potential faults, ensuring easy monitoring without complex setup. Additionally, the controller supports remote monitoring options via Victron’s proprietary software, giving users convenient control and system insight at any time, improving system management and peace of mind.

Comprehensive Battery Compatibility and Protection

This MPPT charge controller is compatible with a wide range of battery types, including lead-acid, AGM, GEL, and lithium batteries, making it highly versatile. It integrates multiple protections such as over-voltage, short-circuit, reverse polarity, and overheating safeguards that protect your investment and ensure safe operation. By intelligently managing charge cycles and temperature, it maximizes battery performance and longevity, contributing to a sustainable solar power setup tailored to diverse energy needs and environments.
