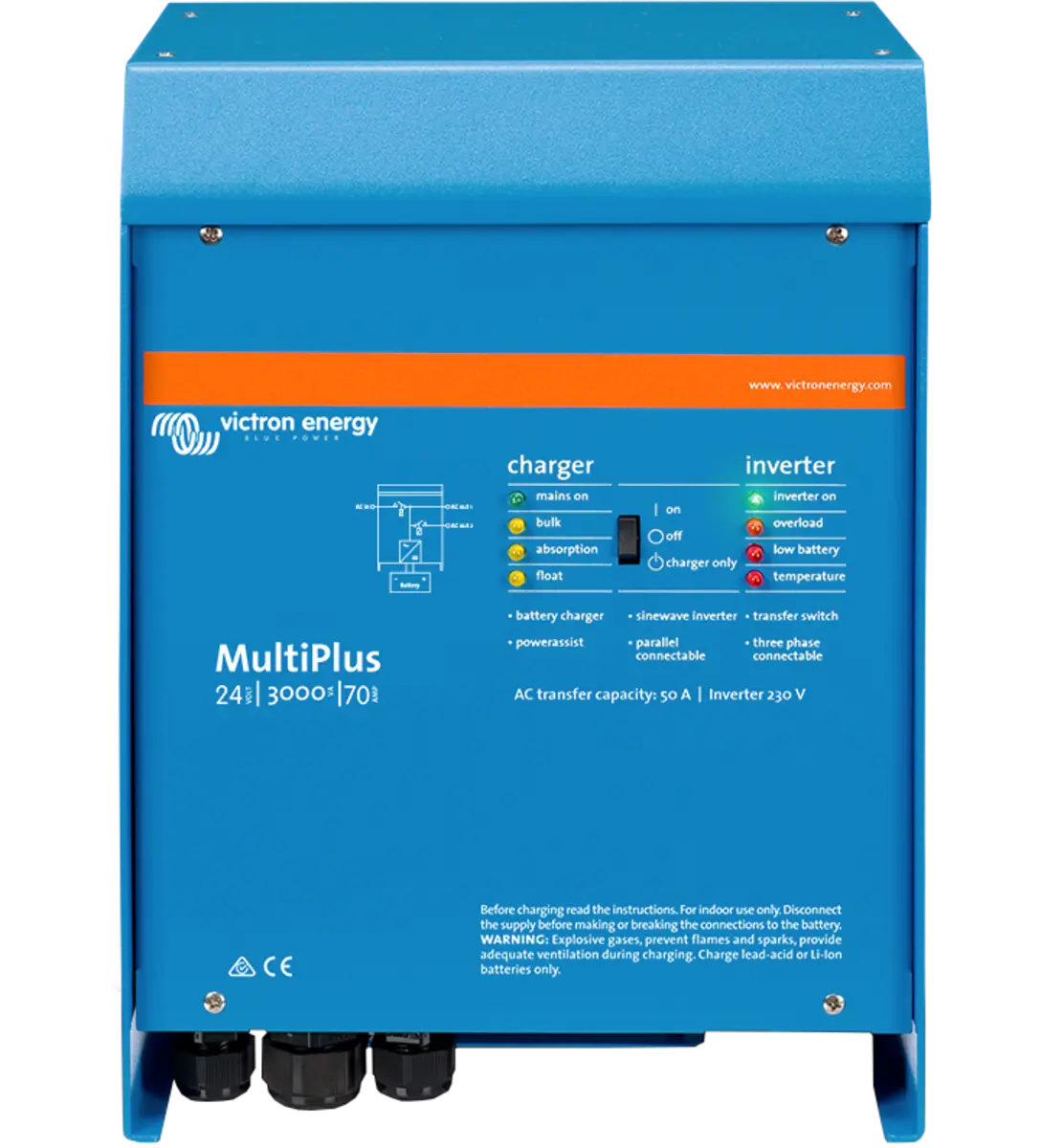

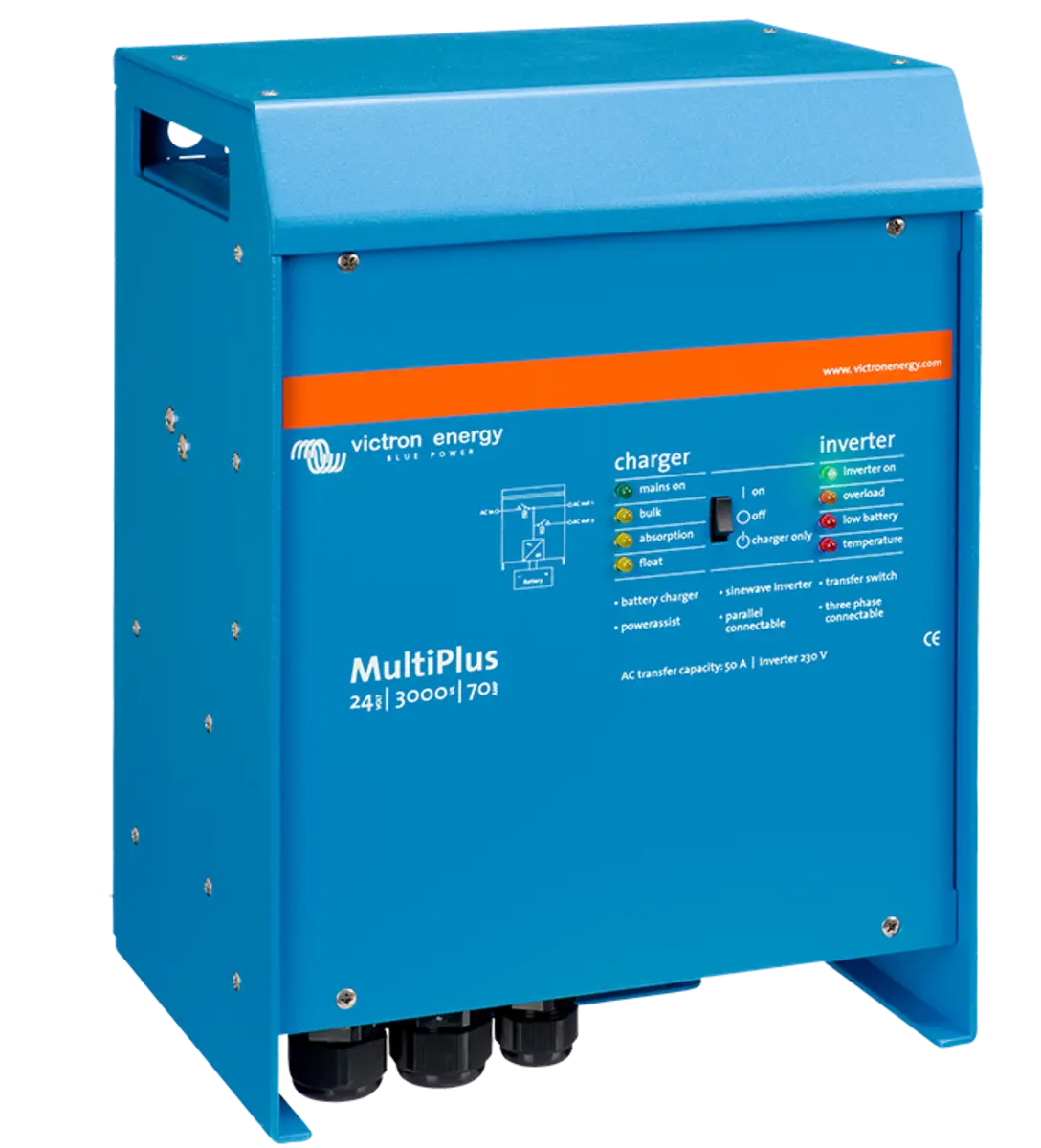

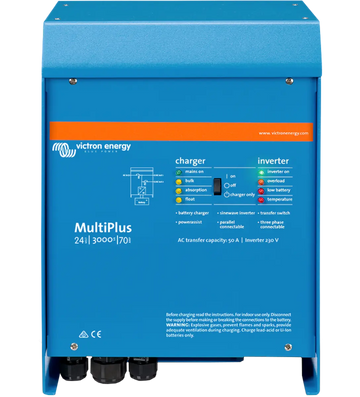

Victron MultiPlus-II inverter & charger 3000 VA 24 Volts DC, 120 Volts AC, 70 Amp charger

Overview of the Victron Energy Inverter Charger 3000 VA

The MultiPlus is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology, and a high-speed AC transfer switch in a single compact enclosure. Next to these primary functions, the MultiPlus has several advanced features, as outlined below.

Features

• Multifunctional, with intelligent power management
• Two AC Outputs
• Virtually unlimited power thanks to parallel operation
• Three phase capability
• Split phase options


Specifications

• Length: 362 mm
• Width: 258 mm
• Depth: 218 mm
• Input Voltage: 19-33 VDC
• Output Voltage: 120 VAC
• Power Rating: 3000 VA
• Input Current: 4 A
• Amperage Rating: 120/70/35 A
• Efficiency: 93/94%
• Frequency Rating: 60 Hz
• Cooling Type: Fan Assisted
• Power Factor: 1
• Connection Type: Screw Terminal
• Temperature Rating: -40 to 65°F


Documents

• Specification Sheet


Powerful and Efficient Inverter Technology

The Victron Energy inverter charger is designed to deliver reliable and efficient power conversion, making it an essential component for any backup or off-grid energy system. With a 3000 VA capacity combined with a compact 258 mm width, this inverter charger offers a perfect balance between power output and space-saving design. It smoothly converts DC battery power into clean AC electricity, suitable for home, RV, or commercial use. The integrated charger ensures your batteries stay optimally charged, protecting your investments while maintaining stable power supply during outages or grid fluctuations.

Advanced Features for Enhanced Performance

This Victron Energy inverter charger comes equipped with sophisticated features such as adaptive charge control, temperature compensation, and remote monitoring compatibility. These technologies ensure your battery system is charged efficiently, extending battery life and optimizing overall performance. The 3000 VA model also supports seamless transfer between grid and battery power, providing uninterrupted electricity supply. Its robust design supports various battery types, making it versatile for different renewable energy setups and ensuring both reliability and operational flexibility.

Easy Installation and User-Friendly Interface

Installing the Victron Energy inverter charger is straightforward, thanks to its compact size and clear wiring instructions. The 258 mm width allows it to fit easily into tight electrical cabinets, saving valuable space. Users can monitor system status and adjust settings via the VictronConnect app or compatible remote panels, facilitating hassle-free operation and maintenance. This user-centric approach ensures that both professionals and DIY enthusiasts can maximize the benefits of the inverter charger, achieving efficient, clean power delivery without unnecessary complications.
