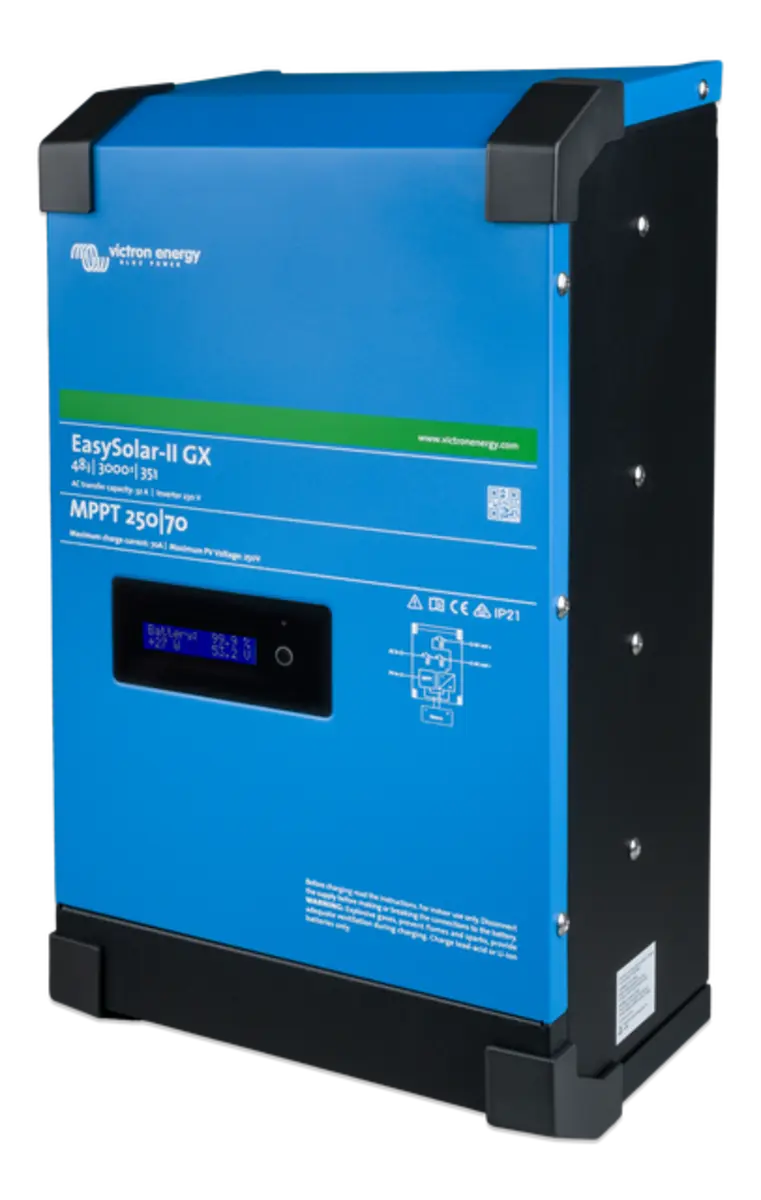

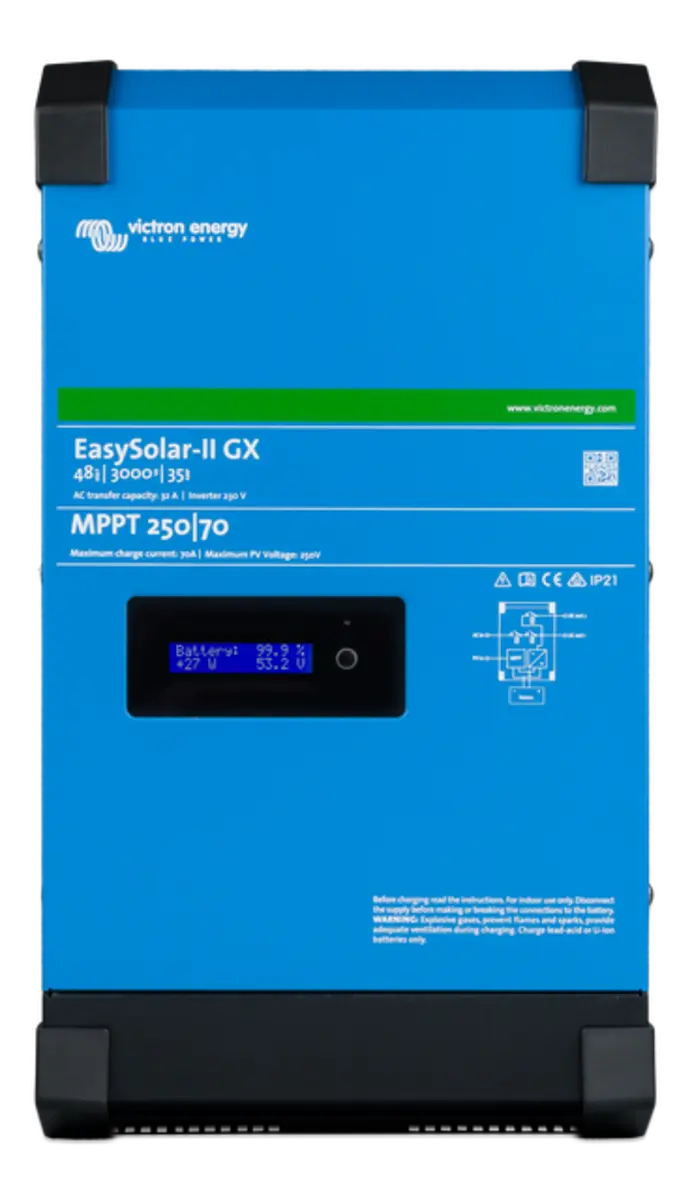

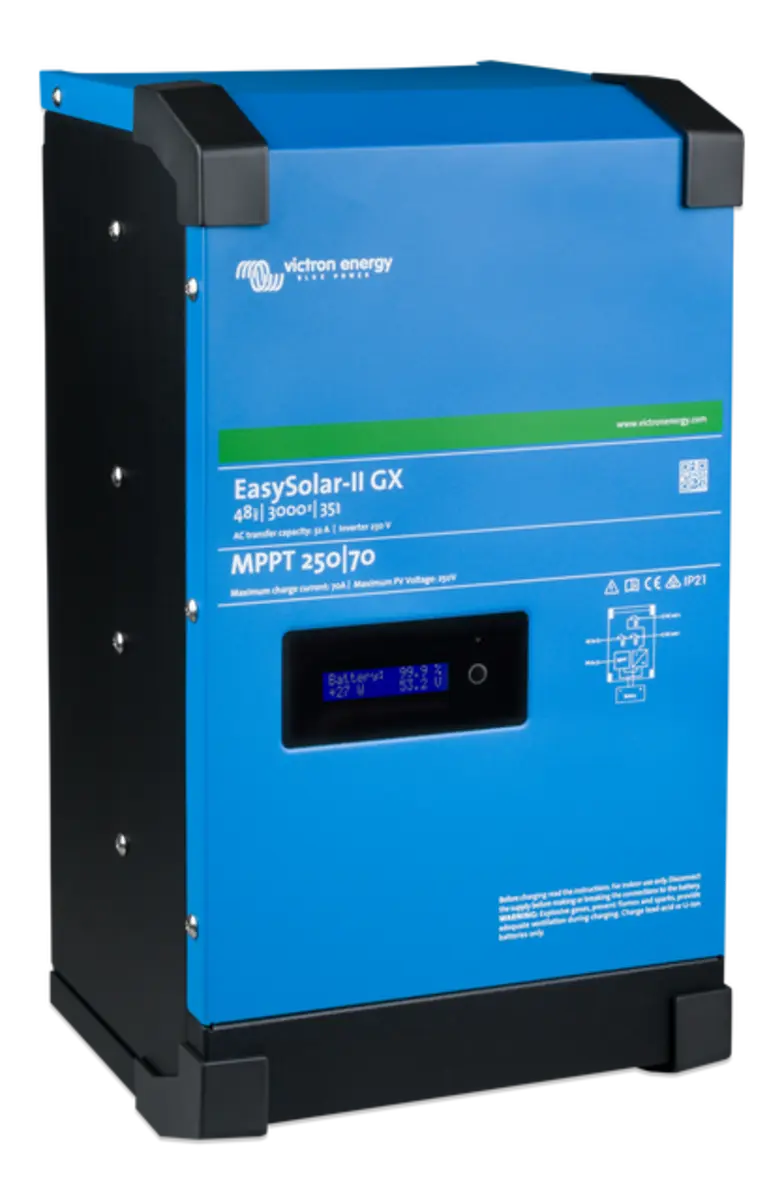

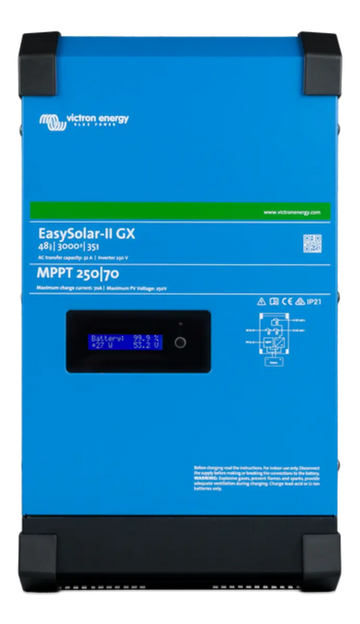

Victron EasySolar-II 48/3000/35-32 MPPT 250/70 GX 230V (SKU Part Number PMP482307010)

The EasySolar-II GX combines an MPPT Solar Charge Controller, an inverter/charger and control hub in one enclosure. The product is easy to install, with a minimum of wiring.

Features

• The all-in-one solar power solution - The Victron EasySolar-II GX integrates the following elements: A MultiPlus-II inverter/charger, A SmartSolar MPPT -Tr solar charge controller, A GX device with a 2 x 16-character display. These elements come prewired together inside a single unit. This greatly simplifies most installations, saving time and money
• Display and Wi-Fi - The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Wi-Fi enabled device. In addition, Wi-Fi can be used to set up the system and to change settings
• Solar charge controller - The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the MultiPlus-II inverter/charger. The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT
• GX device - The integrated GX device includes: A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed battery. Note that this not a VE.Can compatible port, A USB port, An ethernet port, A VE.Direct port. The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a VE.Bus and a VE.Direct connection
• VRM Portal - Our free remote monitoring website (VRM) will display all your system data in a comprehensive graphical format. System settings can be changed remotely via the portal. Alarms can be received by e-mail
• Grid in-line topology - The EasySolar-II GX will use excess PV power to charge the batteries or to feed power back into the grid and will discharge the battery or use power from the grid to supplement a shortage of PV power. In case of a power outage, the EasySolar-II GX will disconnect the grid and continue to supply the loads. Loads that should shut down when AC input power is not available can be connected to a second output (not shown). These loads will be taken into account by the PowerControl and PowerAssist function in order to limit AC input current to a safe value
• Grid parallel topology - The EasySolar-II GX will use data from the external AC current sensor (must be ordered separately) or power meter to optimize self-consumption and, if required, to prevent grid feed. In case of a power outage, the EasySolar-II GX will continue to supply the critical loads
• Current sensor 100A:50mA - To implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing. Maximum current: 50 A resp. 100 A. Length of connection cable: 1 m
• VE.Bus communication port - For parallel and three phase operation, remote monitoring and system integration


Specifications

• Dimensions: 490 mm Height x 268 mm Width x 237 mm Depth
• Material: Aluminum
• Color: Blue (RAL 5012)
• Continuous Power at 25 °C: 3000 VA / 2400 W (Inverter)
• Continuous Power at 40 °C: 2200 W (Inverter)
• Peak Power: 5500 W (Inverter)
• DC Input Voltage Range: 38-66 V (Inverter)
• Output AC Voltage: 230 VAC ±2% (Inverter)
• Output AC Frequency (Adjustable): 50 Hz ±1% (Inverter)
• Maximum Efficiency: 95% (Inverter)
• Zero-Load Power: 11 W (Inverter)
• Zero-Load Power in AES Mode: 7 W (Inverter)
• Zero-Load Power in Search Mode: 2 W (Inverter)
• AC Input:
  • Input Voltage Range: 187 - 265 VAC (Charger)
  • Input Frequency: 45 - 66 Hz (Charger)
• Charge Voltage Absorption: 57.6 VDC (Charger)
• Charge Voltage Float: 55.2 VDC (Charger)
• Storage Mode: 52.8 VDC (Charger)
• Maximum Battery Charger Current: 35 A (Charger)
• Battery Temperature Sensor: Yes
• Auxiliary Output: 32 A
• Programmable Relay: Yes
• Protection: A-G, A-G (Smartsolar Charge Controller)
• Remote On/Off: Yes
• Operating Temperature: -40 to 55 °C
• Humidity: Maximum 95% Non-Condensing
• Maximum Altitude: 2000 m
• Enclosure Rating: IP21
• Battery Connection: M8 Bolts
• 230 VAC Connection: Screw Terminals 16 mm²
• PowerControl/PowerAssist: Yes
• Integrated Transfer Switch: Yes
• Cooling Type: Fan Assisted
• Maximum AC Input Current: 32 A
• MPPT Model: MPPT 250/70-Tr (Smartsolar Charge Controller)
• Maximum Output Current: 70 A (Smartsolar Charge Controller)
• Maximum PV Power: 4000 W (Smartsolar Charge Controller)
• Maximum PV Open Circuit Voltage: 250 V (Smartsolar Charge Controller)
• Maximum Efficiency: 99% (Smartsolar Charge Controller)
• Self-Consumption: 20 mA (Smartsolar Charge Controller)
• Charge Voltage Absorption, Default: 57.6 V (Smartsolar Charge Controller)
• Charge Voltage Float, Default: 55.2 V (Smartsolar Charge Controller)
• Interfaces: BMS-Can, USB, Ethernet, VE.Direct, Wi-Fi
• PV Connection: M6 Bolts
• Standards:
  • Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
  • Emission/Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
• Warranty: 5 Years Limited
• Weight: 26 kg
