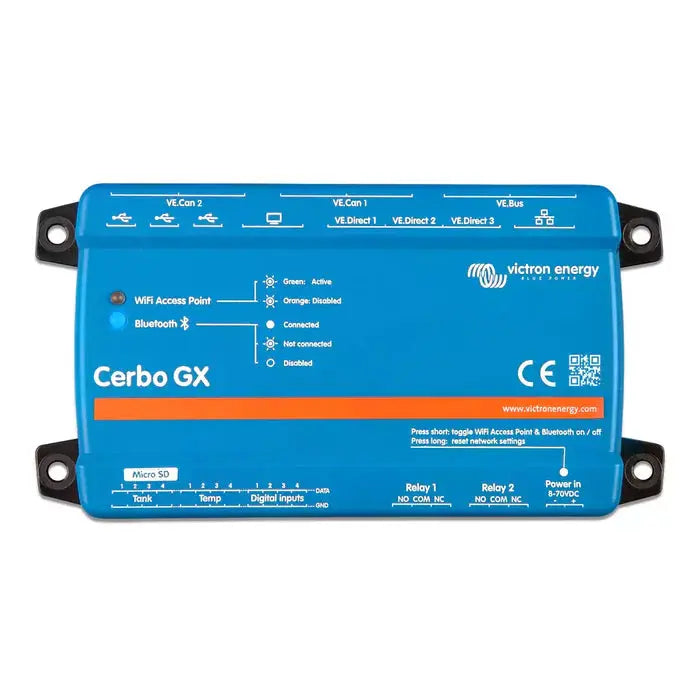

Victron Cerbo GX MK2 System Controller and Monitor
-
Estimated Delivery:May 31 - Jun 04
-
Free Shipping & Returns: On all orders under $50
Victron Cerbo GX MK2 System Controller and Monitor
Comprehensive Overview of the Victron Cerbo GX MK2
The Cerbo GX is Victron Energy's powerful communication centre that connects all components of your solar/energy system, providing complete monitoring and control locally and remotely via the free VRM (Victron Remote Management) portal. Compatible with 12V, 24V, and 48V systems.
Key Features
- Remote monitoring via free VRM Online Portal
- Built-in WiFi (2.4GHz 802.11 b/g/n) and Ethernet (10/100 RJ45)
- Bluetooth for quick setup via VictronConnect app

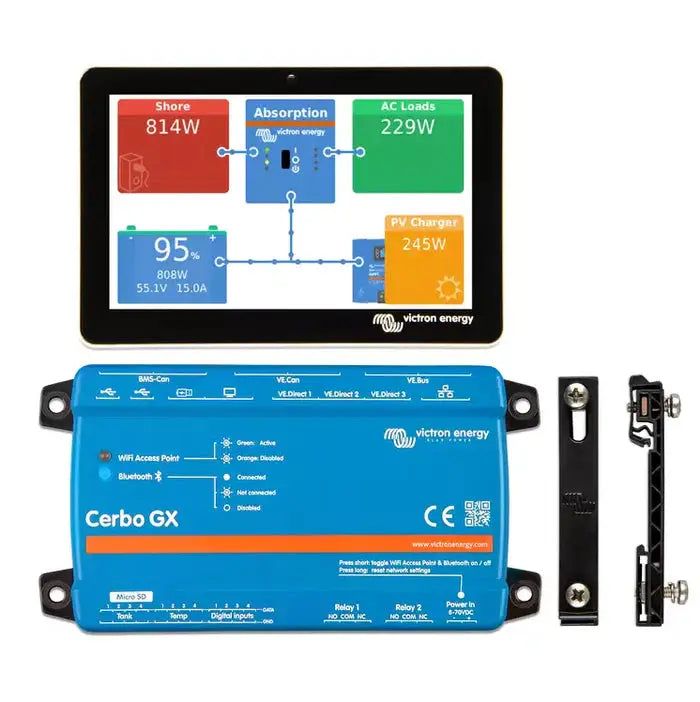

- Optional GX Touch 50 or GX Touch 70 touchscreen display
- Integrates with Multi-Functional Displays (MFDs) and NMEA 2000
- Wall or DIN rail (35mm) mounting
- Remote Console on VRM for full remote configuration
- Supports up to 15 VE.Direct devices
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | BPP900451100 |
| Supply Voltage | 8–70V DC |
| Power Draw (without GX Touch) | 2.8W @ 12V |
| Power Draw (with GX Touch, backlight max) | 4.8W @ 12V |
| VE.Direct Ports | 3 (max 15 VE.Direct devices) |
| VE.Bus | 2 paralleled RJ45 sockets (isolated) |
| VE.Can | Yes (VE.Can 1 isolated, VE.Can 2 non-isolated) |
| BMS-Can Port | Yes |
| USB Ports | 3 USB Host ports |
| WiFi | Built-in 2.4GHz 802.11 b/g/n |
| Bluetooth | Yes |
| Ethernet | 10/100 RJ45 (isolated) |
| Resistive Tank Level Inputs | 4 |
| Temperature Sense Inputs | 4 |
| Digital Inputs | 4 |
| Programmable Relays | 2x NO/NC (DC up to 30V: 6A; DC up to 70V: 1A) |
| Dimensions (H×W×D) | 78 × 154 × 48 mm |
| Operating Temperature | -20 to +50°C |
| IP Rating | IP20 |
| Mounting | Wall or DIN rail (35mm) |
Standards & Certifications
- Safety: IEC 62368-1
- EMC: EN 301489-1, EN 301489-17
- Automotive: ECE R10-6
Warranty
Victron Energy provides a 5-year limited warranty on this product.
Documentation
Advanced System Control with Victron Cerbo GX MK2
The Victron Cerbo GX MK2 is a cutting-edge system controller designed to give you complete oversight of your energy sources and appliances. It allows users to efficiently manage solar panels, inverters, batteries, and other connected devices. With its intuitive interface and seamless connectivity, the Cerbo GX MK2 ensures your power system operates smoothly and optimally at all times. It’s an essential tool for anyone who requires reliable control over multi-source energy setups, providing peace of mind through centralized monitoring and management.
Real-Time Monitoring and Remote Access
Equipped with advanced monitoring capabilities, the Victron Cerbo GX MK2 provides real-time data on system performance and energy flow. You can keep track of battery status, energy consumption, and device health both locally and remotely via the VictronConnect app or GX Portal. This allows for quick troubleshooting and proactive maintenance, minimizing downtime. The remote access feature ensures you stay connected to your system from anywhere, providing total control regardless of your location.
Easy Integration and Expandability
The Victron Cerbo GX MK2 stands out for its flexibility and compatibility with a wide range of Victron Energy products. It supports multiple communication protocols, including VE.Direct, VE.Can, and Modbus, making integration straightforward. Additionally, the device can be expanded with optional accessories such as additional GX Touch displays or GX Tank Measurement devices for enhanced functionality. Its modular design allows your energy monitoring system to grow with your needs, ensuring long-term reliability and versatility.
