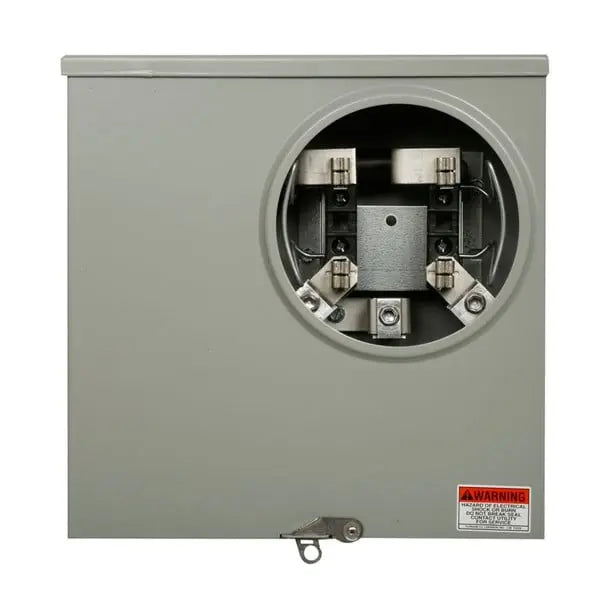

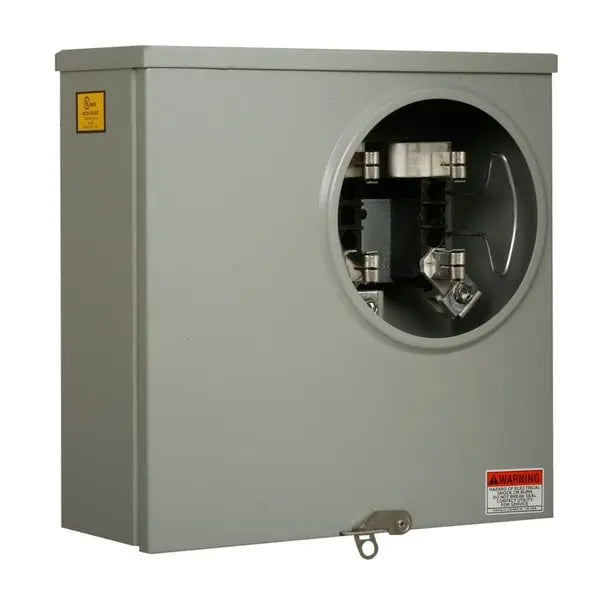

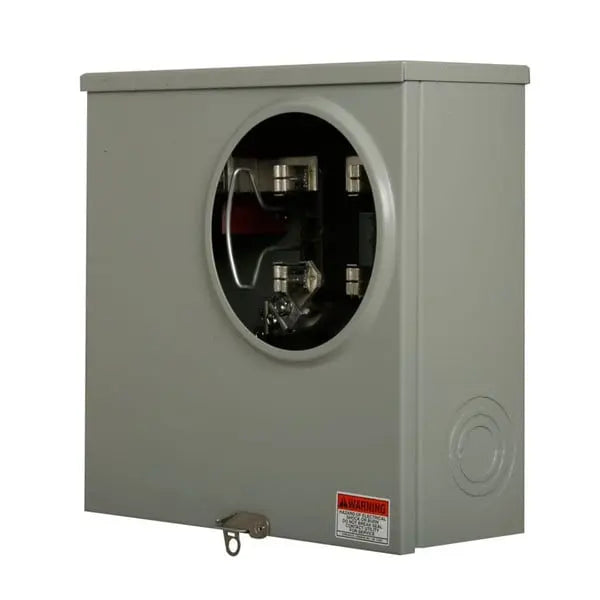

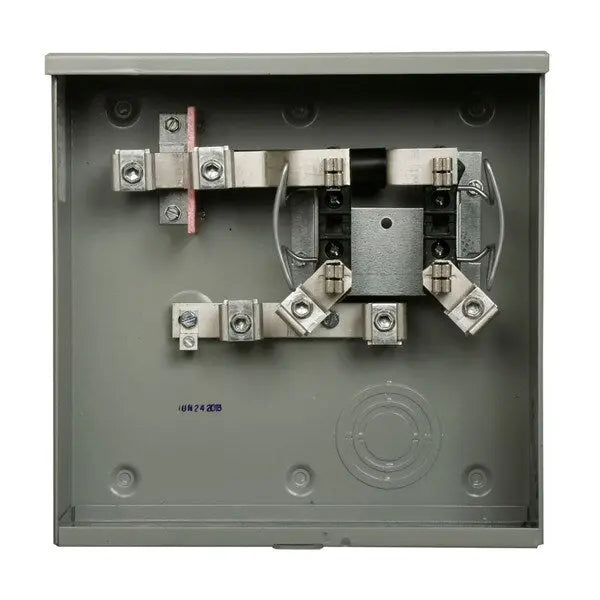

UTRS223ACH - Meter Socket

This 200 amp meter socket is built for durability, safety, and code-compliant service in residential or light commercial applications. Designed for underground feed installations, it supports single-phase systems and accommodates 3-wire configurations with a solid top hub for secure mounting and clean conductor routing.

The meter socket features 4 jaws, operates at 600 V, and supports conductor sizes ranging from 8 AWG to 350 kcmil, making it highly versatile for various service entrance setups. With a top/bottom mount configuration, it allows flexible installation based on utility and job-site needs.

Its rugged enclosure measures 13 inches in height, 13 inches in width, and 5 inches in depth, while weighing only 13 lb, making it easy to handle without compromising performance or protection.

Key Features:

• 200 A current rating
• 1-phase, 3-wire configuration
• 4 jaws for standard meter installation
• 600 V operating voltage
• Supports 8 AWG to 350 kcmil wire sizes
• Underground feed compatible
• Top and bottom mount flexibility
• Solid top hub for sealed entry
• 13 in overall height
• 13 in overall width
• 5 in overall depth
• 13 lb unit weight
• Durable and weather-resistant housing

Trust this meter socket for dependable service entrance performance, utility approval, and easy installation in modern power distribution systems.

Documents:

Catalogs - Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTRS223ACH
