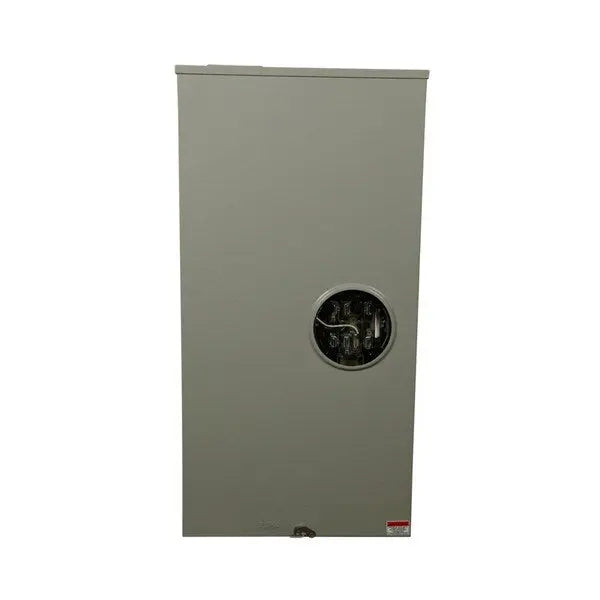

UTH73369UHLCH - Eaton Meter Socket

The Eaton Meter Socket is designed for robust and reliable performance in both commercial and residential service applications. Rated for 320 A and 600 VAC, this 1-position socket features a 7-jaw configuration and supports triplex 3-wire systems. It includes an over/under setup with a 5x5 inch hub cover plate, a lever bypass, and ringless construction for convenient maintenance. The socket accommodates conductor sizes from 14-1/0 AWG and 6-350 Kcmil, with a ground connector for 14-2 Cu wires, ensuring flexibility and secure connections.

Key Features:

• 320 A, 600 VAC rating suitable for commercial/residential use
• 1-position, 7-jaw, triplex 3-wire system for efficient power distribution
• Over/under configuration with lever bypass and ringless design
• Accepts 14-1/0 AWG and 6-350 Kcmil conductors
• Includes 5x5 inch hub cover plate and 14-2 Cu ground connector

This Eaton Meter Socket provides a durable and high-capacity solution for secure metering, ideal for demanding electrical service environments.

Documents:

Catalogs
Residential and Light Commercial, Metering Products, Volume 1 Tab 4

Specifications and datasheets
Eaton Specification Sheet - UTH73369UHLCH
