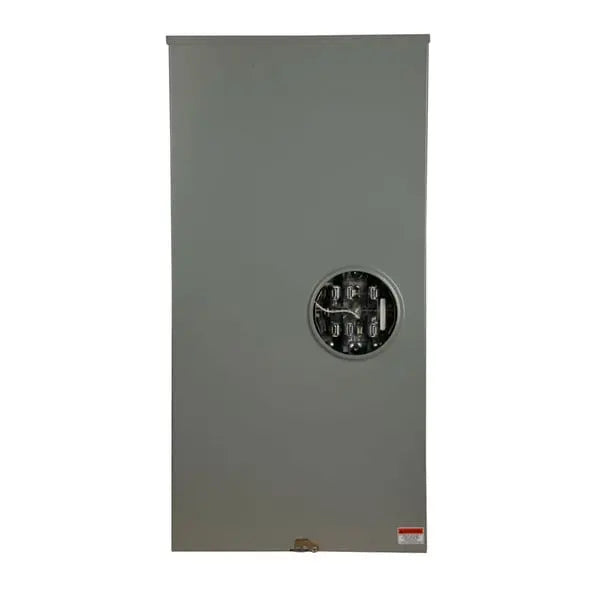

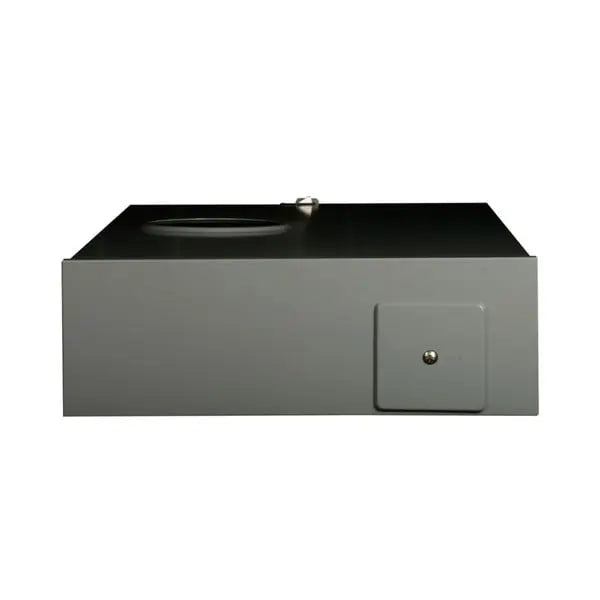

UTH7330UCH - Meter Socket

The Meter Socket is designed to provide a secure and reliable connection for metering in industrial, commercial, and residential applications. With a 320A amperage rating, this meter socket is suitable for high-power installations. It features a 5 x 5-inch hub cover plate and supports 3-phase, 4-wire configurations. The socket includes 7 jaws for metering and supports both AC and DC voltage up to 600V. The lever bypass provides easy and secure operation, while the top and bottom feed options offer flexibility during installation. Weighing 45 lbs, this meter socket is built for durability and long-lasting performance.

Key Features:

• Product Type: Meter Socket
• Amperage Rating: 320A
• Voltage Rating: 600V AC/DC
• Phase Configuration: 3 Phases, 4 Wires
• Jaw Count: 7 Jaws for accurate metering
• Hub: 5 x 5-inch Hub Cover Plate
• Bypass Type: Lever Bypass for easy operation
• Feed Type: Top/Bottom Feed for flexible installation
• Weight: 45 lbs
• Application: Ideal for industrial, commercial, and high-power residential metering applications

This Meter Socket is designed to ensure reliable and efficient metering, providing secure connections in demanding electrical systems.
