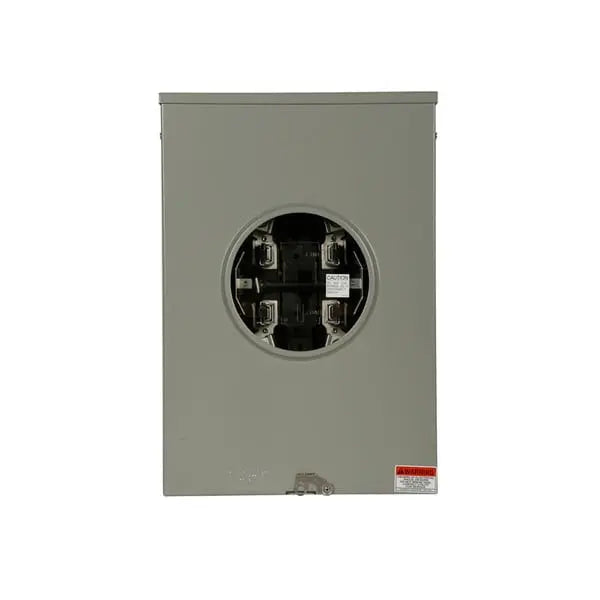

UTE4213BCH - Meter Socket

The Meter Socket is a reliable and durable solution for measuring electrical consumption in residential and commercial applications. Designed to accommodate 200A capacity, it is built with high-quality materials to ensure longevity and performance. This socket features a 4-jaw design with 3 wires and is rated for both AC and DC use up to 600V. With a lever bypass for added convenience, it offers a secure and efficient way to connect electrical meters. The socket supports top and bottom feed configurations and includes a 3-5/16 inch hub for easy connections.

Key Features:

• Product Type: Meter Socket
• Amperage Rating: 200A
• Voltage Rating: 600V AC/DC
• Design: 4 Jaws, 3 Wires
• Hub Size: 3-5/16 inch Open Hub

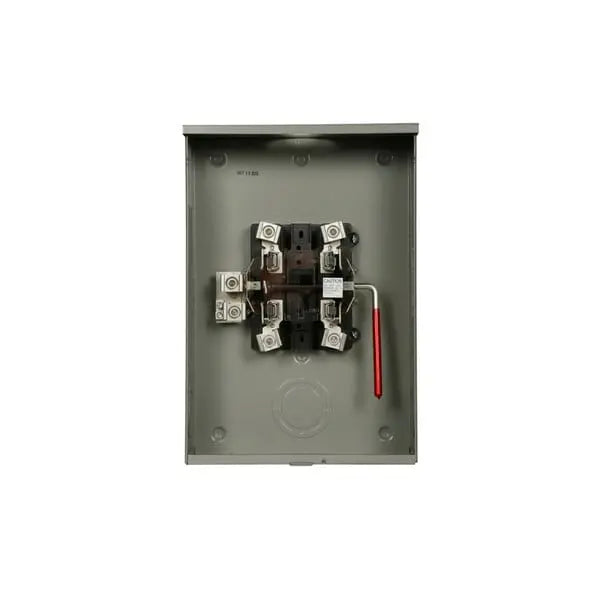

• Bypass Type: Lever Bypass for easy disconnect
• Feed Configuration: Top/Bottom Feed
• Dimensions: 19" Height x 13" Width x 4.94" Length
• Weight: 25 lbs
• Phase: 1-Phase
• Durability: Built for long-lasting use in demanding electrical environments

This meter socket is an essential component for reliable metering, ensuring safe and efficient operation in electrical systems while providing ease of use and flexibility in installation.

Documents:

Catalogs
Residential and Light Commercial, Metering Products, Volume 1 Tab 4

Specifications and datasheets
Eaton Specification Sheet - UTE4213BCH

Warranty guides
Selling Policy 25-000 - Distribution and Control Products and Services
