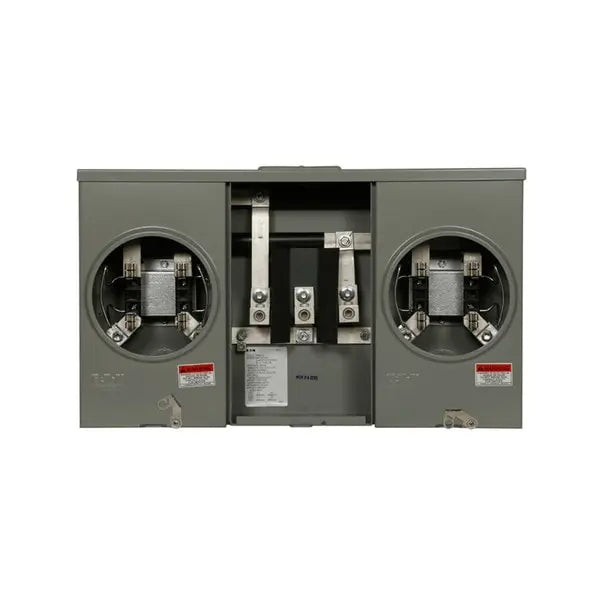

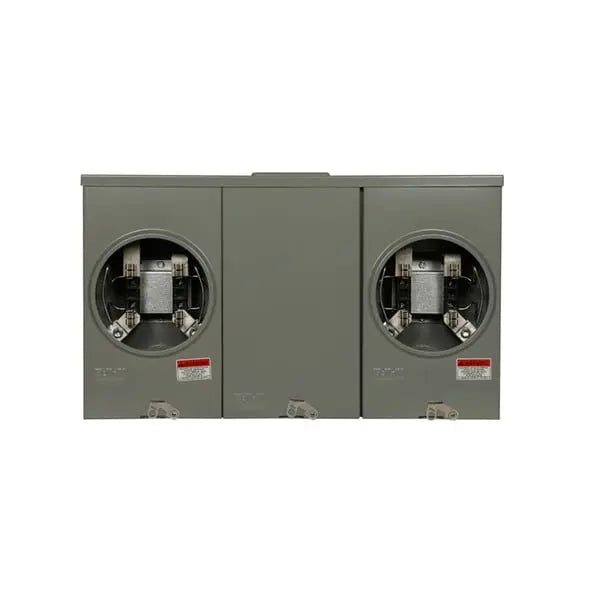

UT2R2332UCH - Meter Socket

The Meter Socket is designed for high-capacity residential or commercial electrical systems. Rated at 200 A, it features a 1-phase configuration with 4 jaws and 3 wires, supporting up to 600 V. With a durable 5 x 5 hub cover plate, this unit accommodates top and bottom feed, offering flexible installation options. It supports a wide wire size range from 6 AWG to 350 Kcmil, ensuring compatibility with various setups. The surface mount design measures 14.13 inches in height, 24.31 inches in width, and 5.38 inches in length for compact yet powerful performance.

Key Features:

• 200 A rating, 1-phase, 4 jaws, 3 wires, 600 V
• Top and bottom feed with 5 x 5 hub cover plate
• Supports 6 AWG to 350 Kcmil wire size
• Dimensions: 14.13 in H x 24.31 in W x 5.38 in L
• Ideal for residential or light commercial use

This Meter Socket delivers dependable power distribution in a compact, installation-friendly design.

Documents:

Catalogs
Residential and Light Commercial, Metering Products, Volume 1 Tab 4

Specifications and datasheets
Eaton Specification Sheet - UT2R2332UCH

Warranty guides
Selling Policy 25-000 - Distribution and Control Products and Services
