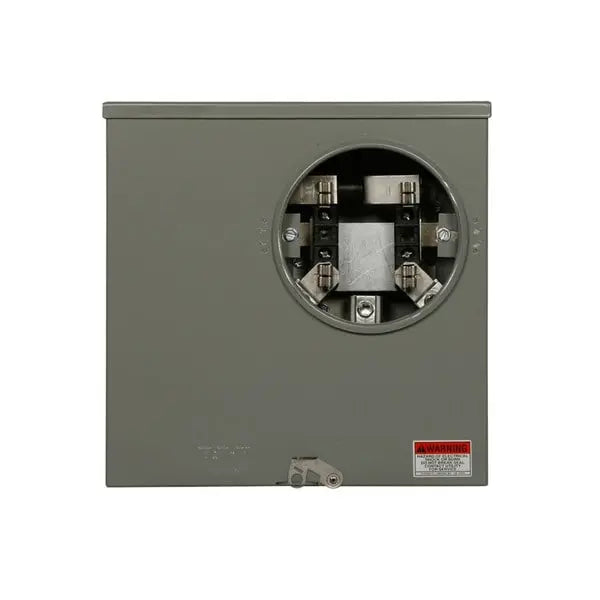

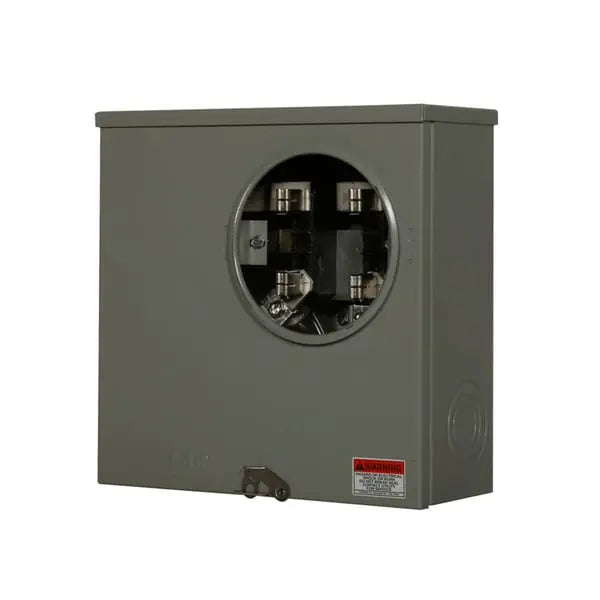

URTRS223ACH - Eaton Meter Socket

The Eaton Meter Socket is a reliable and efficient solution designed for residential and commercial electrical metering applications. Rated for 200A, this solid top meter socket is built for underground installations and features a robust design to ensure long-lasting durability. It supports a range of wire sizes from 8 AWG to 350 Kcmil and includes a four-jaw configuration for secure connections. This single-phase, three-wire socket is rated for 600V, providing secure and stable power distribution. The socket also includes a ring-type cover for added protection against tampering and environmental factors.

Key Features:

• Type: Meter Socket, Solid Top
• Amperage: 200 A
• Installation Type: Underground
• Wire Size Range: 8 AWG to 350 Kcmil
• Sockets: 1 socket, four-jaw configuration
• Phase/Wires: Single-phase, three-wire
• Voltage Rating: 600 V
• Cover Type: Ring for enhanced security
• Application: Suitable for residential and commercial metering installations

This meter socket ensures reliable and safe electrical metering, providing the necessary protection and ease of installation for both underground and exposed applications.

Documents:

Catalogs
Residential and Light Commercial, Metering Products, Volume 1 Tab 4

Specifications and datasheets
Eaton Specification Sheet - URTRS223ACH
