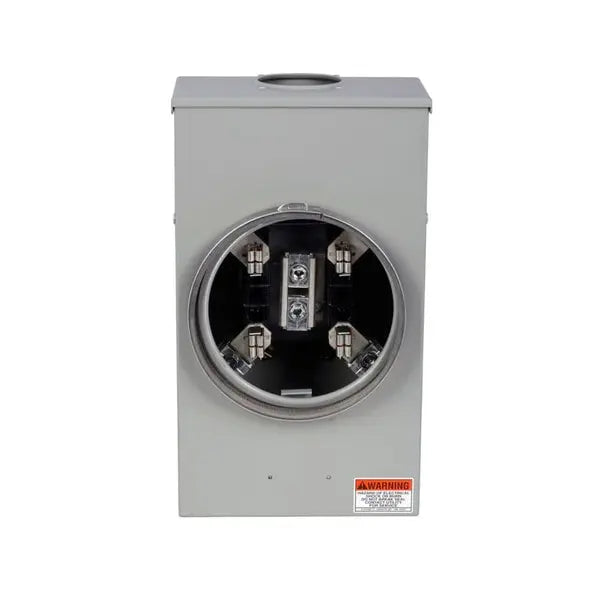

URTRS202BCH - Eaton Meter Socket

The Eaton UHTRS213BE Meter Socket is a high-quality, utility-approved device designed for residential and light commercial applications. It facilitates the safe and efficient connection of electrical meters to the power distribution system, ensuring reliable service and compliance with industry standards.

Key Features:

• Amperage Rating: 200 Amps
• Voltage Rating: 600 VAC
• Phase Configuration: Single-phase
• Number of Jaws: Four
• Wire Size Capacity: 6 AWG to 350 kcmil
• Hub Size: 3-5/16 inches
• Hub Type: Open
• Cover Type: Ringless
• Mounting Type: Surface mount
• Feed Type: Overhead, Underground, or Bottom
• Grounding: Includes ground lug for #14–#2 copper wire
• Type: 1-Position Horn Bypass Triplex Ground
• Dimensions: 4.48 inches (L) x 11.22 inches (W) x 15.11 inches (H)
• Standards Compliance: UL Listed

This meter socket is ideal for residential service entrances, providing a secure and tamper-resistant enclosure for utility meters. Its ringless design enhances safety by eliminating the need for a meter ring, and the horn bypass feature allows for safe meter removal and replacement without interrupting service.

Documents:

Catalogs
Residential and Light Commercial, Metering Products, Volume 1 Tab 4

Specifications and datasheets
Eaton Specification Sheet - URTRS202BCH
