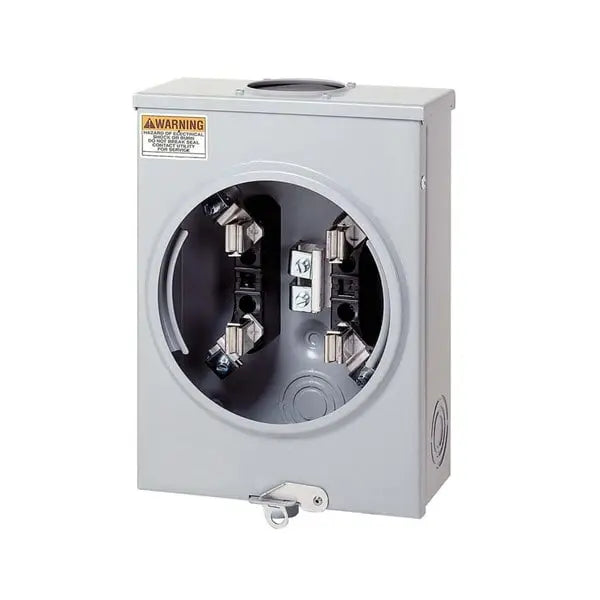

URS101BCH - Meter Socket

The Meter Socket is an essential component for safely housing electrical meters in residential or light commercial applications. With a 125A rating and a voltage capacity of 600V, this unit ensures reliable performance for single-phase systems. Constructed for durability and ease of installation, it features 4 jaws and supports wire sizes ranging from 8 AWG to 2/0 AWG.

Measuring 10.88 inches in overall height, 8 inches in width, and 3.5 inches in depth, this meter socket is designed for overhead feed installations. It offers top and bottom mounting options, providing flexibility to meet various installation requirements. The 3-5/16 inch opening hub allows for easy connection of conductors.

Key Features:

• Type: Meter Socket
• Amperage Rating: 125 A
• Voltage Rating: 600 V
• Phase: 1 Phase
• Wire Configuration: 3 Wires
• Jaw Count: 4 Jaws
• Mounting: Top/Bottom Mount
• Feed Type: Overhead
• Wire Size Compatibility: 8 to 2/0 AWG
• Hub Opening: 3-5/16 Inches
• Dimensions: 10.88″ Height x 8″ Width x 3.5″ Length
• Weight: 7 lb

This meter socket provides a compact, reliable, and easy-to-install solution for safely managing electrical metering in overhead feed applications.
