URECO 590W Glory TOPCon Bifacial Solar Panel

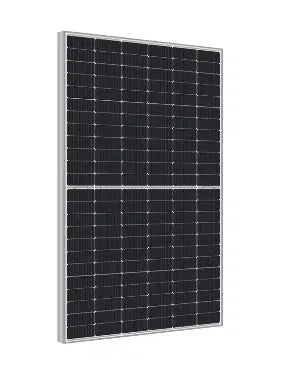

URECO 590W Glory TOPCon Bifacial Solar Panel – FBF590B81
The URECO Glory TOPCon FBF590B81 is a high-performance 590W N-Type TOPCon bifacial solar panel engineered for maximum energy yield in residential, commercial, and utility-scale solar installations. Manufactured by United Renewable Energy Co., Ltd. (URE) — a publicly traded Taiwanese company formed from the merger of four leading cell and module manufacturers — this panel delivers industry-leading efficiency and long-term reliability.
Key Features
- 590W Peak Power Output at Standard Test Conditions (STC)
- 22.84% Module Efficiency — among the highest in its class
- N-Type TOPCon Bifacial Technology — captures energy from both front and rear sides for up to 30% additional power gain
- 144 Half-Cut M10 TOPCon Cells for reduced resistive losses and superior shade tolerance
- Dual Glass Construction — anti-reflection coated tempered glass on both sides for enhanced durability
- Low Temperature Coefficient (-0.29%/°C) for stable performance in hot climates
- Excellent Low-Light Performance — optimized for morning, evening, and cloudy conditions
- PID Resistant — ensures consistent long-term performance
- High Mechanical Load Resistance — up to 7200 Pa (equivalent to 17-level wind load)
- IP68 Junction Box — fully weatherproof
- 1500V DC Maximum System Voltage
Electrical Specifications (STC)
| Parameter | Value |
|---|---|
| Maximum Power (Pmax) | 590 Wp |
| Module Efficiency | 22.84% |
| Voltage at Max Power (Vmpp) | 44.55 V |
| Current at Max Power (Impp) | 13.25 A |
| Open Circuit Voltage (Voc) | 52.87 V |
| Short Circuit Current (Isc) | 13.97 A |
| Maximum System Voltage | 1500 V DC |
| Series Fuse Rating | 30 A |
| Power Tolerance | 0 ~ +3% |
Temperature Characteristics
| Parameter | Value |
|---|---|
| Temperature Coefficient of Pmax | -0.29%/°C |
| Temperature Coefficient of Voc | -0.25%/°C |
| Temperature Coefficient of Isc | +0.05%/°C |
| Operating Temperature Range | -40°C to +85°C |
| NMOT | 43°C ± 2°C |
Mechanical Specifications
| Parameter | Value |
|---|---|
| Dimensions (L × W × D) | 2278 × 1134 × 30 mm (89.69" × 44.65" × 1.18") |
| Weight | 31.75 kg / 70.0 lbs |
| Cell Type | 144 Half-Cut M10 N-Type TOPCon |
| Front Glass | Anti-reflection coated tempered glass, 2.0 mm |
| Back Glass | Tempered glass, 2.0 mm |
| Frame | Anodized aluminum alloy (silver) |
| Junction Box | IP68, 3 diodes |
| Connector Type | MC4 / EVO2A (1500V) |
| Cable Length | 1200 mm, 4.0 mm² (IEC) / 12AWG (UL) |
| Maximum Load | 7200 Pa |
| Packaging | 30 pcs/pallet, 600 pcs/40' HQ container |
Warranty
- 25-Year Product Warranty
- 30-Year Linear Power Output Warranty
- Year 1: ≥99% of rated power
- Year 30: ≥85.95% of rated power
- Annual degradation rate: ≤0.47%
Certifications
- IEC 61215 / IEC 61730
- UL 61730
- IP68 Junction Box
- IEC 61701 Salt Mist Corrosion (Severity 8)
Applications
- Residential rooftop solar systems
- Commercial and industrial installations
- Utility-scale solar farms
- Ground-mount systems
- Off-grid and hybrid applications
About URECO (United Renewable Energy Co., Ltd.)
URECO is a publicly traded Taiwanese company (Taiwan Stock Code: 3576) formed in 2018 from the merger of four leading solar manufacturers: Neo Solar Power, Gintech, Solartech, and NDF — all in operation since 2008 or earlier. With over 400MW of projects installed in the United States and a 7-time winner of the Taiwan Excellence Award for Highest Efficiency Module, URECO is a trusted name in premium solar technology.
Datasheet: Download URECO FBF590B81 Datasheet (PDF)
