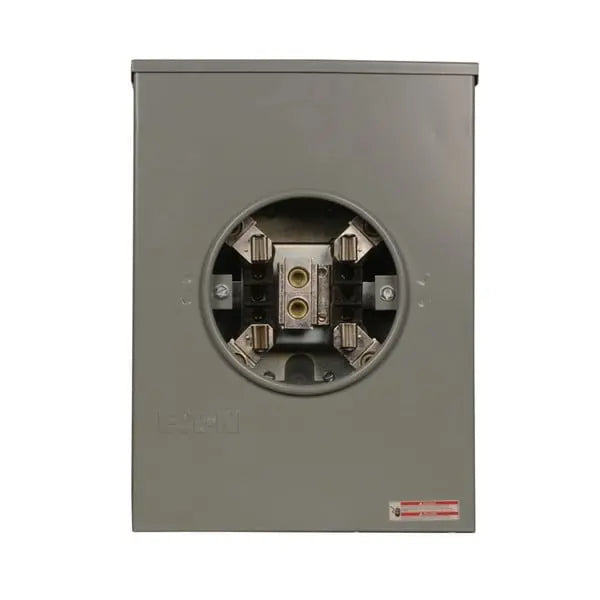

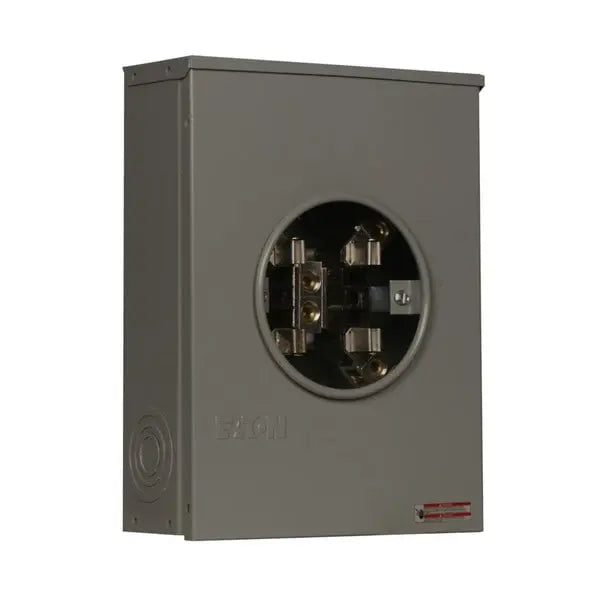

UNRRS213AEUSE - Meter Socket

The Meter Socket is a durable and high-capacity solution designed for residential and light commercial electrical metering applications. Rated at 200 amps and supporting up to 600 volts, this socket features a bottom feed configuration and accommodates wire sizes from 6 AWG to 350 kcmil. With a compact footprint and top/bottom mounting flexibility, it offers easy installation and long-term reliability. Its 4-jaw, 1-phase, 3-wire configuration makes it compatible with a wide range of utility metering systems.

Key Features:

• 200 A rating with 600 V capacity for residential or light commercial use
• Top/bottom mount design for installation flexibility
• Supports 1-phase, 3-wire systems with 4 jaws
• Accepts 6 AWG to 350 kcmil wire sizes
• Compact and durable build: 15.11 in height, 11.22 in width, 4.48 in length, 13 lb

The Meter Socket is a reliable and versatile choice for efficient and secure power metering installations.

Documents:

Catalogs
Residential and Light Commercial, Metering Products, Volume 1 Tab 4

Specifications and datasheets
Eaton Specification Sheet - UNRRS213AEUSE
