UNRRS101BEUSE - Meter Socket

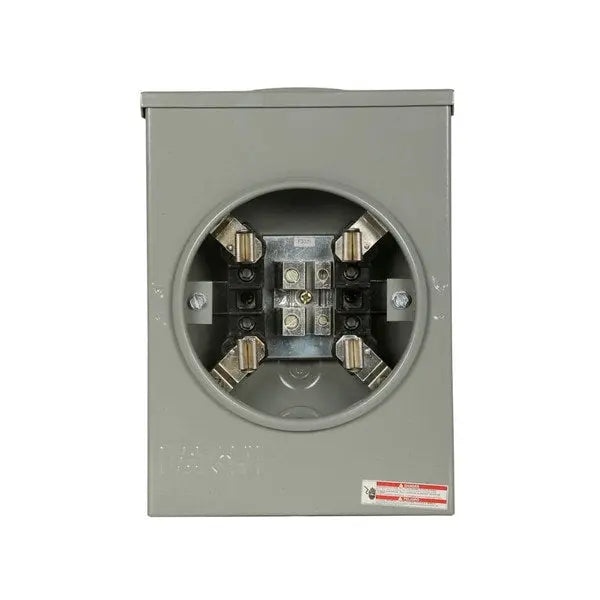

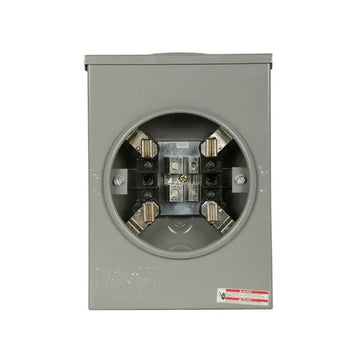

The Meter Socket is designed to provide secure and reliable metering for residential and commercial applications. Rated for 125 amps and 600V, it features a 4-jaw design for easy meter installation and supports wire sizes from 8 AWG to 2/0 AWG. The socket accommodates overhead feed configurations and includes a 3-5/16-inch opening hub for secure connections. With top and bottom mounting options, it is versatile and easy to install. The meter socket has overall dimensions of 11.05 inches in height, 8.22 inches in width, and 3.6 inches in length, with a total weight of 7.35 pounds.

Key Features:

• Product Type: Meter Socket
• Amperage Rating: 125 Amps
• Voltage Rating: 600V
• Mounting: Top/Bottom Mount

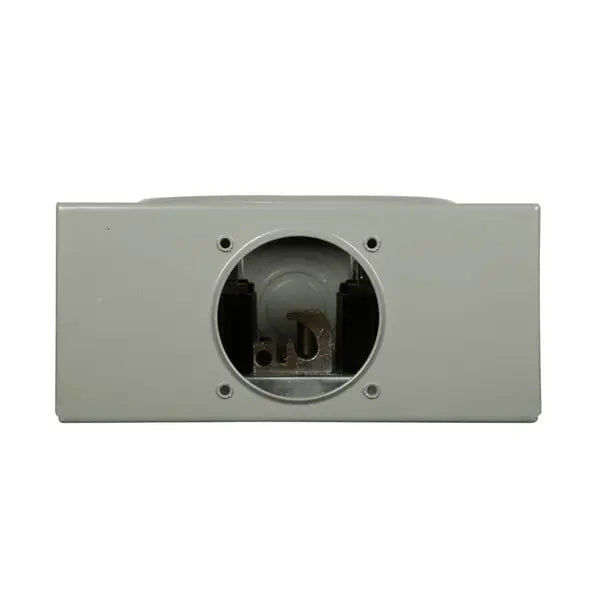

• Hub Size: 3-5/16-inch Opening Hub
• Number of Jaws: 4 Jaws
• Wire Size: 8 AWG to 2/0 AWG
• Feed Type: Overhead Feed
• Configuration: 3 Wires, Single-Phase
• Dimensions:
• Overall Height: 11.05 inches
• Overall Width: 8.22 inches
• Overall Length: 3.6 inches
• Weight: 7.35 lbs
• Application: Residential and commercial metering

The Meter Socket offers a durable and efficient solution for metering applications, ensuring a secure connection and reliable operation in a range of electrical systems.

Documents:

Catalogs
Residential and Light Commercial, Metering Products, Volume 1 Tab 4

Specifications and datasheets
Eaton Specification Sheet - UNRRS101BEUSE
