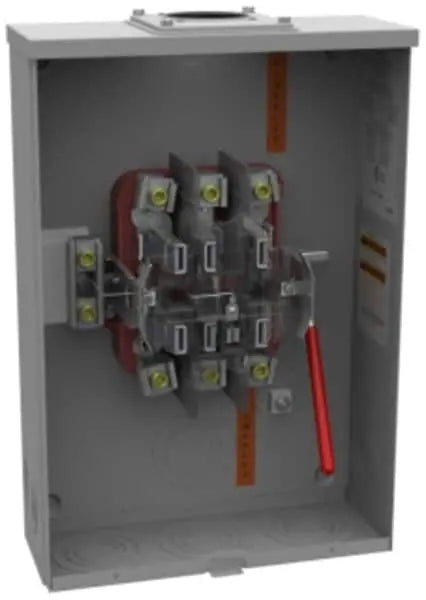

U9701-RRL - Meter Socket

The Meter Socket, 200 A is a highly reliable and efficient solution for metering applications in both residential and commercial electrical systems. This 200-amp rated socket is designed for surface mounting and features a robust 3-phase configuration, making it ideal for higher-capacity systems. It comes equipped with a large hub opening for easy cable entry, accommodating wire sizes from 6 AWG to 350 Kcmil. With 7 jaws and 4 wires, it ensures secure connections for multi-phase metering. The socket is rated for up to 600V AC and is suitable for both overhead and underground feed installations, offering flexibility for various applications.

Key Features:

• Current Rating: 200 Amps for reliable, high-capacity performance
• Overall Height: 19 inches for a compact, yet functional design
• Overall Width: 13 inches for efficient space utilization
• Overall Length: 4-7/8 inches for easy installation in various environments
• Mounting: Surface mount for easy installation on exterior surfaces
• Phase: 3 Phases, ideal for multi-phase electrical systems
• Hub Type: Large hub opening for easier cable entry and connection
• Meter Jaw Configuration: 7 Jaws for secure multi-phase meter connections
• Wire Configuration: 4 Wires for standard multi-phase metering
• Voltage Rating: Rated for 600V AC for safe, high-performance operation
• Wire Size Compatibility: Accommodates wire sizes from 6 AWG to 350 Kcmil
• Feed Type: Suitable for both Overhead and Underground feed systems

The Meter Socket, 200 A provides exceptional reliability and flexibility for metering in both residential and commercial settings. Its rugged construction, large hub opening, and support for a wide range of wire sizes make it a versatile and durable choice for various electrical systems.

Documents:
product spec sheet
