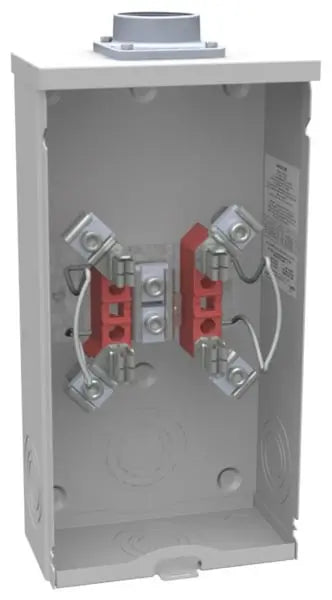

U7021-DL-TG - Meter Socket

The Meter Socket, 200 A is a reliable and durable solution for safely housing electrical meters in residential or commercial electrical systems. Designed for surface mounting, this meter socket is compact and efficient, featuring a 200A current rating and built to handle up to 600V AC. With a 1-phase configuration and a 2-inch bolt-on hub, it supports a wide range of wire sizes, from 6 AWG to 350 Kcmil. This socket is ideal for overhead feed installations and provides secure and easy meter connections with 4 jaws for standard meter integration.

Key Features:

• Current Rating: 200 Amps for high-capacity installations
• Overall Height: 15-1/2 inches for a compact design
• Overall Width: 8 inches for efficient space utilization
• Overall Length: 4-1/8 inches for a space-saving installation
• Mounting: Surface mount for easy installation on exterior surfaces
• Phase: 1 Phase, designed for standard residential and commercial use
• Hub Type: 2-inch bolt-on hub for secure and flexible cable entry
• Meter Jaw Configuration: 4 Jaws for secure meter connections
• Voltage Rating: 600V AC for reliable and safe operation
• Wire Size Compatibility: Accommodates wire sizes from 6 AWG to 350 Kcmil
• Feed Type: Overhead feed for flexible installation options
• Weight: 10.5 lbs, making it lightweight and easy to handle

The Meter Socket, 200 A offers a reliable, compact, and easy-to-install solution for overhead feed applications. Its sturdy construction, broad wire size compatibility, and user-friendly design make it an ideal choice for ensuring safe and efficient electrical metering in various environments.
