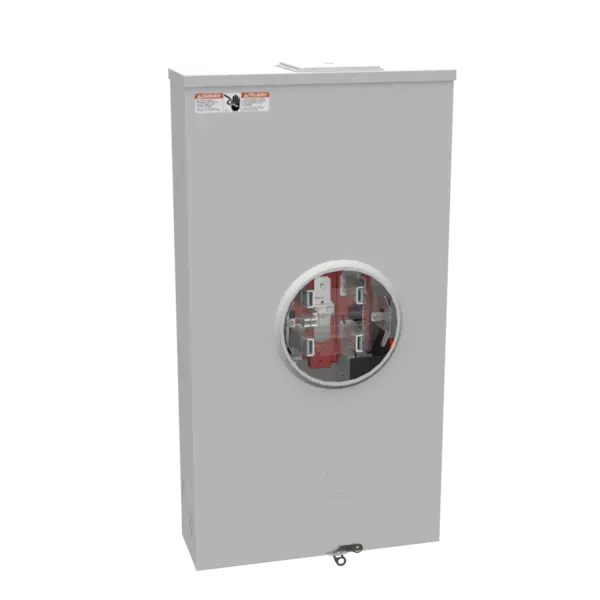

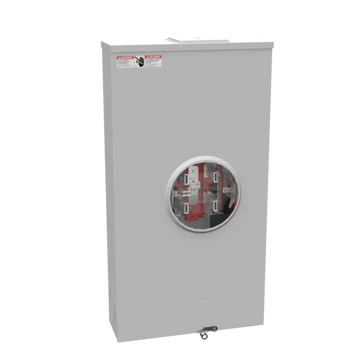

U4702-X-5T9-K3-K2-IL - 5 Term RNGLS LRG CLS PLT LVR Byps 5TH Term 9 Oclock Pos SGL Conn 4-600KCMIL DBL Conn 6-350KCMIL 7-16 In Ko LCK Prov

The 5 Term RNGLS LRG CLS PLT LVR Byps 5TH Term 9 O'clock Pos SGL Conn 4-600KCMIL DBL Conn 6-350KCMIL 7-16 In Ko LCK Prov is a detailed electrical component designed for high-capacity electrical systems. This device features a large, closed plate lever bypass configuration with five terminals for efficient connections. Positioned at the 9 o'clock position, it offers both single and double connections for different wire sizes. The single connection accommodates 4 AWG to 600 Kcmil, while the double connection supports 6 AWG to 350 Kcmil wires. Additionally, the device includes provisions for locking with 7/16-inch knockout size for secure installation and to prevent tampering or accidental disconnection.

Key Features:

• Terminals: 5 terminals
• Configuration: Large closed plate lever bypass
• Bypass: 5th terminal for bypass functionality
• Position: 9 o'clock terminal position
• Connections:
• Single connection: 4 AWG to 600 Kcmil
• Double connection: 6 AWG to 350 Kcmil
• Knockout Size: 7/16-inch knockout provisions
• Locking Provision: Built-in locking provisions for secure installation
• Application: Suitable for large electrical systems requiring high-capacity connections

This component is designed to ensure safe, secure, and efficient wiring configurations in complex electrical installations.

Documents:

Manufacturer Spec Sheet
Product Spec Sheet

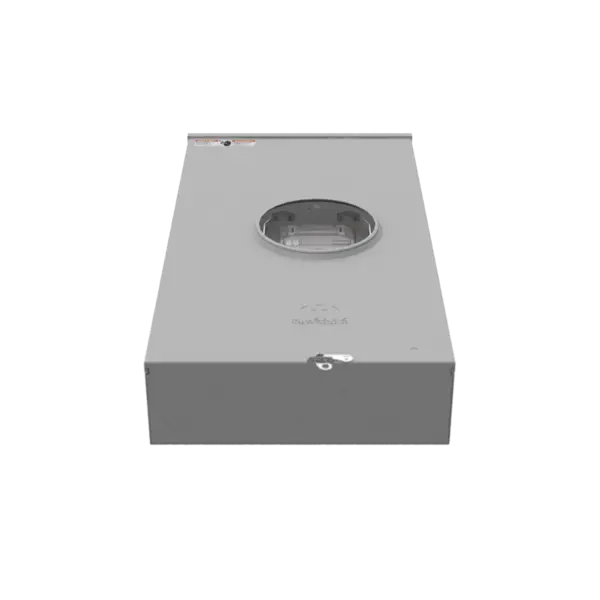

Additional Image(s)
