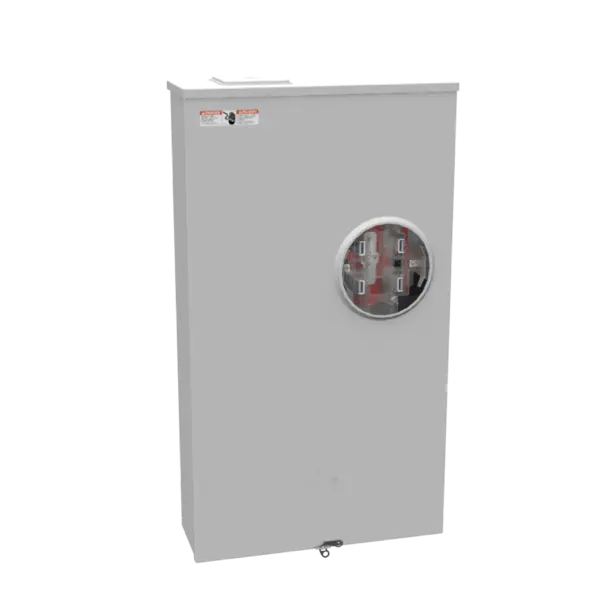

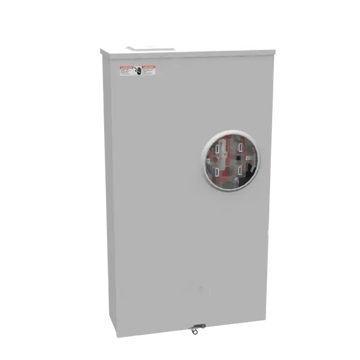

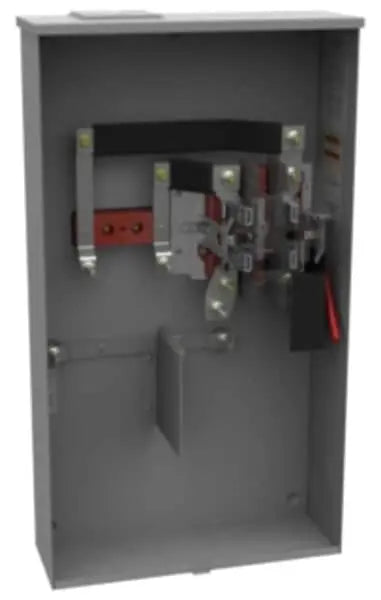

U4257-X - Meter Socket

The Meter Socket is a high-performance solution designed to handle electrical metering in both residential and commercial applications. With a 320A current rating and a 600V AC voltage rating, this socket is built to provide secure and reliable connections for a wide range of electrical systems. It is designed for 1-phase service and features a large closing plate hub for easy installation, offering flexibility for both overhead and underground feed configurations. The socket comes equipped with 4 jaws and is configured for 3-wire systems, ensuring compatibility with standard metering setups.

With an overall height of 34-1/8 inches, overall width of 19 inches, and overall length of 6-1/2 inches, this meter socket is sized for robust and dependable performance. It is engineered for surface mount installation, providing ease of access for maintenance and system checks. Weighing 51 lbs, it is designed to be durable yet manageable during installation.

Key Features:

• Accessory Type: Meter Socket
• Current Rating: 320A
• Voltage Rating: 600V AC
• Configuration: 1 Phase, 4 Jaws, 3 Wires
• Hub Type: Large Closing Plate Hub for ease of installation
• Feed Type: Suitable for Overhead or Underground Feed
• Mounting Type: Surface Mount
• Dimensions: 34-1/8 in Height, 19 in Width, 6-1/2 in Length
• Weight: 51 lbs

This meter socket offers secure metering for high-load electrical systems, with a versatile hub that allows for both overhead and underground feed connections. Its sturdy construction, large closing plate hub, and easy-to-mount design make it a go-to choice for efficient, long-lasting electrical management. Whether you're installing for residential or commercial use, this meter socket delivers the durability and performance required for demanding environments.
