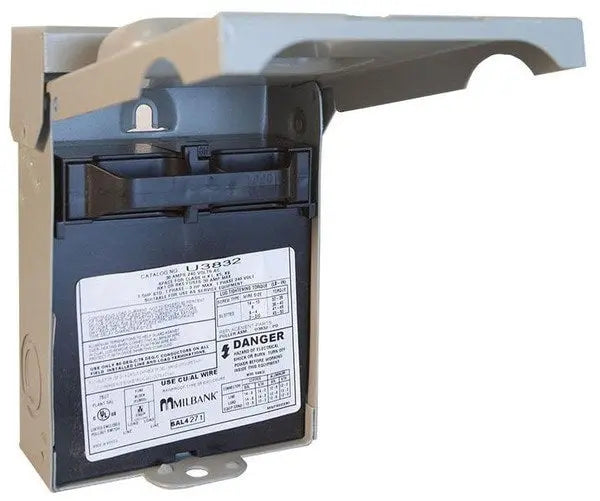

U3832 - Air Conditioner Disconnect
The Air Conditioner Disconnect is a vital safety component designed for residential and light commercial HVAC systems. Rated at 30 Amps and 240 Volts, this 2-pole, single-phase disconnect provides a secure and convenient means to manually shut off power to an air conditioning unit during maintenance or in emergency situations. With a 3 HP motor rating, it supports a wide range of standard cooling systems.
Constructed with a galvanized steel enclosure in a light gray finish, this disconnect is built for durability and corrosion resistance in outdoor or indoor environments. It supports 14 to 3 AWG copper or aluminum wire, offering installation flexibility. Compact in design, it measures 5 inches in overall length, 2-1/8 inches in width, and 7 inches in height, making it ideal for space-constrained applications.
Key Features:
- Product Type: Air Conditioner Disconnect
- Amperage: 30 Amps
- Voltage: 240 Volts
- Poles / Phase: 2 Poles, 1 Phase
- Horsepower Rating: 3 HP
- Enclosure Material: Galvanized Steel
- Enclosure Color: Light Gray
- Wire Range: 14 to 3 AWG (Copper/Aluminum)
- Dimensions: 5 in (L) x 2-1/8 in (W) x 7 in (H)
- Application: Safe power disconnect for HVAC maintenance and emergency shutoff
The 30A Air Conditioner Disconnect is a rugged, code-compliant solution for ensuring HVAC system safety and serviceability in a compact, weather-resistant design.
Documents:
