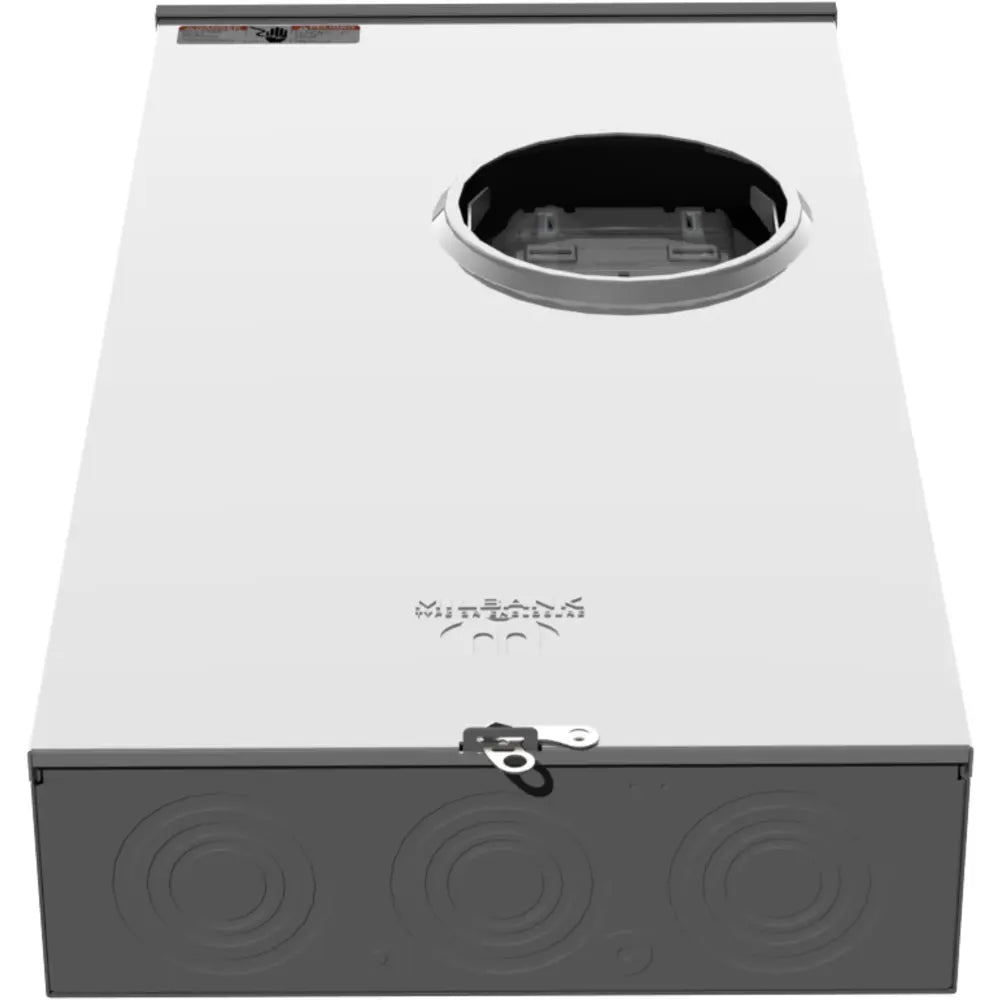

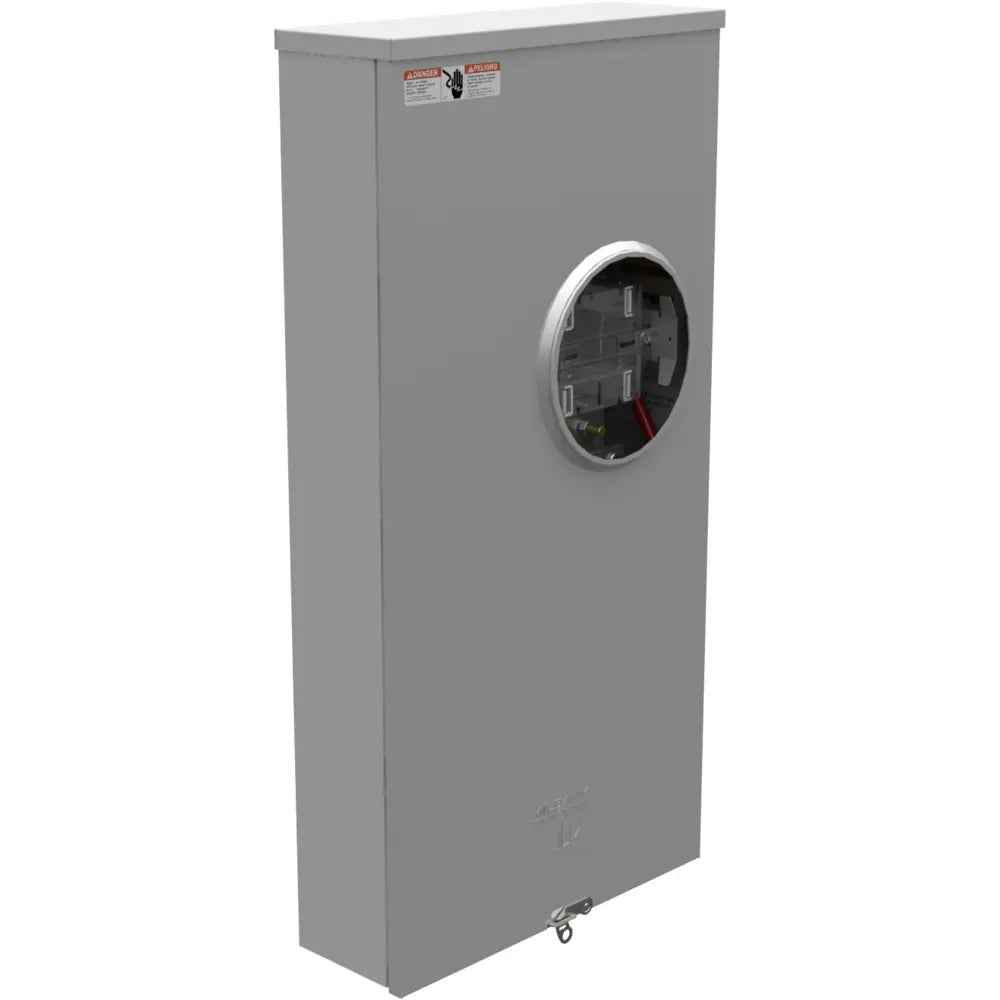

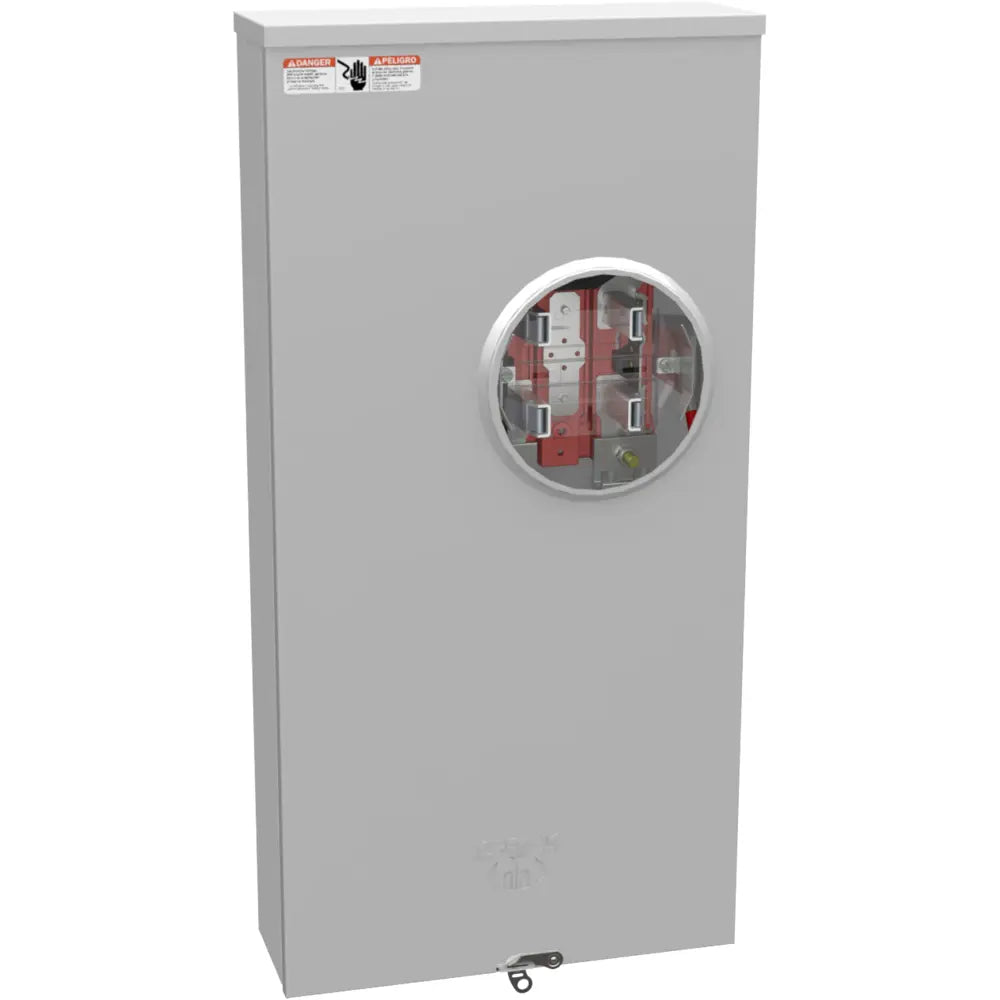

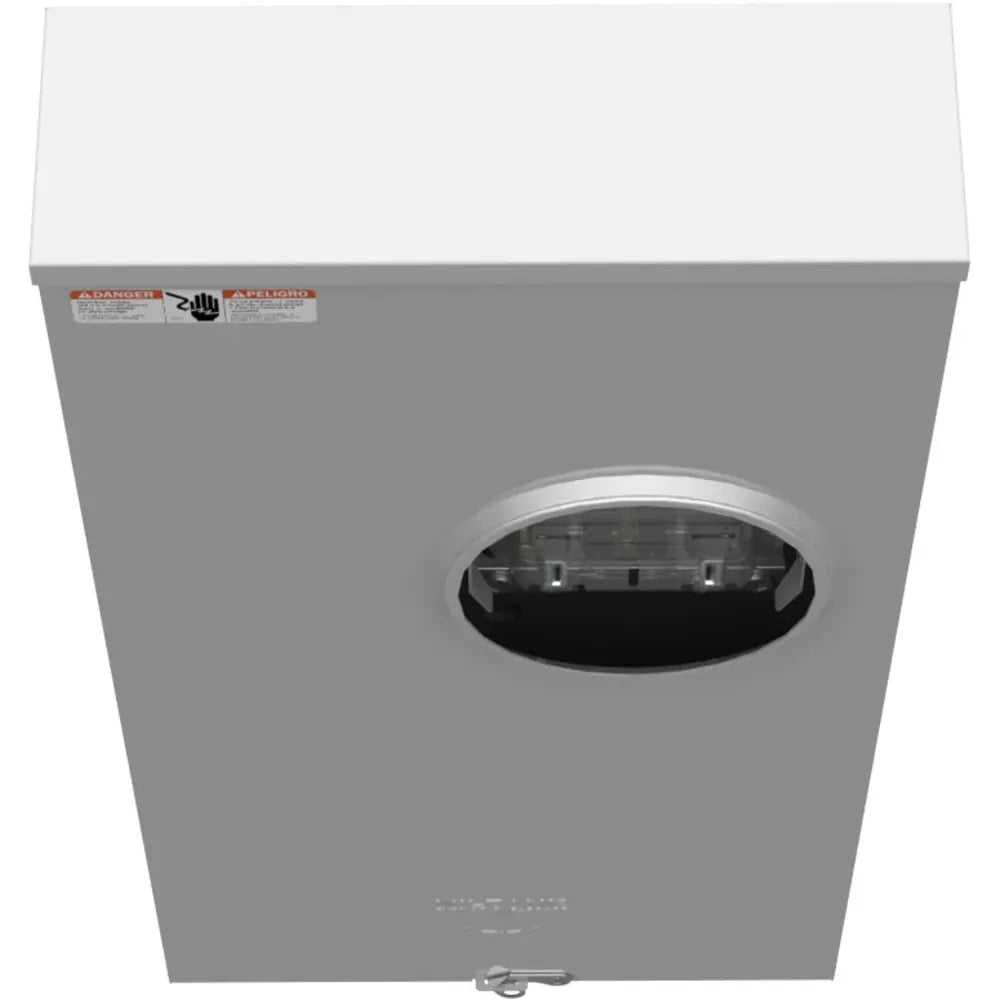

U17970K3LK2L - 320A 1PH Ug 4T LVR Bypass Meter Socket

Features and Benefits of the 320A Meter Socket U17970K3LK2L

320A 1PH Ug 4T LVR Bypass Meter Socket
Meter Socket, 320 A, 30 In Overall Height, 15 In Overall Width, 4-7/8 In Overall Length, Surface Mount, 1 Phase, Plain Top Hub, 4 Jaws, 4 Wires, 600 V Ac, #4 Awg to 600 Kcmil;1/0 Awg to 250 Kcmil;#6 Awg to 350 Kcmil Wire Size, Underground Feed, 32.4 LB

Key Features:

Documents:

Specification Sheet
U17970K3LK2L - Specification Sheet

Overview of the 320A Meter Socket's Design and Capacity

The 320A meter socket U17970K3LK2L is engineered to deliver superior performance for single-phase electrical metering applications. Designed with a 320 amp rating, this meter socket offers robust capacity suitable for residential and light commercial installations. Its underground (Ug) rated enclosure ensures durability and reliable protection against environmental elements. The four-terminal (4T) configuration allows for straightforward wiring compatibility, making it an ideal choice for modern electrical setups seeking efficiency and safety.

Key Features of the Bypass Meter Socket

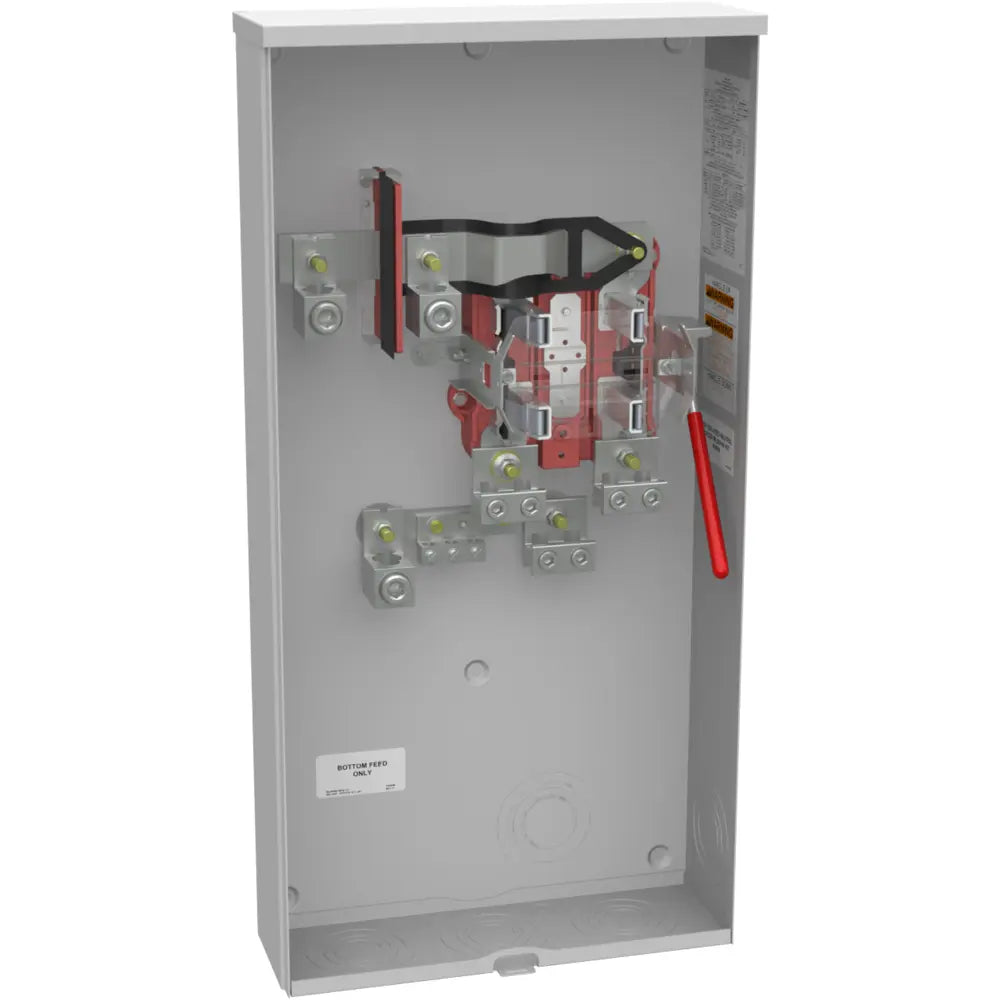

This 1-phase, 4-terminal meter socket features a bypass mechanism which enhances service continuity when removing or replacing meters. The bypass design allows for uninterrupted power flow during maintenance, minimizing downtime and enhancing operational convenience. Constructed with high-quality materials, the bypass socket provides secure connections and resists corrosion. The socket’s locking provisions also ensure tamper resistance, which helps maintain meter security and prevents unauthorized access.

Applications and Installation Considerations

The U17970K3LK2L meter socket is particularly suited for underground residential feeders and other low voltage utility metering needs. Its design supports easy installation in both new and retrofit projects. When installing the 320A meter socket, attention to grounding and proper line connections is crucial to ensure optimal operation and safety. This socket’s compact profile and weather-resistant construction allow it to perform reliably in outdoor environments, providing long-term service with minimal maintenance requirements.
